IVSS7108

Ultra series | DHI-IVSS7108     System Overview  Dahua IVSS goes beyond the ordinary NVR products. It is an Intelligent  Video Surveillance Server that combines video management features  with traditional video storage functions in one device. Besides the basic  functions as a network video recorder, IVSS is integrated with features  such as face detection and face recognition for different business and  industrial applications.  An all new UI design supports device operation and maintenance  management, improving the value and experience of surveillance view,  and serving the era of security big data.   Functions  Face Recognition (with AI camera)  Supports real-time Face Detection & Recognition (with AI camera).  Shows real-time face detection and recognition results from AI camera.  Records faces with video metadata. Facial features are filtered during  real-time display, so as to show only faces with target features. Facial  features include gender, age, expression, and more. The linkage actions  for face detection and recognition events are configurable, including  alarm, buzzer, snapshot, video recording, and more.  AI IVS(with AI camera)  With deep learning algorithm, AI IVS technology can ...

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

Ultra series | DHI-IVSS7108

System Overview
Dahua IVSS goes beyond the ordinary NVR products. It is an Intelligent
Video Surveillance Server that combines video management features
with traditional video storage functions in one device. Besides the basic
functions as a network video recorder, IVSS is integrated with features
such as face detection and face recognition for different business and
industrial applications.
An all new UI design supports device operation and maintenance
management, improving the value and experience of surveillance view,
and serving the era of security big data.
Functions
Face Recognition (with AI camera)
Supports real-time Face Detection & Recognition (with AI camera).
Shows real-time face detection and recognition results from AI camera.
Records faces with video metadata. Facial features are filtered during
real-time display, so as to show only faces with target features. Facial
features include gender, age, expression, and more. The linkage actions
for face detection and recognition events are configurable, including
alarm, buzzer, snapshot, video recording, and more.
AI IVS(with AI camera)
With deep learning algorithm, AI IVS technology can recognize human
and vehicle accurately. In restricted area (such as pedestrian area and
vehicle area), the false alarms of intelligent detection based on target
type (such as tripwire, intrusion, parking detection, loitering detection
and crowd gathering estimation) are largely reduced.
Video Metadata (with AI camera)
Metadata is feature attribute information extracted from a target object
which can be used for data retrieval. Currently, there are four main kinds
of metadata in the security industry: Human face, human body, and
motor vehicle, non-motor vehicle metadata.
www.dahuasecurity.com
· Industry embedded micro-controller
· Max 512Mbps incoming bandwidth
· 128-channel IP video access
· Supports RAID 0/1/5/6/10/50/60
· 4 HDMI/1 VGA video output
DHI-IVSS7108

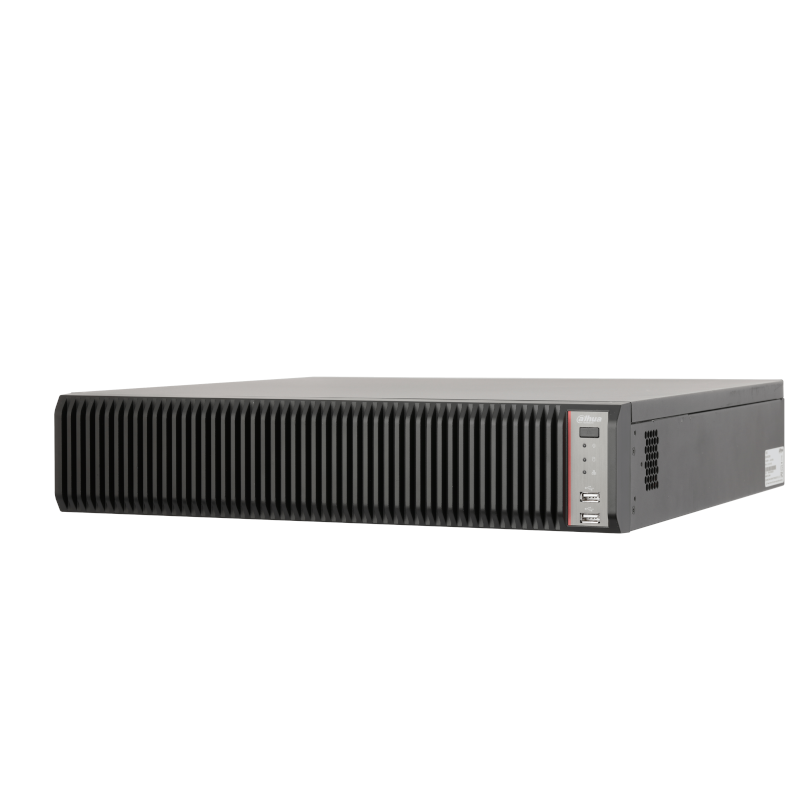

2U 8HDDs Intelligent Video Surveillance Server

ANPR
Automatic Number Plate Recognition available for convenient entrance/
exit management. This feature provides number plate recognition
(working with Dahua ITC camera), number plate comparison with
blocklist/allowlist, vehicle database management, and vehicle record
search.
N+M Hot Standby
The highly reliable redundancy N+M Hot Standby design provides a
secure failover technique to ensure immediate backup. In the event of
a system failure, the sub device instantly takes over the main device to
ensure no data loss.
Smart Tracking
The automatic tracking PTZ feature automatically tracks a moving target
throughout the camera's field of view. This function is ideal for following
an object as it moves through airports, parking lots, city centers, or other
scenes.

www.dahuasecurity.com
Ultra series | DHI-IVSS7108

Technical Specification
System
Main Processor Industry embedded micro-controller
Operating SystemEmbedded Linux OS
Operation Interface
WEB (PCAPP), local GUI
AI Applications
AI by Camera
Face detection, face recognition, entries frequency,
video metadata,
IVS (tripwire, intrusion, abandoned object, missing
object, fast moving, parking detection) crowd gathering,
loitering,parking, and fence-crossing),
people counting, smoking detection, call detection
IVS
Perimeter Function (AI by
Camera)
64-channel
Human Face Detection
Human Face Properties
Supports 6 properties: Gender, age range (6-level),
glasses, expression (8 types), mouth mask, and beard
Face Detection
Performance (AI by
Camera) (Channel
Number)
64-channel
ANPR
Plate Database Capacity
50 plate databases with 500,000 plate numbers in
totalSupports allowlist and blocklist
Plate Detection
Performance
32-channel
Video Metadata
Human Body Properties
Gender, age, sleeves length, top color, bottom type,
bottom color, bag, rain coat, umbrella, hat, hairstyle,
direction, hold a baby, mouth mask
Vehicle Properties
Vehicle type, vehicle color, plate color, logo, calling,
seatbelt, ornament, region
Non-motorized Vehicle
Properties
Non-motor vehicle type, non-motor vehicle color,
number of passengers, umbrella, rain coat, bag , sleeve
length, top color, hat, hair style, mouth mask
Metadata Performance
(AI by Device) (1080P)
(Channel Number)
N/A
Metadata Performance
(AI by Camera) (Channel
Number)
32-channel
Video Parameters
Remote Connection 128
Network Bandwidth
Incoming bandwidth: 512Mbps
Recording bandwidth: 400Mbps
Outgoing bandwidth: 512Mbps
Resolution
32MP/24MP/16MP/12MP/8MP/6MP/5MP/4MP/3MP/10
80P/960P/720P/D1/CIF/QCIF
Decoding Capability
1-channel 32MP/1-channel 24MP/2-channel 16MP/5-
channel 12MP (20fps)/6-channel 12MP (15fps)/5-
channel 8MP (30fps)/10-channel 8MP (15fps)/6-channel
6MP(30fps)/8-channel 5MP(30fps)/9-channel 5MP
(25fps)/10-channel 4MP (30fps)/15-channel 4MP
(20fps)/16-channel 3MP (25fps)/10-channel 1080P
(60fps)/20-channel 1080P (30fps)/30-channel 720P
(30fps)

Video Output
1-channel VGA output, 4-channel HDMI output , VGA
1/HDMI 1 outputs the same video source. Supports 4K
output
Multi-screen Display
Customized display. Max. 36-channel local live view.
Max.16-channel PCAPP live view
Third-party Support
Onvif, RTSP, Sony, Panasonic, Axis, Arecont,
Pelco,Canon, Samsung
Compression
Video Compression Smart H.265+/Smart H.264+/H.265/H.264
Audio CompressionG.711A/G.711U/PCM/G726
Network
Protocol
HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP,
DHCP, DNS, DDNS, P2P
Mobile PhoneDMSS
Interoperability ONVIF(Profile S, T and G), CGI, SDK
Browser Chrome, PCAPP, IE9 or higher, Firefox
Network Mode
NIC binding mode such as multiple-address mode, load
balance, fault-tolerance, etc
Record Playback
Multiple-channel Playback Max. 16-channel playback
Record Search
Search video detection/manual record/IO alarm/
intelligent event/all record file
Storage MediumInternal HDD
Backup MethodHDD, peripheral USB storage device
Playback Function
1. Play/pause/stop/fast forward/fast backward/reverse
play/frame by frame play.
2. Full-screen, backup (clip/file), snapshot, digital zoom,
audio on/off
Storage
HDD Group8
RAIDRAID0/1/5/6/10/50/60
Storage Pool N/A
Alarm
General Alarm Motion detect, tampering, local alarm
Anomaly Alarm
IPC offline alarm, storage error, HDD full, IP conflict,
MAC conflict, login lock, fan malfunction
Intelligent Alarm
Human face detection, human face recognition, video
metadata (person/vehicle/non-motor vehicle), IVS,
plate recognition, people counting, smoking, call
Alarm Linkage
Record, picture storage (full image), local external alarm
output, IPC external alarm output, access & control,
audio prompt, buzzer, log, preset, email
Peripheral Interface
Audio Input1-channel, RCA port (reserved)
Audio Output
2-channel, RCA port , speaker output, audio linkage
output
Alarm Input16-channel
Alarm Output8-channel
Internal HDD8 slots, SATA3.0. Max.16T/HDD

Ultra series | DHI-IVSS7108
Dimensions(mm[inch])
eSATA 1 port
SAS N/A
RS-232 1 port, for debug or transparent COM data
RS-485
1 port, control peripheral PTZ and so on. Supports
various protocols
USB
2 USB2.0 ports at the front panel and 2 USB3.0 ports at
the rear panel
HDMI 4 ports; support 4K output
VGA 1 ports
Network 4 RJ-45 10/100/1000Mbps self-adaptive Ethernet ports
Power 1 port
PoE N/A
General Parameters
Power Supply 100V AC–240V AC 50-60%Hz
Power Consumption
35 W (without HDD, idling)
100 W (all HDDs connected)
Net Weight7.66 kg (16.89 lb)
Gross Weight 10.24 kg (22.58 lb)
Dimensions
Chassis: 439.7 mm x 446.2 mm x 89 mm
(17.31 " x 17.57 " x 3.50 ")
Max. size: 481.7 mm (with hanger) x 446.2 mm x 90.8
mm (with feet mat) (18.96 " x 17.57 " x 3.57 ")
Packaging Dimensions
With Packaging: 562 mm x 599 mm x 235 mm
(22.13 " x 23.58 " x 9.25 ")
Protection box: 491 mm x 584 mm x 631 mm
(19.33 " x 22.99 " x 24.84 ")
Operating Temperature0 °C to +45 °C (+32 °F to +113 °F)/10%RH–90% RH
Storage Temperature 0 °C to +40 °C (+32 °F to +104 °F)/30%RH–85% RH
Operating Humidity 10%–90%
Storage Humidity 30%–85%
Operating Altitude 5000 m (16404.20 ft)
Installation Mode Desktop/rack
Certifications
CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN
50130, EN 55024
FCC: Part 15 Subpart B
UL 60950-1

Rev 001.001© 2021 Dahua. All rights reserved. Design and specifications are subject to change without notice.
Pictures in the document are for reference only, and the actual product shall prevail.

www.dahuasecurity.com
