IVSS7024-16M

www.dahuasecurity.com  · Industry embedded micro-controller  · Max 512 Mbps incoming bandwidth  · 256-channel IP video access  · Up to 192-channel AI IVS  · Up to 192-channel face recognition with normal IPC  · Up to 256-channel face recognition with face detection IPC  · Up to 192-channel video metadata  · Up to 50 face databases with 500,000 face pictures in total  · Supports RAID 0/1/5/6/10/50/60  · 3 HDMI/1 VGA video output  DHI-IVSS7024-16M   4U 24HDDs WizMind Intelligent Video Surveillance Server     Series Overview  Dahua IVSS goes beyond the ordinary NVR products. It is an Intelligent  Video Surveillance Server that combines video management features  with traditional video storage functions in one device. Besides the basic  functions as a network video recorder, IVSS is integrated with features  such as face detection and face recognition for different business and  industrial applications.  With the build-in deep learning module, IVSS series products adopt video  image metadata technology based on deep learning algorithms,  offering high-precision human face recognition and perimeter  protection. By applying deep learning artificial intelligence, IVSS allows  users to focus on what matt...

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

www.dahuasecurity.com
· Industry embedded micro-controller
· Max 512 Mbps incoming bandwidth
· 256-channel IP video access
· Up to 192-channel AI IVS
· Up to 192-channel face recognition with normal IPC
· Up to 256-channel face recognition with face detection IPC
· Up to 192-channel video metadata
· Up to 50 face databases with 500,000 face pictures in total
· Supports RAID 0/1/5/6/10/50/60
· 3 HDMI/1 VGA video output

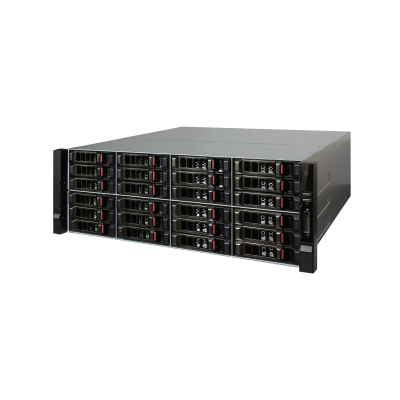

DHI-IVSS7024-16M
4U 24HDDs WizMind Intelligent Video Surveillance Server

Series Overview
Dahua IVSS goes beyond the ordinary NVR products. It is an Intelligent
Video Surveillance Server that combines video management features
with traditional video storage functions in one device. Besides the basic
functions as a network video recorder, IVSS is integrated with features
such as face detection and face recognition for different business and
industrial applications.
With the build-in deep learning module, IVSS series products adopt video
image metadata technology based on deep learning algorithms,
offering high-precision human face recognition and perimeter
protection. By applying deep learning artificial intelligence, IVSS allows
users to focus on what matters most, to improve event response time
and help make video actionable.
An all new UI design supports device operation and maintenance
management, improving the value and experience of surveillance view,
and serving the era of security big data.
Functions
Face Recognition
Supports recording faces by metadata and real-time crosscheck
with incredible accuracy to figure out the face with target features.
With the Regular and Stranger face mode, IVSS triggers various kinds of
alarm actions for different applications.
AI IVS
With deep learning algorithm, AI IVS technology can recognize human
and vehicle accurately. In restricted area (such as pedestrian area and
vehicle area), the false alarms of intelligent detection based on target
type (such as tripwire, intrusion, parking detection, loitering detection
and crowd gathering estimation) are largely reduced.
Launched by Dahua Technology, Dahua WizMind is a full portfolio of
solutions composed of project-oriented products including IPC, NVR,
PTZ, XVR, Thermal and software platform which adopts industry-leading
deep learning algorithms. Focusing on customer’s requirements,
WizMind provides precise, reliable and comprehensive AI solutions for
verticals.
Video Metadata
Metadata is feature attribute information extracted from a target object
which can be used for data retrieval. Currently, there are four main kinds
of metadata in the security industry: Human face, human body, and
motor vehicle and non-motor vehicle metadata.
AI Search
Supports search by metadata of human and vehicles. Supports uploading
face pictures to IVSS and compare them with recorded faces in IVSS
by similarity. IVSS enables operators to quickly and easily search through
multiple channels and long duration, to efficiently find out when and
where a person of interest appeared.
ANPR
Automatic Number Plate Recognition available for convenient entrance/
exit management. This feature provides number plate recognition
(working with Dahua ITC camera), number plate comparison with
blocklist/allowlist, vehicle database management, and vehicle record
search.
N+M Hot Standby
The highly reliable redundancy N+M Hot Standby design provides a
secure failover technique to ensure immediate backup. In the event of
a system failure, the sub device instantly takes over the main device to
ensure no data loss.
Fisheye Dewarp
Supports multiple fisheye dewarp modes to make viewing
video easy whether its live or during playback.
Smart Tracking
The automatic tracking PTZ feature automatically tracks a moving target
throughout the camera's field of view. This function is ideal for following
an object as it moves through airports, parking lots, city centers, or other
scenes.

| DHI-IVSS7024-16M

Human Cap ture
ANPR
Imag e Sear ch

Retrieve

Video Me t ada t a


www.dahuasecurity.com

Technical Specification
System
Main Processor Industry embedded micro-controller
Operating SystemEmbedded Linux OS
Operation Interface
WEB (PCAPP), local GUI
AI Applications
AI by Camera
Face detection, face recognition, video metadata,
IVS (tripwire, intrusion, abandoned object, missing
object, fast moving, parking detection, crowd gathering,
loitering, parking, and fence-crossing),
people counting, smoking detection, call detection
AI by Device
Face detection, face recognition, video metadata,
IVS (tripwire, intrusion,crowd gathering, loitering
detection, parking detection), plate comparison
IVS
IVS Performance (AI by
Device) (Channel Number)
Advanced model: 192-channel
IVS Performance (AI
by Camera) (Channel
Number)
256-channel
Human Face Detection
Human Face Properties
Supports 6 properties: Gender, age range (6 levels),
glasses, expression (8 types), mouth mask, and beard
Face Detection
Performance (AI by
Device) (1080P) (Channel
Number)
192-channel
Face Detection
Performance (AI by
camera) (Channel
Number)
256-channel
Human Face Recognition
Face Database Capacity 50 face databases with 500,000 face pictures in total
Human Face Recognition
Performance (AI by
Device) (1080P)(Channel
Number)
192-channel with normal IP camera
256-channel with face detection IP camera (Totally 480
face pictures analyzed per second)
Human Face Recognition
Performance (AI by
camera) (Channel
Number)
256-channel
ANPR
Plate Database Capacity
50 plate databases with 500,000 plate numbers in total
Supports allowlist and blocklist
Plate Detection
Performance by ITC
Camera (Channel Number)
64-channel
Video Metadata
Human Body Properties
Gender, age, sleeves length, top color, bottom type,
bottom color, bag, rain coat, umbrella,hat, hairstyle,
direction, hold a baby, mouth mask
Vehicle Properties
Vehicle type, vehicle color, plate color, logo, calling,
seatbelt, ornament, region
Non-motorized Vehicle
Properties
Non-motor vehicle type, non-motor vehicle color,
number of passengers, umbrella, rain coat, bag , sleeve
length, top color, hat, hair style, mouth mask
Metadata Performance
(AI by Device) (1080P)
(Channel Number)
192-channel

Metadata Performance
(AI by camera) (Channel
Number)
64-channel
Video Parameters
Remote Connection 256-channel
Network Bandwidth
Incoming bandwidth: 512 Mbps
recording bandwidth: 384 Mbps
outgoing bandwidth: 128 Mbps
Resolution
24MP/16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/9
60p/720p/D1/CIF/QCIF
Decoding Capability
2-channel 24MP/3-channel 16MP/6-channel12MP
(20 fps)/7-channel12MP (15 fps)/6-channel8MP (30
fps)/12-channel8MP (15 fps)/7-channel6MP (30 fps)/9-
channel5MP (30 fps)/11-channel5MP (25 fps)/12-
channel4MP (30 fps)/18-channel4MP (20 fps)/19-
channel3MP (25 fps)/12-channel1080p (60 fps)/24-
channel1080p (30 fps)/36-channel720p (30 fps)
Video Output
1-channel VGA output, 3-channel HDMI output, VGA 1/
HDMI 1 outputs the same video source
Supports 4K output
Multi-screen Display
Customized display
Max. 36-channel local live view
Max. 16-channel PCAPP live view
Third-party Support
Onvif; RTSP; Sony; Panasonic; Axis; Arecont; Pelco;
Canon; Samsung
Operating SystemEmbedded Linux OS
Operation Interface
WEB(PCAPP), local GUI
Compression
Video Compression Smart H.265+; Smart H.264+; H.265; H.264
Audio CompressionG.711A; G.711U; PCM; G726
Network
Protocol
HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP;
DHCP; DNS; DDNS; P2P
Mobile PhoneDMSS
Interoperability ONVIF (Profile S, T and G); CGI; SDK
Browser Chrome; PCAPP; IE9 or higher; Firefox
Network Mode
NIC binding mode such as multiple-address mode, load
balance, fault-tolerance, etc
Record Playback
Multiple-channel Playback Max. 16-channel playback
Record Search
Search video detection/manual record/IO alarm/
intelligent event/all record file
Storage MediumInternal HDD, SAS disk array enclosure
Backup MethodHDD, peripheral USB storage device
Playback Function
Play, pause, stop, fast forward, fast backward, reverse
play, frame by frame play
Full-screen, backup (clip/file), snapshot, digital zoom,
audio on/off
Storage
HDD Group24
RAIDRAID 0/1/5/6/10/50/60
Storage Pool N/A
Alarm
General Alarm Motion detect, tampering, local alarm
| DHI-IVSS7024-16M


Dimensions (mm[inch])

Anomaly Alarm
IPC offline alarm, storage error, HDD full, IP conflict,
MAC conflict, login lock, AI module temperature alarm,
AI module offline, fan malfunction
Intelligent Alarm
Human face detection, human face recognition,entries
frequency, video metadata (person/vehicle/non-motor
vehicle), IVS, plate recognition, people counting,
smoking, call
Alarm Linkage
Record, snapshot (full image), local external alarm
output, IPC external alarm output, access & control,
audio prompt, buzzer, log, preset, email
Peripheral Interface
Audio Input1-channel (reserved)
Audio Output 1-channel, speaker output, audio linkage output
Alarm Input16-channel
Alarm Output8-channel
Internal HDD24 slots, SATA3.0/SAS. Max. 16T/HDD
eSATA 1 port
SAS 2 SAS3.0 ports
RS-232 1 port, for debug or transparent COM data
RS-485
1 port, control peripheral PTZ and so on
Supports various protocols
USB
4 ports
2 USB2.0 ports at the front panel and 2 USB3.0 ports at
the rear panel
HDMI 3 ports; support 4K output
VGA 1 port
Network 4 RJ-45 10/100/1000 Mbps self-adaptive Ethernet ports
Power 1 port
PoEN/A
General Parameters
Power Supply AC100-127V/AC200-240V 50/60Hz
Power Consumption
200W (without HDD, idling)
488W (all HDDs connected)
Net Weight17 kg (37.48 lb)
Gross Weight 18 kg (39.68 lb)
Dimensions
(W x L x H)
Chassis: 446.0 mm x 514.5 mm x 175.0 mm
(17.56 " x 20.21 " x 6.89 ")
Max. size: 482.6 mm (with hanger) x 514.5 mm x 175.0
mm (with feet mat) (19.00 " x 20.26 " x 6.89 ")
Packaging Dimensions
(W x L x H)
689 mm x 779 mm x 552 mm
(27.13 " x 30.67 " x 21.73 ")
Operating Conditions0 °C to +45 °C (+32 °F to +113 °F)/10%RH–90% RH
Strorage Conditions0 °C to +40 °C (+32 °F to +104 °F)/30%RH–85% RH
Operating Altitude 5000 m (16404.20 ft)
Installation Mode Desktop/rack
Certifications
CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN55024,EN55035, EN50130-4,EN60950-1
FCC: Part 15 Subpart A
UL: 60950-1 and CAN/CSA C22.2 No. 60950-1-07

Rev 001.001© 2021 Dahua. All rights reserved. Design and specifications are subject to change without notice.
Pictures in the document are for reference only, and the actual product shall prevail.
