IVSS7024-16I

AI series | DHI-IVSS7024-16I     System Overview  Dahua IVSS goes beyond the ordinary NVR products. It is an Intelligent  Video Surveillance Server combines video management functions with  traditional video storage operations in one device. Besides the basic  functions as network video recorder, IVSS is integrated with features such  as face detection, face recognition for different business and industrial  applications.  With build-in deep learning module, IVSS series products adopt video  image structuring technology based on deep learning algorithms,  achieving high-precision human face recognition and perimeter  protection. By applying deep learning artificial intelligence, IVSS allow  users to focus on what matters most, improve event response time and  help make video actionable.  An all new UI design supports device operation and maintenance  management, improving the value and experience of surveillance view,  and servicing the era of security big data.   Functions  Face Recognition  Support record faces by structured data and real-time crosscheck  with incredible accuracy to figure out the face with target features.  With regular/...

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

AI series | DHI-IVSS7024-16I

System Overview
Dahua IVSS goes beyond the ordinary NVR products. It is an Intelligent
Video Surveillance Server combines video management functions with
traditional video storage operations in one device. Besides the basic
functions as network video recorder, IVSS is integrated with features such
as face detection, face recognition for different business and industrial
applications.
With build-in deep learning module, IVSS series products adopt video
image structuring technology based on deep learning algorithms,
achieving high-precision human face recognition and perimeter
protection. By applying deep learning artificial intelligence, IVSS allow
users to focus on what matters most, improve event response time and
help make video actionable.
An all new UI design supports device operation and maintenance
management, improving the value and experience of surveillance view,
and servicing the era of security big data.
Functions
Face Recognition
Support record faces by structured data and real-time crosscheck
with incredible accuracy to figure out the face with target features.
With regular/Stranger mode to trigger kinds of alarm actions for
different applications.
Perimeter Protection
Automatically filtering out false alarms caused by animals, rustling
leaves,bright lights, etc. Enables system to act secondary recognition for
the targets. Improving alarm accuracy.
Video Metadata
Metadata is feature attribute information extracted from a target object
which can be used for data retrieval. Currently, there are four main kinds
of metadata in the security industry: human face, human body, and
motor vehicle and non-motor vehicle metadata.
AI Search
Support search by metadata of human and vehicles. Support uploading
face pictures to NVR and compare them with recorded faces in NVR
by similarity. Enable operators to quickly and easily search through
multi channels and long duration, efficiently find out when and where a
person of interest appeared.
www.dahuasecurity.com

· Industry embedded micro-controller
· Max 512Mbps incoming bandwidth
· 256-channel IP video access
· Up to 256-channel perimeter protection
· Up to 96-channel face recognition by device
· Up to 256-channel face recognition by camera
· Up to 64-channel Video Metadata
· Up to 50 face databases with 300,000 face pictures in total
· Supports RAID 0/1/5/6/10
· SAS3.0 for storage extension
· 3HDMI/1VGA video output

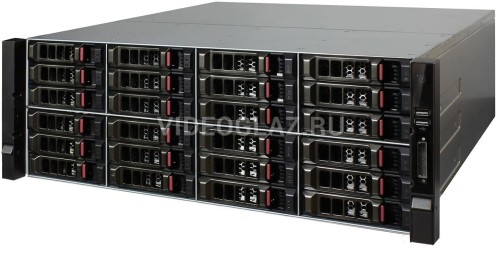

DHI-IVSS7024-16I
4U 24HDD AI Network Video Recorder

AI series products adopt the most advanced AI technologies, including
deep learning algorithms that primarily target people and vehicles,
which provides higher flexibility and accuracy for end-users. This enables
the Dahua AI series to offer various advanced applications such as Face
Recognition, ANPR, Metadata, People Counting, traffic data statistics, etc.
The complete lineup of Dahua AI includes network (PTZ) cameras,
network video recorders, servers, and platform management products.
Beyond seeing the world, the power of AI allows devices to perceive the
environment and understand the world in a better way.


www.dahuasecurity.com
AI series | DHI-IVSS7024-16I

Technical Specification
System
Main Processor Industry embedded micro-controller
Operating SystemEmbedded Linux OS
Operation Interface
WEB (PCAPP), local GUI
AI Applications
AI by Camera
Supports AI by camera function: Human face detection,
human face recognition, video metadata (human/
vehicle/non-motorized vehicle), perimeter protection
AI by Device
Supports AI by IVSS function: Human face detection,
human face recognition, video metadata (human/
vehicle/non-motorized vehicle), perimeter protection,
plate recognition
Perimeter Protection
Perimeter Function (AI by
device)
256-channel
Perimeter Function (AI by
camera)
256-channel
Human Face Detection
Human Face Properties
Supports 6 properties: Gender, age range (6 levels),
glasses, expression (11 types), mouth mask, and beard
Face Detection
Performance (AI by
device) (1080P) (Channel
Amount)
96-channel, one channel max. supports 12 human faces
Face Detection
Performance (AI by
camera) (Channel
Amount)
256-channel
Human Face Recognition
Face Database Capacity
Max. 50 human face databases, 300000 pictures, each
database contains 300000 pictures
Human Face Recognition
Performance (AI by
device) (1080P)(Channel
Amount)
96-channel.320 face pictures per second processing
Human Face Recognition
Performance (AI by
camera) (Channel
Amount)
256-channel
Plate Recognition
Plate Database Capacity
Max. 50 plate databases, each database contains
300000 plate numbers
Support black list/white list
Plate Detection
Performance by ITC
Camera (Channel Amount)
64-channel
Video Metadata
Human Body Properties
Top color, top type, bottom color, bottom type, cap,
bag, age, gender, and umbrella
Vehicle Properties
Supports 9 properties: Plate, plate color, vehicle body,
vehicle brand, driver calling, seatbelt status, decoration
object in the vehicle, and vehicle registration place
Non-motorized Vehicle
Properties
Supports 4 properties: Vehicle type, vehicle color,
people amount, and helmet
Metadata Performance
(AI by device) (1080P)
(Channel Amount)
64-channel

Metadata Performance
(AI by camera) (Channel
Amount)
64-channel
Video Parameters
Remote Connection 256-channel
Network Bandwidth
Incoming bandwidth: 512Mbps
recording bandwidth: 384Mbps
outgoing bandwidth: 128Mbps
Resolution
12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/
D1/CIF/QCIF
Decoding Capability24-channel 1080P@ 30fps
Video Output
1-channel VGA output, 3-channel HDMI output, VGA 1/
HDMI 1 outputs the same video source
Supports 4K output
Multi-screen Display
Customized display
Max. 36-channel local live view
Max.16-channel PCAPP live view
Third-party Support
Onvif, RTSP, Sony, Panasonic, Axis, Arecont,
Pelco,Canon, Samsung
Operating SystemEmbedded Linux OS
Operation Interface
WEB(PCAPP), local GUI
Compression
Video Compression Smart H.265+/Smart H.264+/H.265/H.264
Audio CompressionG.711A/G.711U/PCM/G726
Network
Protocol
HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP,
DHCP, DNS, DDNS, P2P
Mobile PhoneiOS, Android
Interoperability ONVIF (profile S), CGI, SDK
Browser Chrome, PCAPP, IE9 or higher, Firefox
Network Mode
NIC binding mode such as multiple-address mode, load
balance, fault-tolerance, etc
Record Playback
Multiple-channel Playback Max. 16-channel playback
Record Mode
Search video detection/manual record/IO alarm/
intelligent event/all record file
Storage Mode Internal HDD, SAS disk array enclosure
Backup Mode HDD, peripheral USB storage device
Playback
Play, pause, stop, fast forward, fast backward, reverse
play, frame by frame play
Full-screen, backup (clip/file), snapshot, digital zoom,
audio on/off
Storage
HDD Group24
RAIDRAID 0/1/5/6/10
Storage Pool N/A
Alarm
General Alarm Motion detect, tampering, local alarm
Anomaly Alarm
IPC offline alarm, storage error, HDD full, IP conflict,
MAC conflict, login lock, AI module temperature alarm,
AI module offline, fan malfunction

AI series | DHI-IVSS7024-16I
Rev 001.001© 2019 Dahua . All rights reserved. Design and specifications are subject to change without notice
www.dahuasecurity.com

Dimensions(mm/inch)

Intelligent Alarm
Human face detection, human face recognition,
video metadata (person/vehicle/non-motorized
vehicle),perimeter protection (intrusion, tripwire),plate
recognition
Alarm Linkage
Record, snapshot (full image), local external alarm
output, IPC external alarm output, access & control,
audio prompt, buzzer, log, preset, email
Peripheral Interface
Audio Input1-channel, RCA port (reserved)
Audio Output
1-channel, RCA port (reserved), speaker output, audio
linkage output
Alarm Input16-channel
Alarm Output8-channel
Internal HDD24 slots, SATA3.0/SAS. Max.10T/HDD
eSATA 1 port (reserved)
SAS 2 SAS3.0 ports
RS-232 1 port, for debug or transparent COM data
RS-485
1 port, control peripheral PTZ and so on
Supports various protocols
USB
4 ports
2 USB2.0 port at the front panel and 2 USB3.0 port at
the rear panel
HDMI 3 ports. 4K output
VGA 1 port
Network 4 RJ-45 10/100/1000Mbps self-adaptive Ethernet ports
Power 1 port
PoEN/A
General Parameters
Power Supply 100V AC–240V AC 50±2%Hz
Power Consumption 144 W (Without HDD, idling)
Net Weight17 kg (37.48 lb)
Gross Weight 18 kg (39.68 lb)
Dimensions
(W x L x H)
Chassis: 446 mm x 514.5 mm x 175 mm (17.56 " x
20.21 " x 6.89 ")
Max. size: 482.6 mm (with hanger) x 514.5 mm x 175
mm (with feet mat) (19.00 " x 20.26 " x 6.89 ")
Packaging Dimensions
(W x L x H)
689 mm x 779 mm x 552 mm (27.13 " x 30.67 " x 21.73
")
Operating Conditions0 °C to 45 °C (+32 °F to +113 °F)/10%RH–90% RH
Strorage Conditions0 °C to 40 °C (+32 °F to +104 °F)/30%RH–85% RH
Operating Altitude 5000 m (16404.20 ft)
Installation Mode Desktop/rack
Certifications
CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN55024,EN55035, EN50130-4,EN60950-1
FCC: Part 15 Subpart A
UL: 60950-1 and CAN/CSA C22.2 No. 60950-1-07
