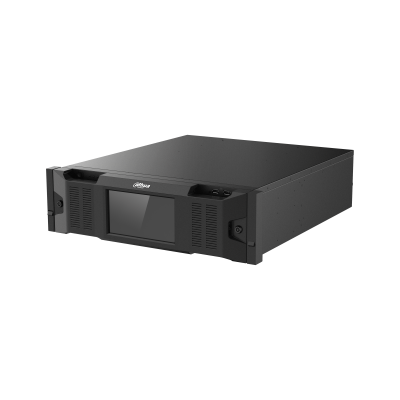

IVSS7016DR-8M

AI series | DHI-IVSS7016DR-8I    www.dahuasecurity.com  · Industry embedded micro-controller  · Max 512Mbps incoming bandwidth  · 256-channel IP video access  · Up to 128-channel perimeter protection  · Up to 64-channel face recognition with normal IPC  · Up to 160-channel face recognition with face detection IPC  · Up to 32-channel video metadata  · Up to 50 face databases with 300,000 face pictures in total  · Supports RAID 0/1/5/6/10  · SAS3.0 for storage extension  · Redundant power  DHI-IVSS7016DR-8I   3U 16HDD Intelligent Video Surveillance Server     System Overview  Dahua IVSS goes beyond the ordinary NVR products. It is an Intelligent  Video Surveillance Server that combines video management features  with traditional video storage functions in one device. Besides the basic  functions as a network video recorder, IVSS is integrated with features  such as face detection and face recognition for different business and  industrial applications.  With the build-in deep learning module, IVSS series products adopt video  image metadata technology based on deep learning algorithms,  offering high-precision human face recognition and pe...

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

AI series | DHI-IVSS7016DR-8I

www.dahuasecurity.com
· Industry embedded micro-controller
· Max 512Mbps incoming bandwidth
· 256-channel IP video access
· Up to 128-channel perimeter protection
· Up to 64-channel face recognition with normal IPC
· Up to 160-channel face recognition with face detection IPC
· Up to 32-channel video metadata
· Up to 50 face databases with 300,000 face pictures in total
· Supports RAID 0/1/5/6/10
· SAS3.0 for storage extension
· Redundant power
DHI-IVSS7016DR-8I
3U 16HDD Intelligent Video Surveillance Server

System Overview
Dahua IVSS goes beyond the ordinary NVR products. It is an Intelligent
Video Surveillance Server that combines video management features
with traditional video storage functions in one device. Besides the basic
functions as a network video recorder, IVSS is integrated with features
such as face detection and face recognition for different business and
industrial applications.
With the build-in deep learning module, IVSS series products adopt video
image metadata technology based on deep learning algorithms,
offering high-precision human face recognition and perimeter
protection. By applying deep learning artificial intelligence, IVSS allows
users to focus on what matters most, to improve event response time
and help make video actionable.
An all new UI design supports device operation and maintenance
management, improving the value and experience of surveillance view,
and serving the era of security big data.
Functions
Face Recognition
Supports recording faces by metadata and real-time crosscheck
with incredible accuracy to figure out the face with target features.
With the Regular and Stranger face mode, IVSS triggers various kinds of
alarm actions for different applications.
Perimeter Protection
Automatically filters out false alarms caused by animals, rustling leaves
AI series products adopt the most advanced AI technologies, including
deep learning algorithms that primarily target people and vehicles,
which provides higher flexibility and accuracy for end-users. This enables
the Dahua AI series to offer various advanced applications such as Face
Recognition, ANPR, Metadata, People Counting, traffic data statistics, etc.
The complete lineup of Dahua AI includes network (PTZ) cameras,
network video recorders, servers, and platform management products.
Beyond seeing the world, the power of AI allows devices to perceive the
environment and understand the world in a better way.
and bright lights, so as to improve alarm accuracy. Enables system to act
secondary recognition for the targets.
Video Metadata
Metadata is feature attribute information extracted from a target object
which can be used for data retrieval. Currently, there are four main kinds
of metadata in the security industry: Human face, human body, and
motor vehicle and non-motor vehicle metadata.
AI Search
Supports search by metadata of human and vehicles. Supports uploading
face pictures to IVSS and compare them with recorded faces in IVSS
by similarity. IVSS enables operators to quickly and easily search through
multiple channels and long duration, to efficiently find out when and
where a person of interest appeared.
ANPR
Automatic Number Plate Recognition available for convenient entrance/
exit management. This feature provides number plate recognition
(working with Dahua ITC camera), number plate comparison with black/
white list, vehicle database management, and vehicle record search.
N+M Hot Standby
The highly reliable redundancy N+M Hot Standby design provides a
secure failover technique to ensure immediate backup. In the event of a
system failure, the slave device instantly takes over the master device to
ensure no data loss.
Fisheye Dewarp
Supports multiple fisheye dewarp modes to make viewing
video easy whether its live or during playback.
Smart Tracking
The automatic tracking PTZ feature automatically tracks a moving target
throughout the camera's field of view. This function is ideal for following
an object as it moves through airports, parking lots, city centers, or other
scenes.

www.dahuasecurity.com
AI series | DHI-IVSS7016DR-8I

Technical Specification
System
Main Processor Industry embedded micro-controller
Operating SystemEmbedded Linux OS
Operation Interface
WEB (PCAPP), local GUI
AI Applications
AI by Camera
Supports AI by camera function: Human face detection,
human face recognition, video metadata (human/
vehicle/non-motorized vehicle), perimeter protection
AI by Device
Supports AI by IVSS function: Human face detection,
human face recognition, video metadata (human/
vehicle/non-motorized vehicle), perimeter protection
Perimeter Protection
Perimeter Function (AI by
Device)
128-channel
Perimeter Function (AI by
camera)
256-channel
Human Face Detection
Human Face Properties
Supports 6 properties: Gender, age range (6 levels),
glasses, expression (8 types), mouth mask, and beard
Face Detection
Performance (AI by
Device) (1080P) (Channel
Number)
64-channel
Face Detection
Performance (AI by
camera) (Channel
Number)
160-channel
Human Face Recognition
Face Database Capacity 50 face databases with 300,000 face pictures in total
Human Face Recognition
Performance (AI by
Device) (1080P)(Channel
Number)
64-channel with normal IP camera
160-channel with face detection IP camera (Totally 160
face pictures analyzed per second)
Human Face Recognition
Performance (AI by
camera) (Channel
Number)
160-channel
ANPR
Plate Database Capacity
50 plate databases with 300,000 plate numbers in total
Supports black list/white list
Plate Detection
Performance by ITC
Camera (Channel Number)
64-channel
Video Metadata
Human Body Properties
Top color, top type, bottom color, bottom type, cap,
bag, age, gender, and umbrella
Vehicle Properties
Supports 9 properties: Plate, plate color, vehicle body,
vehicle brand, driver calling, seatbelt status, decoration
object in the vehicle, and vehicle registration place
Non-motorized Vehicle
Properties
Supports 4 properties: Vehicle type, vehicle color,
people amount, and helmet
Metadata Performance
(AI by Device) (1080P)
(Channel Number)
32-channel

Metadata Performance
(AI by camera) (Channel
Number)
64-channel
Video Parameters
Remote Connection 256-channel
Network Bandwidth
Incoming bandwidth: 512Mbps
recording bandwidth: 384Mbps
outgoing bandwidth: 128Mbps
Resolution
12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/
D1/CIF/QCIF
Decoding Capability
6-channel12MP (20fps)/7-channel12MP (15fps)/6-
channel8MP (30fps)/12-channel8MP (15fps)/7-
channel6MP(30fps)/9-channel5MP(30fps)/11-
channel5MP (25fps)/12-channel4MP (30fps)/18-
channel4MP (20fps)/19-channel3MP (25fps)/12-
channel1080P (60fps)/24-channel1080P (30fps)/36-
channel720P (30fps)
Video Output
1-channel VGA output, 3-channel HDMI output, VGA 1/
HDMI 1 outputs the same video source
Supports 4K output
Multi-screen Display
Customized display
Max. 36-channel local live view
Max.16-channel PCAPP live view
Third-party Support
Onvif, RTSP, Sony, Panasonic, Axis, Arecont,
Pelco,Canon, Samsung
Operating SystemEmbedded Linux OS
Operation Interface
WEB(PCAPP), local GUI
Compression
Video Compression Smart H.265+/Smart H.264+/H.265/H.264
Audio CompressionG.711A/G.711U/PCM/G726
Network
Protocol
HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP,
DHCP, DNS, DDNS, P2P
Mobile PhoneDMSS
Interoperability ONVIF (Profile S, T and G), CGI, SDK
Browser Chrome, PCAPP, IE9 or higher, Firefox
Network Mode
NIC binding mode such as multiple-address mode, load
balance, fault-tolerance, etc
Record Playback
Multiple-channel Playback Max. 16-channel playback
Record Search
Search video detection/manual record/IO alarm/
intelligent event/all record file
Storage MediumInternal HDD, SAS disk array enclosure
Backup MethodHDD, peripheral USB storage device
Playback Function
Play, pause, stop, fast forward, fast backward, reverse
play, frame by frame play
Full-screen, backup (clip/file), snapshot, digital zoom,
audio on/off
Storage
HDD Group16
RAIDRAID 0/1/5/6/10
Storage Pool N/A
Alarm
General Alarm Motion detect, tampering, local alarm

AI series | DHI-IVSS7016DR-8I
Dimensions(mm[inch])

Anomaly Alarm
IPC offline alarm, storage error, HDD full, IP conflict,
MAC conflict, login lock, AI module temperature alarm,
AI module offline, fan malfunction
Intelligent Alarm
Human face detection, human face recognition,
video metadata (person/vehicle/non-motorized
vehicle),perimeter protection (intrusion, tripwire),plate
recognition
Alarm Linkage
Record, snapshot (full image), local external alarm
output, IPC external alarm output, access & control,
audio prompt, buzzer, log, preset, email
Peripheral Interface
Audio Input1-channel (reserved)
Audio Output 1-channel, speaker output, audio linkage output
Alarm Input16-channel
Alarm Output8-channel
Internal HDD16 slots, SATA3.0/SAS. Max.10T/HDD
eSATA 1 port (reserved)
SAS 2 SAS3.0 ports
RS-232 1 port, for debug or transparent COM data
RS-485
1 port, control peripheral PTZ and so on
Supports various protocols
USB
4 ports
2 USB2.0 port at the front panel and 2 USB3.0 port at
the rear panel
HDMI 3 ports. 4K output
VGA 1 port
Network 4 RJ-45 10/100/1000Mbps self-adaptive Ethernet ports
Power 2 ports
PoEN/A
General Parameters
Power Supply 100V AC–240V AC 50±2%Hz
Power Consumption 122 W (Without HDD, idling)
Net Weight16 kg (35.27 lb)
Gross Weight 17 kg (37.48 lb)
Dimensions
(W x L x H)
Chassis: 444.8 mm x 539.4 mm x 133.2 mm
(17.51 " x 21.24 " x 5.24 ")
Max. size: 485 mm (with hanger) x 539.4 mm x 133.2
mm (with feet mat) (19.09 " x 21.24 " x 5.24 ")
Packaging Dimensions
(W x L x H)
689 mm x 779 mm x 464 mm
(27.13 " x 30.67 " x 18.27 ")
Operating Conditions0 °C to +45 °C (+32 °F to +113 °F)/10%RH–90% RH
Strorage Conditions0 °C to +40 °C (+32 °F to +104 °F)/30%RH–85% RH
Operating Altitude 5000 m (16404.20 ft)
Installation Mode Desktop/rack
Certifications
CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN55024,EN55035, EN50130-4,EN60950-1
FCC: Part 15 Subpart A
UL: 60950-1 and CAN/CSA C22.2 No. 60950-1-07


Rev 001.001© 2019 Dahua. All rights reserved. Design and specifications are subject to change without notice.
Pictures in the document are for reference only, and the actual product shall prevail.
