ITC237-PW6M-IRLZF1050-B

www.dahuasecurity.com  DHI-ITC237-PW6M-IRLZF1050  2MP Long Range Access ANPR Camera    · GS-CMOS image sensor  · Video compression standards: H.265/H.264M/H.264H/H.264B/MJPEG  · Integrated design, IP67  DHI-ITC237-PW6M-IRLZF1050   System Overview  The long range access ANPR camera is designed with high-performance  CMOS image sensor and independently-developed processor, capable  of reading and extracting detailed vehicle information day and night.  Intelligent deep learning algorithm allows recognition of vehicle license  plate, and vehicle brand, model, logo, and color. The camera is extensively  applied to vehicle capture and recognition of community road, parking  lot, and other entrance and exit surveillance scenarios.   Functions  High-quality image  Industry-specific GS-CMOS image sensor with high sensitivity, high SNR  and excellent WDR provides lifelike images in all weathers.    Complete intelligence  High-performance CPU processor helps extract and analyze information  of motor and non-motor vehicles in real-time, providing vehicle feature  details for business decision-making.    High-level protection  Integrated design with low power consumption, built-in light...

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

www.dahuasecurity.com
DHI-ITC237-PW6M-IRLZF1050
2MP Long Range Access ANPR Camera

· GS-CMOS image sensor
· Video compression standards: H.265/H.264M/H.264H/H.264B/MJPEG
· Integrated design, IP67
DHI-ITC237-PW6M-IRLZF1050
System Overview
The long range access ANPR camera is designed with high-performance
CMOS image sensor and independently-developed processor, capable
of reading and extracting detailed vehicle information day and night.
Intelligent deep learning algorithm allows recognition of vehicle license
plate, and vehicle brand, model, logo, and color. The camera is extensively
applied to vehicle capture and recognition of community road, parking
lot, and other entrance and exit surveillance scenarios.
Functions
High-quality image
Industry-specific GS-CMOS image sensor with high sensitivity, high SNR
and excellent WDR provides lifelike images in all weathers.

Complete intelligence
High-performance CPU processor helps extract and analyze information
of motor and non-motor vehicles in real-time, providing vehicle feature
details for business decision-making.

High-level protection
Integrated design with low power consumption, built-in lightning
protection module, and IP67 protection grade, suitable for various harsh
environments.

Multiple ports
Various signal, data and communication ports, capable of connecting to
external devices such as barrier.

Easy installation
Built-in LED illuminator and motorized vari-focal lens, providing ease of
installation and commissioning.


www.dahuasecurity.com

Technical Specification
Image Processing
Illuminator6 IR illuminators (brightness adjustable)
Image Sensor
1/1.8'' CMOS
Image Resolution1920 x 1080 (OSD black strip excluded)
Video Resolution
Main stream: 1080P (1920 x 1080) / 720P (1280 x 720)
Sub stream: 720P (1280 x 720) / D1 (704 x 576, 704 x
480) / CIF (352 x 288, 352 x 240)
Video Frame Rate
PAL: Main stream (1280 x 960@25fps, 1280 x
720@25fps), sub stream: (1280 x 720@25fps, 704 x
576@25fps, 352 x 288@25fps)
NTSC: Main stream (1280 x 960@30fps, 1280 x
720@30fps), sub stream (1280 x 720@30fps, 704 x
408@30fps, 352 x 240@30fps)
Bit Rate
H.264B: 20Kbps–32768Kbps
H.264M: 20Kbps–32768Kbps
H.264H: 20Kbps–32768Kbps
H.265: 20Kbps–32768Kbps
MJPEG: 59Kbps–65536Kbps
Video EncodingH.264B/H.264M/H.264H/H.265/MJPEG
Image EncodingJPEG
Noise Reduction3DNR
White Balance
Full auto; auto color temperature range; customized
color temperature
Electronic Shutter1/50–1/10000, auto or manual
Wide Dynamic Range96db
Edge EnhancementYes
Exposure ModeFull auto; customized auto; customized
IrisAuto iris (W:1.3–T:2.3)
Function
Trigger ModeVideo detection; I/O coil; video detection and I/O coil
ShutterSingle shutter
Storage
1 built-in TF card port. Kingston 16G, 32G and 64G;
Dahua 16G, 32G and 64G; SanDisk 16G, 32G and 64G
Image Tampering
Prevention
Yes. Video/picture can be checked through watermark
and verification
Max Illumination Distance25m (82.02ft)
Alarm Event
Alarm in the case of no storage card, not enough storage
space, storage card error, network disconnection, IP
conflict, and illegal access
Security Mode
Authorized username and password, MAC address
binding, HTTPS encryption, IEEE 802.1x, and network
access control
OSD Overlay
Supports overlay of time, address (position of channel),
lane (number/direction), plate (number and color),
vehicle (speed, color, type)
ANR (Automatic Network
Replenishment)
Yes. Platform/FTP
Auto RegisterYes

Intelligence
Vehicle DetectionVehicle capture rate ≥99%
Vehicle Recognition
Supports recognizing vehicle type, vehicle logo, vehicle
color, license plate, and vehicle without plate. Vehicle
recognition rate ≥90%
Video MetadataYes
Intelligent Track Frame
Intelligent frame display. Supports displaying vehicle
plate and vehicle path
Ports
LensModule lens
Analog Output1
Ethernet Port1 100/1000M Ethernet port (RJ45)
RS-485 port1
I/O Port2, optocoupler input (switch quantity)
Alarm Input1, optocoupler input (switch quantity)
Alarm Output
2-channel relay output, connecting to devices such as
barrier
Audio Input1-channel RCA port
Audio Output1-channel RCA port
Power Output12V DC±10% voltage output, ≤1A current output
General
Power Supply12V DC, 24V AC, PoE
Power Consumption< 20W
Working Temperature−30°C to +65°C (−22°F to +149 °F)
Working Humidity10%–90% (no condensation)
HousingMetal and plastic
Protection GradeIP67
Dimensions (LxWxH)370.4mmx124.7mmx105.7mm (14.58''x4.91''x4.16'')
Net Weight1.7kg (3.75lb)
Gross Weight2.5kg (5.51lb)
InstallationUniversal joint installation
Lens10mm–50mm (0.39''–1.97'')
DHI-ITC237-PW6M-IRLZF1050

Ordering Information
TypePart NumberDescription
2MP Camera
DHI-ITC237-PW6M-
IRLZF1050
2MP long range access ANPR camera
(850nm built-in IR illuminator)

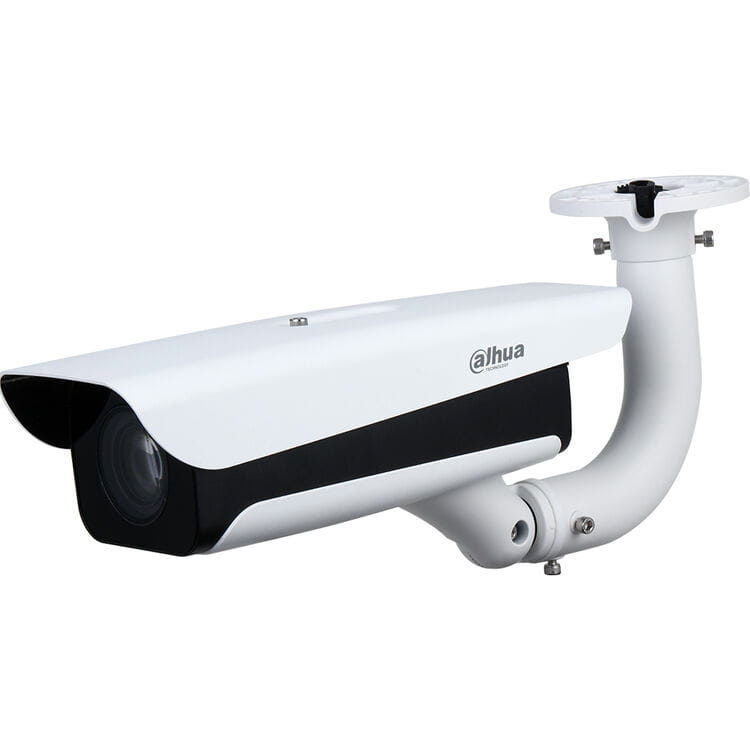

DHI-ITC237-PW6M-
IRLZF1050-B
2MP long range access ANPR camera
with bracket (850nm built-in IR
illuminator)
BracketPFA162
3-dimensional universal mounting
bracket

Installation

Camera
1/4–20x8UNC pan head screw (2pcs)
8018 mounting bracket
47.00 [1.85]2–1/4’’–20UNC–7–2B

Camera
Mounting bracket
Mounting surface
M8 expansion screw (4pcs)
70.71 [2.78]
70.71 [2.78]
4–Ø9.30 [Ø0.37]

Dimensions (mm[inch])

124.73 [4.91]

105.73 [4.16]

370.46 [14.58]

Rev 001.001© 2019 Dahua. All rights reserved. Design and specifications are subject to change without notice.
Pictures in the document are for reference only, and the actual product shall prevail.

www.dahuasecurity.com
Accessories
Optional:

PFA162
3-dimensional universal
mounting bracket
DHI-ITC237-PW6M-IRLZF1050
