Ultra Series | DHI-ITC235-TU1A

Overview
This new camera is mainly used in roadway traffic flow analytics
system , devoting to traffic data counting. The accurate of detection is
over 99%, when the speed is below 80km/h and covering 1-4 lanes!
www.dahuasecurity.com
·All-in-one camera(EXCEPT LENS)
·Adopt 1/1.9inch Starlight CMOS image sensor, high color
reducibility, high sensitivity, super Low-Light effect
·Adopt H.264 standard HD video format and 25fps HD video
frame rate
·Embedded integration component design, built-in a
variety of algorithms, such as traffic data collection and
analysis, vehicle type classification and so on
·Up to 80m of traffic data counting range
·The accurate of detection is over 99% when the speed is
below 80km/h
·A variety of signals, data and communication interfaces

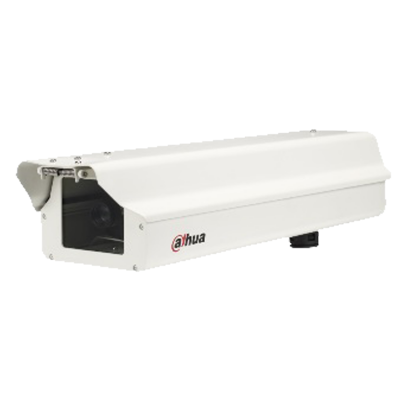

DHI-ITC235-TU1A
2.3MP Traffic Flow Analytics Camera

Technical Specification
Technical Data
Image Sensor 1/1.9inch CMOS(8.58mm)
Max. Resolution
2.3 Megara, 1920x1200
Lenses
Support P-Iris
Camera Speed Shutter
1/25 ~ 1/100000
Day/Night
Auto ICR (with polarized lens and infrared filter)
Video Signal Interface
1 xCVBS port and 2 x100/1000M Ethernet port
Digital I/O
2 Relay output – 1 optical coupling input – 8 optical
coupling input
Extra Interface
2 xMini USB and 1 xSD interface
Power,Size,Environment
PowerAC 90~285V ,<25W
Dimensions 540mmx174.2mmx143mm
Ingress ProtectionIP66
Working EnvironmentTemperature -40°C~+80°C, Humidity 10%~90%


Software Features
Traffic Data Counting
Performance: Up to 4 line for traffic data counting
Vehicle type: Passenger Car, Large Truck, Mid
Truck, Saloon Car, Micro bus, Micro Truck
Statistical data of each lane: time, date, statistical
period, lane, Traffic flow, occupancy, headway,
average speed, queue length, vehicle type of each
line
Monitor Lane1~4 lanes
Video CompressionH.264H, H.264M, H.264B, MJEPG
Remote control functionConfigure through WEB client
OSD information superimposed
Support, Information of the video include time
and place (channel address), Lane information
(number)
Image Records Tamper-resistance
Video/Image with watermark tech and check
function
Certificaions
CE SECE1606281
FCCSEFD1606281


Ultra Series | DHI-ITC235-TU1A
www.dahuasecurity.com

Accessories
Optional:
Dimensions (mm/inch)

Bracket Lens
Rev 001.001 © 2016 Dahua. All rights reserved. Design and specifications are subject to change without notice.
