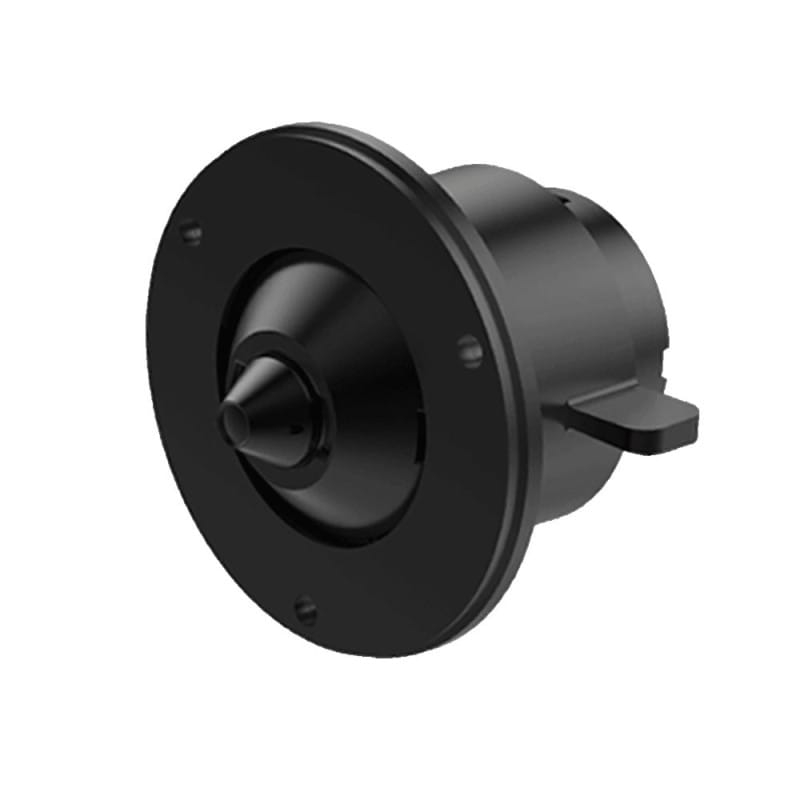

IPC-HUM8241-L1-0280B

Availability: 0
Price: €207.65 207.65
excl. 23.00% TAX, excl. shipping costs
quantity szt.

product unavailable

add to wish list
Vendor: DAHUA
Product code: IPC-HUM8241-L1-0280B

Description

www.dahuasecurity.com  DH-IPC-HUM8241-E1  2MP Covert Pinhole WizMind Network Camera-Main Box    · Starlight 2MP 1/2.8" CMOS image sensor, excellent low luminance   performance and high definition of images.  · Outputs max. 2MP (1920 x 1080)@25/30 fps.  · H.265 codec allows high compression ratio and ultra-low bit rate.  · ROI, SMART H.264 +/H.265+, flexible coding, applicable to various   bandwidth and storage environments.  · Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable   to various monitoring scenes.  · Intelligent detection: Intrusion, tripwire, fast moving (the three   functions support the classification and accurate detection of vehicle   and human); abandoned object, missing object, loitering detection,   people gathering, and face detection.  · Abnormality detection: Motion detection, privacy masking, scene   changing, audio detection, no SD card, SD card space warning, SD card   error, network disconnection, IP conflict, illegal access, and voltage   detection.  · Alarm: 2 in, 2 out; audio: 1 in, 1 out; RS-232; max. 256 G Micro SD card.  · 12V DC/PoE power supply facilitates installation.  · Multiple lens unit optional; require a lens unit to work together.  ...

Warranty: 36 mon.

Datasheet PDF


Text contents of PDF datasheet:

www.dahuasecurity.com
DH-IPC-HUM8241-E1
2MP Covert Pinhole WizMind Network Camera-Main Box

· Starlight 2MP 1/2.8" CMOS image sensor, excellent low luminance
performance and high definition of images.
· Outputs max. 2MP (1920 x 1080)@25/30 fps.
· H.265 codec allows high compression ratio and ultra-low bit rate.
· ROI, SMART H.264 +/H.265+, flexible coding, applicable to various
bandwidth and storage environments.
· Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable
to various monitoring scenes.
· Intelligent detection: Intrusion, tripwire, fast moving (the three
functions support the classification and accurate detection of vehicle
and human); abandoned object, missing object, loitering detection,
people gathering, and face detection.
· Abnormality detection: Motion detection, privacy masking, scene
changing, audio detection, no SD card, SD card space warning, SD card
error, network disconnection, IP conflict, illegal access, and voltage
detection.
· Alarm: 2 in, 2 out; audio: 1 in, 1 out; RS-232; max. 256 G Micro SD card.
· 12V DC/PoE power supply facilitates installation.
· Multiple lens unit optional; require a lens unit to work together.
Series Overview
With deep learning algorithm, the separate pinhole camera supports
R W
R R R
R

F
Smart H.265+ & Smart H.264+
WR R DR
R R RR R H
and H.264, provides high-quality video, and reduces the cost of storage
and transmission.
WDR
With advanced Wide Dynamic Range (WDR) technology, Dahua network
camera provides clear details in the environment of strong brightness
contrast. The bright and dark area can get clear video even in high
brightness environment or with backlight shadow.
P P
WR R DR P P R
can recognize human and vehicle accurately. In restricted area (such
as pedestrian area and vehicle area), the false alarms of intelligent
R
R Z
largely reduced.
F D
DR F D R R R WR
R R R
R R
snapshot.
F A
With deep learning algorithm, the network camera can recognize face
R R
beard.
C S
Dahua network cameras employ a series of security technologies,
R R

storage. These technologies improve the camera's defense against
external cyber threats and prevent malicious programs from comprising
the device.

| DH-IPC-HUM8241-E1
LR DR TR DR WM
IPC NVR
PTZ XVR TR RR
deep learning algorithms. Focusing on customer's requirements,
WM R AI


Face Detection
Face Attributes
Smart Codec
WDR
P P


www.dahuasecurity.com

Technical Specification
Camera
Image Sensor1/2.8" 2 Megapixel progressive CMOS
Max. Resolution1920 (H) x 1080 (V)
ROM128 MB
RAM512 MB
Scanning SystemProgressive
Electronic Shutter Speed
Auto/Manual 1/3 s–1/100,000 s
Min. Illumination
0.005 Lux@F2.0 (Color,30 IRE)
0.0005 Lux@F2.0 (B/W,30 IRE)
S/N Ratio> 56 dB
Lens
Lens TypeFixed-focal
Lens MountM12
Focal Length2.8 mm
Max. Aperture2.8 mm: F2.0
Field of View
L1/L4: Horizontal: 105°; Vertical: 58°; Diagonal: 118°
L3: Horizontal: 114°; Vertical: 60°; Diagonal: 136°
L5-2.8 mm: Horizontal: 109°; Vertical: 58°; Diagonal: 127°
Iris ControlFixed
Close Focus Distance2.8 mm: 0.5 m
DORI
Distance
LensDetectObserveRecognizeIdentify
L1/L4-2.8
mm
42.1 m
(138.1 ft)
16.8 m
(55.1 ft)
8.4 m
(27.6 ft)
4.2 m
(13.8 ft)
L3-2.8 mm
41.4 m
(135.8 ft)
16.6 m
(54.5 ft)
8.3 m
(60.0 ft)
4.1 m
(13.5 ft)
L5-2.8 mm
42.9 m
(140.7 ft)
17.2 m
(56.4 ft)
8.6 m
(28.2 ft)
4.3 m
(14.1 ft)
Intelligence
IVS (Perimeter Protection)
Tripwire, intrusion, fast moving (the three functions
support the classification and accurate detection
of vehicle and human); loitering detection, people
gathering, and parking detection
Face Detection
Face detection; track; snapshot; snapshot optimization;
optimal face snapshot upload; face enhancement; face
exposure; face attribute extraction including 6 attributes
(gender, age, glasses, expressions, mask and beard) and
8 expressions (anger, calm, happiness, sadness, disgust,
surprise, confusion and fear); face snapshot set as face
or one-inch photo; 3 snapshot strategies (real-time
snapshot, optimization snapshot, and quality priority);
face angle filter; optimization time setting
Smart Search
Work together with Smart NVR to perform refine
intelligent search, event extraction and merging to event
videos
Video
Video Compression
H.265; H.264; H.264H; H.264B; MJPEG (only supported
by the sub stream)
Smart Codec
Smart H.265+
Smart H.264+
Video Frame Rate
Main stream: 1920 x 1080 @25/30 fps
Sub stream: 704 x 576 @25 fps; 704 x 480 @30 fps
Third stream: 1920 x 1080 @25/30 fps
Stream Capability3 streams

Resolution
1080p (1920 x 1080); 1.3M (1280 x 960); 720p (1280
x 720); D1 (704 x 576/704 x 480); VGA (640 x 480); CIF
(352 x 288/352 x 240)
Bit Rate ControlCBR/VBR
Video Bit Rate
H.264: 3 kbps–20480 kbps
H.265: 3 kbps–20480 kbps
Day/NightColor/B/W
BLCYes
HLCYes
WDR120 dB
Scene Self-adaptationYes
White Balance
Auto; natural; street lamp; outdoor; manual; regional
custom
Gain ControlManual; auto
Noise Reduction3D NR
Motion DetectionOFF/ON (4 areas, rectangular)
Region of Interest (RoI)Yes (4 areas)
DefogYes
Image Rotation
0°/90°/180°/270° (support 90°/270° with 1080p
resolution and lower)
MirrorYes
Privacy Masking4 areas
Audio
Audio CompressionG.711a; G.711Mu; PCM; G.726; G.723
Alarm
Alarm Event
No SD card, SD card full, SD card error, network
disconnection, IP conflict, illegal access, motion
detection, video tampering, tripwire, intrusion, fast
moving, missing object, abandoned object, parking
detection, loitering detection, people gathering; scene
changing, audio detection, voltage detection, external
alarm, face detection , and security exception.
Network
Network PortRJ-45 (10/100 Base-T)
SDK and APIYes
Network Protocol
IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP;
SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP;
Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Interoperability
ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone;
Genetec
User/Host20 (Total bandwidth: 64 M)
StorageFTP; SFTP; Micro SD card (support max. 256 G); NAS
Browser
IE: IE8, IE9, and IE11
Chrome
Firefox
Management SoftwareSmart PSS; DSS; DMSS
Mobile ClientIOS; Android
Cyber Security
Video encryption; Firmware encryption; Configuration
encryption; Digest; WSSE; Account lockout; Security logs;
IP/MAC filtering; Generation and importing of X.509
certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted
execution; Trusted upgrade

| DH-IPC-HUM8241-E1

O I
TMD
MP
Camera
DH-IPC-HUM8241-E1
2MP Covert Pinhole WizMind
Network Camera-Main Box
Accessories
O
IPC-HUM8241-L1
2MP Covert Pinhole WizMind
Network Camera-Lens Unit
IPC-HUM8241-L3
2MP Covert Pinhole WizMind
Network Camera-Lens Unit
IPC-HUM8241-L4
2MP Covert Pinhole WizMind
Network Camera-Lens Unit
IPC-HUM8241-L5
2MP Covert Pinhole WizMind
Network Camera-Lens Unit

A
IPC-HUM8241-L1
2MP Covert Pinhole
WizMind Network
Camera-Lens Unit
IPC-HUM8241-L5
2MP Covert Pinhole
WizMind Network
Camera-Lens Unit
O

IPC-HUM8241-L3
2MP Covert Pinhole
WizMind Network
Camera-Lens Unit
IPC-HUM8241-L4
2MP Covert Pinhole
WizMind Network
Camera-Lens Unit
| DH-IPC-HUM8241-E1

D
IPC-HUM8241-L1
