IPC-HFW8630E-ZEH

Ultra Series | DH-IPC-HFW8630E-ZE     System Overview  Ultra series adopts high performance DSP and Sony advanced image  sensor technology, which can provide excellent image effects for users.  With Dahua advanced software algorithm, the series is able to support  people counting and heat map which brings extra business analysis value  for customers. In addition, IP67, IK10 and heater compliance ensure the  series can be applied in a harsher environment.    Functions  ePoE technology  The ePoE technology of Dahua, designed internally, adopts advanced  2D-PAM3 coding modulation from physical layer, and realizes full duplex  transmission over 800 meters at the speed of 10Mbps, or 300 meters  at the speed of 100Mbps via Cat 5 or coaxial cable media. Besides,  it supports PoE and PoC power supply technology which has greatly  simplified construction and wiring. Dahua ePoE technology offer a new  way to accomplish long distance transmission between IP camera and  network switch. It allows more flexible surveillance system design,  improves reliability and saves construction and wiring cost.  Business intelligent analysis (Peop...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

Ultra Series | DH-IPC-HFW8630E-ZE

System Overview
Ultra series adopts high performance DSP and Sony advanced image
sensor technology, which can provide excellent image effects for users.
With Dahua advanced software algorithm, the series is able to support
people counting and heat map which brings extra business analysis value
for customers. In addition, IP67, IK10 and heater compliance ensure the
series can be applied in a harsher environment.

Functions
ePoE technology
The ePoE technology of Dahua, designed internally, adopts advanced
2D-PAM3 coding modulation from physical layer, and realizes full duplex
transmission over 800 meters at the speed of 10Mbps, or 300 meters
at the speed of 100Mbps via Cat 5 or coaxial cable media. Besides,
it supports PoE and PoC power supply technology which has greatly
simplified construction and wiring. Dahua ePoE technology offer a new
way to accomplish long distance transmission between IP camera and
network switch. It allows more flexible surveillance system design,
improves reliability and saves construction and wiring cost.
Business intelligent analysis (People counting, Heatmap)
Dahua Camera also supports more advanced intelligent features such as
people counting and heat map besides basic IVS functions. These two
functions can be applied to business intelligence and bring extra values
to customers. It is available to acquire daily, weekly, monthly and yearly
people flow via people counting and output data report. Heat map can
be based on a moving object in time of space movement for analysis,
find the most active area and output the report, which is to provide
valuable data support for commercial applications.
Smart Codec (H.265+ & H.264+)
Smart Codec is the optimized implementation of standard video
compression (H.265 & H.264) that uses a scene-adaptive encoding
strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference
structure and intelligent noise reduction to deliver high-quality video
without straining the network. Smart Codec technology reduces bit rate
and storage requirements by up to 70% when compared to the standard
video compression.
Environmental & Protection
With a temperature range of -40 °C to +60 °C (-40 °F to +140 °F), the
camera is designed for extreme temperature environments. Supporting
±25% input voltage tolerance, this camera suits even the most unstable
conditions for outdoor applications. Its 6KV lightning rating provides
effective protection for both the camera and its structure against
lightning. Subjected and certified to rigorous dust and immersion
tests (IP67) and impact tests (IK10), The camera complies with an IK10
impact rating making it capable of withstanding the equivalent of 5 kg
(11.02 lbs) of force dropped from a height of 40 cm (15.75 in.)
www.dahuasecurity.com
· 1/1.8” 6Megapixel progressive scan STARVIS™ CMOS
· H.265&H.264 triple-stream encoding
· 25/30fps@6M(3072x2048)
· DWDR, Day/Night(ICR), 3DNR,AWB,AGC,BLC
· Multiple network monitoring: Web viewer, CMS(DSS/PSS) &
DMSS
· 4.1mm ~16.4mm zoom lens
· Max. IR LEDs Length 50m
· Micro SD memory,IP67,IK10,PoE+

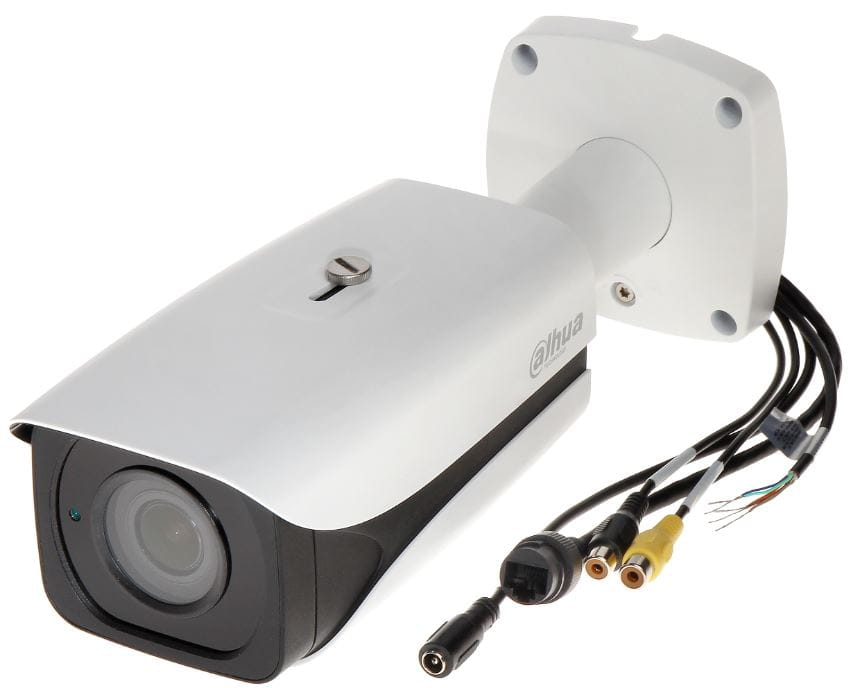

DH-IPC-HFW8630E-ZE
6MP IR Bullet Network Camera

6Mp
H.265+

Analysis

- 40°C

IP67
Vandal-proof


www.dahuasecurity.com
Ultra Series | DH-IPC-HFW8630E-ZE

Technical Specification
Camera
Image Sensor 1/1.8” 6Megapixel progressive scan CMOS
Effective Pixels
3072(H)x2048(V)
RAM/ROM
1024MB/128MB
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual, 1/3~1/100000s
Minimum Illumination
0.01Lux/F1.53(Color,1/3s,30IRE)
0.1Lux/F1.53(Color,1/30s,30IRE)
0Lux/F1.53(IR on)
S/N Ratio
More than 50dB
IR Distance
Distance up to 50m(164ft)
IR On/Off Control
Auto/ Manual
IR LEDs
4
Lens
Lens TypeMotorized /Auto Iris(HALL)
Mount TypeBoard-in
Focal Length4.1~16.4mm motorized
Max. ApertureF1.53
Angle of ViewH: 105°~34°, V:68°~23°
Optical Zoom4x
Focus ControlMotorized
Predictive Focus Algorithm
(PFA)
Support
Close Focus Distance0.5m(1.64ft)
DORI
Distance
LensDetectObserveRecognizeIdentify
W88m(289ft)35m(115ft)18m(59ft)9m(30ft)
T213m(699ft)85m(279ft)43m(141ft)21m(69ft)
Pan/Tilt/Rotation
Pan/Tilt/Rotation RangePan:0˚~360˚; Tilt:0˚~90˚; Rotation:0˚~360˚
Intelligence
Event Trigger
Motion detection, Video tampering , Scene changing,
Network disconnection , IP address conflict, Illegal
Access,Storage anomaly
IVS Tripwire, Intrusion, Object Abandoned/Missing
Advanced Intelligent FunctionsFace Detection, People Counting, Heat Map
Video
CompressionH.265/H.264/H.264B/H.264H/MJPEG(Sub Stream)
Smart CodecSupport H.265+/H.264+
Streaming Capability3 Streams
Resolution
6M(3072x2048)/ 5M(2560x1920)/ 3M(2048x1536)/
3M(2304x1296)/ 1080P(1920x1080)/
1.3M(1280x960)/ 720P(1280x720D1(704x576/
704x480) / VGA(640x480)/ CIF(352x288/342x240)
Frame Rate
Main Stream: 6M(1~25/30fps)
Sub Stream: D1 (1 ~ 25/30fps)
Third Stream: 1080P(1~25/30fps)


Bit Rate ControlCBR/VBR
Bit RateH.264: 24~ 16384Kbps H.265: 14~ 9984Kbps
Day/NightAuto(ICR) / Color / B/W
BLC ModeBLC / HLC / DWDR/ SSA
White BalanceAuto/Natural/Street Lamp/Outdoor/Manual
Gain ControlAuto/Manual
Noise Reduction3D DNR
Motion DetectionOff / On (4 Zone, Rectangle)
Region of InterestOff / On (4 Zone)
Electronic Image Stabilization
(EIS)
Support
Smart IRSupport
DefogSupport
Digital Zoom16x
Flip0°/90°/180°/270°
MirrorOff / On
Privacy MaskingOff / On (4 Area, Rectangle)
Audio
CompressionG.711a/G.711Mu/AAC/ G.726
Network
EthernetRJ-45 (100/1000Base-T)
Protocol
HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;RTCP;SMTP;
FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;
NTP;Bonjour;IEEE 802.1x;Multicast;ICMP;IGMP;S
NMP;TLS
InteroperabilityONVIF Profile S&G, API
Streaming MethodUnicast / Multicast
Max. User Access10 Users/20 Users
Edge Storage
NAS
Local PC for instant recording
Mirco SD card 128GB
Web ViewerIE, Chrome, Firefox, Safari
Management SoftwareSmart PSS, DSS, DMSS
Smart PhoneIOS, Android
Certifications
Certifications
CE (EN 60950:2000)
UL:UL60950-1
FCC: FCC Part 15 Subpart B
Interface
Video Interface1 Port(For adjustment only)
Audio Interface1/1 channel In/Out
RS485N/A
Alarm
2 channel In: 5mA 5VDC
1 channel Out: 1A 30VDC / 0.5A 50VAC

Ultra Series | DH-IPC-HFW8630E-ZE

Ordering Information
TypePart NumberDescription
6MP camera
DH-IPC-
HFW8630EP-ZE
6MP IR Bullet Network Camera,PAL
DH-IPC-
HFW8630EN-ZE
6MP IR Bullet Network Camera,NTSC
IPC-HFW8630EP-
ZE
6MP IR Bullet Network Camera,PAL
IPC-HFW8630EN-
ZE
6MP IR Bullet Network Camera,NTSC
Accessories
(optional)
PFA121Junction box
PFA152-EPole Mount
LR1002 ePoE Over Coax Converter
www.dahuasecurity.com

Electrical
Power SupplyDC12V, PoE+(802.3at)(Class 4)
Power Consumption<13W
Environmental
Operating Conditions-40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH
Storage Conditions-40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH
Ingress Protection
IP67
Vandal ResistanceIK10
Construction
CasingMetal
Dimensions273.2mmx95.0mmx95.0mm (10.76”x3.74”x3.74”)
Net Weight1.12Kg (2.47lb)
Gross Weight1.52Kg (3.35lb)
Accessories
Rev 001.001© 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice.
Dimensions (mm/inch)
PFA121
Junction box
PFA152-E
Pole Mount

LR1002
ePoE Over Coax Converter

Optional:

tP o le Moun t
PF PF A-E
PF A
