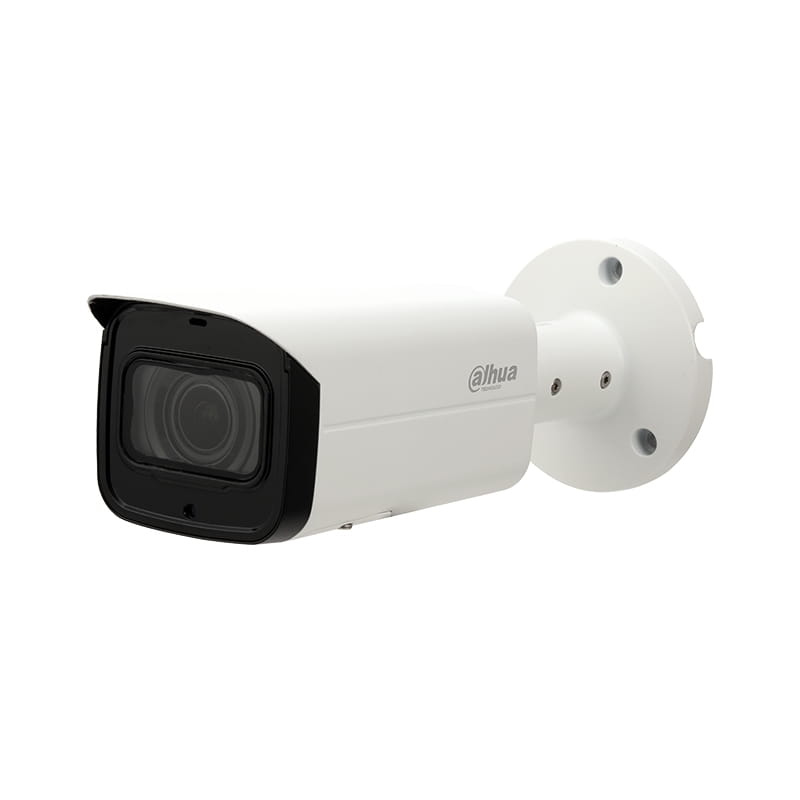

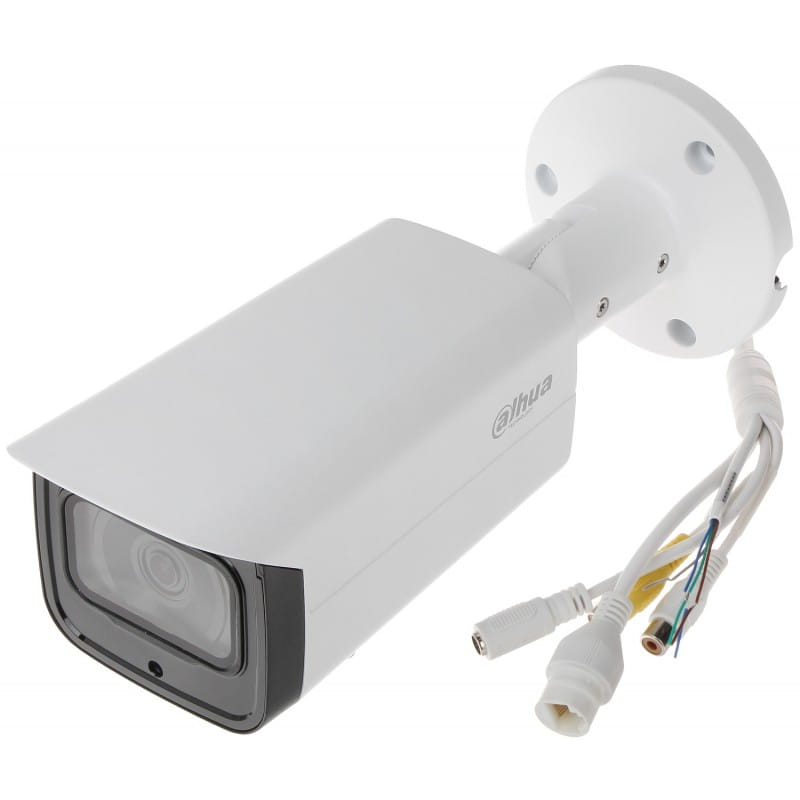

IPC-HFW4631T-ASE-0360B

Availability: 0
Price: €272.17 272.17
excl. 23.00% TAX, excl. shipping costs
quantity szt.

product unavailable

add to wish list
Vendor: DAHUA
Product code: IPC-HFW4631T-ASE-0360B

Description

Eco Savvy 3.0 | DH-IPC-HFW4631T-ASE     System Overview  With upgraded H.265 encoding technology, Eco-savvy series brings  high efficient video compression capability. It can save bandwidth and  storage. Meanwhile, the series features starlight, smart IR technology  and intelligent image analysis techniques. This series supports reminder  function, meanwhile fully protected from dust and water, certified to  IP67 and vandal resistant to IK10 standard.   Functions  ePoE technology  The ePoE technology of Dahua, designed internally, adopts advanced  2D-PAM3 coding modulation from physical layer, and realizes full duplex  transmission over 800 meters at the speed of 10Mbps, or 300 meters  at the speed of 100Mbps via Cat 5 or coaxial cable media. Besides,  it supports PoE and PoC power supply technology which has greatly  simplified construction and wiring. Dahua ePoE technology offer a new  way to accomplish long distance transmission between IP camera and  network switch. It allows more flexible surveillance system design,  improves reliability and saves construction and wiring cost.  Wide Dynamic Range (WDR)  The camera achieves vivid images, even in the most intense contrast  lighting conditions, u...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet PDF


Text contents of PDF datasheet:

Eco Savvy 3.0 | DH-IPC-HFW4631T-ASE

System Overview
With upgraded H.265 encoding technology, Eco-savvy series brings
high efficient video compression capability. It can save bandwidth and
storage. Meanwhile, the series features starlight, smart IR technology
and intelligent image analysis techniques. This series supports reminder
function, meanwhile fully protected from dust and water, certified to
IP67 and vandal resistant to IK10 standard.
Functions
ePoE technology
The ePoE technology of Dahua, designed internally, adopts advanced
2D-PAM3 coding modulation from physical layer, and realizes full duplex
transmission over 800 meters at the speed of 10Mbps, or 300 meters
at the speed of 100Mbps via Cat 5 or coaxial cable media. Besides,
it supports PoE and PoC power supply technology which has greatly
simplified construction and wiring. Dahua ePoE technology offer a new
way to accomplish long distance transmission between IP camera and
network switch. It allows more flexible surveillance system design,
improves reliability and saves construction and wiring cost.
Wide Dynamic Range (WDR)
The camera achieves vivid images, even in the most intense contrast
lighting conditions, using industry-leading wide dynamic range (WDR)
technology. For applications with both bright and low lighting conditions
that change quickly, true WDR (120 dB) optimizes both the bright and
dark areas of a scene at the same time to provide usable video.
Intelligent Video analysis (IVS)
IVS is a built-in video analytic algorithm that delivers intelligent functions
to monitor a scene for Tripwire violations, intrusion detection, and
abandoned or missing objects. A camera with IVS quickly and accurately
responds to monitoring events in a specific area. In addition to scene
analytics, the camera supports face detection to quickly capture a
face and upload the image to a server. The camera also offers tamper
detection by recognizing a dramatic scene change and generating a
warning message to inspect the camera.
Environmental
Dahua cameras operate in extreme temperature environments, rated for
use in temperatures from -30° C to +60° C (-22° F to +140° F) with 95%
humidity, allowing the camera to operate in the harshest environments.
Protection(IP67, IK10, wide voltage)
The camera allows for ±30% input voltage tolerance, suitable for the
most unstable conditions for outdoor applications. Its 4KV lightning
rating provides effective protection for both the camera and its structure
against lightning. Subjected and certified to rigorous dust and immersion
tests (IP67) and impact tests(IK10), the camera is the choice for
installation in even the most unforgiving environments.
Smart H.265+
Smart H.265+ is the optimized implementation of the H.265 codec that
uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI,
flexible multi-frame reference structure and intelligent noise reduction to
deliver high-quality video without straining the network. Smart H.265+
technology reduces bit rate and storage requirements by up to 70%
when compared to standard H.265 video compression.
www.dahuasecurity.com
· 1/2.9” 6Megapixel progressive scan STARVIS
TM
CMOS
· H. 265&H.264 triple-stream encoding
· 20fps@6MP(3072x2048), 25/30fps@4MP(2688x1520)
· Smart Detection supported
· WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
· Multiple network monitoring: Web viewer, CMS(DSS/PSS) &
DMSS
· 2.8mm fixed lens (3.6mm, 6mm optional)
· Max. IR LEDs Length 80m
· Micro SD Memory,IP67,IK10, PoE
DH-IPC-HFW4631T-ASE
6MP WDR IR Mini Bullet Network Camera

Temperature
IP67
H.265+

6Mp

Vandal-proof


www.dahuasecurity.com
Eco Savvy 3.0 |DH-IPC-HFW4631T-ASE

Technical Specification
Camera
Image Sensor1/2.9” 6Megapixel progressive scan CMOS
Effective Pixels
3072(H) x 2048(V)
RAM/ROM
512MB/32MB
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual, 1/3~1/100000s
Minimum Illumination
0.04Lux/F1.6( Color,1/3s,30IRE)
0.4Lux/F1.6( Color,1/30s,30IRE)
0Lux/F1.6(IR on)
S/N Ratio
More than 50dB
IR Distance
Distance up to 80m (262ft)
IR On/Off Control
Auto/ Manual
IR LEDs
4
Lens
Lens TypeFixed
Mount TypeBoard-in
Focal Length2.8mm (3.6mm, 6mm optional)
Max. ApertureF1.6(F1.6, F1.6)
Angle of ViewH: 98° (69°, 48°), V: 67° (48°, 34°)
Focus ControlFixed
Close Focus Distance0.9m(1.7m, 3.9m)
DORI Distance
LensDetectObserveRecognizeIdentify
2.8 mm 69m(226ft)28m(92ft)14m(46ft)7m(23ft)
3.6 mm89m(292ft)36m(118ft)18m(59ft)9m(30ft)
6.0mm143m(469ft)57m(187ft)29m(95ft)14m(46ft)
Pan/Tilt/Rotation
Pan/Tilt/Rotation RangePan:0˚~360˚; Tilt:0˚~90˚; Rotation:0˚~360˚
Intelligence
Event Trigger
Motion detection, Video tampering , Scene changing,
Network disconnection , IP address conflict, Illegal
Access,Storage anomaly
IVSTripwire, Intrusion, Object Abandoned/Missing
Advanced Intelligent FunctionsFace Detection
Video
CompressionH.265/H.264/H.264B/H.264H/MJPEG(Sub Stream)
Smart CodecSupport H.265+/H.264+
Streaming Capability3 Streams
Resolution
(3072x2048)/(3072x1728)/(2592x1944)/
(2688x1520)/(2560x1440)/
(2304x1296)/1080P(1920x1080)/
SXGA(1280x1024)/1.3M(1280x
960)/720P(1280x720)/D1(704x576/704x480)/
CIF(352x288/352x240)
Frame Rate
Main Stream: 6MP (1~20fps), 4MP(1~25/30fps)
Sub Stream: D1(1~25/30fps)
Third Stream: 1080P(1~25/30fps)
Bit Rate ControlCBR/VBR
Bit Rate
H.264: 24K ~ 10240Kbps
H.265: 14K ~ 9984Kbps
Day/NightAuto(ICR) / Color / B/W

BLC ModeBLC / HLC / WDR(120dB)
White BalanceAuto/Natural/Street Lamp/Outdoor/Manual
Gain ControlAuto/Manual
Noise Reduction3D DNR
Motion DetetionOff / On (4 Zone, Rectangle)
Region of InterestOff / On (4 Zone)
Electronic Image Stabilization
(EIS)
N/A
Smart IRSupport
DefogN/A
Digital Zoom16x
Flip0°/90°/180°/270°
MirrorOff / On
Privacy MaskingOff / On (4 Area, Rectangle)
Audio
CompressionG.711a/ G.711Mu/ AAC/ G.726
Network
EthernetRJ-45 (10/100Base-T)
Protocol
HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;RTCP;SMTP;
FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;
NTP;Bonjour;IEEE 802.1x;Multicast;ICMP;IGMP;S
NMP;TLS
InteroperabilityONVIF, PSIA, CGI
Streaming MethodUnicast / Multicast
Max. User Access10 Users /20 Users
Edge Storage
NAS
Local PC for instant recording
Mirco SD card 128GB
Web ViewerIE, Chrome, Firefox, Safari
Management SoftwareSmart PSS, DSS, Easy4ip
Smart PhoneIOS, Android
Certifications
Certifications
CE (EN 60950:2000)
UL:UL60950-1
FCC: FCC Part 15 Subpart B
Interface
Video InterfaceN/A
Audio Interface1/1 channel In/Out
RS485N/A
Alarm
1 channel In: 5mA 5VDC
1 channel Out: 300mA 12VDC
Electrical
Power SupplyDC12V, PoE (802.3af)(Class 0)
Power Consumption<11W

Eco Savvy 3.0 |DH-IPC-HFW4631T-ASE

Ordering Information
TypePart NumberDescription
6MP camera
DH-IPC-
HFW4631TP-ASE
6MP IR Mini Bullet Network Camera,
WDR, PAL
DH-IPC-
HFW4631TN-ASE
6MP IR Mini Bullet Network Camera,
WDR,NTSC
IPC-HFW4631TP-
ASE
6MP IR Mini Bullet Network Camera,
WDR,PAL
IPC-HFW4631TN-
ASE
6MP IR Mini Bullet Network Camera,
WDR,NTSC
Accessories
(optional)
PFA135Junction box
PFA152-EPole Mount
LR1002 ePoE Over Coax Converter
www.dahuasecurity.com

Environmental
Operating Conditions-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Strorage Conditions-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress Protection
IP67
Vandal ResistanceIK10
Construction
CasingMetal
Dimensions244.1mmx79mmx75.9mm (9.61”x3.11”x2.99”)
Net Weight0.815kg (1.80lb)
Gross Weight1.08kg (2.38lb)
Dimensions (mm/inch)

tPo
PF A135 + PF A152-EPF A135

© 2017 Dahua. All rights reserved. Design and specifications are subject to change without notice.Rev 001.001
Accessories
Optional:

PFA135
Junction Box
PFA152-E
Pole Mount

LR1002
ePoE Over Coax Converter
