IPC-HFW2531S-S-0360B-S2

Availability: 0
Price: €214.59 214.59
excl. 23.00% TAX, excl. shipping costs
quantity szt.

product unavailable

add to wish list
Vendor: DAHUA
Product code: IPC-HFW2531S-S-0360B-S2

Description

Lite Series | DH-IPC-HFW2531S-S-S2    www.dahuasecurity.com  DH-IPC-HFW2531S-S-S2  5MP Lite IR Fixed-focal Bullet Network Camera    System Overview  With upgraded H.265 encoding technology, Dahua Lite series camera  has efficient video encoding capacity, which saves bandwidth and  storage space. This camera adopts the latest starlight technology and  displays better colorful image in the environment of low illumination.  It supports SD card storage, waterproof function, dust-proof function,  complying to the standards of IP67.  Functions  Smart ( H.265+ & H.264+ )  Adopting advanced algorithm of auto stream control according to the  environment, Dahua smart encoding technology realizes the higher effi-  ciency than (H.265 & H.264 ), providing high-quality video, and reducing  the cost of storage and transmission.  Wide dynamic range (WDR)  Dahua adopts advanced Wide Dynamic Range (WDR) technology. You  can get clear details in the environment of strong brightness contrast.  In high brightness and back-light environment, bright region and dark  region with strong light source, you can also get clear images.  · 5MP, 1/2.7” CMOS image sensor, low illuminance, high image definition  · Outputs 2688x15...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet PDF


Text contents of PDF datasheet:

Lite Series | DH-IPC-HFW2531S-S-S2

www.dahuasecurity.com
DH-IPC-HFW2531S-S-S2

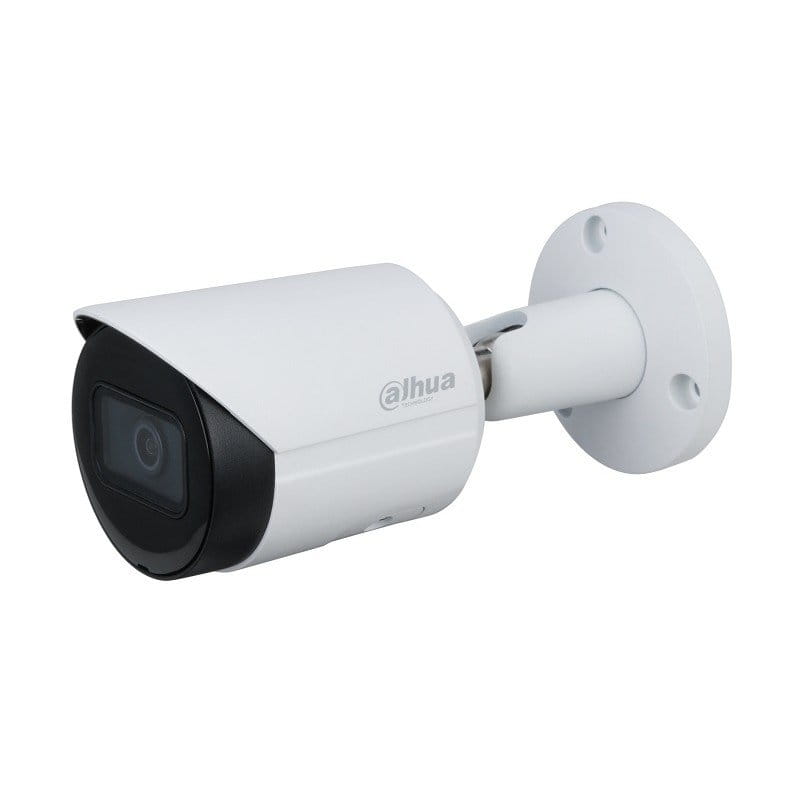

5MP Lite IR Fixed-focal Bullet Network Camera

System Overview
With upgraded H.265 encoding technology, Dahua Lite series camera
has efficient video encoding capacity, which saves bandwidth and
storage space. This camera adopts the latest starlight technology and
displays better colorful image in the environment of low illumination.
It supports SD card storage, waterproof function, dust-proof function,
complying to the standards of IP67.
Functions
Smart ( H.265+ & H.264+ )
Adopting advanced algorithm of auto stream control according to the
environment, Dahua smart encoding technology realizes the higher effi-
ciency than (H.265 & H.264 ), providing high-quality video, and reducing
the cost of storage and transmission.
Wide dynamic range (WDR)
Dahua adopts advanced Wide Dynamic Range (WDR) technology. You
can get clear details in the environment of strong brightness contrast.
In high brightness and back-light environment, bright region and dark
region with strong light source, you can also get clear images.
· 5MP, 1/2.7” CMOS image sensor, low illuminance, high image definition
· Outputs 2688x1520 (2688x1520) @ 25/30 fps, and supports max. 5MP
(2592x1944) @ 20 fps
· H.265 codec, high compression rate, ultra-low bit rate
· Built-in IR LED, max IR distance: 30 m
· ROI, SMART H.264/H.265, flexible coding, applicable to various
bandwidth and storage environments
· Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking,
applicable to various monitoring scenes
· Intelligent detection: Intrusion, tripwire
· Abnormality detection: Motion detection, video tampering, no SD card,
SD card full, SD card error, network disconnected, IP conflict, illegal
access,voltage detection
· Supports max. 256 GB Micro SD card
· 12V DC/PoE power support
· IP67 protection grade

Starlight
Dahua Starlight technology mainly applies to the environment of low
illumination, and it can provide clear colorful video. Even in the envi-
ronment of min. illumination, the technology can guarantee the good
image effect.
Intelligent Video Analysis (IVS)
With advanced video algorithm, Dahua camera supports intelligent
detection, such as tripwire and intrusion and so on.
Protection (IP67, wide voltage)
IP67: The camera passes a series of strict test on dust and soak. It has
dust-proof function, and the enclosure can works normal after soaking
in 1 m deep water for 30 minutes.
Wide voltage: The camera allows ±30% input voltage tolerance (wide
voltage range), and it is widely applied to outdoor environment with
instable voltage.

.Q
)

4UBSMJHIU
*7 4


Lite Series | DH-IPC-HFW2531S-S-S2

Technical Specification
Camera
Image Sensor
1/2.7” 5Megapixel progressive CMOS
Effective Pixels
2592 (H) x 1944 (V)
ROM
128 MB
RAM
256 MB
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual 1/3 s–1/100000 s
Min. Illumination
0.008 Lux@F1.6
IR Distance
30 m (98.43 ft)
IR On/Off Control
Auto/Manual
IR LEDs Number
1
Pan/Tilt/Rotation Range
Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°
Lens
Lens TypeFixed
Mount TypeM12
Focal Length
2.8 mm
3.6 mm
Max. Aperture
F1.6
F1.6
Field of View
2.8 mm:
Pan: 103.0°
Tilt: 71.0°
Diagonal: 132.0°
3.6 mm:
Pan: 84.0°
Tilt: 58.0°
Diagonal: 110.0°
Iris TypeFixed aperture
Close Focus Distance
2.8 mm: 0.9 m (2.95 ft)
3.6 mm: 1.6 m (3.61 ft)
DORI
Distance
LensDetectObserveRecognizeIdentify
2.8 mm
56 m
(183.73 ft)
22.4 m
(73.49 ft)
11.2 m
(36.75 ft)
5.6 m
(18.37 ft)
3.6 mm
80 m
(262.47 ft)
32.0 m
(104.99 ft)
16.0 m
(52.49 ft)
8.0 m
(26.25 ft)
Smart event
General IVS AnalyticsTripwire; intrusion
Video
Video Compression H.265; H.264; H.264B; MJPEG
Smart CodecYes
Video Frame Rate
Main stream:
2592 x 1944 (1 fps-20 fps)
2688 x 1520 (1 fps-25/30 fps)
Sub stream:
704 x 576 (1 fps-25 fps)
704 x 480 (1 fps-30 fps)

www.dahuasecurity.com

Stream Capability2 streams
Resolution
2592x1944(2592x1944); 2688x1520(2688x1520);
3M(2048x1536); 2304x1296(2304x1296);
1080p(1920x1080); 1.3M (1280 x 960);
720p(1280x720); D1(704x 576/704x480);
VGA(640x480); CIF(352x288/352x240)
Bit Rate ControlCBR/VBR
Video Bit Rate
H.264: 32 Kbps–8192 Kbps
H.265: 12 Kbps–8192 Kbps
Day/NightAuto(ICR)/Color/B/W
BLCYes
HLCYes
WDR120 dB
White Balance
Auto/natural/street lamp/outdoor/manual/regional
custom
Gain ControlAuto/Manual
Noise Reduction3D DNR
Motion DetectionOFF/ON (4 areas, rectangular)
Region of Interest(RoI)Yes (4 areas)
Smart IRYes
Image Rotation
0°/90°/180°/270° (Supports 90°/270° with 2688 x 1520
resolution and lower.)
MirrorYes
Privacy Masking4 areas
Network
NetworkRJ-45 (10/100 Base-T)
Protocol
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP;
RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS;
QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE;
802.1x; Bonjour
Interoperability
ONVIF(Profile S/Profile G/Profile T);CGI; P2P;
Milestone; Genetec
User/Host20
Edge Storage
Dahua Cloud; FTP; SFTP; Micro SD Card (support max.
256 GB); NAS
Browser
IE
Chrome
Firefox
Management SoftwareSmart PSS; DSS; DMSS
Mobile PhoneIOS; Android
Certification
Certifications
CE-LVD: EN60950-1
CE-EMC: Electromagnetic Compatibility Directive
2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Lite Series | DH-IPC-HFW2531S-S-S2

Power
Power Supply12V DC/PoE (802.3af)
Power Consumption< 5.6W
Environment
Operating Conditions-40°C to +60°C (-40°F to +140°F)/less than ≤ 95% RH
Storage Temperature-40°C to +60°C (-40°F to +140°F)
Protection GradeIP67
Structure
CasingMetal
Dimensions166.2 mm x Φ70 mm (6.54" x Φ2.76")
Net Weight0.48 kg (1.1 lb)
Gross Weight0.57 kg (1.3 lb)


Ordering Information
TypePart NumberDescription
5MP Camera
DH-IPC-
HFW2531SP-S-S2
5MP Lite IR Fixed-focal Bullet Network
Camera,PAL
DH-IPC-
HFW2531SN-S-S2
5MP Lite IR Fixed-focal Bullet Network
Camera,NTSC
Accessories
(optional)
PFA134Junction Box
PFA152-EPole Mount
PFM321DDC12V1A Power Adapter
LR1002-1ET/1EC
Single-port Long Reach Ethernet over Coax
Extender
PFM900-EIntegrated Mount Tester
PFM114TLC SD Card

Pe ut
Junction Mount

PFA134
PFA134+PFA152-E

Dimensions (mm[inch])

www.dahuasecurity.com

Rev 001.001 © 2019 Dahua. All rights reserved. Design and specifications are subject to change without notice.
Pictures in the document are for reference only, and the actual product shall prevail.

PFM114
TLC SD Card
Accessories
Optional:

PFA134
Junction Box
PFA152-E
Pole Mount
PFM321D
DC12V1A
Power Adapter

PFM900-E
Integrated Mount
Tester
LR1002-1ET/1EC
Single-port Long
Reach Ethernet over
Coax Extender
