IPC-HFW2239S-SA-LED-0280B-S2

Availability: 51-100

Price: 604,00 zł 604.00

excl. 23.00% TAX, excl. shipping costs

quantity szt.

product unavailable

add to wish list

Vendor:

Product code: IPC-HFW2239S-SA-LED-0280B-S2

ask about product or pricing

Description

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

www.dahuasecurity.com

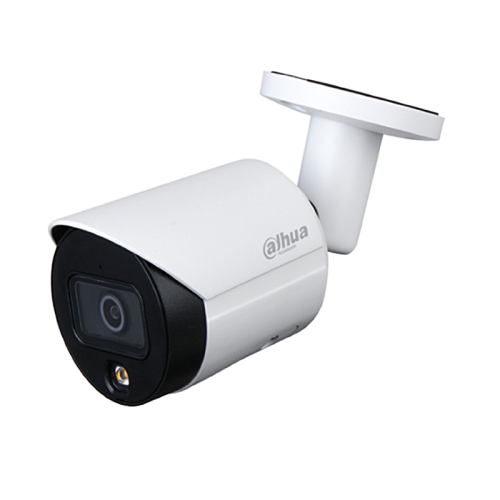

DH-IPC-HFW2239S-SA-LED-S2
2MP Lite Full-color Fixed-focal Bullet Network Camera

· 2MP, 1/2.8" CMOS image sensor, low illuminance, high image definition
· Outputs max. 2MP (1920 x 1080) @25/30 fps
· H.265 codec, high compression rate, ultra-low bit rate
· Built-in warm lights, max. illumination distance: 30 m
· ROI, SMART H.264+/H.265+, flexible coding, applicable to various
bandwidth and storage environments
· Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking,
applicable to various monitoring scenes
· Intelligent detection: Intrusion, tripwire
· Abnormality detection: Motion detection, video tampering, scene
changing, no SD card, SD card full, SD card error, network
disconnection, IP conflict, illegal access, voltage detection
· Supports max. 256 GB Micro SD card and built-in Mic
· 12V DC/PoE power supply
· IP67 protection
Lite Series | DH-IPC-HFW2239S-SA-LED-S2
Series Overview
With upgraded H.265 encoding technology, Dahua Lite series network
camera has efficient video encoding capacity, which saves bandwidth
and storage space. This camera adopts the latest starlight technology
and displays better color image in the condition of low illumination. It
supports SD card storage, dust-proof function, waterproof function and
vandal-proof function, complying with the standards of IP67 (Supported
by some select models).
Functions
Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart
encoding technology realizes the higher encoding efficiency than H.265
and H.264, provides high-quality video, and reduces the cost of storage
and transmission.
Full-color
With high-performance sensor and large aperture lens, Dahua Full-color
technology can display clear colorful image in the environment of ultra-
low illuminance. With this photosensitivity technology, the camera can
capture more available light, and display more colorful image details.
WDR
With advanced Wide Dynamic Range (WDR) technology, Dahua network
camera provides clear details in the environment of strong brightness
contrast. The bright and dark area can get clear video even in high
brightness environment or with backlight shadow.

Smar t C odec
WDR
IVS
F ull- c olor
IVS
With advanced video algorithm, Dahua IVS technology supports
intelligent functions, such as tripwire and intrusion.
Cyber Security
Dahua network camera is equipped with a series of key security
technologies, such as security authentication and authorization, access
control, trusted protection, encrypted transmission, and encrypted
storage, which improve its security defense and data protection, and
prevent malicious programs from invading the device.
Protection (IP67, wide voltage)
IP67: The camera passes a series of strict test on dust and soak. It has
dust-proof function, and the enclosure can works normal after soaking
in 1 m deep water for 30 minutes.
Wide voltage: The camera allows ±30% (for some power supplies)
input voltage tolerance (wide voltage range), and it is widely applied to
outdoor environment with instable voltage.

www.dahuasecurity.com

Technical Speciﬁcation
Camera
Image Sensor1/2.8” 2Megapixel progressive CMOS
Max. Resolution
1920 (H) x 1080 (V)
ROM128 MB
RAM128 MB
Scanning SystemProgressive
Electronic Shutter Speed
Auto/Manual 1/3 s–1/100,000 s
Minimum Illumination0.0017 Lux@F1.0
S/N Ratio> 56 dB
Illumination Distance30 m (98.4 ft)
Illuminator On/Off ControlAuto/Manual
Illuminator Number1 (Warm light)
Pan/Tilt/Rotation Range
Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°
Lens
Lens TypeFixed-focal
Mount TypeM12
Focal Length
2.8 mm
3.6 mm
Max. Aperture
2.8 mm: F1.0
3.6 mm: F1.0
Field of View
2.8 mm: Horizontal 107° x Vertical 55° x Diagonal 127°
3.6 mm: Horizontal 91° x Vertical 47° x Diagonal 109°
Iris TypeFixed
Close Focus Distance
2.8 mm: 0.9 m (3.0 ft)
3.6 mm: 1.3 m (4.3 ft)
DORI Distance
LensDetectObserveRecognizeIdentify
2.8mm
38.6m
(126.6 ft)
15.4m
(50.5 ft)
7.7 m
(25.3 ft)
3.9 m
(12.8 ft)
3.6mm
49.7m
(163.1 ft)
65.3m
(108.6 ft)
32.5m
(54.5 ft)
18.0m
(27.2 ft)
Smart event
IVSTripwire; intrusion
Video
Video Compression
H.265; H.264; H.264B; MJPEG (only supported by the
sub stream)
Smart CodecSmart H.265+/ Smart H.264+
Video Frame Rate
Main stream:
1920 x 1080 (1 fps-25/30 fps)
Sub stream:
704 x 576 (1 fps-25 fps)
704 x 480 (1 fps-30 fps)
Stream Capability2 streams
Resolution
1080p (1920 x 1080); 1.3M (1280 x 960); 720p (1280
x720); D1 (704 x 576/704 x 480); VGA (640 x 480); CIF
(352 x 288/352 x 240)

Bit Rate ControlCBR/VBR
Video Bit Rate
H.264: 32 kbps–6144 kbps
H.265: 12 kbps–6144 kbps
Day/NightColor/B/W
BLCYes
HLCYes
WDR120 dB
White Balance
Auto/natural/street lamp/outdoor/manual/regional
custom
Gain ControlAuto/Manual
Noise Reduction3D NR
Motion DetectionOFF/ON (4 areas, rectangular)
Region of Interest(RoI)Yes (4 areas)
Smart IlluminationYes
Image Rotation
0°/90°/180°/270° (Supports 90°/270° with 1080p
resolution and lower)
MirrorYes
Privacy Masking4 areas
Audio
Built-in MICYes
Audio CompressionG.711A; G.711Mu; G.726
Alarm
Alarm Event
No SD card; SD card full; SD card error; network
disconnection; IP conflict; motion detection; video
tampering; tripwire; intrusion; illegal access; voltage
detection; audio detection; safety exception
Network
NetworkRJ-45 (10/100 Base-T)
SDK and APIYes
Cyber Security
Video encryption; firmware encryption; configuration
encryption; Digest; WSSE; account lockout; security logs;
IP/MAC filtering; generation and importing of X.509
certification; syslog; HTTPS; 802.1x; trusted boot; trusted
execution; trusted upgrade
Protocol
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP;
RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP;
NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour
Interoperability
ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone;
Genetec
User/Host20 (Total bandwidth: 72 M.)
Storage
Dahua Cloud; FTP; Micro SD card (support max. 256 G);
NAS; SFTP
Browser
IE
Chrome
Firefox
Management SoftwareSmart PSS; DSS; DMSS
Mobile PhoneIOS; Android
Lite Series | DH-IPC-HFW2239S-SA-LED-S2

Certification
Certifications
CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive
2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B

Power
Power Supply12V DC/PoE (802.3af)
Power Consumption< 6.0W
Environment
Operating Conditions-40°C to +60°C (-40°F to +140°F)/less than ≤ 95% RH
Storage Temperature-40°C to +60°C (-40°F to +140°F)
Protection GradeIP67
Structure
Casingmetal
Dimensions166.2 mm x Φ70 mm (6.5" x Φ2.8")
Net Weight0.473 kg (1.0 lb)
Gross Weight0.574 kg (1.3 lb)
Rev 001.001

www.dahuasecurity.com
Lite Series | DH-IPC-HFW2239S-SA-LED-S2

Dimensions (mm[inch])

Pole Mount
Junction Mount

PFA134
PFA134+PFA152-E

Ordering Information
TypePart NumberDescription
2MP Camera
DH-IPC-HFW2239SP-SA-
LED-S2
2MP Lite Full-color Fixed-focal
Bullet Network Camera,PAL
DH-IPC-HFW2239SN-SA-
LED-S2
2MP Lite Full-color Fixed-focal
Bullet Network Camera,NTSC
Accessories
(optional)
PFA134Junction Box
PFA152-EPole Mount
PFM321DDC12V1A Power Adapter
LR1002-1ET/1EC
Single-port Long Reach Ethernet
over Coax Extender
PFM900-EIntegrated Mount Tester
PFM114TLC SD Card
© 2020 Dahua . All rights reserved. Design and specifications are subject to change without notice.
Pictures in the document are for reference only, and the actual product shall prevail.

PFM114
TLC SD Card
Accessories
Optional:

PFA134
Junction Box
PFA152-E
Pole Mount
PFM321D
DC12V1A Power
Adapter

PFM900-E
Integrated Mount
Tester
LR1002-1ET/1EC
Single-port Long
Reach Ethernet over
Coax Extender
