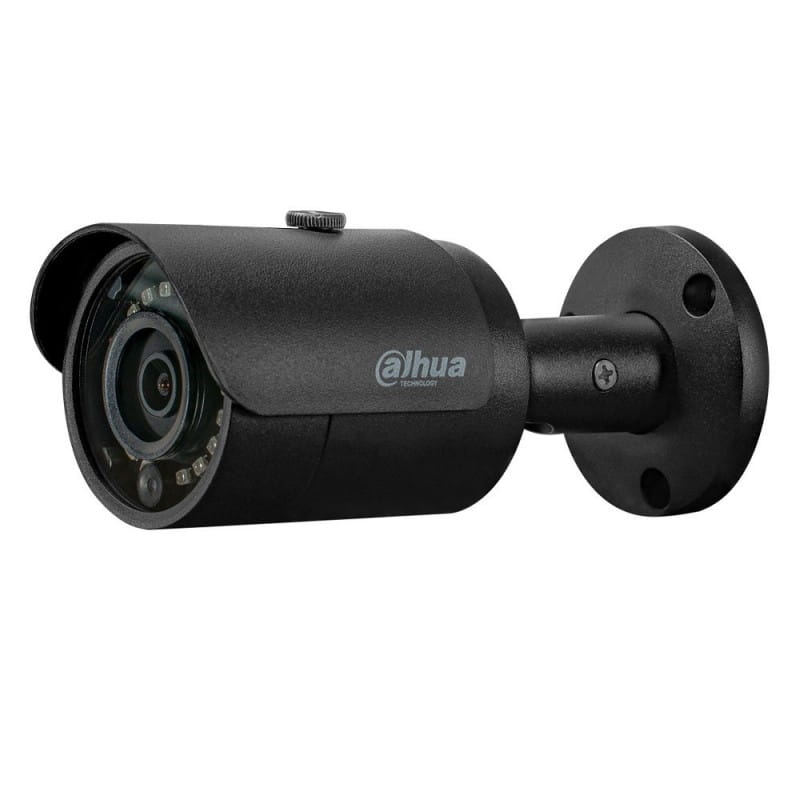

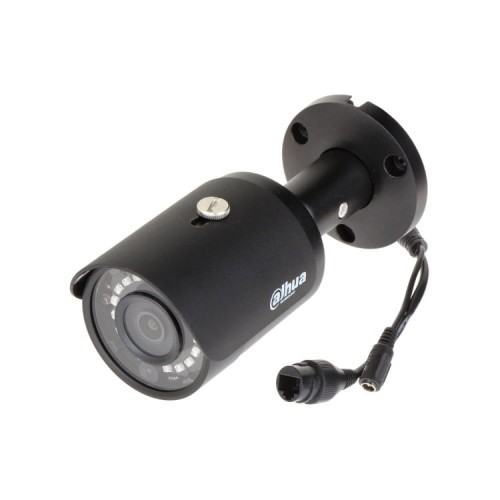

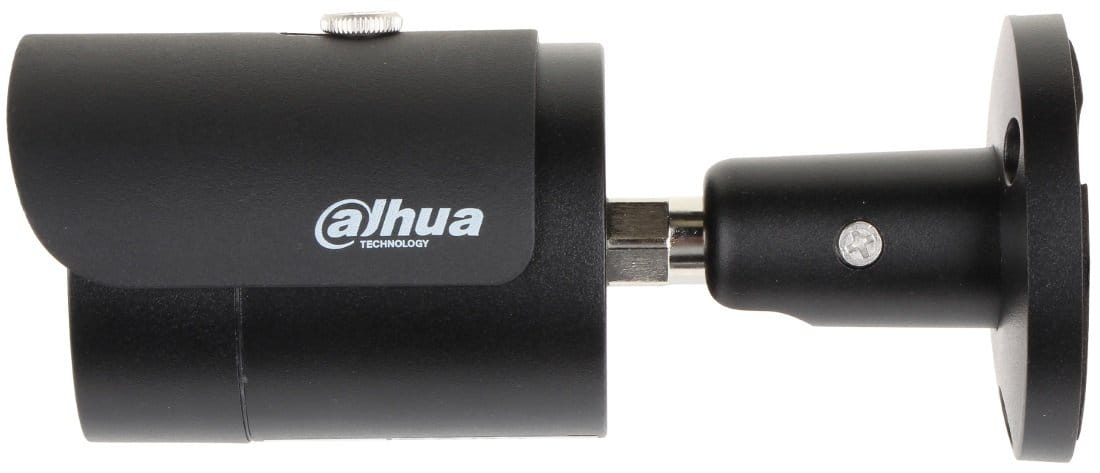

IPC-HFW1230S-0280B-BLACK

Availability: 0
Price: €119.09 119.09
excl. 23.00% TAX, excl. shipping costs
quantity szt.

product unavailable

add to wish list
Vendor: DAHUA
Product code: IPC-HFW1230S-0280B-BLACK

Description

Lite Series | DH-IPC-HFW1230S-BLACK   System Overview  The IR Megapixel Fixed camera delivers 2MP resolution with a motorized  2.8mm/3.6mm fixed lens.The camera's elegant blend of aesthetics  combined with a range of easy mounting solutions provides an excellent  choice for a variety of small to mid-size applications at an affordable  price.    Functions  Smart Codec (H.265+ & H.264+)  Smart Codec is the optimized implementation of standard video  compression (H.265 & H.264) that uses a scene-adaptive encoding  strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference  structure and intelligent noise reduction to deliver high-quality video  without straining the network. Smart Codec technology reduces bit rate  and storage requirements by up to 70% when compared to the standard  video compression.  Intelligent Video Analysis (IVS)  Dahua camera is equipped with a built-in intelligent analytic algorithm  based on video, which can realize intelligent functions like Tripwire  and Intrusion, to quickly and accurately respond to monitoring events  in specific area, It can enhance monitoring efficiency. In addition, the  camera supports intelligent tamper detection, which is to generate

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet PDF


Text contents of PDF datasheet:

Lite Series | DH-IPC-HFW1230S-BLACK
System Overview
The IR Megapixel Fixed camera delivers 2MP resolution with a motorized
2.8mm/3.6mm fixed lens.The camera's elegant blend of aesthetics
combined with a range of easy mounting solutions provides an excellent
choice for a variety of small to mid-size applications at an affordable
price.

Functions
Smart Codec (H.265+ & H.264+)
Smart Codec is the optimized implementation of standard video
compression (H.265 & H.264) that uses a scene-adaptive encoding
strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference
structure and intelligent noise reduction to deliver high-quality video
without straining the network. Smart Codec technology reduces bit rate
and storage requirements by up to 70% when compared to the standard
video compression.
Intelligent Video Analysis (IVS)
Dahua camera is equipped with a built-in intelligent analytic algorithm
based on video, which can realize intelligent functions like Tripwire
and Intrusion, to quickly and accurately respond to monitoring events
in specific area, It can enhance monitoring efficiency. In addition, the
camera supports intelligent tamper detection, which is to generate
warning message via detecting dramatic scene change and to guarantee
effective video surveillance.
Smart IR Technology
With IR illumination, detailed images can be captured in low light or
total darkness. The camera's Smart IR technology adjusts the intensity of
camera's infrared LEDs to compensate the distance of an object. Smart
IR technology prevents IR LEDs from whitening out images as they come
closer to the camera. The camera's integrated infrared illumination
provides high performance in extreme low-light environments up to 30m
(98ft).
Protection (IP67, wide voltage)
The camera allows for ±25% input voltage tolerance, suitable for the
most unstable conditions for outdoor applications. Its 6KV lightning
rating provides effective protection for both the camera and its structure
against lightning. Subjected and certified to rigorous dust and immersion
tests (IP67) , the camera is the choice for installation in even the most
unforgiving environments.
Environmental
Dahua cameras operate in extreme temperature environments, rated for
use in temperatures from -30° C to +60° C (-22° F to +140° F) with 95%
humidity.
Image Flip
Capturing unnecessary data such as surrounding hallway walls can
increase storage requirements without any added value. The image flip
feature allows the camera's image to be rotated in 90° increments for
better video optimization.
Interoperability
The camera conforms to the ONVIF (Open Network Video Interface
Forum) specifications, ensuring interoperability between network video
products regardless of manufacturer.
www.dahuasecurity.com
· 1/2.7” 2Megapixel progressive CMOS
· H.265& H.264 dual-stream encoding
·25/30fps@1080P(1920x1080)
·DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
·Multiple network monitoring: Web viewer, CMS(DSS/PSS) &
DMSS
·2.8 mm fixed lens (3.6mm optional)
·Max IR LEDs Length 30m
·IP67, PoE
DH-IPC-HFW1230S-BLACK
2MP IR Mini-Bullet Network Camera

IP67
30
m IR

1080p
H.265


www.dahuasecurity.com
Lite Series | DH-IPC-HFW1230S-BLACK

Technical Specication
Camera
Image Sensor1/2.7” 2Megapixel progresive CMOS
Effective Pixels
1920(H) x1080(V)
RAM/ROM
256MB/32MB
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual, 1/3~1/100000s
Minimum Illumination
0.08Lux/F2.0( Color,1/3s,30IRE)
0.3Lux/F2.0( Color,1/30s,30IRE)
0Lux/F2.0(IR on)
S/N Ratio
More than 50dB
IR Distance
Distance up to 30m(98ft)
IR On/Off Control
Auto/ Manual
IR LEDs
18
Lens
Lens TypeFixed
Mount TypeBoard-in
Focal Length2.8 mm (3.6 mm optional)
Max. ApertureF2.0/F2.0
Angle of ViewH:104°/92°,V:55°/50°
Focus ControlFixed
Close Focus Distance0.6m(0.9m)
DORI Distance
LensDetectObserveRecognizeIdentify
2.8 mm 40(131ft) 16(52ft) 8(26ft) 4(13ft)
3.6 mm 53(174ft)21(69ft)11(36ft)5(16ft)
PTZ
Pan/Tilt RangePan:0° ~360° ;Tilt:0° ~90° ;Rotation:0° ~360°
Intelligence
Event Trigger
Motion detection, Video tampering, Scene changing,
Network disconnection, IP address conflict, Illegal
access, Storage anomaly
IVS Tripwire, Intrusion
Video
CompressionH.265/H.264H/MJPEG(Sub Stream)
Smart Codec Support H.265+/H.264+
Streaming Capability2 Streams
Resolution
1080P(1920x1080)/1.3M(1280x960)/
720P(1280x720)/D1(704x576/704x480)/
VGA(640x480)/CIF(352x288/352x240)
Frame Rate
Main Stream: 1080P(1 ~ 25/30fps)
Sub Stream: D1(1 ~ 25/30fps)
Bit Rate ControlCBR/VBR
Bit Rate
H.265: 12K ~ 6400Kbps
H.264: 32K ~ 10240Kbps

Day/NightAuto(ICR) / Color / B/W
BLC ModeBLC / HLC / DWDR
White BalanceAuto/Natural/Street Lamp/Outdoor/Manual
Gain ControlAuto/Manual
Noise Reduction3D DNR
Motion DetectionOff / On (4 Zone, Rectangle)
Region of InterestOff / On (4 Zone)
Electronic ImageSupport
Smart IRSupport
Digital Zoom16x
Flip0°/90°/180°/270°
MirrorOff / On
Privacy MaskingOff / On (4 Area, Rectangle)
Audio
CompressionN/A
Network
EthernetRJ-45 (10/100Base-T)
Protocol
HTTP;HTTPs;TCP;ARP;RTSP;RTP;RTCP;UDP;SMTP;
FTP;DHCP;DNS;DDNS;PPPoE;IPv4/v6;QoS;UPnP;
NTP;Bonjour;IEEE 802.1x;Multicast;ICMP;IGMP;
TLS
InteroperabilityONVIF Profile S&G, API
Streaming MethodUnicast / Multicast
Max. User Access10 Users / 20 Users
Edge Storage
NAS
Local PC for instant recording
Web ViewerIE, Chrome, Firefox, Safari
Management SoftwareSmart PSS, DSS, DMSS
Smart PhoneIOS, Android
Certifications
Certifications
CE (EN 60950:2000)
UL:UL60950-1
FCC: FCC Part 15 Subpart B
Interface
Video InterfaceN/A
Audio InterfaceN/A
RS485N/A
AlarmN/A
Electrical
Power SupplyDC12V, PoE (802.3af)(Class 0)
Power Consumption<5.5W

Lite Series | DH-IPC-HFW1230S-BLACK

Ordering Information
TypePart NumberDescription
2MP camera
DH-IPC-HFW1230SP
-0280B
2MP IR Mini-Bullet Network Camera,
2.8mm,PAL
DH-IPC-HFW1230SN
-0280B
2MP IR Mini-Bullet Network Camera,
2.8mm,NTSC
IPC-HFW1230SP
-0280B
2MP IR Mini-Bullet Network Camera,
2.8mm,PAL
IPC-HFW1230SN
-0280B
2MP IR Mini-Bullet Network Camera,
2.8mm, NTSC
DH-IPC-HFW1230SP
-0360B
2MP IR Mini-Bullet Network Camera,
3.6mm,PAL
DH-IPC-HFW1230SN
-0360B
2MP IR Mini-Bullet Network Camera,
3.6mm,NTSC
IPC-HFW1230SP
-0360B
2MP IR Mini-Bullet Network Camera,
3.6mm,PAL
IPC-HFW1230SN
-0360B
2MP IR Mini-Bullet Network Camera,
3.6mm,NTSC
Accessories
(optional)
PFA134Junction box
PFA152-EPole mount
PFA151Corner mount
www.dahuasecurity.com

Environmental
Operating Conditions-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Strorage Conditions-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress Protection IP67
Vandal ResistanceN/A
Construction
CasingMetal+Plastic
DimensionsΦ70mmx164.7mm(2.76''x6.49'')
Net Weight0.38Kg(0.84lb)
Gross Weight0.44Kg(0.97lb)
Dimensions (mm/inch)

Corner Mount


Pole Mount

PFA134 + PFA152-E
PF A134

PFA134 + PFA151

}Œ]
K‰Ÿ}voW

PFA134
Junction Box
PFA151
PFA152-E
Pole mountCorner mount
© 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice.Rev 001.001
