IPC-HF5231E-E

Eco Savvy 3.0 | DH-IPC-HF5231E-E    System Overview  With upgraded H.265 encoding technology, Eco-savvy series brings  high efficient video compression capability. It can save bandwidth and  storage. Meanwhile, the series features starlight, smart IR technology  and intelligent image analysis techniques. This series supports  reminder function, meanwhile fully protected from dust and water,  certified to IP67 and vandal resistant to IK10 standard.  Functions  ePoE technology  The ePoE technology of Dahua, designed internally, adopts advanced  2D-PAM3 coding modulation from physical layer, and realizes full duplex  transmission over 800 meters at the speed of 10Mbps, or 300 meters  at the speed of 100Mbps via Cat 5 or coaxial cable media. Besides,  it supports PoE and PoC power supply technology which has greatly  simplified construction and wiring. Dahua ePoE technology offer a new  way to accomplish long distance transmission between IP camera and  network switch. It allows more flexible surveillance system design,  improves reliability and saves construction and wiring cost.  Starlight Technology ...

Warning! Product withdrawn from production!

Replacement product: IPC-HF5241E-E

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

Eco Savvy 3.0 | DH-IPC-HF5231E-E

System Overview
With upgraded H.265 encoding technology, Eco-savvy series brings
high efficient video compression capability. It can save bandwidth and
storage. Meanwhile, the series features starlight, smart IR technology
and intelligent image analysis techniques. This series supports
reminder function, meanwhile fully protected from dust and water,
certified to IP67 and vandal resistant to IK10 standard.
Functions
ePoE technology
The ePoE technology of Dahua, designed internally, adopts advanced
2D-PAM3 coding modulation from physical layer, and realizes full duplex
transmission over 800 meters at the speed of 10Mbps, or 300 meters
at the speed of 100Mbps via Cat 5 or coaxial cable media. Besides,
it supports PoE and PoC power supply technology which has greatly
simplified construction and wiring. Dahua ePoE technology offer a new
way to accomplish long distance transmission between IP camera and
network switch. It allows more flexible surveillance system design,
improves reliability and saves construction and wiring cost.
Starlight Technology
For challenging low-light applications, Dahua’s Starlight Ultra-low
Light Technology offers best-in-class light sensitivity, capturing color
details in low light down to 0.006lux. The camera uses a set of optical
features to balance light throughout the scene, resulting in clear
images in dark environments.
Wide Dynamic Range
The camera achieves vivid images, even in the most intense contrast
lighting conditions, using industry-leading wide dynamic range
(WDR) technology. For applications with both bright and low lighting
conditions that change quickly, true WDR (120 dB) optimizes both the
bright and dark areas of a scene at the same time to provide usable
video.
Intelligent Video System (IVS)
IVS is a built-in video analytic algorithm that delivers intelligent
functions to monitor a scene for Tripwire violations, intrusion
detection, and abandoned or missing objects. A camera with IVS
quickly and accurately responds to monitoring events in a specific
area. In addition to scene analytics, the camera supports face
detection to quickly capture a face and upload the image to a server.
The camera also offers tamper detection by recognizing a dramatic
scene change and generating a warning message to inspect the
camera.
Protection
The camera allows for ±30% input voltage tolerance, suitable for the
most unstable conditions for outdoor applications. Its 6KV lightning
rating provides effective protection for both the camera and its
structure against lightning. Subjected and certified to rigorous dust
and immersion tests (IP67) and impact tests (IK10), the camera is the
choice for installation in even the most unforgiving environments.
Smart H.265+
Smart H.265+ is the optimized implementation of the H.265 codec
that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic
ROI, flexible multi-frame reference structure and intelligent noise
reduction to deliver high-quality video without straining the network.
Smart H.265+ technology reduces bit rate and storage requirements
by up to 70% when compared to standard H.265 video compression.
www.dahuasecurity.com
· 1/2.8” 2Megapixel progressive scan STARVIS™ CMOS
· H.264&H.265 triple-stream encoding
· 50/60fps@1080P(1920x1080)
· Smart Detection supported
· WDR(120dB), Day/Night(ICR), 3DNR,AWB,AGC,BLC
· Multiple network monitoring: Web viewer, CMS(DSS/PSS) &
DMSS
· 2/1 Alarm in/out, 1/1 audio in/out(Built-in Mic)
· Auto back focus(ABF)
· Micro SD memory, PoE

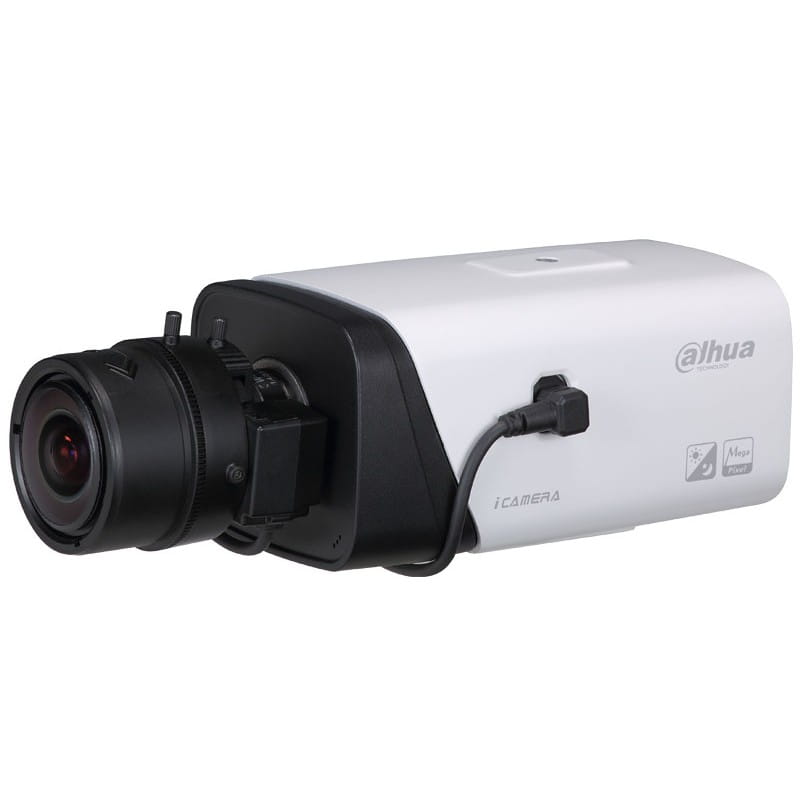

DH-IPC-HF5231E-E
2MP WDR Box Network Camera

Temperature

1080p

50/60fps
1080P
H.265

Starlight


www.dahuasecurity.com
Eco Savvy 3.0 |DH-IPC-HF5231E-E

Technical Specification
Camera
Image Sensor1/2.8” 2Megapixel progressive scan CMOS
Effective Pixels
1920(H) x 1080(V)
RAM/ROM
256MB/32MB
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual, 1/3~1/100000s
Minimum Illumination
0.004Lux/F1.2(Color,1/3s,30IRE)
0.04Lux/F1.2(Color,1/30s,30IRE)
0.002Lux/F1.2(B/W,1/3s,30IRE)
0.02Lux/F1.2(B/W,1/30s,30IRE)
S/N Ratio
More than 50dB
IR Distance
N/A
IR On/Off Control
N/A
IR LEDs
N/A
Lens
Lens TypeN/A
Mount TypeC/CS
Focal LengthN/A
Max. ApertureN/A
Angle of ViewN/A
Optical ZoomN/A
Focus ControlN/A
Close Focus DistanceN/A
Pan/Tilt/Rotation
Pan/Tilt/Rotation RangeN/A
Intelligence
IVSTripwire, Intrusion, Object Abandoned/Missing
Advanced Intelligent FunctionsFace Detection
Video
CompressionH.265+/H.265/H.264+/H.264
Streaming Capability3 Streams
Resolution
1080P(1920x1080)/1.3M(1280x960)/
720P(1280x720)/D1(704x576/704x480)/
VGA(640x480)/CIF(352x288/352x240)
Frame Rate
Main Stream: 1080P(1~50/60fps)
Sub Stream:D1(1~50/60fps)
Third Stream: 1080P(1~25/30fps)
Bit Rate ControlCBR/VBR
Bit Rate
H.264: 24~9472Kbps
H.265: 14~5632Kbps
Day/NightAuto(ICR) / Color / B/W
BLC ModeBLC / HLC / WDR(120dB)


White BalanceAuto/Natural/Street Lamp/Outdoor/Manual
Gain ControlAuto/Manual
Noise Reduction3D DNR
Motion DetetionOff / On (4 Zone, Rectangle)
Region of InterestOff / On (4 Zone)
Electronic Image Stabilization
(EIS)
N/A
Smart IRN/A
DefogN/A
Digital Zoom16x
Flip0°/90°/180°/270°
MirrorOff / On
Privacy MaskingOff / On (4 Area, Rectangle)
Audio
CompressionG.711a/ G.711Mu/ AAC/ G.726
Network
EthernetRJ-45 (10/100Base-T)
Protocol
HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP;
FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS;
UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP;
IGMP; SNMP
InteroperabilityONVIF, PSIA, CGI
Streaming MethodUnicast / Multicast
Max. User Access10 Users /20 Users
Edge Storage
NAS
Local PC for instant recording
Mirco SD card 128GB
Web ViewerIE, Chrome, Firefox, Safari
Management SoftwareSmart PSS, DSS, Easy4ip
Smart PhoneIOS, Android
Certifications
Certifications
CE (EN 60950:2000)
UL:UL60950-1
FCC: FCC Part 15 Subpart B
Interface
Video Interface1 port(BNC,1Vp-p,75Ω)
Audio Interface1/1 channel In/Out, 1 Built-in Mic
RS4851 port
Alarm
2 channel In: 5mA 5VDC
1 channel Out: 300mA 12VDC
Electrical
Power SupplyDC12V, AC24V, PoE(802.3af)(Class 0)
Power Consumption<8W

Eco Savvy 3.0 | DH-IPC-HF5231E-E

www.dahuasecurity.com

Environmental
Operating Conditions-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Strorage Conditions-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress Protection
N/A
Vandal ResistanceN/A
Construction
CasingMetal
Dimensions135.4mmx74.4mmx65.5mm (5.33”x2.93”x2.58”)
Net Weight0.66Kg (1.46lb)
Gross Weight0.77Kg (1.7lb)
Accessories
Optional:
Dimensions (mm/inch)
PFB110W
Wall Mount
PFB121W
Wall Mount

Wa ll Moun t
Wa ll/Ceilin g/ Plane Moun t
PFB110W
PFB121W

Rev 001.001© 2017 Dahua. All rights reserved. Design and specifications are subject to change without notice.
LR1002
ePoE Over Coax Converter

Ordering Information
TypePart NumberDescription
2MP camera
DH-IPC-HF5231EP-E2MP Box Network Camera, WDR, PAL
DH-IPC-HF5231EN-E2MP Box Network Camera, WDR, NTSC
IPC-HF5231EP-E2MP Box Network Camera, WDR, PAL
IPC-HF5231EN-E2MP Box Network Camera, WDR, NTSC
Accessories
(optional)
PFB110WWall mount
PFB121WWall mount
LR1002ePoE Over Coax Converter
