www.dahuasecurity.com
DH-IPC-HDW2231T-ZS-S2

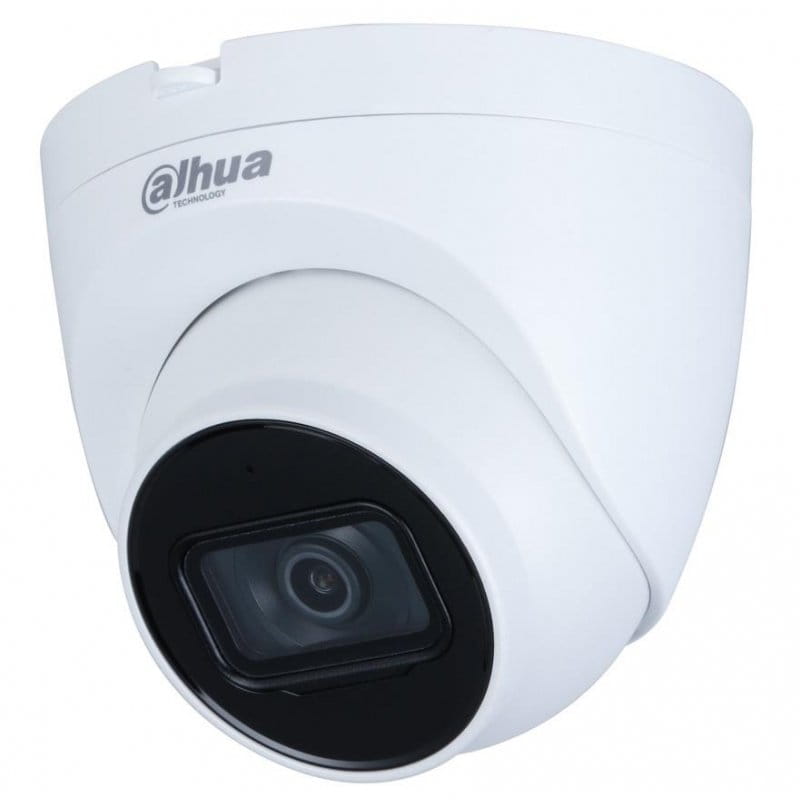

2MP WDR IR Eyeball Network Camera

· 2MP, 1/2.8” CMOS image sensor, low illuminance, high image definition
· Outputs 2MP (1920 x 1080)@25/30 fps
· H.265 coding, high compression ration, low bit rate
· Built-in IR LED, max IR distance: 40 m
· ROI, SMART H.264/H.265, flexible coding, applicable to various
bandwidth and storage environments
· Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking,
applicable to various monitoring scenes
· Intelligent detection: Intrusion, tripwire
· Abnormality detection: Motion detection, video tempering, no SD card,
SD card full, SD card error, network disconnected, IP conflict, illegal ac-
cess, voltage detection
· Max. 256 GB SD card
· 12V DC/POE power support
· IP67 protection
Lite Series |DH-IPC-HDW2231T-ZS-S2
System Overview
With upgraded H.265 encoding technology, Dahua Lite series camera
has efficient video encoding capacity, which saves bandwidth and
storage space. This camera adopts the latest starlight technology and
displays better colorful image in the environment of low illumination.
It supports SD card storage, waterproof function, dust-proof function,
complying to the standards of IP67.
Functions
Smart(H.265+ & H.264+)
Adopting advanced algorithm of auto stream control according to the
environment, Dahua smart encoding technology realizes the higher
efficiency than (H.265 & H.264 ), providing high-quality video, and
reducing the cost of storage and transmission.
Wide dynamic range (WDR)
Dahua adopts advanced Wide Dynamic Range (WDR) technology. You
can get clear details in the environment of strong brightness contrast.
In high brightness and back-light environment, bright region and dark
region with strong light source, you can also get clear images.

2Mp

IP67
H.265+

StarlightIVS

Starlight
Dahua Starlight technology mainly applies to the environment of
low illumination, and it can provide clear colorful video. Even in the
environment of min. illumination, the technology can guarantee the
good image effect.
Intelligent Video Analysis (IVS)
With advanced video algorithm, Dahua camera supports intelligent
detection, such as tripwire and intrusion and so on.
Protection (IP67, wide voltage)
IP67: The camera passes a series of strict test on dust and soak. It has
dust-proof function, and the enclosure can works normal after soaking
in 1 m deep water for 30 minutes.
Wide voltage: The camera allows ±30% input voltage tolerance (wide
voltage range), and it is widely applied to outdoor environment with
instable voltage.

www.dahuasecurity.com

Technical Specification
Camera
Image Sensor1/2.8” CMOS
Effective Pixels
1920 (H) x 1080 (V)
ROM128 MB
RAM128 MB
Scanning SystemProgressive
Electronic Shutter Speed
Auto/Manual 1/3 s–1/100000 s
Min. Illumination0.002 Lux@F1.6
IR Distance40 m (131.23 ft) (IR)
IR On/Off ControlAuto/Manual
IR LEDs Number2 (IR LED)
Pan/Tilt/Rotation Range
Horizonal: 0°–355°
Vertical: 0°–67°
Rotation: 0°–360°
Lens
Lens TypeMotorized vari-focal
Mount Typeφ14
Focal Length2.7 mm–13.5 mm
Max. ApertureF1.6
Field of View
Horizonal: 109°–28°
Vertical: 57°–16°
Diagonal: 131°–33°
Optical Zoom5 times
Iris TypeFixed
Close Focus Distance0.8 m–0.8 m (2.62 ft–2.62 ft)
DORI Distance
LensDetectObserveRecognizeIdentify
W
44.1 m
(144.69 ft)
17.6 m
(57.74 ft)
8.8 m
(28.87 ft)
4.4 m
(14.44 ft)
T
151.7 m
(497.70 ft)
60.6 m
(198.82 ft)
30.3 m
(99.41 ft)
15.1 m
(49.65 ft)
Smart Event
General IVS AnalyticsIntrusion; tripwire
Video
Video Compression H.265; H.264; H.264B; MJPEG
Smart Codec
H.264: Yes
H.265: Yes
Video Frame Rate
50Hz
Main stream (1920 x 1080@25 fps); sub stream (704 x
576@25 fps)
60Hz
Main stream (1920 x 1080@30 fps); sub stream (704 x
480@30 fps)
Stream CapabilityMain stream; sub stream
Resolution
1080p (1920 x 1080); 1.3M (1280 x 960); 720p (1280
x720); D1 (704 x 576/704 x 480); VGA (640 x 480); CIF
(352 x 288/352 x 240)
Bit Rate ControlCBR/VBR

Video Bit Rate
H.264: 32 Kbps–6144 Kbps
H.265: 12 Kbps–6144 Kbps
Day/NightICR switch
BLCYes
WDR120 dB
White Balance
Auto/natural/street lamp/outdoor/manual/regional
custom
Gain ControlAuto/Manual
Noise Reduction3D DNR
Motion DetectionDisable/Enable (4 areas, rectangle)
Region of Interest(RoI)Yes (4 areas)
Smart IRYes
Image Rotation
0°/90°/180°/270° (Supports 90°/270° with 1080p
resolution.)
MirrorYes
Privacy Masking4 areas
Network
NetworkRJ-45 (10/100 Base-T)
Protocol
HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP;
DHCP; DNS; DDNS; PPPoE; IPv4/v6; QoS; UPnP; NTP;
RTMP; Multicast; HTTPS; SFTP; 802.1x; ICMP; IGMP
InteroperabilityONVIF (Profile S/Profile G); CGI; Milestone; Genetec
User/Host20
Edge StorageDahua Cloud; FTP; Micro SD card (max. 256 GB); NFS
Browser
IE
Google
Firefox
Management SoftwareSmart PSS; DSS; DMSS
Mobile PhoneIOS; Android
Certification
Certifications
CE-LVD: EN60950-1
CE-EMC: Electromagnetic Compatibility Directive
2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL: UL60950-1 CAN
Power
Power Supply12V DC/POE
Power Consumption
Basic power consumption: 1.9W (12V DC), 2.2W (POE)
Max power consumption (H.265, Max resolution, Max
stream, WDR, IR full intensity, IVS): 5.5W (12V DC), 6.4W
(POE)
Environment
Operating Temperature -30°C to +60°C (-22°F to +140°F)
Operating Humidity≤95%
Storage Temperature-40°C to +60°C (-40°F to +140°F)
Storage Humidity≤95%
ProtectionIP67
Lite Series |DH-IPC-HDW2231T-ZS-S2

Structure
CasingMetal
Dimensions108.3 mm x Φ122 mm (4.26" x Φ1.80")
Net Weight0.69 kg (1.52 lb)
Gross Weight0.88 kg (1.94 lb)

Ordering Information
TypePart NumberDescription
2MP
Camera
DH-IPC-HDW2231TP-ZS-S2
2MP WDR IR Eyeball Network
Camera,PAL
DH-IPC-HDW2231TN-ZS-S2
2MP WDR IR Eyeball Network
Camera,NTSC
Accessories
(optional)
PFA130-EJunction Box
PFB203WWall Mount
PFA106Mount Adapter
PFB220CCeiling Mount
PFA152-EPole Mount
PFM321DDC12V1A Power Adapter
LR1002-1ET/1EC
Single-port long reach ethernet over
coax extender
PFM900-EIntegrated Mount tester
PFM114TLC SD card

Dimensions (mm[inch])

Rev 001.001© 2019 Dahua . All rights reserved. Design and specifications are subject to change without notice.
Pictures in the document are for reference only, and the actual product shall prevail.

www.dahuasecurity.com
Lite Series |DH-IPC-HDW2231T-ZS-S2
Accessories
Optional:
PFA130-E
Junction Box
PFB203W
Wall Mount
PFA152-E
Pole Mount
PFM114
TLC SD card
PFM321D
DC12V1A Power
Adapter
LR1002-1ET/1EC
Single-port long
reach ethernet over
coax extender
PFM900-E
Integrated Mount
tester
PFA106
Mount Adapter
PFB220C
Ceiling Mount

Junction Mount
PFAEPFB2WPFAPFB22CPFB2WPFA2E
Wall MountCeiling MountPole Mount
