IPC-HDW2231R-ZS-27135

Availability: 0
Price: €207.89 207.89
excl. 23.00% TAX, excl. shipping costs
quantity szt.

product unavailable

add to wish list
Vendor: DAHUA
Product code: IPC-HDW2231R-ZS-27135

Description

Lite Series | DH-IPC-HDW2231R-ZS     System Overview  The IR Megapixel Vari-focal Eyeball camera delivers 2MP resolution with  a motorized 2.7mm – 12mm varifocal lens. The camera's elegant blend  of aesthetics combined with a range of easy mounting solutions provides  an excellent choice for a variety of small to mid-size applications at an  affordable price.    Functions  True Day/Night  A day/night mechanical IR cut filter makes this camera ideal for  applications with fluctuating lighting conditions, delivering color images  during the day and automatically switching to monochrome as the scene  darkens  Regions of interest  Regions of Interest (ROI) is a user defined feature that allows the  operator to monitor specific areas of a scene while still maintaining  overall situational awareness of less important areas  Smart IR  With IR illumination, detailed images can be captured in low light or  total darkness. The camera's Smart IR technology adjusts to the intensity  of camera's infrared LEDs to compensate for the distance of an object.  Smart IR technology prevents IR LEDS from whiting out images as they  come closer to the camera. The camera's integrated infrared illumination  provi...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet PDF


Text contents of PDF datasheet:

Lite Series | DH-IPC-HDW2231R-ZS

System Overview

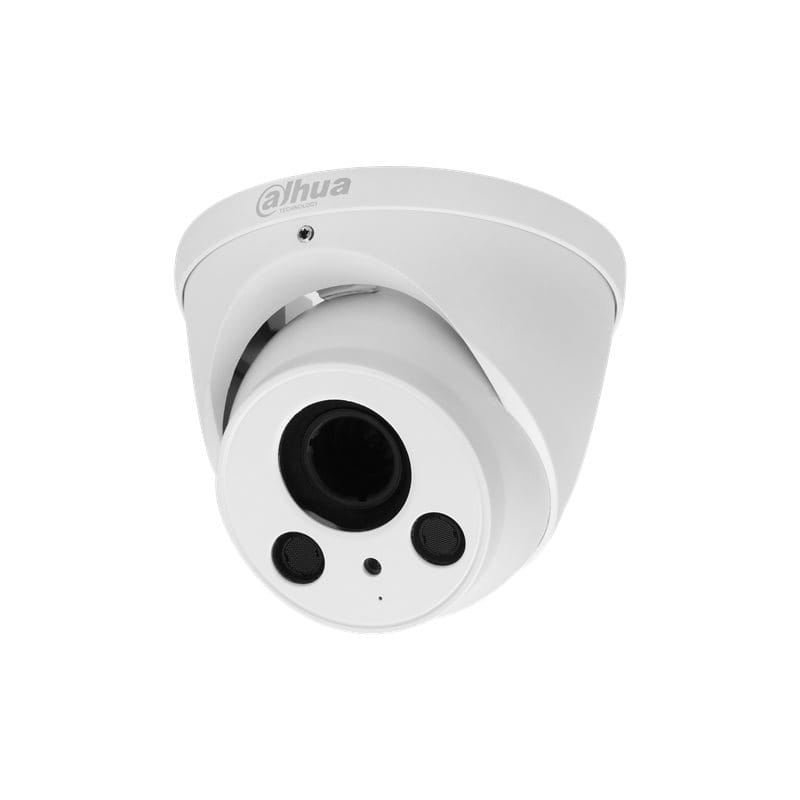

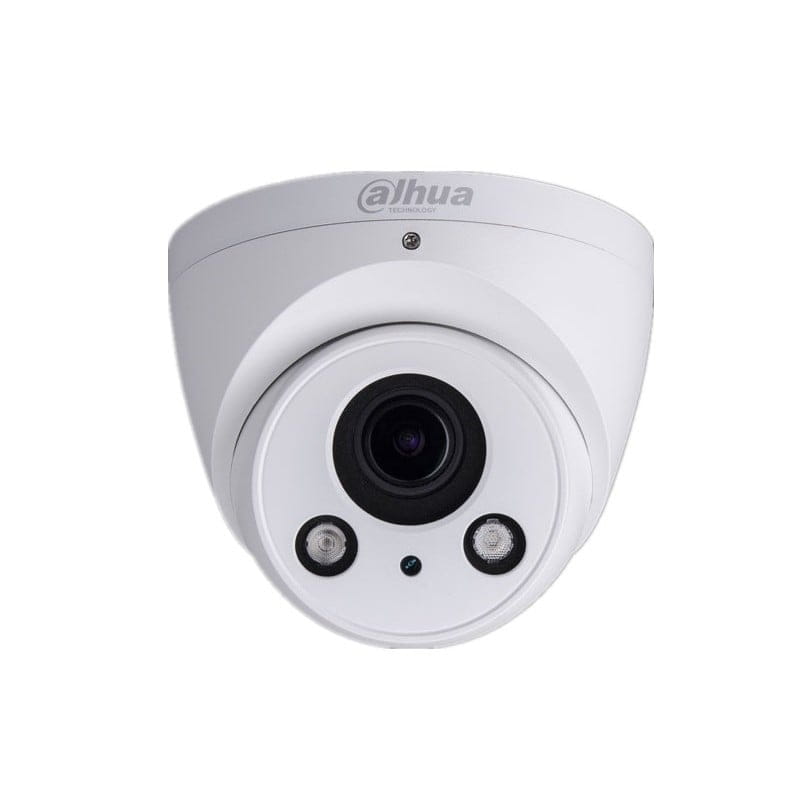

The IR Megapixel Vari-focal Eyeball camera delivers 2MP resolution with
a motorized 2.7mm – 12mm varifocal lens. The camera's elegant blend
of aesthetics combined with a range of easy mounting solutions provides
an excellent choice for a variety of small to mid-size applications at an
affordable price.

Functions
True Day/Night
A day/night mechanical IR cut filter makes this camera ideal for
applications with fluctuating lighting conditions, delivering color images
during the day and automatically switching to monochrome as the scene
darkens
Regions of interest
Regions of Interest (ROI) is a user defined feature that allows the
operator to monitor specific areas of a scene while still maintaining
overall situational awareness of less important areas
Smart IR
With IR illumination, detailed images can be captured in low light or
total darkness. The camera's Smart IR technology adjusts to the intensity
of camera's infrared LEDs to compensate for the distance of an object.
Smart IR technology prevents IR LEDS from whiting out images as they
come closer to the camera. The camera's integrated infrared illumination
provides high performance in extreme low-light environments up to 50m
(164ft).
Wide Dynamic Range
Embedded with industry leading wide dynamic range (WDR) technology,
vivid pictures are achieved even in the most intense contrast lighting
conditions. For applications with both bright and low lighting conditions
that change quickly, True WDR (120dB) optimizes both the bright and
dark areas of a scene at the same time to provide usable video.
Image flip
Capturing unnecessary data such as surrounding hallway walls can
increase storage requirements without any added value. The image flip
feature allows the camera's image to be rotated in 90° increments for
better video optimization.
Protection
Supporting ±10% input voltage tolerance, this camera suits even the
most unstable conditions for outdoor applications. Its 6KV lightning
rating provides protectection against the camera and its structure from
the effects of lightning.
Interoperability
The camera conforms to the ONVIF (Open Network Video Interface
Forum) specifications, ensuring interoperability between network video
products regardless of manufacturer
HEVC (H.265)
H.265 ITU-T VCEG is a new video coding standard. H.265 Following
standard developed around the existing video coding standard H.264
, some retain the original technology , while some of the relevant
technology to improve the new technology uses advanced technology
to improve the relationship between the code stream , encoding quality
, and the delay between algorithm complexity , optimize settings
specific contents include : Improve compression efficiency , improve the
robustness and error recovery capabilities, real-time to reduce the delay,
reduce channel acquisition time and a random access delay , reduce
complexity , etc
www.dahuasecurity.com
· 1/2.8” 2Megapixel progressive Starvis
TM
CMOS
· H.265& H.264 dual-stream encoding
· 25/30fps@2M (1920x1080)
· WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
· Multiple network monitoring: Web viewer, CMS(DSS/PSS) &
DMSS
· Micro SD card slot, up to 128GB
· 2.7~13.5mm varifocal lens
· Max IR LEDs Length 50m
· IP67, PoE
DH-IPC-HDW2231R-ZS
2MP IR Eyeball Network Camera

IP67
2Mp
H.265
50m IR

Starlight

www.dahuasecurity.com
Lite Series | DH-IPC-HDW2231R-ZS

Technical Specification
Camera
Image Sensor1/2.8” 2Megapixel progressive CMOS
Effective Pixels
1920(H) x1080(V)
RAM/ROM
256MB/32MB
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual, 1/3(4)~1/100000s
Minimum Illumination
0.006Lux/F1.4( Color,1/3s,30IRE)
0.05Lux/F1.4( Color,1/30s,30IRE)
0Lux/F1.4(IR on)
S/N Ratio
More than 45dB
IR Distance
Distance up to 50m(164ft)
IR On/Off Control
Auto/ Manual
IR LEDs
2
Lens
Lens TypeMotorized
Mount TypeBoard-in
Focal Length2.7mm~13.5mm
Max. ApertureF1.4
Angle of ViewH:109°~29°, V:57°~16°
Focus ControlMotorized
Close Focus Distance0.2m
DORI Distance
LensDetectObserveRecognizeIdentify
W44m(144ft)18m(59ft)9m(30ft)5m(16ft)
T153m(502ft)61m(200ft)31m(102ft)15m(49ft)
PTZ
Pan/Tilt RangePan:0° ~360 ° ;Tilt:0° ~78° ;Rotation:0° ~360°
Video
CompressionH.265+/H.265/H.264+/H.264
Streaming Capability2 Streams
Resolution
1080P(1920x1080)/1.3M(1280x960)/
720P(1280x720)/D1(704x576/704x480)/
CIF(352x288/352x240)
Frame Rate
2M(1~25/30fps)
D1/CIF(1 ~ 25/30fps)
Bit Rate ControlCBR/VBR
Bit Rate
H.265: 12K ~ 6400Kbps
H.264: 32K ~ 10240Kbps
Day/NightAuto(ICR) / Color / B/W
BLC ModeBLC / HLC / WDR(120dB)


White BalanceAuto/Natural/Street Lamp/Outdoor/Manual
Gain ControlAuto/Manual
Noise Reduction3D DNR
Motion DetetionOff / On (4 Zone, Rectangle)
Region of InterestOff / On (4 Zone)
Electronic Image
Stabilization(EIS)
N/A
Smart IRSupport
Digital Zoom16x
Flip0°/90°/180°/270°
MirrorOff / On
Privacy MaskingOff / On (4 Area, Rectangle)
Audio
CompressionN/A
Network
EthernetRJ-45 (10/100Base-T)
Protocol
HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP;
DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP;
Bonjour;802.1x;Multicast;ICMP;IGMP;
InteroperabilityONVIF, PSIA, CGI
Streaming MethodUnicast / Multicast
Max. User Access10 Users/20 Users
Edge Storage
NAS
Local PC for instant recording
Micro SD Card 128GB
Web ViewerIE, Chrome, Firefox, Safari
Management SoftwareSmart PSS, DSS,Easy4ip
Smart PhoneIOS, Android
Certifications
Certifications
CE (EN 60950:2000)
UL:UL60950-1
FCC: FCC Part 15 Subpart B
Interface
Video InterfaceN/A
Audio InterfaceN/A
RS485N/A
AlarmN/A
Electrical
Power SupplyDC12V PoE (802.3af)(Class 0)
Power Consumption<11.26W

Lite Series | DH-IPC-HDW2231R-ZS

Ordering Information
TypePart NumberDescription
2MP Camera
DH-IPC-HDW2231RP-
ZS
2MP WDR IR Eyeball Network Camera,
PAL
DH-IPC-HDW2231RN-
ZS
2MP WDR IR Eyeball Network Camera,
NTSC
IPC-HDW2231RP-ZS
2MP WDR IR Eyeball Network Camera,
PAL
IPC-HDW2231RN-ZS
2MP WDR IR Eyeball Network Camera,
NTSC
Accessories
(optional)
PFA137Junction box
PFB203W Wall mount
PFA152Pole mount
www.dahuasecurity.com

Environmental
Operating Conditions-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Strorage Conditions-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress Protection IP67
Vandal ResistanceN/A
Construction
CasingMetal
DimensionsΦ122mm x 102mm(4.8’’ x4.0’’)
Net Weight0.60Kg(1.32lb)
Gross Weight0.71Kg(1.57lb)
Dimensions (mm/inch)

Junction Mount

Wall Mount

Pole Mount

P23W PA12

P23W

PA13
