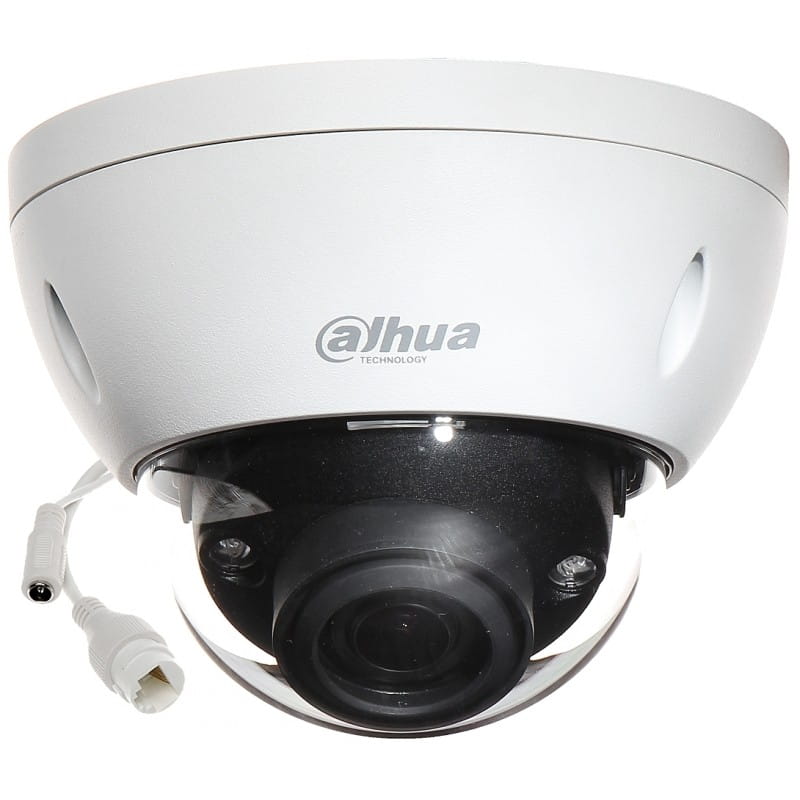

IPC-HDBW5431E-Z5E-0735

Eco Savvy 3.0 | DH-IPC-HDBW5431E-Z5E     System Overview  With upgraded H.265 encoding technology, Eco-savvy series brings  high efficient video compression capability. It can save bandwidth and  storage. Meanwhile, the series features starlight, smart IR technology  and intelligent image analysis techniques. This series supports  reminder function, meanwhile fully protected from dust and water,  certified to IP67 and vandal resistant to IK10 standard.   Functions  ePoE technology  The ePoE technology of Dahua, designed internally, adopts advanced  2D-PAM3 coding modulation from physical layer, and realizes full  duplex transmission over 800 meters at the speed of 10Mbps, or 300  meters at the speed of 100Mbps via Cat 5 or coaxial cable media.  Besides, it supports PoE and PoC power supply technology which has  greatly simplified construction and wiring. Dahua ePoE technology  offer a new way to accomplish long distance transmission between IP  camera and network switch. It allows more flexible surveillance system  design, improves reliability and saves construction and wiring cost.  Wide Dynamic Range  The camera ...

Warning! Product withdrawn from production!

Replacement product: IPC-HDBW5241E-Z5E-0735

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

Eco Savvy 3.0 | DH-IPC-HDBW5431E-Z5E

System Overview
With upgraded H.265 encoding technology, Eco-savvy series brings
high efficient video compression capability. It can save bandwidth and
storage. Meanwhile, the series features starlight, smart IR technology
and intelligent image analysis techniques. This series supports
reminder function, meanwhile fully protected from dust and water,
certified to IP67 and vandal resistant to IK10 standard.
Functions
ePoE technology
The ePoE technology of Dahua, designed internally, adopts advanced
2D-PAM3 coding modulation from physical layer, and realizes full
duplex transmission over 800 meters at the speed of 10Mbps, or 300
meters at the speed of 100Mbps via Cat 5 or coaxial cable media.
Besides, it supports PoE and PoC power supply technology which has
greatly simplified construction and wiring. Dahua ePoE technology
offer a new way to accomplish long distance transmission between IP
camera and network switch. It allows more flexible surveillance system
design, improves reliability and saves construction and wiring cost.
Wide Dynamic Range
The camera achieves vivid images, even in the most intense contrast
lighting conditions, using industry-leading wide dynamic range
(WDR) technology. For applications with both bright and low lighting
conditions that change quickly, true WDR (120 dB) optimizes both the
bright and dark areas of a scene at the same time to provide usable
video.
Intelligent Video System (IVS)
IVS is a built-in video analytic algorithm that delivers intelligent
functions to monitor a scene for Tripwire violations, intrusion
detection, and abandoned or missing objects. A camera with IVS
quickly and accurately responds to monitoring events in a specific
area. In addition to scene analytics, the camera supports face
detection to quickly capture a face and upload the image to a server.
The camera also offers tamper detection by recognizing a dramatic
scene change and generating a warning message to inspect the
camera.
Protection(IP67, IK10, wide voltage)
The camera allows for ±30% input voltage tolerance, suitable for the
most unstable conditions for outdoor applications. Its 6KV lightning
rating provides effective protection for both the camera and its
structure against lightning. Subjected and certified to rigorous dust
and immersion tests (IP67) and impact tests (IK10), the camera is the
choice for installation in even the most unforgiving environments.
Smart H.265+
Smart H.265+ is the optimized implementation of the H.265 codec
that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic
ROI, flexible multi-frame reference structure and intelligent noise
reduction to deliver high-quality video without straining the network.
Smart H.265+ technology reduces bit rate and storage requirements
by up to 70% when compared to standard H.265 video compression.
www.dahuasecurity.com
· 1/3” 4Megapixel progressive scan CMOS
· H.265&H.264 triple-stream encoding
· 25/30fps@4Mp(2688x1520)
· WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
· Multiple network monitoring: Web viewer, CMS(DSS/PSS)
& DMSS
· 7mm ~35mm 5X zoom lens
· Max. IR LEDs Length 100m
· IP67,IK10, PoE+
· Micro SD card memory
DH - IPC- HDBW5431E-Z5E
4MP WDR IR Dome Network Camera

Temperature

IP67
H.265

4Mp

Vandal-proof


www.dahuasecurity.com
Eco Savvy 3.0 |DH-IPC-HDBW5431E-Z5E

Technical Specification
Camera
Image Sensor1/3” 4Megapixel progressive scan CMOS
Effective Pixels
2688(H)x1520(V)
RAM/ROM
512MB/32MB
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual, 1/3~1/100000s
Minimum Illumination
0.03Lux/F1.4 (Color,1/3s,30IRE)
0.3Lux/F1.4 (Color,1/30s,30IRE)
0Lux/F1.4(IR on)
S/N Ratio
More than 50dB
IR Distance
Distance up to 100m (328ft)
IR On/Off Control
Auto/ Manual
IR LEDs
3
Lens
Lens TypeMotorized/ Auto Iris(HALL)
Mount TypeBoard-in
Focal Length7mm~35mm
Max. ApertureF1.4
Angle of ViewH: 33°~13°, V:20°~6°
Optical Zoom5x
Focus ControlMotorized
Close Focus Distance0.4m
DORI
Distance
LensDetectObserveRecognizeIdentify
W190m(623ft)76m(249ft)38m(124ft)19m(62ft)
T620m(2034ft)248m(813ft)124m(406ft)62m(203ft)
Pan/Tilt/Rotation
Pan/Tilt/Rotation RangePan:0˚~355˚; Tilt:0˚~65˚; Rotation:0˚~355˚
Intelligence
IVSTripwire, Intrusion, Object Abandoned/Missing
Advanced Intelligent FunctionsFace Detection
Video
CompressionH.265+/H.265/H.264+/H.264
Streaming Capability3 Streams
Resolution
4M(2688x1520)/3M(2304x1296)/
1080P(1920x1080)/1.3M(1280x960)/
720P(1280x720)/D1(704x576/704x480)/
VGA(640x480)/CIF(352x288/352x240)
Frame Rate
Main Stream: 4M(1~25/30fps)
Sub Stream: D1(1~25/30fps)
Third Stream: 720P(1~25/30fps)
Bit Rate ControlCBR/VBR

Day/NightAuto(ICR) / Color / B/W
BLC ModeBLC / HLC / WDR(120dB)
White BalanceAuto/Natural/Street Lamp/Outdoor/Manual
Gain ControlAuto/Manual
Noise Reduction3D DNR
Motion DetetionOff / On (4 Zone, Rectangle)
Region of InterestOff / On (4 Zone)
Electronic Image Stabilization
(EIS)
N/A
Smart IRSupport
DefogN/A
Digital Zoom16x
Flip0°/90°/180°/270°
MirrorOff / On
Privacy MaskingOff / On (4 Area, Rectangle)
Audio
CompressionG.711a/ G.711Mu/ AAC/ G.726
Network
EthernetRJ-45 (10/100Base-T)
Protocol
HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP;
FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS;
UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP;
IGMP; SNMP
InteroperabilityONVIF, PSIA, CGI
Streaming MethodUnicast / Multicast
Max. User Access10 Users /20 Users
Edge Storage
NAS
Local PC for instant recording
Mirco SD card 128GB
Web ViewerIE, Chrome, Firefox, Safari
Management SoftwareSmart PSS, DSS, Easy4ip
Smart PhoneIOS, Android
Certifications
Certifications
CE (EN 60950:2000)
UL:UL60950-1
FCC: FCC Part 15 Subpart B
Interface
Video Interface1 Port(For adjustment only)
Audio Interface1/1 channel In/Out
RS485N/A
Alarm
1 channel In: 5mA 5VDC
1 channel Out: 300mA 12VDC
Electrical
Power SupplyDC12V, AC24V, PoE+(802.3at)(Class 4)
Power Consumption<15W

Eco Savvy 3.0 | DH-IPC-HDBW5431E-Z5E

Ordering Information
TypePart NumberDescription
4MP camera
DH-IPC-
HDBW5431EP-Z5E
4MP IR Dome Network Camera, WDR, PAL
DH-IPC-
HDBW5431EN-
Z5E
4MP IR Dome Network Camera, WDR,NTSC
IPC-
HDBW5431EP-Z5E
4MP IR Dome Network Camera,WDR,PAL
IPC-
HDBW5431EN-
Z5E
4MP IR Dome Network Camera, WDR,NTSC
Accessories
(optional)
PFA138Junction Box
PFB302S Wall mount
PFB201C In-ceiling mount
PFB300C Ceiling mount
PFA152-EPole mount
PFA101Mount adapter
LR1002 ePoE Over Coax Converter
www.dahuasecurity.com

Bit Rate
H.264: 24~10240Kbps
H.265: 14~9984Kbps


Environmental
Operating Conditions-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Strorage Conditions-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress Protection
IP67
Vandal ResistanceIK10
Construction
CasingMetal
DimensionsΦ159.1mmx117.9mm (6.26”x4.64”)
Net Weight0.95kg (2.09lb)
Gross Weight1.20kg (2.65lb)
Accessories
Optional:
Dimensions (mm/inch)

Junction Mount
Wall Mount

Pole Mount

PFA101 + PFB302S + PFA152
PFA101 + PFB302S

PFA138
PFB201C

PFA101 + PFB300C

In-ceiling Mount

Ceiling Mount

PFB302S
Wa ll moun t
PF A138

x
PFB201C
In-ceiling moun t
PFB300C
Ceiling moun t
PF A152-E
Po le moun t
PF A101
Mount adap te r

LR1002
ePoE Over Coax Converter
Rev 001.001© 2017 Dahua. All rights reserved. Design and specifications are subject to change without notice.
