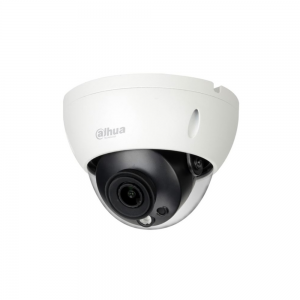

IPC-HDBW5249R-ASE-NI-0360B

Pro AI Series | DH-IPC-HDBW5249R-ASE-NI  DH-IPC-HDBW5249R-ASE-NI  2MP Pro AI Full-color Fixed-focal Dome Network Camera  www.dahuasecurity.com   System Overview  With starlight solution and deep learning algorithm, Dahua Pro AI series  network camera has various intelligent functions, including face capture,  perimeter protection and people counting, which greatly improve the  accuracy of video analysis. The series camera supports dust-proof func-  tion, waterproof function and vandal-proof function, complying with the  standards of IP67 and IK10 (Supported by some select models).   Functions  Face Detection  Dahua Face Detection technology can detect the face in the image. With  deep learning algorithm, the technology supports detecting, tracking,  capturing and selecting the best face image, and then outputs face  snapshot.  Perimeter Protection  With deep learning algorithm, Dahua Perimeter Protection technology  can recognize human and vehicle accurately. In restricted area (such  as pedestrian area and vehicle area), the false alarms of intelligent  detection based on target type (such as tripwire, intrusion, fast moving,  parking detection, loitering detection and gathering detection) are

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

Pro AI Series | DH-IPC-HDBW5249R-ASE-NI
DH-IPC-HDBW5249R-ASE-NI
2MP Pro AI Full-color Fixed-focal Dome Network Camera
www.dahuasecurity.com
System Overview
With starlight solution and deep learning algorithm, Dahua Pro AI series
network camera has various intelligent functions, including face capture,
perimeter protection and people counting, which greatly improve the
accuracy of video analysis. The series camera supports dust-proof func-
tion, waterproof function and vandal-proof function, complying with the
standards of IP67 and IK10 (Supported by some select models).
Functions
Face Detection
Dahua Face Detection technology can detect the face in the image. With
deep learning algorithm, the technology supports detecting, tracking,
capturing and selecting the best face image, and then outputs face
snapshot.
Perimeter Protection
With deep learning algorithm, Dahua Perimeter Protection technology
can recognize human and vehicle accurately. In restricted area (such
as pedestrian area and vehicle area), the false alarms of intelligent
detection based on target type (such as tripwire, intrusion, fast moving,
parking detection, loitering detection and gathering detection) are
largely reduced.
People Counting
With deep learning algorithm, Dahua People Counting technology
can track and process moving human body targets to realize the
accurate statistics of enter No., leave No., and In Area No. Working with
management platform, it outputs yearly/monthly/weekly/daily reports
to meet your requirements.
·2MP, 1/2.8” CMOS image sensor, low illuminance, high image definition
·Outputs max. 2MP (1920 x 1080) @30 fps
·H.265 codec, high compression rate, low bit rate
·ROI, SMART H.264+/H.265+, flexible coding, applicable to various
bandwidth and storage environments
·Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking,
applicable to various monitoring scenes
·Intelligent detection: Tripwire, intrusion, fast moving (the three
functions support the classification and accurate detection of vehicle
and human), abandoned object, missing object, loitering detection,
people gathering, parking detection, heat map, and face detection.
·Abnormality detection: Motion detection, video tampering, scene
changing, audio detection, no SD card, SD card full, SD card error,
network disconnection, IP conflict, illegal access, voltage detection
·Alarm: 1 in, 1 out; Audio: 1 in, 1 out; supports max. 256 G Micro SD card
·12V DC/PoE power support
·ePoE for remote transmission
·IP67, IK10 protection

Perimeter Protection
People Counting
Face Detection
Full-color
Full-color
With high-performance sensor and large aperture lens, Dahua Full-color
technology can display clear colorful image in the environment of ultra-
low illuminance. With this photosensitivity technology, the camera can
capture more available light, and display more colorful image details.
ePoE
Dahua ePoE technology provides a new way to accomplish long dis -
tance transmission between IP camera and network switch. It allows
more flexible surveillance system design, improves reliability and saves
construction and wiring cost.
Protection (IP67, IK10, wide voltage)
IP67: The camera passes a series of strict test on dust and soak. It has
dust-proof function, and the enclosure can works normal after soaking
in 1 m deep water for 30 minutes.
IK10: The enclosure can stand the punch more than 5 times from a 5 kg
hammer falling from a height of 40 cm (Impact energy is 20J).
Wide voltage: The camera allows ±30% input voltage tolerance (wide
voltage range), and it is widely applied to outdoor environment with
instable voltage.

Technical Specification
Camera
Image Sensor1/2.8”2Megapixel progressive CMOS
Effective Pixels1920 (H) x 1080 (V)
ROM128 MB
RAM512 MB
Scanning SystemProgressive
Electronic Shutter SpeedAuto/Manual 1/3 s–1/100,000 s
Min. Illumination0.001 Lux @F1.0
Pan/Tilt/Rotation Range
Pan: 0°–355°
Tilt: 0°–75°
Rotation: 0°–355°
Lens
Lens TypeFixed-focal
Mount TypeM16
Focal Length3.6 mm
Max. ApertureF1.0
Field of View
Horizontal: 88°
Vertical: 47°
Diagonal: 105°
Iris TypeFixed
Close Focus Distance1.7 m (5.6 ft)
DORI Distance
LensDetectObserveRecognizeIdentify
3.6mm
55.2 m
(181.1 ft)
22.1m
(72.5 ft)
11.0m
( 36.1ft)
5.5m
(18.0ft)
Smart Event
IVSAbandoned object; missing object
Heat MapYes
Professional, intelligent
IVS (Perimeter Protection)
Tripwire; intrusion; fast moving (the three functions
support the classification and accurate detection
of vehicle and human); loitering detection; people
gathering; parking detection
Face Detection
Face detection; track; optimization; snapshot;
report high quality picture; face enhancement;
face exposure; face matting setting: Face, single
inch photo, half length, full length; three snapshot
methods: Real-time snapshot, optimization
snapshot, quality priority; face angle filter;
optimization time setting
People Counting
Support the counting of enter number and leave
number, 4 rules configuration, and displaying and
outputting yearly/monthly/weekly/daily reports.
Support the counting of number in area , and 4
rules configuration.
Support queue management, and 4 rules
configuration. Count number of peole or strand
time and link alarm.
Intelligent Search
Work together with Smart NVR to perform refine
intelligent search, event extraction and merging to
event videos.
Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG

www.dahuasecurity.com
Pro AI Series | DH-IPC-HDBW5249R-ASE-NI

Smart CodecYes
Video Frame Rate
Main stream: 1080p (1–25/30 fps)
Sub stream: D1 (1–25/30 fps)
The third stream: 1080p (1–25/30 fps)
Stream Capability3 streams
Resolution
1080p (1920 x 1080); 1.3M (1280 x 960); 720p
(1280 x 720); D1 (704 x 576/704 x 480); VGA (640 x
480); CIF (354 x 288/354 x 240)
Bit Rate ControlCBR/VBR
Video Bit Rate
H.264: 32 kbps–8192 kbps
H.265: 19 kbps–8192 kbps
Day/NightColor/B/W
BLCYes
HLCYes
WDR120 dB
Scene Self-adaptation Yes
White Balance
Auto/natural/street lamp/outdoor/manual/regional
custom
Gain ControlAuto/Manual
Noise Reduction3D DNR
Motion DetectionOFF/ON (4 areas)
Region of Interest (RoI)Yes (4 areas)
DefogYes
Image Rotation
0°/90°/180°/270° (Support 90°/270° with 1080p
resolution and lower.)
MirrorYes
Privacy Masking4 areas
Audio
Audio CompressionG.711a; G.711Mu; G.726; AAC; G.723
Network
NetworkRJ-45 (10/100 Base-T)
Protocol
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP;
RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS;
QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS;
SAMBA; PPPoE; 802.1x; SNMP
Interoperability
ONVIF (Profile S/Profile G/Profile T); CGI; Milestone;
Genetec; P2P
User/Host20 (Total bandwidth: 80 M.)
Edge Storage
Dahua cloud; FTP; SFTP; Micro SD card (support
max. 256 G); NAS
Browser
IE: IE8 and later
Chrome
Firefox
Safari: Safar12 and later
Management SoftwareSmart PSS; DSS; DMSS
Mobile PhoneIOS; Android
Certification
Certifications
CE-LVD: EN60950-1
CE-EMC: Electromagnetic Compatibility Directive
2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Ordering Information
TypePart NumberDescription
2MP camera
DH-IPC-
HDBW5249RP-ASE-
NI-0360B
2MP Pro AI Full-color Fixed-focal Dome
Network Camera
PAL
DH-IPC-
HDBW5249RN-
ASE-NI-0360B
2MP Pro AI Full-color Fixed-focal Dome
Network Camera
NTSC
Accessories
(optional)
PFA137 Junction box
PFB200CInceiling Mount
PFA200WRain Shade
PFB203WWall Mount
PFA152-EPole Mount
PFA106Mount Adapter
PFB220CCeiling Mount
Accessories
Optional:
Dimensions (mm[inch] )

PFA137
Junction box
PFB200C
Inceiling Mount
PFA200W
Rain Shade
PFB203W
Wall Mount

PFA152-E
Pole Mount
PFA106
Mount Adapter
PFB220C
Ceiling Mount

Junction Mount Wall MountWall Mount
PA3
PA3PA
P3

PA6PC

In-ceiling Mount
PC
Pole Mount Ceiling Mount
P3PAE

LR1002
ePoE Over Coax
Converter

Rev 001.001© 2019 Dahua. All rights reserved. Design and specifications are subject to change without notice.
Pictures in the document are for reference only, and the actual product shall prevail.

www.dahuasecurity.com
Pro AI Series | DH-IPC-HDBW5249R-ASE-NI

Port
Audio Input1 channel (RCA port)
Audio Output1 channel (RCA port)
Alarm Input1 channels in: 5mA 3V–5V DC
Alarm Output1 channels out: 300mA 12V DC
Power
Power Supply12V DC/PoE (802.3af)
Power Consumption<3.8W
Environment
Operating Temperature-40°C to +60°C (-40°F to +140°F)/Less than 95% RH
Storage Conditions-40°C to +60°C (-40°F to +140°F)
Ingress ProtectionIP67; IK10
Structure
CasingMetal
DimensionsΦ122.0 mm x 88.9 mm (4.80" x 3.50")
Net Weight453g (1.00 lb)
Gross Weight630g (1.39 lb)
