www.dahuasecurity.com

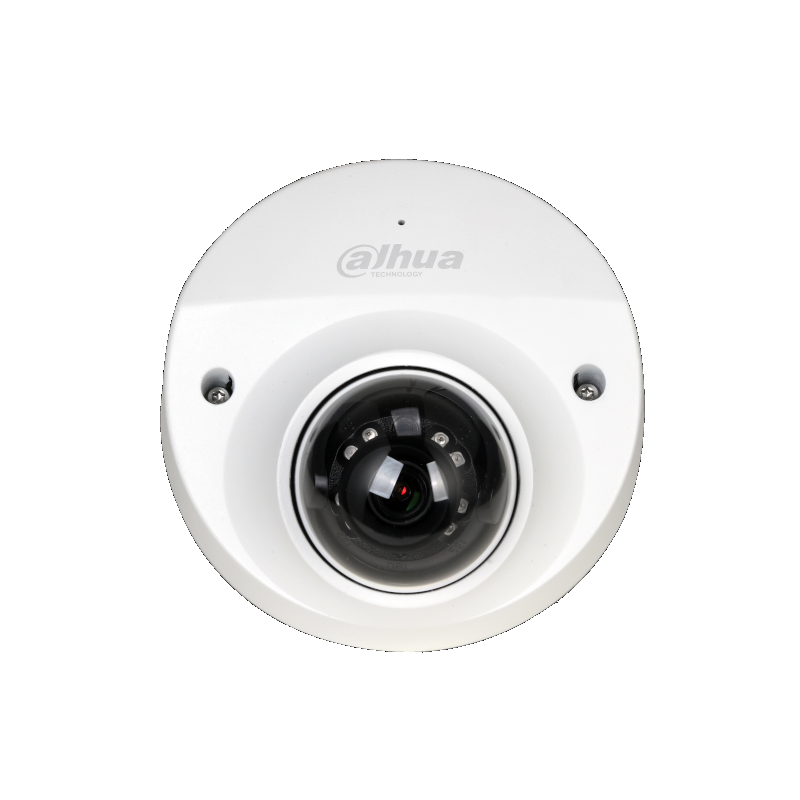

DH-IPC-HDBW5241F-M12-SA
2MP Mobile Fixed-focal Dome Network Camera

· 1/2.8” 2Megapixel progressive scan STARVIS™ CMOS
· SMART H.264+/H.265+ triple-stream encoding
· 25/30 fps @ 1080p (1920 x 1080)
· WDR (120 dB), Day/Night (ICR), 3D DNR, AWB, AGC, BLC
· Multiple network monitoring: Web viewer, CMS (DSS/PSS) & DMSS
· 2.8 mm fixed-focal lens (3.6 mm, 6.0 mm, 8.0 mm optional)
· Max. IR LEDs Distance: 30 m
· Micro SD memory, IP67, IK10
Mobile Series | DH-IPC-HDBW5241F-M12-SA

Series Overview
Dahua Mobile series network camera can be used stably in
mobile scenes such as train and bus. This series camera complies
with the vehicle-related requirements of EN50155 and E-mark
(ECE 10) (Select as needed). Working with Dahua mobile NVR, it
can provide various mobile solutions.
Functions
Face Detection
Dahua Face Detection technology can detect the face in the image. With
deep learning algorithm, the technology supports detecting, tracking,
capturing and selecting the best face image, and then outputs face
snapshot.
Perimeter Protection
With deep learning algorithm, Dahua Perimeter Protection technology
can recognize human and vehicle accurately. In restricted area (such
as pedestrian area and vehicle area), the false alarms of intelligent
detection based on target type (such as tripwire, intrusion, fast moving,
parking detection, loitering detection and gathering detection) are
largely reduced.
People Counting
With deep learning algorithm, Dahua People Counting technology
can track and process moving human body targets to realize the
accurate statistics of enter No., leave No., and In Area No. Working with
management platform, it outputs yearly/monthly/weekly/daily reports
to meet your requirements.
Protection (IP67, IK10)
IP67: The camera passes a series of strict test on dust and soak. It has
dust-proof function, and the enclosure can works normal after soaking
in 1 m deep water for 30 minutes.
IK10: The enclosure can stand the punch more than 5 times from a 5 kg
hammer falling from a height of 40 cm (Impact energy is 20J).

Face Detection
Perimeter Protection
People counting


www.dahuasecurity.com

Technical Specification
Camera
Image Sensor1/2.8”2Megapixel progressive CMOS
Max. Resolution
1920 (H) x 1080 (V)
ROM128 MB
RAM512 MB
Scanning SystemProgressive
Electronic Shutter Speed
Auto/Manual 1/3 s–1/100,000 s
Min. Illumination0.002 Lux @ F1.6
S/N Ratio> 56 dB
Illumination Distance30 m (98.4 ft)
Illuminator On/Off ControlAuto/Manual
Illuminator Number8(IR)
Pan/Tilt/Rotation Range
Pan: –30° to 30°
Tilt: 0° to 80°
Rotation: 0° to 360°
Lens
Lens TypeFixed-focal
Mount TypeM12
Focal Length2.8 mm; 3.6 mm; 6 mm; 8 mm
Max. Aperture
2.8 mm: F1.6
3.6 mm: F1.6
6 mm: F1.6
8 mm: F2.0
Field of View
2.8 mm: Horizontal 106° x Vertical 56° x Diagonal 126°
3.6 mm: Horizontal 87° x Vertical 46° x Diagonal 104°
6 mm: Horizontal 54° x Vertical 29° x Diagonal 63°
8 mm: Horizontal 40° x Vertical 22° x Diagonal 47°
Iris TypeFixed
Close Focus Distance
2.8 mm: 0.6 m (2.0 ft)
3.6 mm: 1.0 m (3.3 ft)
6 mm: 2.5 m (8.2 ft)
8 mm: 3.4 m (11.2 ft)
DORI Distance
LensDetectObserveRecognizeIdentify
2.8mm
38.6 m
(126.6 ft)
15.4 m
(50.5 ft)
7.7 m
(25.3 ft)
3.9 m
(12.8 ft)
3.6mm
49.7 m
(163.1 ft)
19.9 m
(65.3 ft)
9.9 m
(32.5 ft)
5.0 m
(16.4 ft)
6 mm
82.8 m
(271.7 ft)
33.1 m
(108.6 ft)
16.6 m
(54.5 ft)
8.3 m
(27.2 ft)
8 mm
110.3 m
(361.9 ft)
44.1 m
(144.7 ft)
22.1 m
(72.5 ft)
11.0 m
(36.1 ft)
Smart Event
IVSAbandoned object; missing object
Heat MapYes
Professional, intelligent
IVS (Perimeter Protection)
Tripwire, intrusion, fast moving (the three functions
support the classification and accurate detection
of vehicle and human), loitering detection, people
gathering, parking detection

Face Detection
Face detection; track; optimization; snapshot; report high
quality picture; face enhancement; face exposure; face
matting setting: Face, single inch photo; three snapshot
methods: Real-time snapshot, optimization snapshot,
quality priority; face angle filter; optimization time setting
People Counting
Support the counting of enter number and leave number,
and displaying and outputting yearly/monthly/weekly/
daily reports.
Support the counting of number in area, and 4 rules
configuration. Count number of people or stay time and
link alarm.
Support queue management, and 4 rules configuration.
Count number of people or stay time and link alarm.
Intelligent Search
Work together with Smart NVR to perform refine
intelligent search, event extraction and merging to event
videos.
Video
Video Compression
H.265; H.264; H.264H; H.264B; MJPEG (only supported
by sub stream)
Smart CodecSmart H.265+/ Smart H.264+
Video Frame Rate
Main stream: 1080p (1–25/30 fps)
Sub stream: D1 (1–25/30 fps)
Third stream: 1080p (1–25/30 fps)
Stream Capability3 streams
Resolution
1080p (1920 x 1080); 720p (1280 x 720); D1 (704x
576/704 x 480); CIF (352 x 288/352 x 240)
Bit Rate ControlCBR/VBR
Video Bit Rate
H.264: 32 kbps–8192 kbps
H.265: 12 kbps–8192 kbps
Day/NightAuto (ICR)/Color/B/W
BLCYes
HLCYes
WDR120 dB
Scene Self-adaptation Yes
White Balance
Auto/natural/street lamp/outdoor/manual/regional
custom
Gain ControlAuto/Manual
Noise Reduction3D DNR
Motion DetectionOFF/ON (4 areas, rectangular)
Region of Interest (RoI)Yes (4 areas)
Smart IlluminationYes
DefogYes
Image Rotation
0°/90°/180°/270° (Support 90°/270° with 1080p
resolution and lower.)
MirrorYes
Privacy Masking4 areas
Alarm
Alarm Event
No SD card; SD card full; SD card error; network
disconnection; IP conflict; illegal access; motion
detection; video tampering; scene changing; intrusion;
tripwire; abandoned object; missing object; fast moving;
parking detection; loitering detection; people gathering;
audio detection; people counting; face detection; People
counting in area; Stay alarm; People No. exception
detection; Queue Management
Mobile Series | DH-IPC-HDBW5241F-M12-SA

Audio
Built-in MICYes
Audio CompressionG.711a; G.711Mu; G.726; AAC; G.723
Network
NetworkM12 D-Coding (10/100Base-T)
SDK and API Yes
Protocol
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP;
RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS;
UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE;
802.1x; SNMP
Interoperability
ONVIF (Profile S/Profile G/Profile T); CGI; Milestone;
Genetec; P2P
User/Host20 (Total bandwidth: 80 M.)
Storage
Dahua Cloud; FTP; SFTP; Micro SD card (support max.
256 G); NAS
Browser
IE: IE8 and later
Chrome
Firefox
Safari: Safari12 and later
Management SoftwareSmart PSS; DSS; DMSS
Mobile PhoneIOS; Android
Certification
Certifications
CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive
2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
EN50155
E-MARK: ECE Regulation 10.05
Power
Power Supply PoE (802.3af)
Power Consumption<5.3W
Environment
Operating Conditions–40°C to +60°C (–40°F to +140°F)/less than 95% RH
Strorage Conditions–40°C to +60°C (–40°F to +140°F)
Protection GradeIP67; IK10
Structure
CasingMetal
Dimensions55.0 mm x Φ108.9 mm (2.2" x Φ4.3")
Net Weight426 g (0.9 lb)
Gross Weight559 g (1.2 lb)

www.dahuasecurity.com
Mobile Series | DH-IPC-HDBW5241F-M12-SA

Ordering Information
TypePart NumberDescription
2MP
camera
DH-IPC-HDBW5241FP-M12-
SA-0280B
2MP Mobile Fixed-focal Dome
Network Camera PAL
DH-IPC-HDBW5241FP-M12-
SA-0360B
2MP Mobile Fixed-focal Dome
Network Camera PAL
DH-IPC-HDBW5241FP-M12-
SA-0600B
2MP Mobile Fixed-focal Dome
Network Camera PAL
DH-IPC-HDBW5241FP-M12-
SA-0800B
2MP Mobile Fixed-focal Dome
Network Camera PAL
DH-IPC-HDBW5241FN-M12-
SA-0280B
2MP Mobile Fixed-focal Dome
Network Camera NTSC
DH-IPC-HDBW5241FN-M12-
SA-0360B
2MP Mobile Fixed-focal Dome
Network Camera NTSC
DH-IPC-HDBW5241FN-M12-
SA-0600B
2MP Mobile Fixed-focal Dome
Network Camera NTSC
DH-IPC-HDBW5241FN-M12-
SA-0800B
2MP Mobile Fixed-focal Dome
Network Camera NTSC
Accessories
(optional)
PFA139Junction Box
PFB204WWall Mount
PFA152-EPole Mount
PFB220CMount Adapter
PFA106Celling Mount

Accessories
Optional:
PFA139
Junction Box
PFB204W
Wall Mount
PFA152-E
Pole Mount
PFA106
Mount Adapter
PFB220C
Ceiling Mount
PFM114
TLC SD Card

PFM900-E
Integrated Mount
Tester


www.dahuasecurity.com
Mobile Series | DH-IPC-HDBW5241F-M12-SA

Junction MountWall Mount
PFA3
PFB2W

Pole MountCelling Mount
PFB2WPFA2-E
PFB22CPFA6

Dimensions (mm[inch])

Rev 001.001© 2020 Dahua . All rights reserved. Design and specifications are subject to change without notice.
Pictures in the document are for reference only, and the actual product shall prevail.
