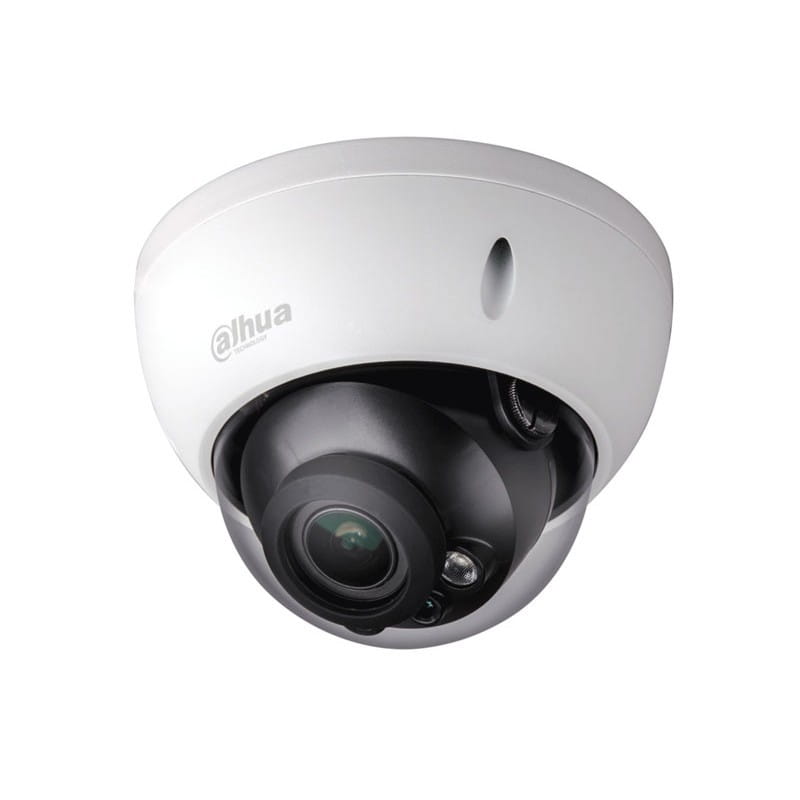

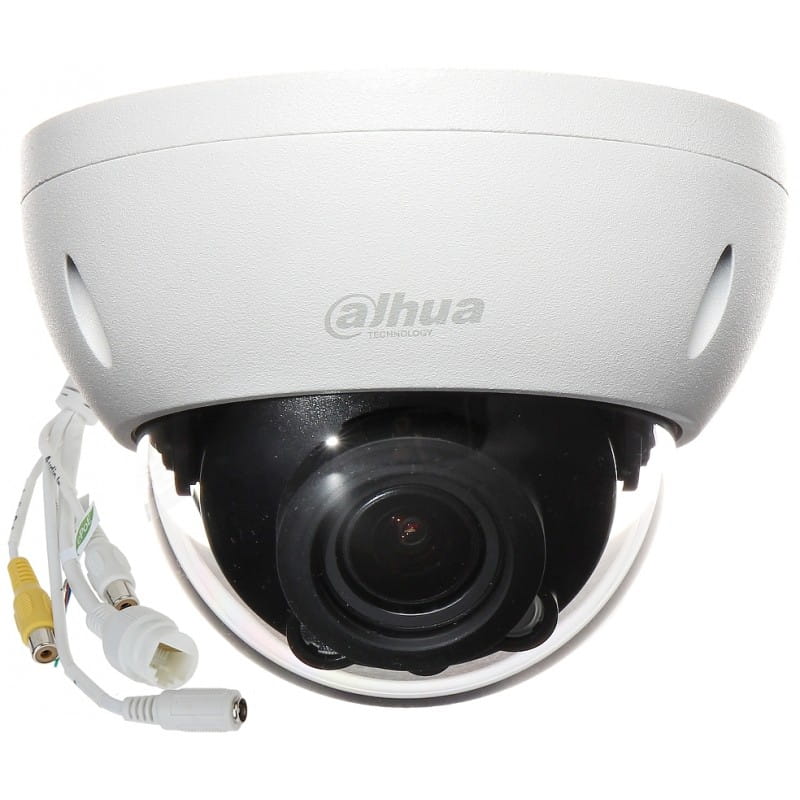

IPC-HDBW5231R-ZE-27135

Availability: 0
Price: €350.10 350.10
excl. 23.00% TAX, excl. shipping costs
quantity szt.

product unavailable

add to wish list
Vendor: DAHUA
Product code: IPC-HDBW5231R-ZE-27135

Description

Eco Savvy 3.0 | DH-IPC-HDBW5231R-ZE     System Overview  With upgraded H.265 encoding technology, Eco-savvy series brings  high efficient video compression capability. It can save bandwidth and  storage. Meanwhile, the series features starlight, smart IR technology  and intelligent image analysis techniques. This series supports reminder  function, meanwhile fully protected from dust and water, certified to  IP67 and vandal resistant to IK10 standard.   Functions  ePoE technology  The ePoE technology of Dahua, designed internally, adopts advanced  2D-PAM3 coding modulation from physical layer, and realizes full duplex  transmission over 800 meters at the speed of 10Mbps, or 300 meters  at the speed of 100Mbps via Cat 5 or coaxial cable media. Besides,  it supports PoE and PoC power supply technology which has greatly  simplified construction and wiring. Dahua ePoE technology offer a new  way to accomplish long distance transmission between IP camera and  network switch. It allows more flexible surveillance system design,  improves reliability and saves construction and wiring cost.  Starlight Technology  For challenging low-light applications, Dahua’s Starlight Ultra-low Light  Technology offers ...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet PDF


Text contents of PDF datasheet:

Eco Savvy 3.0 | DH-IPC-HDBW5231R-ZE

System Overview
With upgraded H.265 encoding technology, Eco-savvy series brings
high efficient video compression capability. It can save bandwidth and
storage. Meanwhile, the series features starlight, smart IR technology
and intelligent image analysis techniques. This series supports reminder
function, meanwhile fully protected from dust and water, certified to
IP67 and vandal resistant to IK10 standard.
Functions
ePoE technology
The ePoE technology of Dahua, designed internally, adopts advanced
2D-PAM3 coding modulation from physical layer, and realizes full duplex
transmission over 800 meters at the speed of 10Mbps, or 300 meters
at the speed of 100Mbps via Cat 5 or coaxial cable media. Besides,
it supports PoE and PoC power supply technology which has greatly
simplified construction and wiring. Dahua ePoE technology offer a new
way to accomplish long distance transmission between IP camera and
network switch. It allows more flexible surveillance system design,
improves reliability and saves construction and wiring cost.
Starlight Technology
For challenging low-light applications, Dahua’s Starlight Ultra-low Light
Technology offers best-in-class light sensitivity, capturing color details
in low light down to 0.006lux. The camera uses a set of optical features
to balance light throughout the scene, resulting in clear images in dark
environments.
Wide Dynamic Range
The camera achieves vivid images, even in the most intense contrast
lighting conditions, using industry-leading wide dynamic range (WDR)
technology. For applications with both bright and low lighting
conditions that change quickly, true WDR (130 dB) optimizes both the
bright and dark areas of a scene at the same time to provide usable
video.
Intelligent Video System (IVS)
IVS is a built-in video analytic algorithm that delivers intelligent functions
to monitor a scene for Tripwire violations, intrusion detection, and
abandoned or missing objects. A camera with IVS quickly and accurately
responds to monitoring events in a specific area. In addition to scene
analytics, the camera supports face detection to quickly capture a
face and upload the image to a server. The camera also offers tamper
detection by recognizing a dramatic scene change and generating a
warning message to inspect the camera.
Protection(IP67, IK10, wide voltage)
The camera allows for ±30% input voltage tolerance, suitable for the
most unstable conditions for outdoor applications. Its 6KV lightning
rating provides effective protection for both the camera and its structure
against lightning. Subjected and certified to rigorous dust and immersion
tests (IP67) and impact tests (IK10), the camera is the choice for
installation in even the most unforgiving environments.
Smart H.265+
Smart H.265+ is the optimized implementation of the H.265 codec that
uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI,
flexible multi-frame reference structure and intelligent noise reduction to
deliver high-quality video without straining the network. Smart H.265+
technology reduces bit rate and storage requirements by up to 70%
when compared to standard H.265 video compression.
www.dahuasecurity.com
·1/2.8” 2Megapixel progressive scan STARVIS™ CMOS
·H.265&H.264 triple-stream encoding
· 50/60fps@1080(1920x1080)
·Smart Detection supported
·WDR(130dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
· Multiple network monitoring: Web viewer, CMS(DSS/PSS) &
DMSS
·2.7mm ~13.5mm motorized lens
·1/1 Alarm in/out, 1/1 audio in/out
·Max. IR LEDs Length 50m
·Micro SD memory, IP67, IK10, PoE
DH - IPC- HDBW5231R-ZE
2MP WDR IR Dome Network Camera

Temperature

1080p

50/60fps
1080P
H.265

Starlight

IP67
Vandal-proof


www.dahuasecurity.com
Eco Savvy 3.0 |DH-IPC-HDBW5231R-ZE

Technical Specification
Camera
Image Sensor1/2.8” 2Megapixel progressive scan CMOS
Effective Pixels
1920(H) x 1080(V)
RAM/ROM
256MB/32MB
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual, 1/3~1/100000s
Minimum Illumination
0.006Lux/F1.4 ( Color,1/3s,30IRE)
0.05Lux/F1.4 ( Color,1/30s,30IRE)
0Lux/F1.4 (IR on)
S/N Ratio
More than 50dB
IR Distance
Distance up to 50m (164ft)
IR On/Off Control
Auto/ Manual
IR LEDs
2
Lens
Lens TypeMotorized/ Auto Iris(DC)
Mount TypeBoard-in
Focal Length2.7mm~13.5mm
Max. ApertureF1.4
Angle of ViewH: 101°~31°, V:54°~17°
Optical Zoom5x
Focus ControlMotorized
Close Focus Distance0.3m
DORI
Distance
LensDetectObserveRecognizeIdentify
W44m(144ft)18m(59ft)9m(29ft)4m(13ft)
T143m(469ft)57m(187ft)28m(92ft)14m(46ft)
Pan/Tilt/Rotation
Pan/Tilt/Rotation RangePan:0˚~355˚; Tilt:0˚~75˚; Rotation:0˚~355˚
Intelligence
IVS (optional)Tripwire, Intrusion, Object Abandoned/Missing
Advanced Intelligent FunctionsFace Detection
Video
CompressionH.265+/H.265/H.264+/H.264
Streaming Capability3 Streams
Resolution
1080P(1920x1080)/1.3M(1280x960)/
720P(1280x720)/D1(704x576/704x480)/
VGA(640x480)/CIF(352x288/352x240)
Frame Rate
Main Stream: 1080P(1~50/60fps)
Sub Stream: D1(1~50/60fps)
Third Stream: 1080P(1~25/30fps)
Bit Rate ControlCBR/VBR
Bit Rate
H.264: 24~9472Kbps
H.265: 14~5632Kbps

Day/Night
BLC Mode
White Balance
Gain Control
Noise Reduction
Motion Detetion
Region of Interest
Auto(ICR) / Color / B/W
BLC / HLC / WDR(130dB)
Auto/Natural/Street Lamp/Outdoor/Manual
Auto/Manual
3D DNR
Off / On (4 Zone, Rectangle)
Off / On (4 Zone)
Electronic Image Stabilization
(EIS)
N/A
Smart IRSupport
DefogN/A
Digital Zoom16x
Flip0°/90°/180°/270°
MirrorOff / On
Privacy MaskingOff / On (4 Area, Rectangle)
Audio
CompressionG.711a/ G.711Mu/ AAC/ G.726
Network
EthernetRJ-45 (10/100Base-T)
Protocol
HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP;
FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS;
UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP;
IGMP; SNMP
InteroperabilityONVIF, PSIA, CGI
Streaming MethodUnicast / Multicast
Max. User Access10 Users /20 Users
Edge Storage
NAS
Local PC for instant recording
Mirco SD card 128GB
Web ViewerIE, Chrome, Firefox, Safari
Management SoftwareSmart PSS, DSS, Easy4ip
Smart PhoneIOS, Android
Certifications
Certifications
CE (EN 60950:2000)
UL:UL60950-1
FCC: FCC Part 15 Subpart B
Interface
Video InterfaceN/A
Audio Interface1/1 channel In/Out
RS485N/A
Alarm
1 channel In: 5mA 5VDC
1 channel Out: 300mA 12VDC
Electrical
Power SupplyDC12V, PoE(802.3af)(Class 0)
Power Consumption<8.5W

Eco Savvy 3.0 | DH-IPC-HDBW5231R-ZE

Ordering Information
TypePart NumberDescription
2MP camera
DH-IPC-
HDBW5231RP-ZE
2MP IR Dome Network Camera,WDR, PAL
DH-IPC-
HDBW5231RN-ZE
2MP IR Dome Network Camera WDR,NTSC
IPC-HDBW5231RP-
ZE
2MP IR Dome Network Camera,WDR, PAL
IPC-HDBW5231RN-
ZE
2MP IR Dome Network Camera WDR,NTSC
Accessories
(optional)
PFB203W Wall mount
PFA137Junction box
PFB200C In-ceiling mount
PFA152-EPole Mount
LR1002 ePoE Over Coax Converter
www.dahuasecurity.com

Environmental
Operating Conditions-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Strorage Conditions-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress Protection
IP67
Vandal ResistanceIK10
Construction
CasingMetal
DimensionsΦ122mmx88.9mm (4.8”x3.5”)
Net Weight0.5kg (1.1lb)
Gross Weight0.58kg (1.29lb)
Accessories
Optional:
Dimensions (mm/inch)
PFA152-E
Pole Mount
PFB200C
In-ceiling Mount
PFA137
Junction Box
PFB203W
Wall Mount

t
t

Wa t
Po

PFB203W + PF A152
PFB203W

PF A137
PFB200 C

Rev 001.001© 2017 Dahua. All rights reserved. Design and specifications are subject to change without notice.

LR1002
ePoE Over Coax Converter
