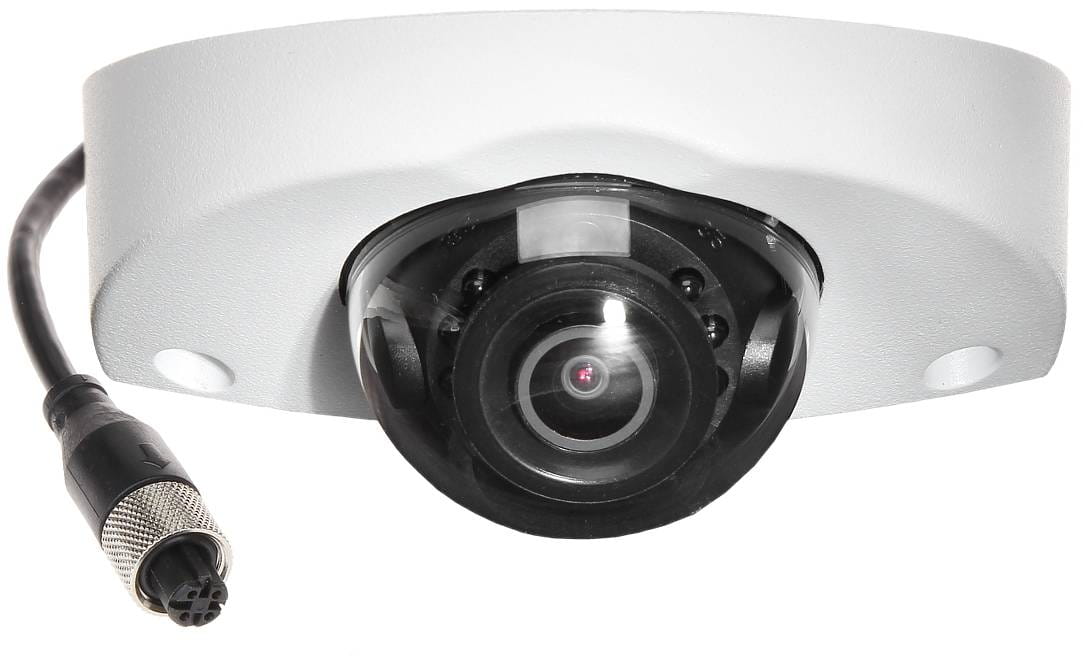

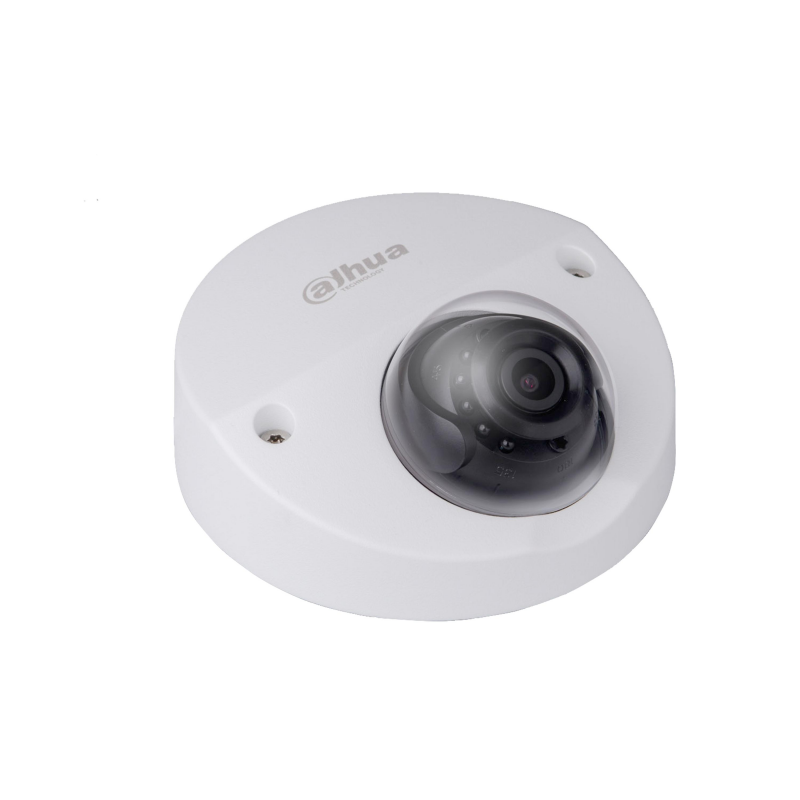

IPC-HDBW4431F-M12-0280B

Availability: 0
Price: €222.22 222.22
excl. 23.00% TAX, excl. shipping costs
quantity szt.

product unavailable

add to wish list
Vendor: DAHUA
Product code: IPC-HDBW4431F-M12-0280B

Description

Eco Savvy 3.0| DH-IPC-HDBW4431F-M/M12    System Overview  Eco-savvy products by upgrading H.265 encoding technology, bringing  high efficient video compression. It saves bandwidth and storage ,  energy-saving design to enhance the monitoring system . Meanwhile,  the series offers features such as starlight , Smart IR technology ,  intelligent image analysis techniques. It provides excellent image quality  and intelligent and efficient event reminders . This series provides IP67  weatherproof and IK10 vandal-proof protection feature. Give customers  more value  Functions  Wide Dynamic Range  Embeded with industry leading wide dynamic range (WDR) technology,  vivid picutures are achieved even in the most intense contrast lighting  conditions. For applications with both bright and low lighting conditions  that change quickly, True WDR (120dB) optimizes both the bright and  dark areas of a scene at the same time to provide usable video.  Intelligent Video System (IVS)  With built-in intelligent video analytics, the camera has the ability to  detect and analyze moving objects for improved video surveillance. The  camera provides optional standard intelliegence at the edge allowing  detection of multiple o...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet PDF


Text contents of PDF datasheet:

Eco Savvy 3.0| DH-IPC-HDBW4431F-M/M12

System Overview
Eco-savvy products by upgrading H.265 encoding technology, bringing
high efficient video compression. It saves bandwidth and storage ,
energy-saving design to enhance the monitoring system . Meanwhile,
the series offers features such as starlight , Smart IR technology ,
intelligent image analysis techniques. It provides excellent image quality
and intelligent and efficient event reminders . This series provides IP67
weatherproof and IK10 vandal-proof protection feature. Give customers
more value
Functions
Wide Dynamic Range
Embeded with industry leading wide dynamic range (WDR) technology,
vivid picutures are achieved even in the most intense contrast lighting
conditions. For applications with both bright and low lighting conditions
that change quickly, True WDR (120dB) optimizes both the bright and
dark areas of a scene at the same time to provide usable video.
Intelligent Video System (IVS)
With built-in intelligent video analytics, the camera has the ability to
detect and analyze moving objects for improved video surveillance. The
camera provides optional standard intelliegence at the edge allowing
detection of multiple object behaviors such as abandoned or missing
objects. IVS also supports Tripwire analytics, allowing the camera to
detect when a pre-determined line has been crossed, ideal for business
intelligence, and Facial Detection, for searching or identification of
individuals.
Environmental
With a temperature range of -30 °C to +60 °C (-22 °F to +140 °F), the
camera is designed for extreme temperature environments. The camera
complies to an IK10 impact rating making it capable of withstanding the
equivalent of 55 kg (120 lbs) of force. Subjected and certified to rigorous
dust and water immersion tests, the IP67 rating makes it suitable for
demanding outdoor applications. For enviorments with rain, sleet, snow
and fog, an integrated wiper provides users with clear visibility at all
times.
Protection
Supporting ±30% input voltage tolerance, this camera suits even the
most unstable conditions for outdoor applications. Its 4KV lightning
rating provides protectection against the camera and its structure from
the effects of lightning.
Smart H.265+
Deliver high quality video without straining the network, Smart H.265+
is the optimized implementation of H.265. The Smart H.265+ encoding
technology includes a scene adaptive encoding strategy, dynamic GOP,
dynamic ROI, flexible multi-frame reference structure and intelligent
noise reduction, providing saving of up to 70% of bandwidth and storage
when compared with standard H.265.
HEVC (H.265)
H.265 ITU-T VCEG is a new video coding standard. H.265 Following
standard developed around the existing video coding standard H.264
, some retain the original technology , while some of the relevant
technology to improve the new technology uses advanced technology
to improve the relationship between the code stream , encoding quality
, and the delay between algorithm complexity , optimize settings
specific contents include : Improve compression efficiency , improve the
robustness and error recovery capabilities, real-time to reduce the delay,
reduce channel acquisition time and a random access delay , reduce
complexity , etc
www.dahuasecurity.com
· 1/3” 4Megapixel progressive scan CMOS
· H.265&H.264 dual-stream encoding
· 25/30fps@4M(2688x1520)
· Smart Detection supported
· WDR(120dB), Day/Night(ICR), 3DNR,AWB,AGC,BLC,
· Multiple network monitoring: Web viewer, CMS(DSS/PSS)
& DMSS
· 2.8mm fixed lens (3.6mm, 6mm optional)
· Max. IR LEDs Length 20m
· Micro SD memory, IP67, IK10, PoE
DH-IPC-HDBW4431F-M/M12
4MP IR Mini Dome Network Camera

Temperature
IP67
H.265

4Mp

Vandal-proof


www.dahuasecurity.com
Eco Savvy 3.0 | DH-IPC-HDBW4431F-M/M12

Technical Specification
Camera
Image Sensor1/3” 4Megapixel progressive scan CMOS
Effective Pixels
2688(H)x1520(V)
RAM/ROM
512MB/32MB
Scanning System
Progressive
Electronic Shutter Speed
Electronic Shutter Speed
Minimum Illumination
0.08Lux/F2.0( Color,1/3s,30IRE)
0.3Lux/2.0( Color,1/30s,30IRE)
0Lux/F2.0(IR on)
S/N Ratio
More than 50dB
IR Distance
Distance up to 20m (66ft)
IR On/Off Control
Auto/ Manual
IR LEDs
10
Lens
Lens TypeFixed
Mount TypeBoard-in
Focal Length2.8mm (3.6mm, 6mm optional)
Max. ApertureF2.0 (F2.0, F2.0)
Angle of ViewH: 104° (87°, 55°), V:57° (48°, 31°)
Optical ZoomN/A
Focus ControlFixed
Close Focus DistanceN/A
DORI Distance
LensDetectObserveRecognizeIdentify
2.8 mm 63m(207ft)25m(82ft)13m(43ft)6m(20ft)
3.6 mm 80m(262ft)32m(105ft)16m(52ft)8m(26ft)
6.0 mm117m(384ft)47m(154ft)23m(75ft)12m(39ft)
Pan/Tilt/Rotation
Pan/Tilt/Rotation RangePan:0˚~60˚; Tilt:0˚~80˚; Rotation:0˚~360˚
Intelligence
IVSTripwire, Intrusion, Object Abandoned/Missing
Advanced Intelligent FunctionsFace Detection
Video
CompressionH.265+/H.265/H.264+/H.264
Streaming Capability3 Streams
Resolution
4M(2688x1520)/3M(2304x1296)/
1080P(1920x1080)/1.3M(1280x960)/
720P(1280x720)/D1(704x576/704x480)/
VGA(640x480)/CIF(352x288/352x240)
Frame Rate
Main Stream: 4M(1~25/30fps)
Sub Stream: D1(1~25/30fps)
Third Stream: 720P(1~25/30fps)
Bit Rate ControlCBR/VBR
Bit Rate
H.264: 24~10240Kbps
H.265: 14~9984Kbps
Day/NightAuto(ICR) / Color / B/W
BLC ModeBLC / HLC / WDR(120dB)

White BalanceAuto/Natural/Street Lamp/Outdoor/Manual
Gain ControlAuto/Manual
Noise Reduction3D DNR
Motion DetetionOff / On (4 Zone, Rectangle)
Region of InterestOff / On (4 Zone)
Electronic Image Stabilization
(EIS)
N/A
Smart IRSupport
DefogN/A
Digital Zoom16x
Flip0°/90°/180°/270°
MirrorOff / On
Privacy MaskingOff / On (4 Area, Rectangle)
Audio
CompressionG.711a/ G.711Mu/ AAC/ G.726
Network
EthernetRJ-45 (10/100Base-T)/M12 D-Coding
Protocol
HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP;
FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS;
UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP;
IGMP; SNMP
InteroperabilityONVIF, PSIA, CGI
Streaming MethodUnicast / Multicast
Max. User Access10 Users /20 Users
Edge Storage
NAS
Local PC for instant recording
Mirco SD card 128GB
Web ViewerIE, Chrome, Firefox, Safari
Management SoftwareSmart PSS, DSS, Easy4ip
Smart PhoneIOS, Android
Certifications
Certifications
CE (EN 60950:2000)
UL:UL60950-1
FCC: FCC Part 15 Subpart B
E-mark(ECE-Regulation No.10)
EN50155
Interface
Video InterfaceN/A
Audio InterfaceBuilt-in Mic
RS485N/A
AlarmN/A
Electrical
Power SupplyDC12V, PoE (802.3af)(Class 0)
Power Consumption<4.5W

Eco Savvy 3.0| DH-IPC-HDBW4431F-M/M12

Ordering Information
TypePart NumberDescription
4MP camera
DH-IPC-
HDBW4431FP-M/
M12-0360B
4MP IR Mini Dome Network
Camera,WDR,PAL
DH-IPC-
HDBW4431FN-M/
M12-0360B
4MP IR Mini Dome Network
Camera,WDR,NTSC
IPC-
HDBW4431FP-M/
M12-0360B
4MP IR Mini Dome Network
Camera,WDR,PAL
IPC-
HDBW4431FN-M/
M12-0360B
4MP IR Mini Dome Network
Camera,WDR,NTSC
DH-IPC-
HDBW4431FP-M/
M12-0280B
4MP IR Mini Dome Network
Camera,WDR,PAL
DH-IPC-
HDBW4431FN-M/
M12-0280B
4MP IR Mini Dome Network
Camera,WDR,NTSC
IPC-
HDBW4431FP-M/
M12-0280B
4MP IR Mini Dome Network
Camera,WDR,PAL
IPC-
HDBW4431FN-M/
M12-0280B
4MP IR Mini Dome Network
Camera,WDR,NTSC
DH-IPC-
HDBW4431FP-M/
M12-0600B
4MP IR Mini Dome Network
Camera,WDR,PAL
DH-IPC-
HDBW4431FN-M/
M12-0600B
44MP IR Mini Dome Network
Camera,WDR,NTSC
IPC-
HDBW4431FP-M/
M12-0600B
4MP IR Mini Dome Network
Camera,WDR,PAL
IPC-
HDBW4431FN-M/
M12-0600B
4MP IR Mini Dome Network
Camera,WDR,NTSC
Accessories
(optional)
PFB204W Wall mount
PFA139Junction box
PFA152Pole mount
www.dahuasecurity.com



Environmental
Operating Conditions-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Strorage Conditions-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress Protection
IP67
Vandal ResistanceIK10
Construction
CasingMetal
DimensionsΦ106mmx50.3mm (4.17”x1.98”)
Net Weight0.4kg (0.88lb)
Gross Weight0.44kg (0.97lb)
Accessories
Optional:
Dimensions (mm/inch)

PFA139
Junction Box
PFB204W
Wall Mount
PFA152
Pole Mount



x

Wa t

Po

PFB204W + PF A152

PFB204W

PF A139
