IPC-HDBW2531R-ZS-27135-S2

Availability: 0

Price: $407.06 407.06

excl. 23.00% TAX, excl. shipping costs

quantity szt.

product unavailable

add to wish list

Vendor:

Product code: IPC-HDBW2531R-ZS-27135-S2

ask about product or pricing

Description

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

www.dahuasecurity.com
DH-IPC-HDBW2531R-ZS-S2

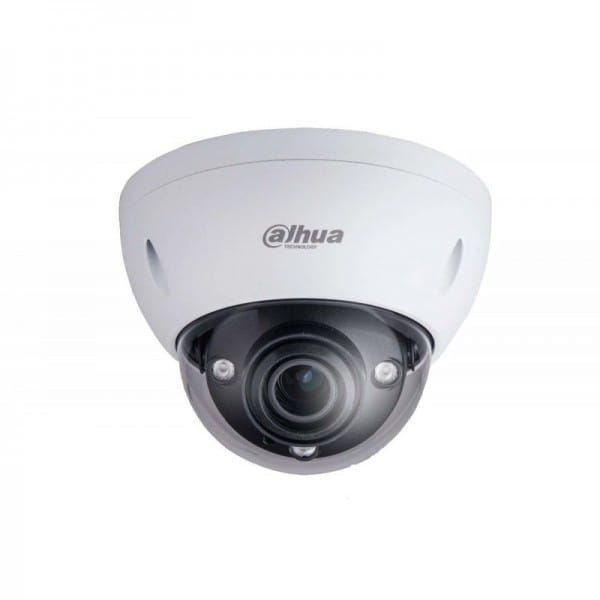

5MP Lite IR Vari-focal Dome Network Camera

· 5MP, 1/2.7” CMOS image sensor, low illuminance, high image definition
· Outputs 2688x1520 (2688x1520) @ 25/30 fps, and supports max. 5MP
(2592x1944) @ 20 fps
· H.265 codec, high compression rate, ultra-low bit rate
· Built-in IR LED, max IR distance: 40 m
· ROI, SMART H.264/H.265, flexible coding, applicable to various
bandwidth and storage environments
· Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking,
applicable to various monitoring scenes
· Intelligent detection: Intrusion, tripwire
· Abnormality detection: Motion detection, video tampering, no SD card,
SD card full, SD card error, network disconnected, IP conflict, illegal
access, voltage detection
· Supports max. 256 GB Micro SD card
· 12V DC/PoE power support
· IP67, IK10 protection grade
Lite Series | DH-IPC-HDBW2531R-ZS-S2
System Overview
With updraded H.265 encoding technology, Dahua Lite series camera
has efficient video encoding capacity, which saves bandwidth and
storage space. This camera adopts the latest starlight technology and
displays better colorful image in the environment of low illumination. It
supports SD card storage, waterproof function, dust-proof function and
tamper-proof function, complying to the standards of IP67 and IK10.
Functions
Smart(H.265+ & H.264+)
Adopting advanced algorithm of auto stream control according to the
environment, Dahua smart encoding technology realizes the higher
efficiency than (H.265 & H.264 ), providing high-quality video, and
reducing the cost of storage and transmission.
Wide dynamic range (WDR)
Dahua adopts advanced Wide Dynamic Range (WDR) technology. You
can get clear details in the environment of strong brightness contrast.
In high brightness and back- light environment, bright region and dark
region with strong light source, you can also get clear images.

Starlight
Dahua Starlight technology mainly applies to the environment of
low illumination, and it can provide clear colorful video. Even in the
environment of min. illumination, the technology can guarantee the
good image effect.
Intelligent Video Analysis (IVS)
With advanced video algorithm, Dahua camera supports intelligent
detection, such as tripwire and intrusion and so on.
Protection (IP67, IK10, wide voltage)
IP67: The camera passes a series of strict test on dust and soak. It has
dust-proof function, and the enclosure can works normal after soaking
in 1 m deep water for 30 minutes.
IK10: The enclosure can stand the punch more than 5 times from a 5 kg
hammer falling from a height of 40 m (Impact energy is 20J).
Wide voltage: The camera allows ±30% input voltage tolerance (wide
voltage range), and it is widely applied to outdoor environment with
instable voltage.

.Q
)

4UBSMJHIU

7BOEBMQSPPG

*74

www.dahuasecurity.com

Technical Speciﬁcation
Camera
Image Sensor1/2.7” 5Megapixel progressive CMOS
Effective Pixels
2592 (H) x 1944 (V)
ROM128 MB
RAM256 MB
Scanning SystemProgressive
Electronic Shutter Speed
Auto/Manual 1/3 s–1/100000 s
Min. Illumination0.008 Lux @ F1.5
IR Distance40 m (131.2 ft)
IR On/Off ControlAuto/Manual
IR LEDs Number2
Pan/Tilt/Rotation Range
Pan: 0°–355°
Tilt: 0°–75°
Rotation: 0°–355°
Lens
Lens TypeMotorized vari-focal
Mount Typeφ14
Focal Length2.7 mm–13.5 mm
Max. ApertureF1.5
Field of View
Pan: 100°–26°
Tilt: 72°–20°
Diagonal: 133°–33°
Iris TypeFixed aperture
Close Focus Distance0.8m–0.8m (2.62 ft–2.62 ft)
DORI Distance
LensDetectObserveRecognizeIdentify
W
64 m
(209.97 ft)
25.6 m
(83.99 ft)
12.8 m
(41.99 ft)
6.4 m
(21 ft)
T
220 m
(721.78 ft)
88 m
(288.71 ft)
44 m
(144.36 ft)
22 m
(72.18 ft)
Smart Event
General IVS AnalyticsTripwire; intrusion
Video
Video Compression H.265; H.264; H.264B; MJPEG
Smart CodecYes
Video Frame Rate
Main stream:
2592 x 1944 (1 fps-20 fps)
2688 x 1520 (1 fps-25/30 fps)
Sub stream:
704 x 576 (1 fps-25 fps)
704 x 480 (1 fps-30 fps)
Stream Capability2 streams
Resolution
2592x1944(2592x1944); 2688x1520(2688x1520);
3M(2048x1536); 2304x1296(2304x1296);
1080p(1920x1080); 1.3M (1280 x 960); 720p(1280x720);
D1(704x 576/704x480); VGA(640x480);
CIF(352x288/352x240)

Bit Rate ControlCBR/VBR
Video Bit Rate
H.264: 32 Kbps–8192 Kbps
H.265: 12 Kbps–8192 Kbps
Day/NightAuto(ICR)/Color/B/W
BLCYes
HLCYes
WDR120 dB
White Balance
Auto/natural/street lamp/outdoor/manual/regional
custom
Gain ControlAuto/Manual
Noise Reduction3D DNR
Motion DetectionOFF/ON (4 areas, rectangular)
Region of Interest(RoI)Yes (4 areas)
Smart IRYes
Image Rotation
0°/90°/180°/270° (Supports 90°/270° with 2688x1520
resolution and lower.)
MirrorYes
Privacy Masking4 areas
Network
NetworkRJ-45 (10/100 Base-T)
Protocol
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP;
RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS;
UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x;
Bonjour
Interoperability
ONVIF(Profile S/Profile G/Profile T);CGI; P2P; Milestone;
Genetec
User/Host20
Edge Storage
Dahua Cloud; FTP; SFTP; Micro SD Card (support max.
256 GB); NAS
Browser
IE
Chrome
Firefox
Management SoftwareSmart PSS; DSS; DMSS
Mobile PhoneIOS; Android
Certification
Certifications
CE-LVD: EN60950-1
CE-EMC: Electromagnetic Compatibility Directive
2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Power
Power Supply12V DC/PoE (802.3af)
Power Consumption< 7.9W
Environment
Operating Conditions-30°C to +60°C (-22°F to +140°F)/less than ≤ 95%
Storage Temperature-40°C to +60°C (-40°F to +140°F)
Protection GradeIP67; IK10
Lite Series | DH-IPC-HDBW2531R-ZS-S2

Ordering Information
TypePart NumberDescription
5MP
Camera
DH-IPC-HDBW2531RP-ZS-S2
5MP Lite IR Vari-focal Dome
Network Camera,PAL
DH-IPC-HDBW2531RN-ZS-S2
5MP Lite IR Vari-focal Dome
Network Camera,NTSC
Accessories
(optional)
PFA137Junction Box
PFB203W Wall Mount
PFA152-E Pole Mount
PFA200W Rain Shade
PFA106Mount Adapter
PFB220CCelling Mount
PFB200CIn-Celling Mount
PFM321DDC12V1A Power Adapter
LR1002-1ET/1EC
Single-port Long Reach Ethernet
over Coax Extender
PFM900-EIntegrated Mount Tester
PFM114TLC SD Card

Dimensions (mm[inch])

Rev 001.001© 2019 Dahua. All rights reserved. Design and specifications are subject to change without notice.
Pictures in the document are for reference only, and the actual product shall prevail.

www.dahuasecurity.com

Junction MountWall Mount
Ceiling Mount
Wall Mount
PFAPFBW
PFAPFAW
PFAPFBC

In-Ceiling Mount
PFBC

Pole Mount
PFBWPFA5E

PFM114
TLC SD Card
PFM900-E
Integrated Mount
Tester

Accessories
Optional:
PFA137
Junction Box
PFB203W
Wall Mount
PFA200W
Rain Shade
PFA106
Mount Adapter
PFA152-E
Pole Mount
PFB220C
Celling Mount
PFB200C
In-Celling Mount
PFM321D
DC12V1A Power
Adapter
LR1002-1ET/1EC
Single-port Long
Reach Ethernet over
Coax Extender

Lite Series | DH-IPC-HDBW2531R-ZS-S2

Structure
CasingMetal
DimensionsΦ122 mm x 88.9 mm (Φ4.80" x 3.50")
Net Weight0.47 kg (1.1 lb)
Gross Weight0.63 kg (1.4 lb)
