Description

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

www.dahuasecurity.com

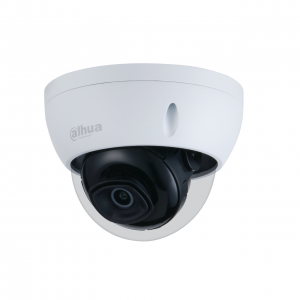

DH-IPC-HDBW2531E-S-S2
5MP Lite IR Fixed-focal Dome Network Camera

· 5MP, 1/2.7” CMOS image sensor, low illuminance, high image definition
· Outputs max. 5MP (2592 x 1944) @20 fps, and supports 2688 x1520
(2688 x 1520) @25/30 fps
· H.265 codec, high compression rate, ultra-low bit rate
· Built-in IR LED, max IR distance: 30 m
· ROI, SMART H.264/H.265, flexible coding, applicable to various
bandwidth and storage environments
· Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking,
applicable to various monitoring scenes
· Intelligent detection: Intrusion, tripwire
· Abnormality detection: Motion detection, video tampering, no SD card,
SD card full, SD card error, network disconnected, IP conflict, illegal
access, voltage detection
· Supports max. 256 GB Micro SD card
· 12V DC/PoE power support
· IP67, IK10 protection grade
Lite Series | DH-IPC-HDBW2531E-S-S2
System Overview
With updraded H.265 encoding technology, Dahua Lite series camera
has efficient video encoding capacity, which saves bandwidth and
storage space. This camera adopts the latest starlight technology and
displays better colorful image in the environment of low illumination. It
supports SD card storage, waterproof function, dust-proof function and
tamper-proof function, complying to the standards of IP67 and IK10.
Functions
Smart (H.265+ & H.264+)
Adopting advanced algorithm of auto stream control according to the
environment, Dahua smart encoding technology realizes the higher
efficiency than (H.265 & H.264 ), providing high-quality video, and
reducing the cost of storage and transmission.
Wide dynamic range (WDR)
Dahua adopts advanced Wide Dynamic Range (WDR) technology. You
can get clear details in the environment of strong brightness contrast.
In high brightness and back- light environment, bright region and dark
region with strong light source, you can also get clear images.

Starlight
Dahua Starlight technology mainly applies to the environment of
low illumination, and it can provide clear colorful video. Even in the
environment of min. illumination, the technology can guarantee the
good image effect.
Intelligent Video Analysis (IVS)
With advanced video algorithm, Dahua camera supports intelligent
detection, such as tripwire and intrusion and so on.
Protection (IP67, IK10, wide voltage)
IP67: The camera passes a series of strict test on dust and soak. It has
dust-proof function, and the enclosure can works normal after soaking
in 1 m deep water for 30 minutes.
IK10: The enclosure can stand the punch more than 5 times from a 5 kg
hammer falling from a height of 40 m (Impact energy is 20J).
Wide voltage: The camera allows ±30% input voltage tolerance (wide
voltage range), and it is widely applied to outdoor environment with
instable voltage.

5Mp
H.265+

Starlight

Vandal-proof

IVS

www.dahuasecurity.com

Technical Speciﬁcation
Camera
Image Sensor1/2.7” 5Megapixel progressive CMOS
Effective Pixels
2592 (H) x 1944 (V)
ROM128 MB
RAM256 MB
Scanning SystemProgressive
Electronic Shutter Speed
Auto/Manual 1/3 s–1/100000 s
Min. Illumination0.008 Lux @ F1.6
IR Distance30 m (98.43 ft)
IR On/Off ControlAuto/Manual
IR LEDs Number3
Pan/Tilt/Rotation Range
Pan: 0°–355°
Tilt: 0°–65°
Rotation: 0°–355°
Lens
Lens TypeFixed
Mount TypeM12
Focal Length
2.8 mm
3.6 mm
Max. Aperture
F1.6
F1.6
Field of View
2.8 mm:
Pan: 103.0°
Tilt: 71.0°
Diagonal: 132.0°
3.6 mm:
Pan: 84.0°
Tilt: 58.0°
Diagonal: 110.0°
Iris TypeFixed aperture
Close Focus Distance
2.8 mm: 0.9 m (2.95 ft)
3.6 mm: 1.6 m (5.25 ft)
DORI Distance
LensDetectObserveRecognizeIdentify
2.8mm
56 m
(183.73 ft)
22.4 m
(73.49 ft)
11.2 m
(36.75 ft)
5.6 m
(19.37 ft)
3.6mm
80 m
(262.47 ft)
32 m
(104.99 ft)
16 m
(52.49 ft)
8 m
(26.25 ft)
Smart Event
General IVS AnalyticsTripwire; intrusion
Video
Video Compression H.265; H.264; H.264B; MJPEG
Smart CodecYes
Video Frame Rate
Main stream:
2592 x 1944 (1 fps-20 fps)
2688 x 1520 (1 fps-25/30 fps)
Sub stream:
704 x 576 (1 fps-25 fps)
704 x 480 (1 fps-30 fps)
Stream Capability2 streams

Resolution
2592x1944(2592x1944); 2688x1520(2688x1520);
3M(2048x1536); 2304x1296(2304x1296);
1080p(1920x1080); 1.3M (1280 x 960); 720p(1280x720);
D1(704x 576/704x480); VGA(640x480);
CIF(352x288/352x240)
Bit Rate ControlCBR/VBR
Video Bit Rate
H.264: 32 Kbps–8192 Kbps
H.265: 12 Kbps–8192 Kbps
Day/NightAuto(ICR)/Color/B/W
BLCYes
HLCYes
WDR120 dB
White Balance
Auto/natural/street lamp/outdoor/manual/regional
custom
Gain ControlAuto/Manual
Noise Reduction3D DNR
Motion DetectionOFF/ON (4 areas, rectangular)
Region of Interest(RoI)Yes (4 areas)
Smart IRYes
Image Rotation
0°/90°/180°/270° (Supports 90°/270° with 2688 x 1520
resolution and lower.)
MirrorYes
Privacy Masking4 areas
Network
NetworkRJ-45 (10/100 Base-T)
Protocol
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP;
RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS;
UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x;
Bonjour
Interoperability
ONVIF(Profile S/Profile G/Profile T);CGI; P2P; Milestone;
Genetec
Scene self-adaptation 20
User/Host20
Edge Storage
Dahua Cloud; FTP; SFTP; Micro SD Card (support max.
256 GB); NAS
Browser
IE
Chrome
Firefox
Management SoftwareSmart PSS; DSS; DMSS
Mobile PhoneIOS; Android
Certification
Certifications
CE-LVD: EN60950-1
CE-EMC: Electromagnetic Compatibility Directive
2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Power
Power Supply12V DC/PoE (802.3af)
Power Consumption< 6.1W
Lite Series | DH-IPC-HDBW2531E-S-S2

Environment
Power Consumption-40°C to +60°C (-40°F to +140°F)/less than ≤ 95% RH
Storage Temperature-40°C to +60°C (-40°F to +140°F)
Protection GradeIP67, IK10
Structure
CasingMetal
Dimensions81 mm x Φ109.9 mm (3.19" x Φ4.33")
Net Weight0.350 kg (0.77 lb)
Gross Weight0.491 kg (1.08 lb)

Ordering Information
TypePart NumberDescription
5MP
Camera
DH-IPC-HDBW2531EP-S-S2
5MP Lite IR Fixed-focal Dome
Network Camera,PAL
DH-IPC-HDBW2531EN-S-S2
5MP ILite IR Fixed-focal Dome
Network Camera,NTSC
Accessories
(optional)
PFA136Junction Box
PFA200W Rain Shade
PFB203W Wall Mount
PFA152-E Pole Mount
PFA106Mount Adapter
PFB220CCelling Mount
PFM321DDC12V1A Power Adapter
LR1002-1ET/1EC
Single-port Long Reach Ethernet
Over Coax Extender
PFM900-EIntegrated Mount Tester
PFM114TLC SD Card

Dimensions (mm[inch])

Rev 001.001© 2019 Dahua. All rights reserved. Design and specifications are subject to change without notice.
Pictures in the document are for reference only, and the actual product shall prevail.

www.dahuasecurity.com
Accessories
Optional:
PFA136
Junction Box
PFA200W
Rain Shade
PFA106
Mount Adapter
PFA152-E
Pole Mount
PFM114
TLC SD Card
PFB220C
Celling Mount
PFM321D
DC12V1A Power
Adapter
LR1002-1ET/1EC
Single-port Long
Reach Ethernet over
Coax Extender
PFM900-E
Integrated Mount
Tester
PFB203W
Wall Mount

Junction MountWall Mount
Ceiling Mount
Wall Mount
PFA36PFB23W
PFA36PFA2W
PFA6PFB22C

Pole Mount
PFB23WPFA52-E

Lite Series | DH-IPC-HDBW2531E-S-S2
