IPC-HDBW2431R-ZS-27135

Availability: 0

Price: €228.37 228.37

excl. 23.00% TAX, excl. shipping costs

quantity szt.

product unavailable

add to wish list

Vendor:

Product code: IPC-HDBW2431R-ZS-27135

ask about product or pricing

Description

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

Lite Series | DH-IPC-HDBW2431R-ZS/VFS

System Overview

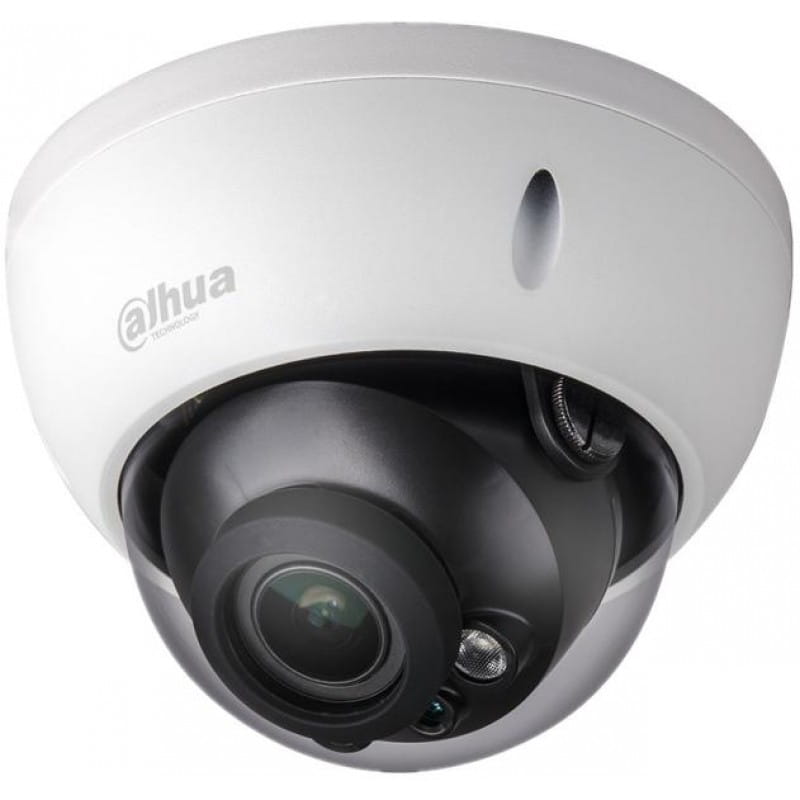

The IR Megapixel Vari-focal Dome camera delivers 4MP resolution with a
motorized 2.7mm – 13.5mm varifocal lens. The camera's elegant blend
of aesthetics combined with a range of easy mounting solutions provides
an excellent choice for a variety of small to mid-size applications at an
affordable price.

Functions
True Day/Night
A day/night mechanical IR cut filter makes this camera ideal for
applications with fluctuating lighting conditions, delivering color images
during the day and automatically switching to monochrome as the scene
darkens
Regions of interest
Regions of Interest (ROI) is a user defined feature that allows the
operator to monitor specific areas of a scene while still maintaining
overall situational awareness of less important areas
Smart IR
With IR illumination, detailed images can be captured in low light or
total darkness. The camera's Smart IR technology adjusts to the intensity
of camera's infrared LEDs to compensate for the distance of an object.
Smart IR technology prevents IR LEDS from whiting out images as they
come closer to the camera. The camera's integrated infrared illumination
provides high performance in extreme low-light environments up to 50m
(164ft).
Wide Dynamic Range
Embedded with industry leading wide dynamic range (WDR) technology,
vivid pictures are achieved even in the most intense contrast lighting
conditions. For applications with both bright and low lighting conditions
that change quickly, True WDR (120dB) optimizes both the bright and
dark areas of a scene at the same time to provide usable video.
Image flip
Capturing unnecessary data such as surrounding hallway walls can
increase storage requirements without any added value. The image flip
feature allows the camera's image to be rotated in 90° increments for
better video optimization.
Protection
The camera's outstanding reliability is unsurpassed due to its rugged
design. The camera is protected against water and dust to IP67
standards, making it suitable for indoor or outdoor environments. With
its IK10 rated impact resistant design, the camera provides maximum
durability against vandals making it capable of withstanding the
equivalent of 55 kg (120lbs) of force.
Supporting ±10% input voltage tolerance, this camera suits even the
most unstable conditions for outdoor applications. Its 6KV lightning
rating provides protectection against the camera and its structure from
the effects of lightning.
Interoperability
The camera conforms to the ONVIF (Open Network Video Interface
Forum) specifications, ensuring interoperability between network video
products regardless of manufacturer
HEVC (H.265)
H.265 ITU-T VCEG is a new video coding standard. H.265 Following
standard developed around the existing video coding standard H.264
, some retain the original technology , while some of the relevant
technology to improve the new technology uses advanced technology
to improve the relationship between the code stream , encoding quality
, and the delay between algorithm complexity , optimize settings
specific contents include : Improve compression efficiency , improve the
robustness and error recovery capabilities, real-time to reduce the delay,
reduce channel acquisition time and a random access delay , reduce
complexity , etc
www.dahuasecurity.com
· 1/3” 4Megapixel progressive CMOS
· H.265 & H.264 dual-stream encoding
· 20fps@4M(2688x1520)&25/30fps@3M(2304x1296)
· WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
· Multiple network monitoring: Web viewer, CMS(DSS/PSS) &
DMSS
· Micro SD card slot, up to 128GB
· 2.7~13.5mm varifocal lens
· Max IR LEDs Length 50m
· IP67, IK10, PoE
DH-IPC-HDBW2431R-ZS/VFS
4MP WDR IR Dome Network Camera

IP67
H.265
4Mp

50m IR

Vandal-proof

www.dahuasecurity.com
Lite Series | DH-IPC-HDBW2431R-ZS/VFS

Technical Speciﬁcation
Camera
Image Sensor1/3” 4Megapixel progressive CMOS
Effective Pixels
2688(H) x1520(V)
RAM/ROM
512MB/32MB
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual, 1/3(4)~1/100000s
Minimum Illumination
0.03Lux/F1.4( Color,1/3s,30IRE)
0.3Lux/1.4( Color,1/30s,30IRE)
0Lux/F1.4(IR on)
S/N Ratio
More than 45dB
IR Distance
Distance up to 50m(164ft)
IR On/Off Control
Auto/ Manual
IR LEDs
2
Lens
Lens TypeMotorized(-ZS),Manual(-VFS)
Mount TypeBoard-in
Focal Length2.7mm~13.5mm
Max. ApertureF1.4
Angle of ViewH:104°~28°, V:55°~16°
Focus ControlMotorized(-ZS),Manual(-VFS)
Close Focus Distance0.2m
DORI Distance
LensDetectObserveRecognizeIdentify
W64m(210ft)26m(85ft)13m(43ft)6m(20ft)
T222m(728ft)89m(292ft)44m(144ft)22m(72ft)
PTZ
Pan/Tilt RangePan:0° ~355° ;Tilt:0° ~70° ;Rotation:0° ~355°
Video
CompressionH.265+/H.265/H.264+/H.264
Streaming Capability2 Streams
Resolution
(2688x1520)/(2560x1440)/
(2304x1296)/1080P(1920x1080)/
SXGA(1280x1024)/1.3M(1280x
960)/720P(1280x720)/D1(704x576/704x480)/
VGA(640x480)CIF(352x288/352x240)
Frame Rate
4M (1 ~ 20fps)/3M(1 ~ 25/30fps)
D1/CIF(1 ~ 20/25fps)
Bit Rate ControlCBR/VBR
Bit Rate
H.265: 12K ~ 8448Kbps
H.264: 32K ~ 10240Kbps
Day/NightAuto(ICR) / Color / B/W
BLC ModeBLC / HLC / WDR(120dB)

White BalanceAuto/Natural/Street Lamp/Outdoor/Manual
Gain ControlAuto/Manual
Noise Reduction3D DNR
Motion DetetionOff / On (4 Zone, Rectangle)
Region of InterestOff / On (4 Zone)
Electronic Image
Stabilization(EIS)
N/A
Smart IRSupport
Digital Zoom16x
Flip0°/90°/180°/270°
MirrorOff / On
Privacy MaskingOff / On (4 Area, Rectangle)
Audio
CompressionN/A
Network
EthernetRJ-45 (10/100Base-T)
Protocol
HTTP;TCP;ARP;RTSP;RTP;UDP;RTCP;SMTP;FTP;DHCP
;DNS;DDNS;PPPOE;IPv4/v6;SNMP;QoS;UPnP;NTP
InteroperabilityONVIF, PSIA, CGI
Streaming MethodUnicast / Multicast
Max. User Access20 Users
Edge Storage
NAS
Local PC for instant recording
Micro SD Card 128GB
Web ViewerIE, Chrome, Firefox, Safari
Management SoftwareSmart PSS, DSS，DMSS
Smart PhoneIOS, Android
Certifications
Certifications
CE (EN 60950:2000)
UL:UL60950-1
FCC: FCC Part 15 Subpart B
Interface
Video InterfaceN/A
Audio InterfaceN/A
RS485N/A
AlarmN/A
Electrical
Power SupplyDC12V PoE (802.3af)(Class 0)
Power Consumption<8.5W(-ZS), <6W(-VFS)

Lite Series | DH-IPC-HDBW2431R-ZS/VFS

Ordering Information
TypePart NumberDescription
4MP camera
DH-IPC-
HDBW2431RP-ZS
4MP WDR IR Dome Network Camera,
PAL
DH-IPC-
HDBW2431RN-ZS
4MP WDR IR Dome Network Camera,
NTSC
IPC-HDBW2431RP-ZS
4MP WDR IR Dome Network Camera,
PAL
IPC-HDBW2431RN-ZS4MP WDR IR Dome Network Camera,
NTSC
DH-IPC-
HDBW2431RP-VFS
4MP WDR IR Dome Network Camera,
PAL
DH-IPC-
HDBW2431RN-VFS
4MP WDR IR Dome Network Camera,
NTSC
IPC-HDBW2431RP-
VFS
4MP WDR IR Dome Network Camera,
PAL
IPC-HDBD2431RN-
VFS
4MP WDR IR Dome Network Camera,
NTSC
Accessories
(optional)
PFA137Junction box
PFB203W Wall mount
PFA152Pole mount
PFB200C In-celling Mount
www.dahuasecurity.com

Environmental
Operating Conditions-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Strorage Conditions-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress Protection IP67
Vandal ResistanceIK10
Construction
CasingMetal
Dimensionsφ122mmx88.9mm(4.80''x3.50'')
Net Weight0.4Kg (0.88lb)
Gross Weight0.54Kg(1.19lb)
Dimensions (mm/inch)

Junction Mount
Inceiling Mount

Wall Mount
Pole Mount

PFB23W PFA12
PFB23W

PFA13
PFB2C
