IPC-HDBW1235E-W-0360B

Availability: 0
Price: €115.39 115.39
excl. 23.00% TAX, excl. shipping costs
quantity szt.

product unavailable

add to wish list
Vendor: DAHUA
Product code: IPC-HDBW1235E-W-0360B

Description

Wi-Fi Series | IPC-HDBW1235E-W-0360B  IPC-HDBW1235E-W-0360B  2MP IR Mini-Dome Wi-Fi Network Camera  • 1/2.9” 2 Megapixel progressive CMOS  • H.265 & H.264 dual-stream encoding  • 25/30 fps @ 2M (1920x1080)  • DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC  • Wi-Fi support  • 3.6 mm fixed lens  • Max IR LEDs Length 30m  • IP67, IK10  System Overview  Functions  The IR Megapixel Fixed MiniDome camera delivers 2MP resolution  with a choice of 3.6mm wide angle lens options. The camera’s elegant  blend of aesthetics combined with a range of easy mounting solu-  tions provides an excellent choice for a variety of small to mid-size  applications at an affordable price.    IP67  Vandal-proof    30m IR    H.265    2Mp  www.dahuasecurity.com  Features  Easy4ip  Easy4ip cloud and app allows you monitor what’s happening at home  anytime and anywhere. Alarm notice is pushed to your app in real  time, so you’ll not miss anything important. And you can record your  daily or motion videos on easy4ip cloud along with local storage.  True Day/Night  A day/night mechanical IR cut filter makes this camera ideal for  a...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet PDF


Text contents of PDF datasheet:

Wi-Fi Series | IPC-HDBW1235E-W-0360B
IPC-HDBW1235E-W-0360B

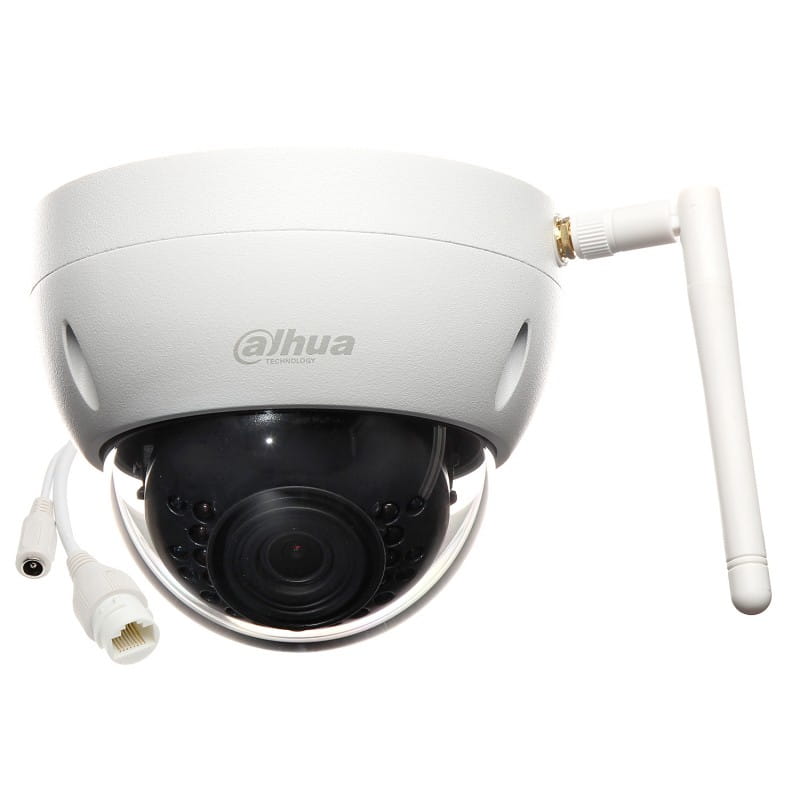

2MP IR Mini-Dome Wi-Fi Network Camera
• 1/2.9” 2 Megapixel progressive CMOS
• H.265 & H.264 dual-stream encoding
• 25/30 fps @ 2M (1920x1080)
• DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
• Wi-Fi support
• 3.6 mm fixed lens
• Max IR LEDs Length 30m
• IP67, IK10
System Overview
Functions
The IR Megapixel Fixed MiniDome camera delivers 2MP resolution
with a choice of 3.6mm wide angle lens options. The camera’s elegant
blend of aesthetics combined with a range of easy mounting solu-
tions provides an excellent choice for a variety of small to mid-size
applications at an affordable price.

IP67
Vandal-proof

30m IR

H.265

2Mp
www.dahuasecurity.com
Features
Easy4ip
Easy4ip cloud and app allows you monitor what’s happening at home
anytime and anywhere. Alarm notice is pushed to your app in real
time, so you’ll not miss anything important. And you can record your
daily or motion videos on easy4ip cloud along with local storage.
True Day/Night
A day/night mechanical IR cut filter makes this camera ideal for
applications with fluctuating lighting conditions, delivering color
images during the day and automatically switching to monochrome
as the scene darkens.
Regions of interest
Regions of Interest (ROI) is a user defined feature that allows the ope-
rator to monitor specific areas of a scene while still maintaining ove-
rall situational awareness of less important areas.
Smart IR
With IR illumination, detailed images can be captured in low light
or total darkness. The camera’s Smart IR technology adjusts to the
intensity of camera’s infrared LEDs to compensate for the distance
of an object. Smart IR technology prevents IR LEDS from whiting out
images as they come closer to the camera. The camera’s integrated
infrared illumination provides high performance in extreme low-light
environments up to 30m (98ft).
Environmental
With a temperature range of -10°C to +50°C (-22°F to +140°F),
the camera is designed for extreme temperature environments.
The camera complies to an IK10 impact rating making it capable
of withstanding the equivalent of 55 kg (120 lbs) of force. Subjec-
ted and certified to rigorous dust and water immersion tests, the
IP67 rating makes it suitable for demanding outdoor applications.
For enviorments with rain, sleet, snow and fog, an integrated wiper
provides users with clear visibility at all times.
Protection
Supporting ±10% input voltage tolerance, this camera suits even
the most unstable conditions for outdoor applications. Its 2KV light-
ning rating provides protectection against the camera and its structu-
re from the effects of lightning.
Interoperability
The camera conforms to the ONVIF (Open Network Video Interface
Forum) specifications, ensuring interoperability between network
video products regardless of manufacturer.

Wi-Fi Series | IPC-HDBW1235E-W-0360B

Technical Specification

Camera
Image Sensor1/2.9” 3 Megapixel progresive CMOS
Effective Pixels1920(H) x 1080(V)
RAM/ROM256MB / 16MB
Scanning SystemProgressive
Minimum Illumination0.1 Lux / F2.0 (Color), 0 Lux / F2.0 (IR on)
S/N RatioMore than 50dB
IR DistanceDistance up to 30m (98ft)
IR On/Off ControlAuto / Manual
IR LEDs 24

Video
CompressionH.265 / H.264H / MJPEG (Sub Stream)
Streaming Capability2 Streams
Resolution
1080P (1920x1080) / 1.3M (1280x960) /
720P (1280x720) / D1 (704x576/704x480) /
VGA (640x480) / CIF (352x288/352x240)
Frame Rate
Main Stream: 1080P (1 ~ 25/30fps)
Sub Stream: D1 (1 ~ 25/30fps)
Bit Rate ControlCBR / VBR
Bit Rate
H.265: 12K ~ 6400Kbps
H.264: 32K ~ 10240Kbps
Day/NightAuto(ICR) / Color / B/W
BLC ModeBLC / HLC / DWDR
White BalanceAuto / Natural / Street Lamp / Outdoor / Manual
Gain ControlAuto / Manual
Noise Reduction3D DNR
Motion DetetionOff / On (4 Zone, Rectangle)
Region of InterestOff / On (4 Zone)
Electronic ImageSupport
Smart IR Support
Digital Zoom16x
Flip 0° / 90° / 180° / 270°
MirrorOff / On
Privacy MaskingOff / On (4 Area, Rectangle)

Network
EthernetRJ-45 (10/100Base-T)
Wi-Fi Wi-Fi(IEEE802.11b/g/n), 50m(open field)
Protocol
HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP;
DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP; NTP;
Bonjour; 802.1x; Multicast; ICMP; IGMP
InteroperabilityONVIF, PSIA, CGI
Streaming MethodUnicast / Multicast
Max. User Access10 Users / 20 Users
Edge Storage
NAS (Network Attached Storage), Local PC for instant
recording, 128GB
Web ViewerIE, Chrome, Firefox, Safari
Management
Software
Smart PSS, DSS, Easy4ip
Smart Phone iPhone, iPad, Android Phone

PTZ
Pan / Tilt Range
Pan: 0° ~ 355°;
Tilt: 0° ~ 55°;
Rotation: 0° ~ 355°

Certifications
Certifications
CE (EN 60950:2000)
UL: UL60950-1
FCC: FCC Part 15 Subpart B

Audio
CompressionN/A

Lens
Lens TypeFixed
Mount TypeBoard-in
Focal Length3.6 mm
Max. ApertureF2.0 / F2.0
Field of View83°(H), 44°(V), 98°(D)
Focus ControlFixed
Close Focus DistanceN/A

Electrical
Power SupplyDC12V
Power Consumption< 6.5 W

Warunki pracy
Operating Conditions-10°C ~ +50°C (-14°F ~ +122°F) / Less than 95% RH
Strorage Conditions-10°C ~ +50°C (14°F ~ +122°F) / Less than 95% RH
Ingress ProtectionIP67
Vandal ResistanceIK10

Interface
Video InterfaceN/A
Audio InterfaceN/A
RS485N/A
Alarm N/A

Construction
Casing Metal
Dimensions Φ109.9 mm x 81 mm (4.33” x 3.19”)
Net Weight0.34 Kg (0.75lb)
Gross Weight0.47 Kg (1.04lb)

www.dahuasecurity.com

Wi-Fi Series | IPC-HDBW1235E-W-0360B

www.dahuasecurity.com
© 2019 Dahua. All rights reserved.
Accessories (optional)Dimensions (mm/inch)

PFA136
Juntion Box
PFB203W
Wall Mount
PFA152
Pole Mount

Junction MountPole Mount
PFA136PFB203W + PFA152
MountWall
PFB203W
