IPC-HDBW1235E-W-0280B-S2

www.dahuasecurity.com  IPC-HDBW1235E-W-S2  2MP IR Dome WI-FI Camera    · 2MP, 1/2.7” CMOS image sensor, low illuminance, high image definition  · Outputs max. 2MP (1920 x 1080) @25/30 fps  · H.265 codec, high compression rate, ultra-low bit rate  · Max. IR distance: 30 m  · ROI, SMART H.264/H.265, flexible coding, applicable to various   bandwidth and storage environments.  · Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking,   applicable to various monitoring scenes  · Supports 256 G Micro SD card  · 12V DC power supply, easy for installation  · IP67, IK10 protection  · Supports Wi-Fi  Entry Series | IPC-HDBW1235E-W-S2     Series Overview  With features of simple installation, easy operation, and high  performance-cost ratio, Dahua Entry series network camera is  applicable to small and medium-sized scenes, such as homes/  residences, small-sized retail stores, and other small and  medium-sized enterprises.   Functions  Smart H.265+ & Smart H.264+  With advanced scene-adaptive r...

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

www.dahuasecurity.com
IPC-HDBW1235E-W-S2

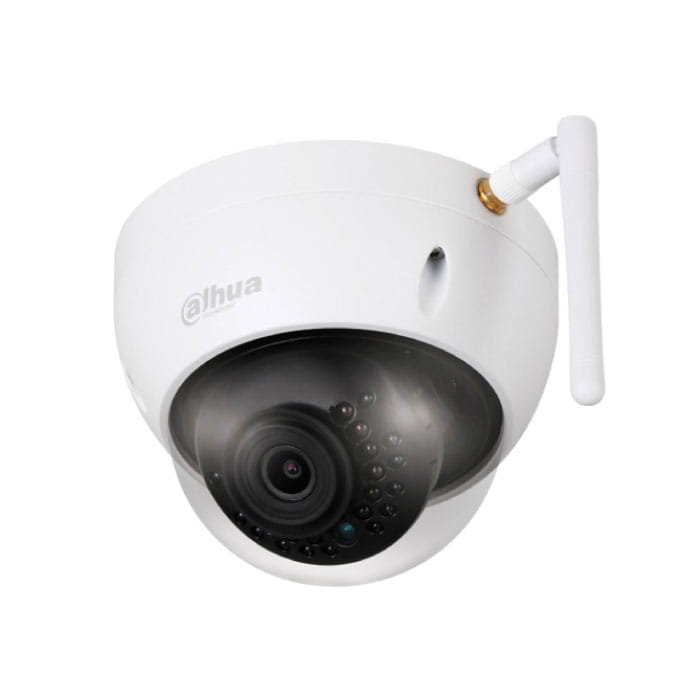

2MP IR Dome WI-FI Camera

· 2MP, 1/2.7” CMOS image sensor, low illuminance, high image definition
· Outputs max. 2MP (1920 x 1080) @25/30 fps
· H.265 codec, high compression rate, ultra-low bit rate
· Max. IR distance: 30 m
· ROI, SMART H.264/H.265, flexible coding, applicable to various
bandwidth and storage environments.
· Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking,
applicable to various monitoring scenes
· Supports 256 G Micro SD card
· 12V DC power supply, easy for installation
· IP67, IK10 protection
· Supports Wi-Fi
Entry Series | IPC-HDBW1235E-W-S2

Series Overview
With features of simple installation, easy operation, and high
performance-cost ratio, Dahua Entry series network camera is
applicable to small and medium-sized scenes, such as homes/
residences, small-sized retail stores, and other small and
medium-sized enterprises.
Functions
Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart
encoding technology realizes the higher encoding efficiency than H.265
and H.264, provides high-quality video, and reduces the cost of storage
and transmission.
WDR
With advanced Wide Dynamic Range (WDR) technology, Dahua network
camera provides clear details in the environment of strong brightness
contrast. The bright and dark area can get clear video even in high
brightness environment or with backlight shadow.
Smart Illumination
Dahua Smart Illumination technology can display image in the
environment of low illuminance or completely dark environment.
According to the distance of the targets, the camera adjusts
Illuminations intensity automatically to display the details of the moving
target.
Motion Detection
When moving objects appear in the monitoring image, Dahua Motion
Detection (General) technology triggers alarm or records.
Day/Night
Dahua Day/Night function provides color image when illumination is
adequate; when illuminance is inadequate, it switches night mode and
provides white and black image. It can guarantee that the network
camera can work normally when illuminance changes.
Protection (IP67, IK10, wide voltage)
IP67: The camera passes a series of strict test on dust and soak. It has
dust-proof function, and the enclosure can works normal after soaking
in 1 m deep water for 30 minutes.
IK10: The enclosure can stand the punch more than 5 times from a 5 kg
hammer falling from a height of 40 cm (Impact energy is 20J).
Wide voltage: The camera allows ±30% input voltage tolerance (wide
voltage range), and it is widely applied to outdoor environment with
instable voltage.

Motion Detection

Smart C odec
WDR

www.dahuasecurity.com

Technical Specification
Camera
Image Sensor1/2.7”2Megapixel progressive CMOS
Max. Resolution
1920 (H) x 1080 (V)
ROM128 MB
RAM128 MB
Scanning SystemProgressive
Electronic Shutter Speed
Auto/Manual 1/3 s–1/100,000 s
Min. Illumination
Manual 1/30 s
1.9231 Lux @F2.0 (Color, 80 IRE); 1.0843 Lux @F2.0
(W/B, 80 IRE); 0 Lux (IR on)
Manual 1/3 s
0.1970 Lux @F2.0 (Color, 80 IRE); 0.1168 Lux @F2.0
(W/B, 80 IRE); 0 Lux (IR on)
S/N Ratio>49.85 dB
Illumination Distance30 m (98.4 ft)
Illuminator On/Off ControlAuto
Illuminator Number18 (IR LED)
Pan/Tilt/Rotation Range
Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–355°
Lens
Lens TypeFixed-focal
Mount TypeM12
Focal Length
2.8 mm
3.6 mm
Max. ApertureF2.0
Field of View
2.8 mm:
Horizontal: 113°
Vertical: 58°
Diagonal: 135°
3.6 mm:
Horizontal: 93°
Vertical: 48°
Diagonal: 114°
Iris TypeFixed
Close Focus Distance
2.8 mm: 0.5 m (1.6 ft)
3.6 mm: 0.7 m (2.3 ft)
DORI Distance
LensDetectObserveRecognizeIdentify
2.8mm
37.3 m
(122.4 ft)
14.9 m
(48.9 ft)
7.5 m
(24.6 ft)
3.7 m
(12.1 ft)
3.6mm
51.1 m
(167.7 ft)
20.4 m
(66.9 ft)
10.2 m
(33.5 ft)
5.1 m
(16.7 ft)
Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG
Smart Codec
H.264: Yes
H.265: Yes
Video Frame Rate
50 Hz
Main stream (1920 x 1080 @25 fps), sub stream (640 x
480 @25 fps)
60 Hz
Main stream (1920 x 1080 @30 fps), sub stream (640 x
480 @30 fps)
Stream Capability2 streams

Resolution
1080p (1920 x 1080); 1.3M (1280 x 960); 720P (1280 x
720); VGA (640 x 480); QVGA (320 x 240)
Bit Rate ControlCBR/VBR
Video Bit Rate
H.264: 24 kbps–8192 kbps
H.265: 9 kbps–5632 kbps
Day/NightAuto (ICR)/Color/B/W
BLCYes
HLCYes
WDRDWDR
White Balance
Auto/natural/street lamp/outdoor/manual/regional
custom
Gain ControlAuto/Manual
Noise Reduction3D DNR
Motion DetectionOFF/ON (4 areas, rectangular)
Region of Interest (RoI)Yes (4 areas)
Smart IlluminationYes
Image Rotation0°/90°/180°/270° (Support 90°/270° with all resolution)
MirrorYes
Privacy Masking4 areas
Alarm
Alarm Event
No SD card; SD card full; SD card error; network
disconnection; IP conflict; illegal access; voltage
detection; motion detection; video tampering
Network
NetworkRJ-45 (10/100 Base-T)
Wi-FiYes
SDK and APIYes
Protocol
HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP;
DHCP; DNS; IPv4/v6; QoS; NTP
InteroperabilityONVIF (Profile T/Profile S/Profile G); CGI; DMSS
User/Host20 (Total bandwidth: 20 M)
StorageFTP; SFTP; Micro SD card (256 G); NAS
Browser
IE: IE9, IE11 and later
Chrome: 39.0.2171.95, and later version without plug-in
(62.0.3202.94)
Firefox: 43.0.1 and later version without plug-in (69.0.3)
Management SoftwareDMSS
Mobile PhoneIOS; Android
Certification
Certification
CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive
2014/30/EU
CE-RED: Radio Equipment Directive 2014/53/EU
FCC: 47 CFR FCC Part 15, Subpart B
FCC ID: FCC PART 15C
Power
Power Supply12V DC
Power ConsumptionMax 4.7W (12V DC) (IR full intensity)
Entry Series | IPC-HDBW1235E-W-S2

Environment
Operating Conditions–30°C to +50°C (–22°F to +122°F)/Less than 95%RH
Storage Conditions–40°C to +60°C (–40°F to +140°F)
Protection GradeIP67; IK10
Structure
CasingMetal
Dimensions
146.2 mm x 110.7 mm x 90.6 mm (5.8" x 4.4" x 3.6") (L
x W x H)
Net Weight408 g (0.9 lb)
Gross Weight729 g (1.6 lb)

www.dahuasecurity.com

Ordering Information
TypeModelDescription
2MP
Camera
DH-IPC-HDBW1235EP-W-
0280B-S2
2MP IR DOME Wi-Fi Camera, PAL
DH-IPC-HDBW1235EN-W-
0280B-S2
2MP IR DOME Wi-Fi Camera, NTSC
DH-IPC-HDBW1235EP-W-
0360B-S2
2MP IR DOME Wi-Fi Camera, PAL
DH-IPC-HDBW1235EN-W-
0360B-S2
2MP IR DOME Wi-Fi Camera, NTSC
Accessories
(optional)
PFA136Junction Box
PFB203WWall Mount
PFA152-EPole Mount

Accessories
Optional:
PFA136
Junction Box
PFB203W
Wall Mount
PFA152-E
Pole Mount

Dimensions (mm[inch])

Rev 001.001© 2020 Dahua. All rights reserved. Design and specifications are subject to change without notice.
Pictures in the document are for reference only, and the actual product shall prevail.
Entry Series | IPC-HDBW1235E-W-S2
