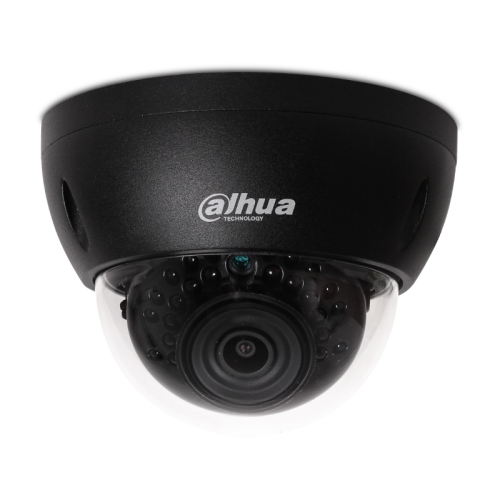

IPC-HDBW1230E-0280B-BLACK

Availability: 0
Price: €119.09 119.09
excl. 23.00% TAX, excl. shipping costs
quantity szt.

product unavailable

add to wish list
Vendor: DAHUA
Product code: IPC-HDBW1230E-0280B-BLACK

Description

Lite Series | DH-IPC-HDBW1230E-S     System Overview  The IR Megapixel Fixed camera delivers 2MP/4MP resolution with a  motorized 2.8mm/3.6mm fixed lens.The camera's elegant blend of  aesthetics combined with a range of easy mounting solutions provides  an excellent choice for a variety of small to mid-size applications at an  affordable price.    Functions  Smart H.265+  Smart H.265+ is the optimized implementation of the H.265 codec that  uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI,  flexible multi-frame reference structure and intelligent noise reduction to  deliver high-quality video without straining the network. Smart H.265+  technology reduces bit rate and storage requirements by up to 70%  when compared to standard H.265 video compression.  Intelligent Video analysis (IVS)  Dahua camera is equipped with a built-in intelligent analytic algorithm  based on video, which can realize intelligent functions like Tripwire  and Intrusion, to quickly and accurately respond to monitoring events  in specific area, It can enhance monitoring efficiency. In addition, the  camera supports intelligent tamper detection, which is to generate  warning message via detecting dramatic sc...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet PDF


Text contents of PDF datasheet:

Lite Series | DH-IPC-HDBW1230E-S

System Overview
The IR Megapixel Fixed camera delivers 2MP/4MP resolution with a
motorized 2.8mm/3.6mm fixed lens.The camera's elegant blend of
aesthetics combined with a range of easy mounting solutions provides
an excellent choice for a variety of small to mid-size applications at an
affordable price.

Functions
Smart H.265+
Smart H.265+ is the optimized implementation of the H.265 codec that
uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI,
flexible multi-frame reference structure and intelligent noise reduction to
deliver high-quality video without straining the network. Smart H.265+
technology reduces bit rate and storage requirements by up to 70%
when compared to standard H.265 video compression.
Intelligent Video analysis (IVS)
Dahua camera is equipped with a built-in intelligent analytic algorithm
based on video, which can realize intelligent functions like Tripwire
and Intrusion, to quickly and accurately respond to monitoring events
in specific area, It can enhance monitoring efficiency. In addition, the
camera supports intelligent tamper detection, which is to generate
warning message via detecting dramatic scene change and to guarantee
effective video surveillance.
Smart IR Technology
With IR illumination, detailed images can be captured in low light or
total darkness. The camera's Smart IR technology adjusts the intensity of
camera's infrared LEDs to compensate the distance of an object. Smart
IR technology prevents IR LEDs from whitening out images as they come
closer to the camera. The camera's integrated infrared illumination
provides high performance in extreme low-light environments up to 30m
(98ft).
Protection (IP67, IK10, wide voltage)
The camera allows for ±10% input voltage tolerance, suitable for the
most unstable conditions for outdoor applications. Its 6KV lightning
rating provides effective protection for both the camera and its structure
against lightning. Subjected and certified to rigorous dust and immersion
tests (IP67) and impact tests (IK10), the camera is the choice for
installation in even the most unforgiving environments.
Environmental
Dahua cameras operate in extreme temperature environments, rated for
use in temperatures from -30° C to +60° C (-22° F to +140° F) with 95%
humidity. An optional heater module extends the multi-sensor camera’s
temperature range to -40° C to +60° C (-40° F to +140° F), allowing the
camera to operate in the harshest environments.
Image flip
Capturing unnecessary data such as surrounding hallway walls can
increase storage requirements without any added value. The image flip
feature allows the camera's image to be rotated in 90° increments for
better video optimization.
Interoperability
The camera conforms to the ONVIF (Open Network Video Interface
Forum) specifications, ensuring interoperability between network video
products regardless of manufacturer.
www.dahuasecurity.com
· 1/2.7” 2Megapixel progressive CMOS
· H.265 & H.264 dual-stream encoding
· 25/30fps@1080P(1920x1080)
· DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
· Multiple network monitoring: Web viewer, CMS(DSS/PSS)
& DMSS
· Micro SD card slot, up to 128GB
· 2.8 mm fixed lens (3.6 mm optional)
· Max IR LEDs Length 30m
· IP67, IK10, PoE
DH-IPC-HDBW1230E-S
2MP IR Mini-Dome Network Camera

IP67
H.265
30m IR

Vandal-proof

1080p

www.dahuasecurity.com
Lite Series | DH-IPC-HDBW1230E-S

Technical Specification
Camera
Image Sensor1/2.7” 2Megapixel progresive CMOS
Effective Pixels
1920(H)x1080(V)
RAM/ROM
256MB/128MB
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual, 1/3~1/100000s
Minimum Illumination
0.08Lux/F2.0( Color,1/3s,30IRE)
0.3Lux/F2.0( Color,1/30s,30IRE)
0Lux/F2.0(IR on)
S/N Ratio
More than 50dB
IR Distance
Distance up to 30m(98ft)
IR On/Off Control
Auto/ Manual
IR LEDs
24
Lens
Lens TypeFixed
Mount TypeBoard-in
Focal Length2.8 mm (3.6 mm optional)
Max. ApertureF2.0/F2.0
Angle of ViewH:104°/92°,V:55°/50°
Focus ControlFixed
Close Focus Distance0.6m(0.9m)
DORI Distance
Lens DetectObserveRecognizeIdentify
2.8 mm 40(131ft)16(52ft)8(26ft)4(13ft)
3.6 mm 53(174ft)21(69ft)11(36ft)5(16ft)
PTZ
Pan/Tilt RangePan:0° ~355° ;Tilt:0° ~65° ;Rotation:0° ~355°
Intelligence
IVS Tripwire, Intrusion
Video
CompressionH.265+/H.265/H.264+/H.264
Streaming Capability2 Streams
Resolution
1080P(1920x1080)/1.3M(1280x960)/
720P(1280x720)/D1(704x576/704x480)/
CIF(352x288/352x240)
Frame Rate
1080P (1 ~ 25/30fps)
D1/CIF(1 ~ 25/30fps)
Bit Rate ControlCBR/VBR
Bit Rate
H.265: 12K ~ 6400Kbps
H.264: 32K ~ 10240Kbps
Day/NightAuto(ICR) / Color / B/W
BLC ModeBLC / HLC / DWDR


White BalanceAuto/Natural/Street Lamp/Outdoor/Manual
Gain ControlAuto/Manual
Noise Reduction3D DNR
Motion DetetionOff / On (4 Zone, Rectangle)
Region of InterestOff / On (4 Zone)
Electronic ImageSupport
Smart IRSupport
Digital Zoom16x
Flip0°/90°/180°/270°
MirrorOff / On
Privacy MaskingOff / On (4 Area, Rectangle)
Audio
CompressionN/A
Network
EthernetRJ-45 (10/100Base-T)
Protocol
HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP;
DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP;
Bonjour;802.1x;Multicast;ICMP;IGMP;
InteroperabilityONVIF, PSIA, CGI
Streaming MethodUnicast / Multicast
Max. User Access10 Users / 20 Users
Edge Storage
NAS
Local PC for instant recording
Micro SD Card 128GB
Web ViewerIE, Chrome, Firefox, Safari
Management SoftwareSmart PSS, DSS, Easy4ip
Smart PhoneIOS, Android
Certifications
Certifications
CE (EN 60950:2000)
UL:UL60950-1
FCC: FCC Part 15 Subpart B
Interface
Video InterfaceN/A
Audio InterfaceN/A
RS485N/A
AlarmN/A
Electrical
Power SupplyDC12V PoE (802.3af)(Class 0)
Power Consumption<4.3W

Lite Series | DH-IPC-HDBW1230E-S

Ordering Information
TypePart NumberDescription
2MP camera
DH-IPC-
HDBW1230EP-S
-0280B
2MP IR Mini-Dome Network Camera,
2.8mm,PAL
DH-IPC-
HDBW1230EN-S
-0280B
2MP IR Mini-Dome Network Camera,
2.8mm,NTSC
IPC-HDBW1230EP-S
-0280B
2MP IR Mini-Dome Network Camera,
2.8mm,PAL
IPC-HDBW1230EN-S
-0280B
2MP IR Mini-Dome Network Camera,
2.8mm,NTSC
DH-IPC-
HDBW1230EP-S
-0360B
2MP IR Mini-Dome Network Camera,
3.6mm,PAL
DH-IPC-
HDBW1230EN-S
-0360B
2MP IR Mini-Dome Network Camera,
3.6mm,NTSC
IPC-HDBW1230EP-S
-0360B
2MP IR Mini-Dome Network Camera,
3.6mm,PAL
IPC-HDBW1230EN-S
-0360B
2MP IR Mini-Dome Network Camera,
3.6mm,NTSC
Accessories
(optional)
PFA136Junction box
PFB203W Wall mount
PFA152-EPole mount
PFA200WRain shade
www.dahuasecurity.com

Environmental
Operating Conditions-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Strorage Conditions-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress Protection IP67
Vandal ResistanceIK10
Construction
CasingMetal
DimensionsΦ109.9mm x 81mm (4.33" x 3.19")
Net Weight0.34Kg (0.75lb)
Gross Weight0.47Kg (1.04lb)
Dimensions (mm/inch)

t
Wa t

Po

PFB203W + PF A152-E

PFB203W

PF A136

Wa e

PF A136+PFA 200W

Po e

PF A136+ PF A152-E+PFA 200W

Accessories
Optional:

PFA136
Function Box
PFB203W
Wall mount
PFA152-E
Pole mount
PFA200W
Rain Shade
© 2017 Dahua. All rights reserved. Design and specifications are subject to change without notice.Rev 001.001
