IPC-D2B20-0280B
Description
EZ-IP| IPC-D2B20-L System Overview EZ-IP is perfect for small to medium size applications like home/ residential security, small retail shops, and other typical SMB applications. It offers a perfect alternative to migrate from analog to an IP system with its easy to use nature and cost effectiveness. EZ-IP is fully in line with Dahua’s quality. Stable and reliable components are utilized and Various tests such as anti-vibration, water resistance, and aging tests are performed to ensure Dahua quality standards. Functions Smart Codec (H.265+ & H.264+) Smart Codec is the optimized implementation of standard video compression (H.265 & H.264) that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart Codec technology reduces bit rate and storage requirements by up to 70% when compared to the standard video compression. True Day/Night A day/night mechanical IR cut filter makes this camera ideal for applications with fluctuating lighting conditions, delivering color images during the day and automatically switching to monochrome...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Text contents of PDF datasheet:
EZ-IP| IPC-D2B20-L
System Overview
EZ-IP is perfect for small to medium size applications like home/
residential security, small retail shops, and other typical SMB
applications. It offers a perfect alternative to migrate from analog to an
IP system with its easy to use nature and cost effectiveness.
EZ-IP is fully in line with Dahua’s quality. Stable and reliable components
are utilized and Various tests such as anti-vibration, water resistance, and
aging tests are performed to ensure Dahua quality standards.
Functions
Smart Codec (H.265+ & H.264+)
Smart Codec is the optimized implementation of standard video
compression (H.265 & H.264) that uses a scene-adaptive encoding
strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference
structure and intelligent noise reduction to deliver high-quality video
without straining the network. Smart Codec technology reduces bit rate
and storage requirements by up to 70% when compared to the standard
video compression.
True Day/Night
A day/night mechanical IR cut filter makes this camera ideal for
applications with fluctuating lighting conditions, delivering color images
during the day and automatically switching to monochrome as the scene
darkens
Regions of interest
Regions of Interest (ROI) is a user defined feature that allows the
operator to monitor specific areas of a scene while still maintaining
overall situational awareness of less important areas
Smart IR
With IR illumination, detailed images can be captured in low light or
total darkness. The camera's Smart IR technology adjusts to the intensity
of camera's infrared LEDs to compensate for the distance of an object.
Smart IR technology prevents IR LEDS from whiting out images as they
come closer to the camera. The camera's integrated infrared illumination
provides high performance in extreme low-light environments up to 30m
(98ft).
Image flip
Capturing unnecessary data such as surrounding hallway walls can
increase storage requirements without any added value. The image flip
feature allows the camera's image to be rotated in 90° increments for
better video optimization.
Environmental
Dahua cameras operate in extreme temperature environments, rated for
use in temperatures from -30° C to +60° C (-22° F to +140° F) with 95%
humidity.
Protection (IP67, wide voltage)
The camera allows for ±25% input voltage tolerance, suitable for the
most unstable conditions for outdoor applications. Its 2KV lightning
rating provides effective protection for both the camera and its structure
against lightning. Subjected and certified to rigorous dust and immersion
tests (IP67) .
Interoperability
The camera conforms to the ONVIF (Open Network Video Interface
Forum) specifications, ensuring interoperability between network video
products regardless of manufacturer.
· 1/2.7” 2Megapixel progressive CMOS
· H.265+ & H.265 dual-stream encoding
· 20fps@1080P(1920x1080)25/30fps@1.3MP(1280x960)
· DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
· Multiple network monitoring: Web viewer, CMS(DSS/PSS) &
DMSS
· 2.8 mm fixed lens (3.6 mm optional)
· Max IR LEDs Length 30m
· IP67, PoE

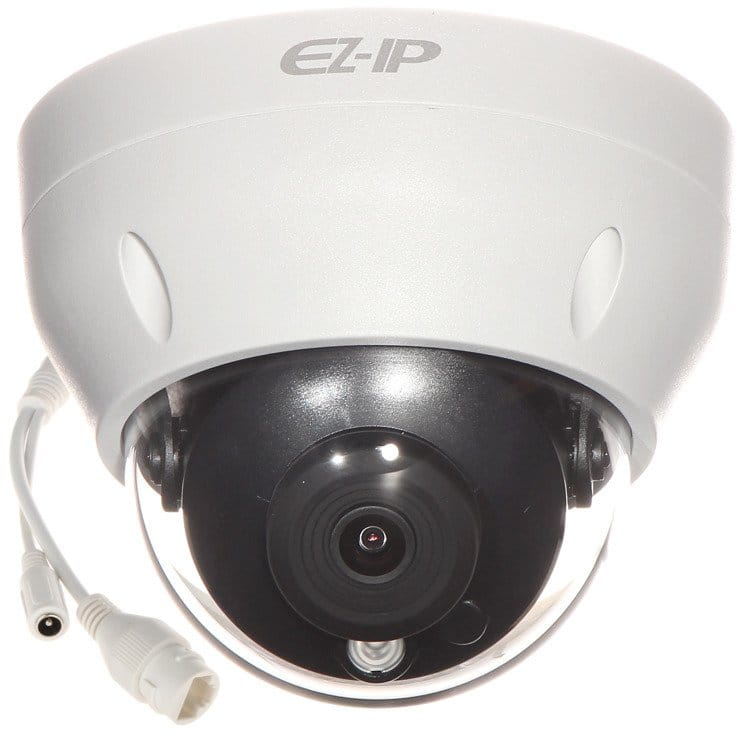

IPC-D2B20-L
2MP IR Mini-Dome Network Camera
IP67
H.265+
30m IR
1080p
EZ-IP | IPC-D2B20-L
Technical Specification
Camera
Image Sensor1/2.7” 2Megapixel progresive CMOS
Effective Pixels
1920(H)x1080(V)
RAM/ROM
64MB/16MB
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual, 1/3~1/100000s
Minimum Illumination
0.09Lux/F2.0(Color,1/3s,30IRE)
0.5Lux/F2.0(Color,1/30s,30IRE)
0Lux/F2.0(IR on)
S/N Ratio
More than 50dB
IR Distance
Distance up to 30m(98ft)
IR On/Off Control
Auto/ Manual
IR LEDs
1
Lens
Lens TypeFixed
Mount TypeBoard-in
Focal Length2.8 mm (3.6 mm optional)
Max. ApertureF2.0/F2.0
Angle of ViewH:115°/87.5°,V:60°/47°
Focus ControlFixed
Close Focus Distance0.6m(1.97ft)
DORI Distance
LensDetectObserveRecognizeIdentify
2.8 mm43.5m(143ft)17.4m(57ft)8.7m(28.5ft)4.3m(14ft)
3.6 mm53.3m(175ft)21.3m(70ft)10.7m(35ft)5.3m(17ft)
PTZ
Pan/Tilt RangePan:0° ~355° ;Tilt:0° ~75° ;Rotation:0° ~355°
Video
CompressionH.265/H.264H/MJPEG(Sub Stream)
Smart CodecSupport H.265+/H.264+
Streaming Capability2 Streams
Resolution
1080P(1920x1080)/1.3M(1280x960)/
720P(1280x720)/D1(704x576/704x480)/VGA(640x480)/
CIF(352x288/352x240)
Frame Rate
Main Stream: 1080P (1 ~ 20fps)
Sub Stream: D1(1 ~ 25/30fps)
Bit Rate ControlCBR/VBR
Bit Rate
H265:12K~5632K
H.264:32K ~8192K
Day/NightAuto(ICR) / Color / B/W
BLC ModeBLC / HLC / DWDR
White BalanceAuto/Natural/Street Lamp/Outdoor/Manual
Gain ControlAuto/Manual
Noise Reduction3D DNR
Motion DetetionOff / On (4 Zone, Rectangle)
Region of InterestOff / On (4 Zone)
Electronic Image Stabilization
(EIS)
N/A
Smart IRSupport
Digital Zoom16x
Flip0°/90°/180°/270°
MirrorOff / On
Privacy MaskingOff / On (4 Area, Rectangle)
Audio
CompressionN/A
Network
EthernetRJ-45 (10/100Base-T)
Protocol
HTTP;TCP;ARP;RTSP;RTP;RTCP;UDP;DHCP;DNS;IPV4;
NTP;Multicas; ICMP; IGMP
InteroperabilityONVIF Profile S&G
Streaming MethodUnicast / Multicast
Max. User Access10 Users/20 Users
Edge StorageN/A
Web ViewerIE, Chrome, Firefox, Safari
Management SoftwareSmart PSS, DSS,DMSS
Smart PhoneIOS, Android
Certifications
Certifications
CE: (EN 60950:2000)
FCC: FCC Part 15 Subpart B
Interface
Video InterfaceN/A
Audio InterfaceN/A
RS485N/A
AlarmN/A
Electrical
Power SupplyDC12V, PoE (802.3af)(Class 0)
Power Consumption<5.1W
EZ-IP | IPC-D2B20-L
Ordering Information
TypePart NumberDescription
2MP Camera
IPC-D2B20P-L-0280B
2MP IR Mini-Dome Network Camera,
2.8mm,PAL
IPC-D2B20N-L-0280B
2MP IR Mini-Dome Network Camera,
2.8mm,NTSC
IPC-D2B20P-L-0360B
2MP IR Mini-Dome Network Camera,
3.6mm,PAL
IPC-D2B20N-L-0360B
2MP IR Mini-Dome Network Camera,
3.6mm,NTSC
Accessories
(optional)
PFA137Junction box
PFB203W Wall mount
PFA152-EPole mount
PFA106 Ceiling mount
PFB220CCeiling mount
PFA200WRain Shade
Environmental
Operating Conditions-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Strorage Conditions-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress Protection IP67
Vandal ResistanceN/A
Construction
CasingPlastic
DimensionsΦ122mm x 98.1mm (4.8" x3.86")
Net Weight0.35Kg (0.77lb)
Gross Weight0.49Kg (1.08lb)
Dimensions (mm/inch)
t
Wa t
Po
PFB203W+ PF A152-E
PFB203W
PF A137
PF A106+PFB220C
t
Wa
BJO4IBEF
PF A200W
© 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice.Rev 001.001
Accessories
Optional:
PFA130-E
Junction Box
PFB203W
Wall mount
PFA152-E
Pole mount
PFA106
Ceiling Mount
PFB220C
Ceiling Mount
PFA200W
Rain Shade
