IPC-CT1C40-0360B
Description
www .dahuasecurit y .c om - En vir onme ntal - - In t er oper ability • 1/ 3” 4 Megapixel progressive CMOS • H.265+ & H.265 dual-stream encoding • 25/30 fps @ 1080P (1920x1080) • DWDR, Day/Night (ICR), 3DNR, AWB, AGC, BLC • Mulple network monitoring: Web viewe r , CMS (DSS/PSS) & DMSS • 3.6 mm ixed lens • Max IR LEDs Length 30 m • IP67, PoE Cooper - Cooper Smart Codec (H.265+ & H.264+) - True Day/Night A - Regions of interest oper- Smart IR - Cooper Series | IPC-CT1C ...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Text contents of PDF datasheet:
www .dahuasecurit y .c om
-
En vir onme ntal
-
-
In t er oper ability
• 1/ 3” 4 Megapixel progressive CMOS
• H.265+ & H.265 dual-stream encoding
• 25/30 fps @ 1080P (1920x1080)
• DWDR, Day/Night (ICR), 3DNR, AWB, AGC, BLC
• Mulple network monitoring: Web viewe r , CMS (DSS/PSS)
& DMSS
• 3.6 mm ixed lens
• Max IR LEDs Length 30 m
• IP67, PoE
Cooper
-
Cooper
Smart Codec (H.265+ & H.264+)
-
True Day/Night
A
-
Regions of interest
oper-
Smart IR
-
Cooper Series | IPC-CT1C 40-0360B
IPC-CT1C40-0360B

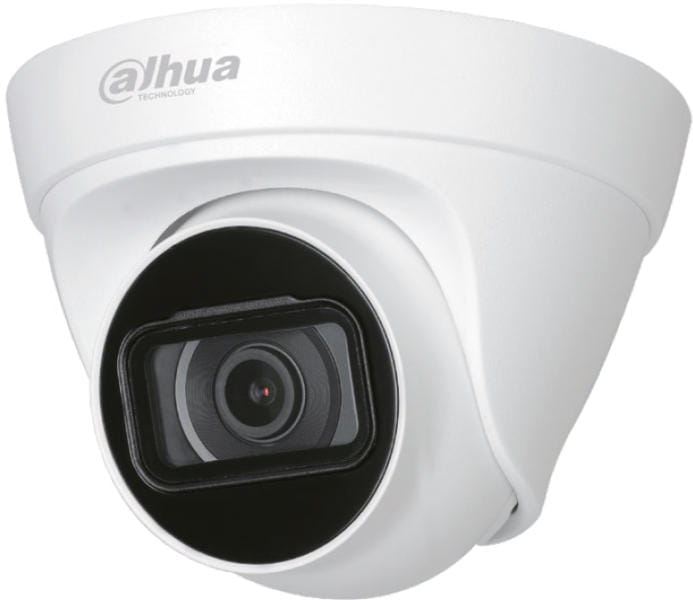

4 MP IR T urr e t N e tw ork Came r a
4Mp
Cooper Series | IPC-CT1C 40-0360B
www.dahuasecurity.com
technical specification
Image Sensor1/3” 4 Megapixel progresive CMOS
Effective Pixels2560 (H) x 1 440 (V)
RAM/ROM256MB/16MB
Scanning System Progressive
Minimum Illumination
0.09 lx; f/2.0 (Color, 1/3 s, 30IRE)
0.5 lx; f/2.0 (Color, 1/30 s, 30IRE)
0 lx; f/2.0 (IR on)
S/N RatioMore than 50 dB
IR DistanceDistance up to 30 m (98 ft)
IR On/Off ControlAuto/manual
IR LEDs 1
Lens
Lens TypeFixed
Mount TypeBoard-in
Focal Length3.6 mm
Max. Aperture f/2.0; f/2.0
Angle of View H: 115°/87.5°, V: 60°/47°
Focus Control Fixed
Close Focus Distance0.5 m (1.64 ft)
DORI
Distance
Lens DetectObserveRecognizeIdentify
2.8 mm 53.3 m 21.3 m 10.7 m 5.3 m
PTZ
Pan/tilt range Pan: 0°~360°; Tilt: 0°~90°; Rotation: 0°~360°
Video
CompressionH.265/H.264H/MJPEG (Sub Stream)
Smart Codec Support H.265+/H.264+
Streaming Capability2 Streams
Resolution
4M(2560x1440)/3M(2304x1296)/1080P(1920x1080
)/720P(1280x720)/VGA(640x480)/
D1(704x576/704x480)/CIF(352x288/352x240)
Frame Rate
Main Stream: 1080P (1~25/30 fps)
Sub Stream: D1 (1~25/30 fps)
Bit Rate Control CBR/VBR
Bit Rate H.265:12K~6400K H.264:32K ~8192K
Day/nightAuto (ICR)/Color/b/w
BLC ModeBLC/HLC/DWDR
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Gain ControlAuto/Manual
Noise Reduction3D DNR
Motion Detetion Off/On (4 Zone, Rectangle)
Region of InterestOff/On (4 Zone)
Electronic Image
Stabilization (EIS)
N/A
Smart IR Support
Digital Zoom16x
Audio
CompressionN/A
Network
EthernetRJ-45 (10/100Base-T)
Protocol
HTTP; TCP; ARP; RTSP; RTP; RTCP; UDP; DHCP; DNS;
IPV4; NTP; Multicast; ICMP; TLS
Interoperability ONVIF Profile S&G
Streaming MethodUnicast/Multicast
Max. User Access 10 Users/20 Users
Edge StorageN/A
Web ViewerIE, Chrome, Firefox, Safari
Management
Software
Smart PSS, DSS, DMSS
SmartphoneiOS, Android
Certifications
Certifications CE: (EN 60950:2000)
FCC:FCC Part 15 Subpart B
Interface
Video InterfaceN/A
Audio InterfaceN/A
RS485N/A
AlarmN/A
Electrical
Power SupplyDC 12 V, PoE (802.3af) (Class 0)
Power Consumption <4.8 W
Environmental
Operating Conditions -30°C~+60°C (-22°F~+140°F)/Less than 95% RH
Strorage Conditions -30°C~+60°C (-22°F~+140°F)/Less than 95% RH
Ingress ProtectionIP67
Vandal ResistanceN/A
Construction
CasingMetal+Plastic
Dimensions Φ109 mm x 85.5 mm (4.29" x 3.36")
Net Weight0.24 kg (0.53 lb)
Gross Weight0.36 kg (0.79 lb)
Video
Flip 0°/90°/180°/270°
MirrorOff/On
Privacy Masking Off/On (4 Area, Rectangle)
Cooper Series | IPC-CT1C 40-0360B
www.dahuasecurity.com
Accessoriesdimensions (mm)
© 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice.
Corner mountJunction mount
PFA151 + PFB203WPFA130-E
Ceiling mountWall mount
PFA106 + PFB220CPFB203W
Pole mount
PFA152-E+ PFB203W
PFA130-E
PFB220C
PFB203WPFA151PFA152-E
PFA106
Accessories
PFA130-EWater-proof Junction box
PFB203WWater-proof Wall Mount Bracket
PFA152-EPole Mount Bracket
PFA151Corner Mount Bracket
PFA106Adapter Plate of Mini Dome Camera
PFB220CCeiling Mount Bracket of Mini Dome Camera
