IPC-CD1C20-0360B

Cooper Series | IPC-CD1C20-0360B  product overviewfeatures  functions    TVW  EZ-IP is perfect for small to medium size applications like home/  residential security, small retail shops, and other typical SMB  applications. It offers a perfect alternative to migrate from analog to an  IP system with its easy to use nature and cost effectiveness.  EZ-IP is fully in line with Dahua’s quality. Stable and reliable components  are utilized and Various tests such as anti-vibration, water resistance,  and  aging tests are performed to ensure Dahua quality standards.  • 1/2.7” 2 Megapixel progressive CMOS  • H.265+ & H.265 dual-stream encoding  • 25/30 fps @ 1080P (1920x1080)  • DWDR, Day/night (ICR), 3DNR, AWB, AGC, BLC  • Multiple network monitoring: Web viewer, CMS (DSS/PSS)  & DMSS  • 3.6 mm fixed lens  • Max IR LEDs Length 30 m  • IP67, PoE  Smart Codec (H.265+ & H.264+)  Smart Codec is the optimized implementation of standard video com-  pression (H.265 & H.264...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

Cooper Series | IPC-CD1C20-0360B
product overviewfeatures
functions

TVW
EZ-IP is perfect for small to medium size applications like home/
residential security, small retail shops, and other typical SMB
applications. It offers a perfect alternative to migrate from analog to an
IP system with its easy to use nature and cost effectiveness.
EZ-IP is fully in line with Dahua’s quality. Stable and reliable components
are utilized and Various tests such as anti-vibration, water resistance,
and
aging tests are performed to ensure Dahua quality standards.
• 1/2.7” 2 Megapixel progressive CMOS
• H.265+ & H.265 dual-stream encoding
• 25/30 fps @ 1080P (1920x1080)
• DWDR, Day/night (ICR), 3DNR, AWB, AGC, BLC
• Multiple network monitoring: Web viewer, CMS (DSS/PSS)
& DMSS
• 3.6 mm fixed lens
• Max IR LEDs Length 30 m
• IP67, PoE
Smart Codec (H.265+ & H.264+)
Smart Codec is the optimized implementation of standard video com-
pression (H.265 & H.264) that uses a scene-adaptive encoding strategy,
dynamic GOP, dynamic ROI, flexible multi-frame reference structure
and intelligent noise reduction to deliver high-quality video without
straining the network. Smart Codec technology reduces bit rate and
storage requirements by up to 70% when compared to the standard
video compression.
True Day/Night
A day/night mechanical IR cut filter makes this camera ideal for appli -
cations with fluctuating lighting conditions, delivering color images
during the day and automatically switching to monochrome as the
scene darkens
Regions of interest
Regions of Interest (ROI) is a user defined feature that allows the oper -
ator to monitor specific areas of a scene while still maintaining overall
situational awareness of less important areas
Smart IR
With IR illumination, detailed images can be captured in low light or
total darkness. The camera's Smart IR technology adjusts to the inten-
sity of camera's infrared LEDs to compensate for the distance of an
object. Smart IR technology prevents IR LEDs from whiting out images
as they come closer to the camera. The camera's integrated infrared
illumination provides high performance in extreme low-light environ-
ments up to 30 m (98 ft).
Image flip
Capturing unnecessary data such as surrounding hallway walls can
increase storage requirements without any added value. The image flip
feature allows the camera's image to be rotated in 90° increments for
better video optimization.
Environmental
Dahua cameras operate in extreme temperature environments, rated
for use in temperatures from -30°C to +60°C (-22°F to +140°F) with 95%
humidity.
Protection (IP67, wide voltage)
The camera allows for ±25% input voltage tolerance, suitable for the
most unstable conditions for outdoor applications. Its 2kV lightning rat-
ing provides effective protection for both the camera and its structure
against lightning. Subjected and certified to rigorous dust and immer-
sion tests (IP67) .
Interoperability
The camera conforms to the ONVIF (Open Network Video Interface
Forum) specifications, ensuring interoperability between network
video products regardless of manufacturer.

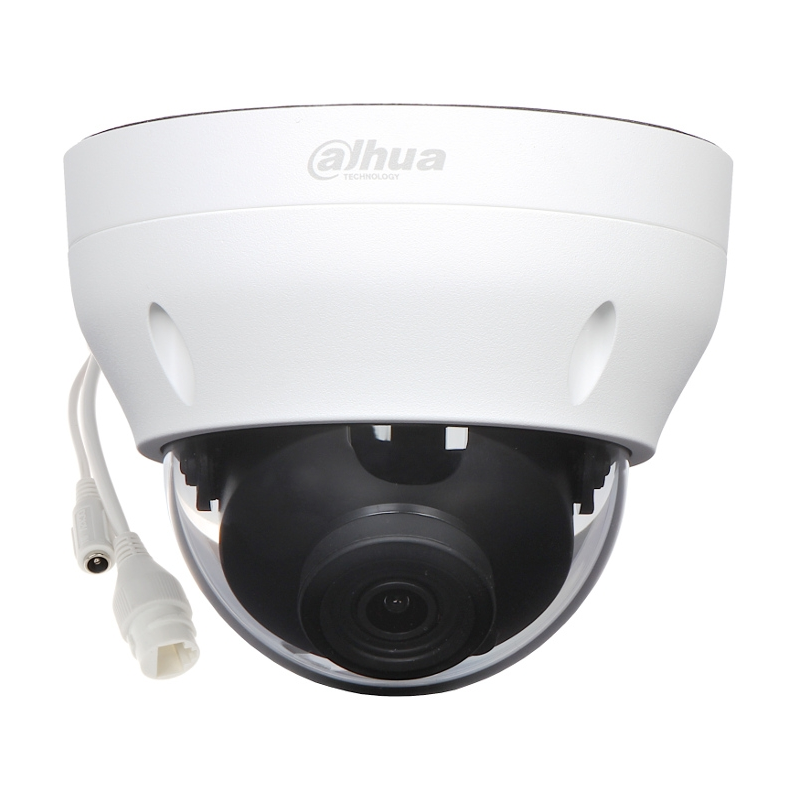

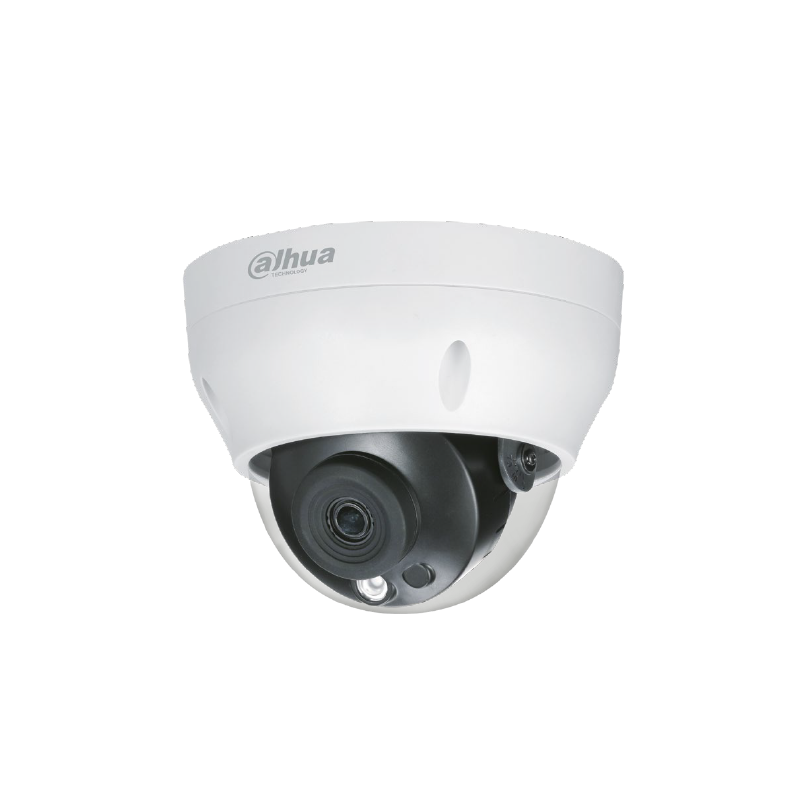

2 MP IR Mini-Dome Network Camera

IPC-CD1C20-0360B


Cooper Series | IPC-CD1C20-0360B

www.dahuasecurity.com
technical specification



Image Sensor1/2.7” 2 Megapixel progresive CMOS
Effective Pixels1920 (H) x 1080 (V)
RAM/ROM64MB/16MB
Scanning SystemProgressive
Minimum Illumination
0.09 lx; f/2.0 (Color, 1/3 s, 30IRE)
0.5 lx; f/2.0 (Color, 1/30 s, 30IRE)
0 lx; f/2.0 (IR on)
S/N RatioMore than 50 dB
IR DistanceDistance up to 30 m (98 ft)
IR On/Off ControlAuto/manual
IR LEDs 1

Lens
Lens TypeFixed
Mount TypeBoard-in
Focal Length3.6 mm
Max. Aperturef/2.0; f/2.0
Angle of ViewH: 115°/87.5°, V: 60°/47°
Focus ControlFixed
Close Focus Distance0.6 m (1.97 ft)
DORI
Distance
LensDetectObserveRecognizeIdentify
3.6 mm 53.3 m 21.3 m 10.7 m 5.3 m

PTZ
Pan/tilt rangePan: 0°~355°; Tilt: 0°~75°; Rotation: 0°~355°

Video
CompressionH.265/H.264H/MJPEG (Sub Stream)
Smart Codec Support H.265+/H.264+
Streaming Capability2 Streams
Resolution
1080P (1920x1080)/1.3M (1280x960)/720P
(1280x720)/D1 (704x576/704x480)/VGA (640x480)/
CIF (352x288/352x240)
Frame Rate
Main Stream: 1080P (1~25/30 fps)
Sub Stream: D1(1~25/30 fps)
Bit Rate ControlCBR/VBR
Bit Rate H265:12K~6400K H.264:32K ~8192K
Day/nightAuto (ICR)/Color/b/w
BLC ModeBLC/HLC/DWDR
White BalanceAuto/Natural/Street Lamp/Outdoor/Manual
Gain ControlAuto/Manual
Noise Reduction3D DNR
Motion DetetionOff/On (4 Zone, Rectangle)
Region of InterestOff/On (4 Zone)
Electronic Image
Stabilization (EIS)
N/A
Smart IR Support
Digital Zoom16x

Audio
CompressionN/A

Network
EthernetRJ-45 (10/100Base-T)
Protocol
HTTP; TCP; ARP; RTSP; RTP; RTCP; UDP; DHCP; DNS;
IPV4; NTP; Multicast; ICMP; TLS
InteroperabilityONVIF Profile S&G
Streaming MethodUnicast/Multicast
Max. User Access10 Users/20 Users
Edge StorageN/A
Web ViewerIE, Chrome, Firefox, Safari
Management
Software
Smart PSS, DSS, DMSS
SmartphoneiOS, Android

Certifications
Certifications CE: (EN 60950:2000)
FCC:FCC Part 15 Subpart B

Interface
Video InterfaceN/A
Audio InterfaceN/A
RS485N/A
AlarmN/A

Electrical
Power SupplyDC 12 V, PoE (802.3af) (Class 0)
Power Consumption <5.1 W

Environmental
Operating Conditions-30°C~+60°C (-22°F~+140°F)/Less than 95% RH
Strorage Conditions-30°C~+60°C (-22°F~+140°F)/Less than 95% RH
Ingress ProtectionIP67
Vandal ResistanceN/A

Construction
CasingPlastic
Dimensions Φ122 mm x 98.1 mm (4.8" x 3.86")
Net Weight0.35 kg (0.77 lb)
Gross Weight0.49 kg (1.08 lb)

Video
Flip 0°/90°/180°/270°
MirrorOff/On
Privacy MaskingOff/On (4 Area, Rectangle)

Cooper Series | IPC-CD1C20-0360B

www.dahuasecurity.com
ACCessoriesdimensions (mm)


© 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice.

Ceiling MountJunction Mount
PFA106 + PFB220CPFA130-E
Wall mountWall mount with rain shade
PFB203WPFA200W
Pole mount
PFB203W + PFA152-E

PFA130-E
PFB220C
PFB203W
PFA200W
PFA152-EPFA106

Accessories
PFA130-EWater-proof Junction box
PFB203WWater-proof Wall Mount Bracket
PFA152-EPole Mount Bracket
PFA106Adapter Plate of Mini Dome Camera
PFB220CCeiling Mount Bracket of Mini Dome Camera
PFA200WRain Shade of Dome Camera
