HV1140D-8MPIR
Description
Specification Vari-focal DC Auto Iris 8MP IR Mount CS-Mount Flange Back Length 12.5mm M.O.D 0.1m Iris Dimension Φ48*93.3 Focus Weight 271.2g Zoom Operating Temperature -10~50℃ D 45.2°～13.8° 41.7°～12.8° H 36.7°～11.5° 35.8°～11.2° V 23.9°～7.6° 19.6°～6.3° F1.5-C Max. Image format Φ9mm（1/1.8"） Lens Picture Field of View 1/1.8" 1/2" Dimension CCTV LENS SPEC Model NO. HV1140D-8MPIR Focal Length 11-40mm Control DC Auto Iris Manual Manual F number...
Warning! Product withdrawn from production!
Replacement product: HV1140D-8MPIRA
Warranty: 36 mon.
Datasheet
Text contents of PDF datasheet:
Specification
Vari-focal DC Auto Iris
8MP IR
Mount CS-Mount
Flange Back Length 12.5mm
M.O.D 0.1m
Iris Dimension Φ48*93.3
Focus Weight 271.2g
Zoom
Operating
Temperature
-10~50℃
D 45.2°～13.8° 41.7°～12.8°
H 36.7°～11.5° 35.8°～11.2°
V 23.9°～7.6° 19.6°～6.3°
F1.5-C
Max. Image format Φ9mm（1/1.8"）

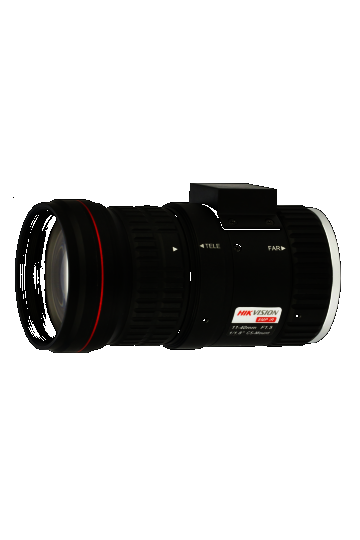

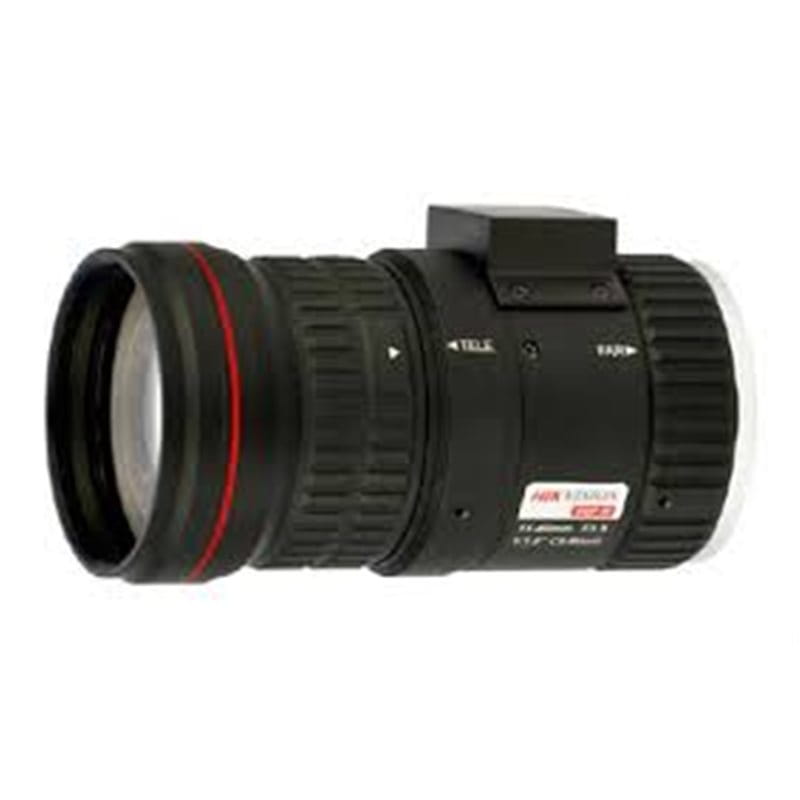

Lens Picture
Field of
View
1/1.8" 1/2"
Dimension
CCTV LENS SPEC
Model NO. HV1140D-8MPIR
Focal Length 11-40mm
Control
DC Auto Iris
Manual
Manual
F number
