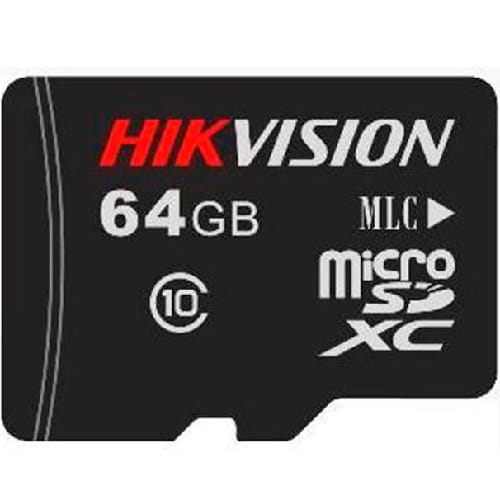

H1 Series Micro SD (TF) Card

Introduction
Hikvision H1 Series Micro SD (TF) Card for Surveillance is specially designed for video
surveillance recording with a Class 10 read/write speed. It adopts MLC NAND, fully
satisfying the requirements of high read-write speed, stability and durability for video
surveillance. Collocated with Hikvision cameras, it features life forewarning, health
monitoring, and read/write lock which secure user data safety to the largest extent.
Available Models
HS-TF-H1I/32G,
HS-TF-H1I/64G
Features and Functions
 MLC NAND with High Durability
 Adopt MLC storage NAND with higher durability; and the service life can be increased to about 10 times
longer than that of common Micro SD (TF) cards which adopt TLC storage NAND in the same operating
environment;
 S.M.A.R.T. Mechanism
 Unique functions of life forewarning and health monitoring when used with Hikvision cameras. It can
calculate the remaining available time based on the past records of use frequency and the number of
bad blocks, and realize real-time warning to secure user data to the largest extent;
 Unique Security Mechanism
 Unique function of read-write lock when used with Hikvision cameras, preventing irrelevant personnel
from reading or writing even if they get the Micro SD (TF) card;
 Special Storage Algorithm
 Embedded with special storage algorithm of Hikvision; and longer service life if used with Hikvision
cameras;
 Ultra-Strong Adaptability
 Waterproof, shock proof, X-ray proof, and temperature proof to perform normally in various harsh
environments.







Specifications










Note: Performance test is performed in specific testing environment. Any change of the computer system, operation
system, hardware, software, or functions will influence the test result.

Model HS-TF-H1I
Total capacity 32 GB 64 GB
Available capacity 29.8 GB 59.2GB
Max. read speed 90 MB/s 90 MB/s
Max. write speed 46 MB/s 28 MB/s
File system FAT32 exFAT
Format MicroSDHC MicroSDXC
Speed Class10, U1 Class10, U1
Dimensions 14.99 x 10.92 x 1.02mm (0.59 x 0.43 x 0.04 in)
NAND flash memory MLC (Multi-Level Cell)
Storing temperature -40 °C to +85°C (-40 °F to +185 °F)
Operating temperature -25°C to +85 °C (-13 °F to 158 °F)
Compatibility
Compatible with MicroSDHC, MicroSDXC, MicroSDHC UHS-I and MicroSDXC
UHS-I host devices
warranty 2 years
