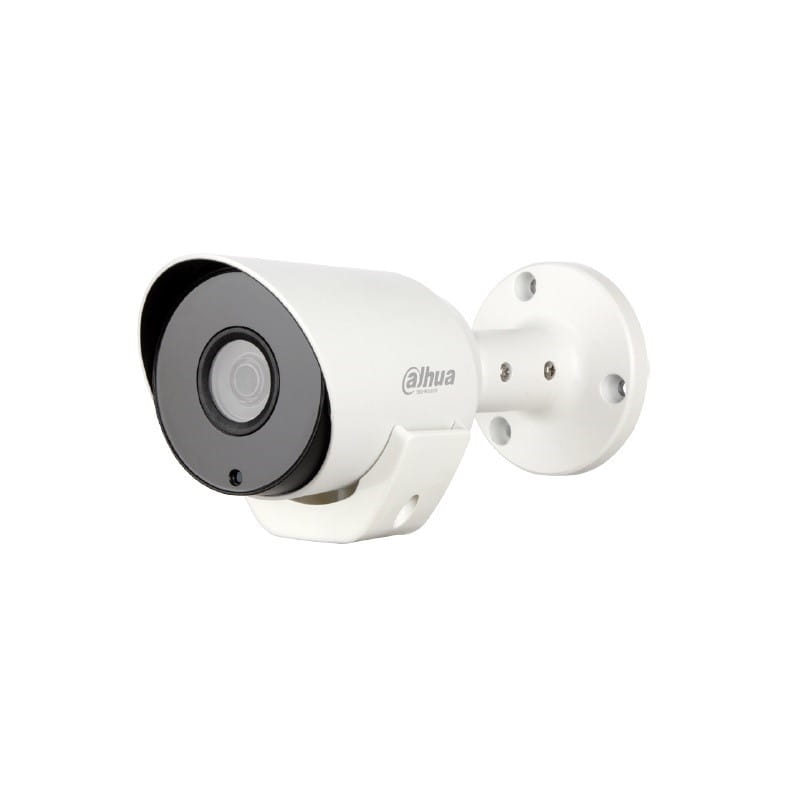

HAC-LC1220T-TH-0280B

Availability: 0

Price: €74.66 74.66

excl. 23.00% TAX, excl. shipping costs

quantity szt.

product unavailable

add to wish list

Vendor:

Product code: HAC-LC1220T-TH-0280B

ask about product or pricing

Description

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

IoT Series | DH-HAC-LC1220T-TH

System Overview
Experience a comprehensive surveillance system linking HDCVI video
with information from sensors, such as temperature and humidity. The
camera offers high quality 1080P video and a multi-language OSD. It is
also able to collect temperature and humidity information with a built-in
sensor, enabling users to enhance production efficiency and to receive
warnings of potential risks linked with visual evidence, allowing them
to secure personnel and property across multiple dimensions. This
camera is especially suitable for applications which are sensitive to the
environmental changes, such as farming and warehouse operations.
Functions
4 Signals over 1 Coaxial Cable
HDCVI technology supports 4 signals to be transmitted over 1 coaxial
cable simultaneously, i.e. video, audio*, data and power. Dual-way data
transmission allows the HDCVI camera to interact with the HCVR, such as
sending control signal or triggering alarm. Moreover, HDCVI technology
supports PoC for construction flexibility.
* Audio input is available for some models of HDCVI cameras.
Long Distance Transmission
HDCVI technology guarantees real-time transmission at long distance
without any loss. It supports up to 800m(1080P)/1200m(720P) trans-
mission via coaxial cable, and up to 300m(1080P)/450m(720P) via UTP
cable.*
*Actual results verified by real-scene testing in Dahua's test laboratory.
Simplicity
HDCVI technology inherits the born feature of simplicity from traditional
analog surveillance system, making itself a best choice for investment
protection. HDCVI system can seamlessly upgrade the traditional
analog system without replacing existing coaxial cabling. The plug and
play approach enables full HD video surveillance without the hassle of
configuring a network.
Smart IR
The camera is designed with microcrystalline LED IR illumination for best
lowlight performance. Smart IR is a technology to ensure brightness
uniformity in B/W image under low illumination. Dahua’s unique Smart IR
adjusts to the intensity of camera's infrared LEDs to compensate for the
distance of an object, and prevents IR LEDs from overexposing images as
the object come closer to the camera.
Temperature & Humidity Sensing
The camera is integrated with built-in sensor and is able to transmit real-time
temperature and humidity information to the recorder along with video.
Taking advantage of a high precision sensor, ventilated design, and advanced
compensation algorithm, temperature measurement accuracy can reach
±2°C and humidity measurement accuracy can reach ±5%RH.
* Temperature and humidity measurement feature is only available for CVI mode.
Multi-language OSD
OSD menu provides multiple image adjustments and function settings
to meet the requirements of different monitoring scenes. The OSD menu
includes configurations such as backlight mode, day/night, white balance,
privacy mask and motion detect. The camera supports 11 languages for
OSD menu, namely, Chinese, English, French, German, Spanish, Portuguese,
Italian, Japanese, Korean, Russian and Polish.
Protection
The camera's outstanding reliability is unsurpassed due to its rugged design.
The camera is protected against water and dust with IP67 ranking, making it
suitable for indoor or outdoor environments.
With working temperature range of -40 °C to +60 °C (-40 °F to +140 °F), the
camera is designed for extreme temperature environments.
Supporting ±30% input voltage tolerance, this camera suits even the
most unstable power supply conditions. Its 4KV lightning rating provides
protection against the camera and its structure from the effects of lightning.
www.dahuasecurity.com
· Max 30fps@1080P
· 3.6mm fixed lens (2.8mm, 6mm optional)
· Max. IR length 20m, Smart IR
· Built-in temperature & humidity sensor
· Detection range: -40°C~60°C, 10-95% RH
· IP67, DC12V
DH-HAC-LC1220T-TH
2MP HDCVI Temperature & Humidity Camera

Series
IoT
20m IR
DC 12V
IP67

1080p

Temperature
Measuring

Humidity
Measuring

www.dahuasecurity.com
IoT Series | DH-HAC-LC1220T-TH

Technical Specification
Camera
Image Sensor1/2.9" CMOS
Effective Pixels
1920(H)x1080(V), 2MP
Scanning SystemProgressive
Electronic Shutter Speed
PAL: 1/25~1/100000s
NTSC: 1/30~1/100000s
Minimum Illumination0.02Lux/F2.0, 0Lux IR on
S/N RatioMore than 65dB
IR DistanceUp to 20m (66feet)
IR On/Off ControlAuto / Manual
IR LEDs12
Lens
Lens TypeFixed lens / Fixed iris
Mount TypeBoard-in
Focal Length3.6mm (2.8mm, 6mm Optional)
Max ApertureF2.0
Angle of ViewH: 82.8° (104°/51.2°)
Focus ControlN/A
Close Focus Distance
800mm (600mm/1800mm)
31.5'' (23.6''/70.9'')
DORI Distance
Note: The DORI distance is a “general proximity” of distance which makes it easy to
pinpoint the right camera for your needs. The DORI distance is calculated based on
sensor specification and lab test result according to EN 62676-4 which defines the
criteria for Detect, Observe, Recognize and Identify respectively.
DORI
Definition
Distance
Detect
25px/m
(8px/ft)
2.8mm: 43m(140ft)
3.6mm: 57m(187ft)
6mm: 84m(275ft)
Observe
63px/m
(19px/ft)
2.8mm: 17m(56ft)
3.6mm: 23m(75ft)
6mm: 34m(110ft)
Recognize
125px/m
(38px/ft)
2.8mm: 9m(28ft)
3.6mm: 11m(37ft)
6mm: 17m(55ft)
Identify
250ppm
(76px/ft)
2.8mm: 4m(14ft)
3.6mm: 6m(19ft)
6mm: 8m(28ft)
Pan / Tilt / Rotation
Pan/Tilt/Rotation
Pan: 0° ~ 360°
Tilt: 0° ~ 90°
Rotation: 0° ~ 360°
Video
Resolution1080P (1920x1080 )
Frame Rate25/30fps@1080P, 25/30/50/60fps@720P

Video Output
1-channel BNC high definition video output / CVBS
video output (Can switch)
Day/NightAuto (ICR) / Manual
OSD MenuMulti-language
BLC ModeBLC / HLC / DWDR
WDRDWDR
Gain ControlAGC
Noise Reduction2D
White BalanceAuto / Manual
Smart IRAuto / Manual
IoT Features
Temperature Detection Range-40°C ~ +60°C (-40°F ~ +140°F)
Temperature Detection
Accuracy
±2°C (±4°F)
Humidity Detection Range10-95% RH
Humidity Detection Accuracy±5% RH

Certifications
Certifications
CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Interface
Audio InterfaceN/A
Eelectrical
Power Supply12V DC ±30%
Power ConsumptionMax 3.4W (12V DC, IR on)
Environmental
Operating Conditions
-40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH
* Start up should be done at above -40°C (-40°F)
Storage Conditions-40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH
Ingress Protection & Vandal
Resistance
IP67
Construction
CasingAluminium
Dimensions176.1mmx85.4mmx75.2mm (6.93"x3.36"x2.96")
Net Weight0.40kg (0.88lb)
Gross Weight0.59kg (1.30lb)

IoT Series | DH-HAC-LC1220T-TH
Rev 001.001© 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice.
www.dahuasecurity.com

Ordering Information
TypePart NumberDescription
2MP Camera
DH-HAC-LC1220TP-TH 2.8mm
2MP HDCVI Temperature &
Humidity Camera, PAL
DH-HAC-LC1220TP-TH 3.6mm
DH-HAC-LC1220TP-TH 6mm
DH-HAC-LC1220TN-TH 2.8mm
2MP HDCVI Temperature &
Humidity Camera, NTSC
DH-HAC-LC1220TN-TH 3.6mm
DH-HAC-LC1220TN-TH 6mm
Accessories
PFA134
Junction box (For use alone or
with PFA152-E pole mount)
PFA152-E
Pole mount (For use with PFA134
junction box)
PFM800-E 1 Channel Passive HDCVI Balun
PFM321 12V 1A Power Adapter
PFM320D-015 12V 1A Power Adapter
PFM320 12V 2A Power Adapter

Dimensions (mm/inch)
Accessories
Optional:
t
Po t
PFB134 + PF A152-E
PF A134

PFA134
Junction box
PFA152-E
Pole mount
PFM800-E
Passive HDCVI Balun

PFM321
12V 1A Power
Adapter
PFM320
12V 2A Power
Adapter
PFM320D-015
Power Adapter
