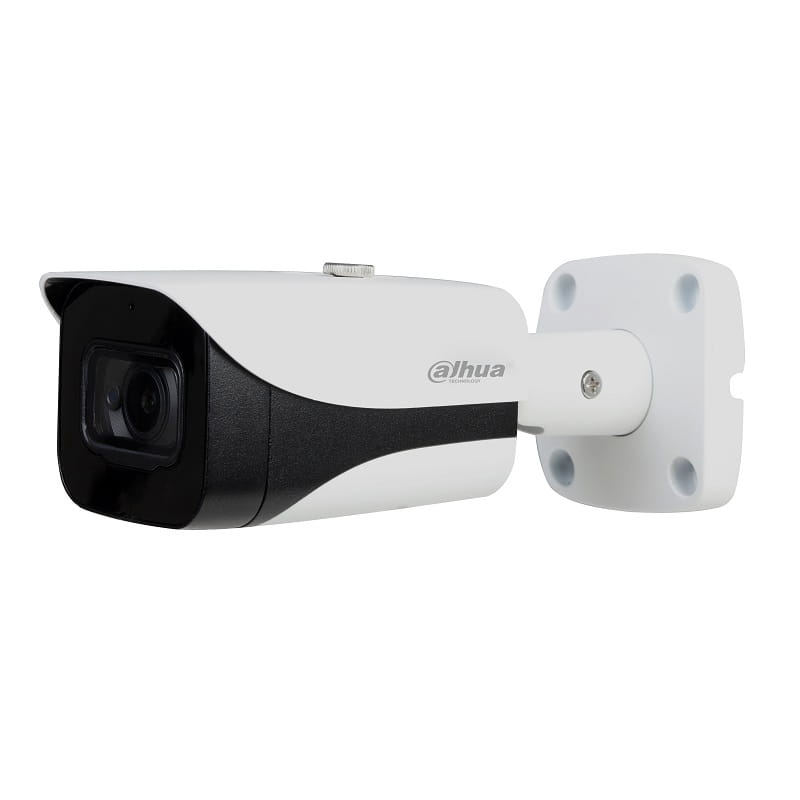

HAC-HFW2802E-A-0280B

Availability: 0
Price: €134.81 134.81
excl. 23.00% TAX, excl. shipping costs
quantity szt.

product unavailable

add to wish list
Vendor: DAHUA
Product code: HAC-HFW2802E-A-0280B

Description

Pro Series | DH-HAC-HFW2802E-A     System Overview  Experience 4K video surveillance with the simplicity of reusing existing  coaxial infrastructure. The 4K HDCVI camera adopts a powerful Dahua ISP  and advanced 1/1.8" image sensor, which provides superior high quality  images. It also supports Starlight and 120dB true WDR for a clear image  in poor lighting conditions. In addition, the camera features broadcast-  quality audio to provide enhanced supplementary evidence collection.  Ultra--high definition and a complete set of features makes the 4K HDCVI  camera an ideal choice for mid to large-size businesses and projects  where both highly reliable surveillance and construction flexibility are  demanded.   Functions  4 Signals over 1 Coaxial Cable  HDCVI technology supports 4 signals to be transmitted over 1 coaxial  cable simultaneously, i.e. video, audio*, data and power. Dual-way data  transmission allows the HDCVI camera to interact with the HCVR, such as  sending control signal or triggering alarm. Moreover, HDCVI technology  supports PoC for construction flexibility.  * Audio input is available for some models of HDCVI cameras.  Long Distance Transmission  HDCVI technology guarantees real-...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet PDF


Text contents of PDF datasheet:

Pro Series | DH-HAC-HFW2802E-A

System Overview
Experience 4K video surveillance with the simplicity of reusing existing
coaxial infrastructure. The 4K HDCVI camera adopts a powerful Dahua ISP
and advanced 1/1.8" image sensor, which provides superior high quality
images. It also supports Starlight and 120dB true WDR for a clear image
in poor lighting conditions. In addition, the camera features broadcast-
quality audio to provide enhanced supplementary evidence collection.
Ultra--high definition and a complete set of features makes the 4K HDCVI
camera an ideal choice for mid to large-size businesses and projects
where both highly reliable surveillance and construction flexibility are
demanded.
Functions
4 Signals over 1 Coaxial Cable
HDCVI technology supports 4 signals to be transmitted over 1 coaxial
cable simultaneously, i.e. video, audio*, data and power. Dual-way data
transmission allows the HDCVI camera to interact with the HCVR, such as
sending control signal or triggering alarm. Moreover, HDCVI technology
supports PoC for construction flexibility.
* Audio input is available for some models of HDCVI cameras.
Long Distance Transmission
HDCVI technology guarantees real-time transmission at long distance
without any loss. It supports up to 700m transmission for 4K and 4MP HD
video via coaxial cable, and up to 300m via UTP cable.*
*Actual results verified by real-scene testing in Dahua's test laboratory.
Simplicity
HDCVI technology inherits the born feature of simplicity from traditional
analog surveillance system, making itself a best choice for investment
protection. HDCVI system can seamlessly upgrade the traditional ana-
log system without replacing existing coaxial cabling. The plug and
play approach enables full HD video surveillance without the hassle of
configuring a network.
Starlight
With the adoption of large sized high performance sensor, the camera is
able to provide incomparable performance even under extreme lowlight
environment. The starlight feature allows more details to be captured
and accurate color to be recognized at night or in scenes with limited
illumination.
Broadcast-quality Audio
Audio information is used as supplementary evidence in video surveillance
applications. The HDCVI camera supports audio signal transmission over
coaxial cable. In addition, it adopts unique audio processing and transmission
technology that best restores source audio and eliminates noise, guaran-
teeing the quality and effectiveness of collected audio information.
Multiple-formats
The camera supports multiple video formats including HDCVI, CVBS, and
other two common HD analog formats in the market. A DIP switch located on
the cable allows you to quickly toggle formats, further simplifying installation
and debugging. This feature makes the camera compatible with not only
XVRs, but also most existing HD/SD DVRs.
Wide Dynamic Range
Embedded with industry leading wide dynamic range (WDR) technology,
vivid pictures are achieved even in the most intense contrast lighting
conditions. True WDR (120dB) optimizes both the bright and dark areas of a
scene at the same time to provide usable video.
Advanced 3DNR
3DNR is noise reduction technology that detects and eliminates random
noises by comparing two sequential frames. Dahua’s advanced 3DNR tech-
nology allows remarkable noise reduction with little impact to sharpness,
especially under limited lighting condition. Besides, the advanced 3DNR
effectively decreases the band width and saves the storage space.
Protection
The camera's outstanding reliability is unsurpassed due to its rugged design.
The camera is protected against water and dust with IP67 ranking, making it
suitable for indoor or outdoor environments.
Supporting ±30% input voltage tolerance, this camera suits even the most
unstable power supply conditions. Its 4KV lightning rating provides pro-
tection against the camera and its structure from the effects of lightning.
www.dahuasecurity.com
· Starlight, 120dB True WDR, 3DNR
· Max. 4K resolution
· HD/SD switchable
· Audio in interface, built-in mic
· 3.6mm fixed lens (2.8mm, 6mm optional)
· Max. IR length 40m, Smart IR
· IP67, DC12V±30%
DH-HAC-HFW2802E-A
4K Starlight HDCVI IR Bullet Camera

Series
40m IRIP6 7
Pro

DC 12V

Audio

Starlight


www.dahuasecurity.com
Pro Series | DH-HAC-HFW2802E-A

Technical Specification
Camera
Image Sensor1/1.8" CMOS
Effective Pixels
3840(H)x2160(V), 8MP
Scanning SystemProgressive
Electronic Shutter Speed
PAL: 1/4s~1/100,000s
NTSC: 1/3s~1/100,000s
Minimum Illumination0.005Lux/F1.6, 30IRE, 0Lux IR on
S/N RatioMore than 65dB
IR DistanceUp to 40m (130feet)
IR On/Off ControlAuto / Manual
IR LEDs2
Lens
Lens TypeFixed lens / Fixed iris
Mount TypeBoard-in
Focal Length3.6mm (2.8mm, 6mm Optional)
Max ApertureF1.6
Angle of ViewH: 87° (110.8°/55°)
Focus ControlN/A
Close Focus Distance
2500mm (1800mm, 6100mm)
98.43'' (70.87'', 240.2')

Certifications
Certifications
CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Interface
Audio Interface1ch in & Built-in Mic
Eelectrical
Power Supply12V DC ±30%
Power ConsumptionMax 6.8W (12V DC, IR on)
Environmental
Operating Conditions
-30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
* Start up should be done at above -30°C (-22°F)
Storage Conditions-30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
Ingress Protection & Vandal
Resistance
IP67
Construction
CasingAluminium
Dimensions179.9mmx70mmx70mm (7.08"x2.76"x2.76")
Net Weight0.42kg (0.93lb)
Gross Weight0.53kg (1.17lb)

DORI Distance
Note: The DORI distance is a “general proximity” of distance which makes it easy to
pinpoint the right camera for your needs. The DORI distance is calculated based on
sensor specification and lab test result according to EN 62676-4 which defines the
criteria for Detect, Observe, Recognize and Identify respectively.
DORI
Definition
Distance
Detect25px/m (8px/ft)
2.8mm:84m(276ft)
3.6mm: 104m(341ft)
6mm:164m(538ft)
Observe63px/m (19px/ft)
2.8mm:34m(112ft)
3.6mm:42m(138ft)
6mm:66m(217ft)
Recognize125px/m (38px/ft)
2.8mm:17m(56ft)
3.6mm: 21m(69ft)
6mm: 33m(108ft)
Identify250px/m (76px/ft)
2.8mm:8m(26ft)
3.6mm:10m(33ft)
6mm:16m(52ft)

Pan / Tilt / Rotation
Pan/Tilt/Rotation
Pan: 0° ~ 360°
Tilt: 0° ~ 90°
Rotation: 0° ~ 360°
Video
Resolution8MP (3840x2160)
Frame Rate15fps@4K, 20fps@6MP, 25/30fps@4MP

Video Output
1-channel BNC high definition video output / CVBS
video output (DIP switch)
Day/NightAuto (ICR) / Manual
OSD MenuMulti-language
BLC ModeBLC / HLC / WDR
WDR120dB
Gain ControlAGC
Noise Reduction2D/3D
White BalanceAuto / Manual
Smart IRAuto / Manual


Pro Series | DH-HAC-HFW2802E-A
Rev 001.001© 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice.
www.dahuasecurity.com

Ordering Information
TypePart NumberDescription
4K Camera
DH-HAC-HFW2802EP-A 2.8mm
4K Starlight HDCVI IR Bullet
Camera, PAL
DH-HAC-HFW2802EP-A 3.6mm
DH-HAC-HFW2802EP-A 6mm
DH-HAC-HFW2802EN-A 2.8mm
4K Starlight HDCVI IR Bullet
Camera, NTSC
DH-HAC-HFW2802EN-A 3.6mm
DH-HAC-HFW2802EN-A 6mm
Accessories
PFA121
Junction box (For use alone or
with PFA152-E pole mount)
PFA152-E
Pole mount (For use with PFA121
junction box)
PFM800-E Passive HDCVI Balun
PFM321 12V 1A Power Adapter
PFM320 12V 2A Power Adapter
PFM320D-015 12V 1.5A Power Adapter

Dimensions (mm/inch)
Accessories
Optional:
PFA121
Junction box
t
Po t
PFB121 + PF A152-E
PF A121

PFA152-E
Pole mount
PFM321
12V 1A Power Adapter

PFM320
12V 2A Power Adapter
PFM800-E
Passive HDCVI Balun
PFM320D-015
Power Adapter

up
