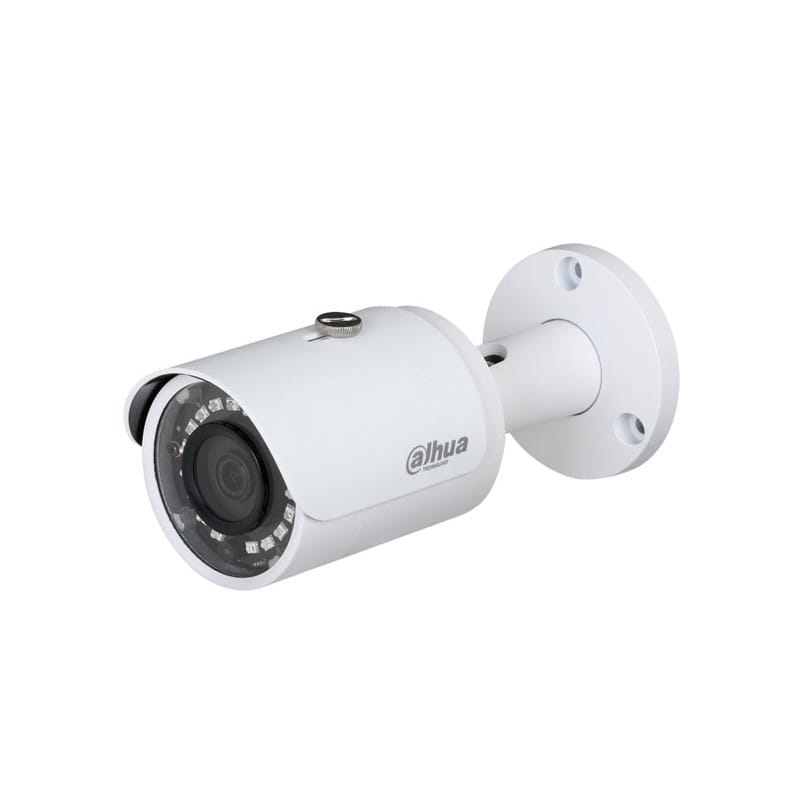

HAC-HFW1200S-0280B

Availability: 0
Price: €51.57 51.57
excl. 23.00% TAX, excl. shipping costs
quantity szt.

product unavailable

add to wish list
Vendor: DAHUA
Product code: HAC-HFW1200S-0280B

Description

Lite Series | DH-HAC-HFW1200S     System Overview  Experience full HD 1080P/ HD 720P video with the simplicity of using  existing cabling infrastructure. The Lite series features compact design  and high quality image at friendly price. It offers various vari-focal/fixed  lens models with multi-language OSD and HD/SD switchable output. The  structure flexibility and best cost-performance makes lite series camera  an ideal choice for SMB solutions.   Functions  4 Signals over 1 Coaxial Cable  HDCVI technology supports 4 signals to be transmitted over 1 coaxial  cable simultaneously, i.e. video, audio*, data and power. Dual-way data  transmission allows the HDCVI camera to interact with the HCVR, such as  sending control signal or triggering alarm. Moreover, HDCVI technology  supports PoC for construction flexibility.  * Audio input is available for some models of HDCVI cameras.  Long Distance Transmission  HDCVI technology guarantees real-time transmission at long distance  without any loss. It supports up to 800m(1080P)/1200m(720P)  transmission via coaxial cable, and up to 300m(1080P)/450m(720P) via  UTP cable.*  *Actual results verified by real-scene testing in Dahua's test laboratory. ...

Warning! Product withdrawn from production!

Replacement product: HAC-HFW1200T-0280B

Warranty: 36 mon.

Datasheet PDF


Text contents of PDF datasheet:

Lite Series | DH-HAC-HFW1200S

System Overview
Experience full HD 1080P/ HD 720P video with the simplicity of using
existing cabling infrastructure. The Lite series features compact design
and high quality image at friendly price. It offers various vari-focal/fixed
lens models with multi-language OSD and HD/SD switchable output. The
structure flexibility and best cost-performance makes lite series camera
an ideal choice for SMB solutions.
Functions
4 Signals over 1 Coaxial Cable
HDCVI technology supports 4 signals to be transmitted over 1 coaxial
cable simultaneously, i.e. video, audio*, data and power. Dual-way data
transmission allows the HDCVI camera to interact with the HCVR, such as
sending control signal or triggering alarm. Moreover, HDCVI technology
supports PoC for construction flexibility.
* Audio input is available for some models of HDCVI cameras.
Long Distance Transmission
HDCVI technology guarantees real-time transmission at long distance
without any loss. It supports up to 800m(1080P)/1200m(720P)
transmission via coaxial cable, and up to 300m(1080P)/450m(720P) via
UTP cable.*
*Actual results verified by real-scene testing in Dahua's test laboratory.
Simplicity
HDCVI technology inherits the born feature of simplicity from traditional
analog surveillance system, making itself a best choice for investment
protection. HDCVI system can seamlessly upgrade the traditional
analog system without replacing existing coaxial cabling. The plug and
play approach enables full HD video surveillance without the hassle of
configuring a network.
Smart IR
The camera is designed with microcrystalline LED IR illumination for best
lowlight performance. Smart IR is a technology to ensure brightness
uniformity in B/W image under low illumination. Dahua’s unique Smart
IR adjusts to the intensity of camera's infrared LEDs to compensate
for the distance of an object, and prevents IR LEDs from overexposing
images as the object come closer to the camera.
Multi-formats
The camera supports multiple video formats including HDCVI, CVBS and
other two common HD analog formats in the market. The four formats can
be switched over through OSD menu or by PFM820(UTC controller). This
feature makes the camera to be compatible with not only HCVRs but also
most end users’ existing HD/SD DVRs.
Multi-language OSD
OSD menu provides multiple image adjustments and function settings to
meet the requirements of different monitoring scenes. The OSD menu
includes configurations such as backlight mode, day/night, white balance,
privacy mask and motion detect. The camera supports 11 languages for
OSD menu, namely, Chinese, English, French, German, Spanish, Portuguese,
Italian, Japanese, Korean, Russian and Polish.
Protection
The camera's outstanding reliability is unsurpassed due to its rugged
design. The camera is protected against water and dust with IP67 ranking,
making it suitable for indoor or outdoor environments.
With working temperature range of -40 °C to +60 °C (-40 °F to +140 °F), the
camera is designed for extreme temperature environments.
Supporting ±25% input voltage tolerance, this camera suits even the
most unstable power supply conditions. Its 4KV lightning rating provides
protection against the camera and its structure from the effects of
lightning.
www.dahuasecurity.com
· Max 30fps@1080P
· HD and SD output switchable
· 3.6mm fixed lens (6mm optional)
· Max. IR length 30m, Smart IR
· IP67, DC12V
DH-HAC-HFW1200S
2MP HDCVI IR Bullet Camera

Series
Lite
30
m IR
DC 12V

IP67

Temperature

1080p


www.dahuasecurity.com
Lite Series | DH-HAC-HFW1200S

Technical Specification
Camera
Image Sensor1/2.7" CMOS
Effective Pixels
1920(H)x1080(V), 2MP
Scanning SystemProgressive
Electronic Shutter Speed
PAL: 1/25~1/100000s
NTSC: 1/30~1/100000s
Minimum Illumination0.02Lux/F2.0, 0Lux IR on
S/N RatioMore than 65dB
IR DistanceUp to 30m (98feet)
IR On/Off ControlAuto / Manual
IR LEDs18
Lens
Lens TypeFixed lens / Fixed iris
Mount TypeBoard-in
Focal Length3.6mm (6mm Optional)
Max ApertureF2.0
Angle of ViewH: 89.9° (59.4°)
Focus ControlN/A
Close Focus Distance
600mm (1800mm)
23.62'' (70.87'')
Pan / Tilt / Rotation
Pan/Tilt/Rotation
Pan: 0° ~ 360°
Tilt: 0° ~ 90°
Rotation: 0° ~ 360°
Video
Resolution1080P (1920x1080)
Frame Rate25/30fps@1080P, 25/30/50/60fps@720P
Video Output
1-channel BNC high definition video output / CVBS
video output (Can switch)
Day/NightAuto (ICR) / Manual
OSD MenuMulti-language
BLC ModeBLC / HLC / DWDR
WDRDWDR
Gain ControlAGC
Noise Reduction2D
White BalanceAuto / Manual
Smart IRAuto / Manual


Certifications
Certifications
CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Interface
Audio InterfaceN/A
Eelectrical
Power Supply12V DC ±25%
Power ConsumptionMax 3.9W (12V DC, IR on)
Environmental
Operating Conditions
-40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH
* Start up should be done at above -40°C (-40°F)
Storage Conditions-40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH
Ingress Protection &Vandal
Resistance
IP67
Construction
CasingAluminium
Dimensions164.7mmx70mmx71.6mm (6.48"x2.76"x2.82")
Net Weight0.35kg (0.77lb)
Gross Weight0.44kg (0.97lb)

Lite Series | DH-HAC-HFW1200S
Rev 001.001© 2016 Dahua. All rights reserved. Design and specifications are subject to change without notice.
www.dahuasecurity.com

Ordering Information
TypePart NumberDescription
2MP Camera
DH-HAC-HFW1200SP 3.6mm
2MP HDCVI IR Bullet Camera,
PAL
DH-HAC-HFW1200SP 6mm
DH-HAC-HFW1200SN 3.6mm
2MP HDCVI IR Bullet Camera,
NTSC
DH-HAC-HFW1200SN 6mm
Accessories
PFA134
Junction box (For use alone or
with PFA150 pole mount or
with PFA151 corner mount)
PFA150
Pole mount (For use with
PFA134 junction box)
PFA151
Corner mount (For use with
PFA134 junction box)
PFM820UTC Controller

Dimensions (mm/inch)
Accessories
Optional:
PFA134
Junction box
PFA150
Pole mount

Corner Moun t
t

Po le Moun t

PF A134 + PF A150

PF A134

PF A134 + PF A151

PFM820
UTC Controller

PFA151
Corner mount
