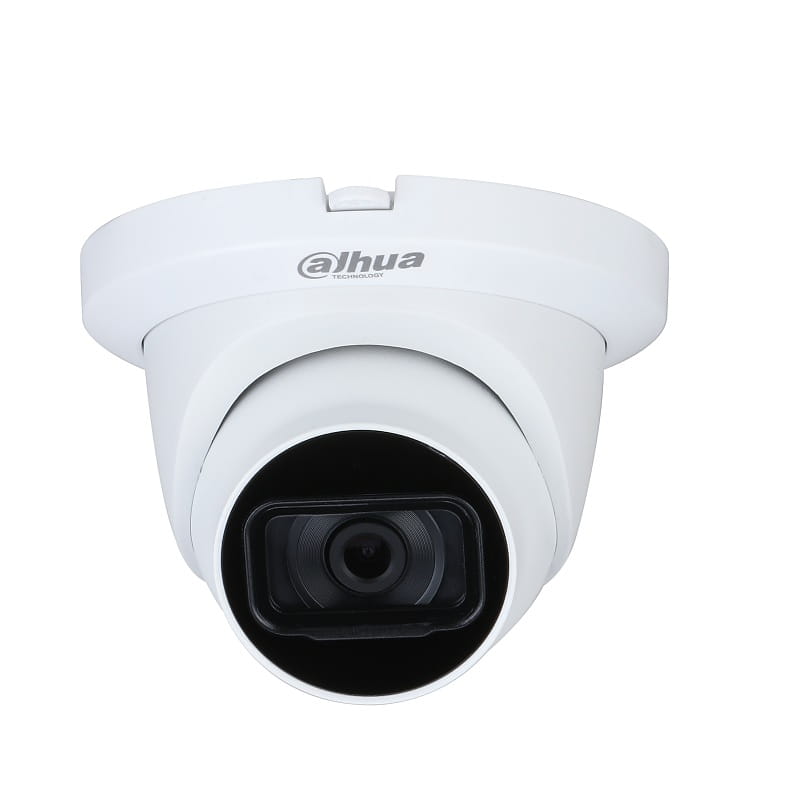

HAC-HDW2501TMQ-A-0280B-S2

Availability: 101-500

Price: €118.58 118.58

excl. 23.00% TAX, excl. shipping costs

quantity szt.

product unavailable

add to wish list

Vendor:

Product code: HAC-HDW2501TMQ-A-0280B-S2

ask about product or pricing

Description

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

Pro Series | DH-HAC-HDW2501TMQ-A

www.dahuasecurity.com

System Overview
Experience 5MP full HD video and the simplicity of using existing cabling
infrastructure with HDCVI. The Pro series 5MP HDCVI camera features
a compact design and offers a high quality image at a friendly price.
It offers various motorized/fixed lens models with 120 dB true WDR
and a multi-language OSD and HD/SD switchable output. Its structural
flexibility and high cost-performance makes the camera an ideal choice
for SMB solutions.
Functions
4 Signals over 1 Coaxial Cable
HDCVI technology supports 4 signals to be transmitted over 1 coaxial
cable simultaneously, i.e. video, audio*, data and power. Dual-way data
transmission allows the HDCVI camera to interact with the XVR, such as
sending control signal or triggering alarm. Moreover, HDCVI technology
supports PoC for construction flexibility.
* Audio input is available for some models of HDCVI cameras.
Easy Installation
HDCVI Quick-to-install eyeball adopts quick-to-install pedestal, which
can achieve easier installation than conventional eyeball. Quick-to-install
camera reduces time and labor costs.
Long Distance Transmission
HDCVI technology guarantees real-time transmission at long distance
without any loss. It supports up to 700 m for 5MP HD video via coaxial
cable, and up to 300 m via UTP cable.*
*Actual results verified by real-scene testing in Dahua's test laboratory.
Simplicity
HDCVI technology inherits the born feature of simplicity from traditional
analog surveillance system, making itself a best choice for investment
protection. HDCVI system can seamlessly upgrade the traditional analog
system without replacing existing coaxial cabling. The plug and play
approach enables full HD video surveillance without the hassle of con-
figuring a network.
Starlight
With the adoption of large sized high performance sensor, the camera is
able to provide incomparable performance even under extreme lowlight
environment. The starlight feature allows more details to be captured
and accurate color to be recognized at night or in scenes with limited
illumination.
Broadcast-quality Audio
Audio information is used as supplementary evidence in video surveil-
lance applications. The HDCVI camera supports audio signal transmis-
sion over coaxial cable. In addition, it adopts unique audio processing
and transmission technology that best restores source audio and
eliminates noise,
guaranteeing the quality and effectiveness of collected audio informa-
tion.
Smart IR
The camera is designed with IR LED illumination for best lowlight perfor-
mance. Smart IR is a technology to ensure brightness uniformity in B/W
image under low illumination. Dahua unique Smart IR adjusts to the
intensity of camera's infrared LEDs to compensate for the distance of
an object, and prevents IR LEDs from overexposing images as the object
comes closer to the camera.
Wide Dynamic Range
Embedded with industry leading wide dynamic range (WDR)
technology,vivid pictures are achieved even in the most intense contrast
lighting conditions. True WDR (120dB) optimizes both the bright and
dark areas of ascene at the same time to provide usable video.
Advanced 3DNR
3DNR is noise reduction technology that detects and eliminates random
noises by comparing two sequential frames. Dahua’s advanced 3DNR
technology allows remarkable noise reduction with little impact to
sharpness,especially under limited lighting condition. Besides, the
advanced 3DNR
effectively decreases the band width and saves the storage space.
* The parameters and datasheets below can only be applied to 2501-S2 series.
* In order to use the 5MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to
V4.001.0000001.0.R.200908 or later version.
· Max 25 fps@5MP (16:9 video output)
· Starlight, 120 dB true WDR, 3D NR
· CVI/CVBS/AHD/TVI switchable
· Quick-to-install eyeball saves installation time
· 3.6 mm fixed lens (2.8 mm,6 mm optional)
· Built-in mic
· Max. IR length 60 m, Smart IR
· IP67, DC12V±30%

Starlight

DH-HAC-HDW2501TMQ-A
5MP Starlight HDCVI Quick-to-install IR Eyeball Camera

Technical Speciﬁcation
Camera
Image Sensor1/2.7 inch CMOS
Max. Resolution2880 (H) x 1620 (V)
Pixel5 MP
Scanning SystemProgressive
Electronic Shutter Speed
PAL: 1/3 s–1/100,000 s
NTSC: 1/4 s–1/100,000 s
S/N Ratio> 65 dB
Min. Illumination0.001 Lux/F1.6, 30IRE, 0Lux IR on
Illumination Distance 60 m (196.9 ft)
Illuminator On/Off ControlAuto / Manual
Illuminator Number2
Pan/Tilt/Rotation Range
Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Lens
Lens TypeFixed-focal
Mount TypeM12
Focal Length2.8 mm; 3.6 mm; 6 mm
Max. ApertureF1.6
Field of View
2.8 mm: 132° x 111° x 58°
(diagonal x horizontal x vertical)
3.6 mm: 109° x 92° x 48°
(diagonal x horizontal x vertical)
6 mm: 65° x 57° x 30°
(diagonal x horizontal x vertical)
Iris TypeFixed iris
Close Focus Distance
2.8 mm: 0.9 m (3.0 ft)
3.6 mm: 1.6 m (5.2 ft)
6 mm: 3.1 m(10.2 ft)
DORI
Distance
Lens Detect ObserveRecognize Identify
2.8 mm
63.6 m
(208.7 ft)
25.4 m
(83.3 ft)
12.7 m
(41.7 ft)
6.4 m
(21.0 ft)
3.6 mm
80 m
(262.5 ft)
32 m
(105.0 ft)
16 m
(52.5 ft)
8 m
(26.2 ft)
6 mm
120 m
(393.7 ft)
48 m
(157.5 ft)
24 m
(78.7 ft)
12 m
(39.4 ft)
Video
Frame Rate
CVI:
PAL: 5M@25 fps; 4M@25 fps; 1080P@25 fps
NTSC: 5M@25 fps; 4M@30 fps; 1080P@30 fps
AHD:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
TVI:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
CVBS:
PAL: 960H;
NTSC: 960H
Resolution
5M (2880 x 1620); 4M (2560 x 1440); 1080P (1920 x
1080); 960H (960 x 576/960 x 480)

www.dahuasecurity.com

Day/NightAuto switch by ICR
BLCBLC/HLC/WDR/HLC-Pro
WDR120 dB
White BalanceAuto / Manual
Gain ControlAuto / Manual
Noise Reduction2D NR/3D NR
Smart IRYes
MirrorOff/On
Privacy MaskingOff/On (8 areas, rectangle)
Certifications
Certifications
CE (EN55032:2015, EN 61000-3-2:2014, EN
61000-3-3:2013, EN55024:2010+A1:2015, EN
55035:2017, EN50130-4:2011+A1:2014, EN 62368-
1:2014+A11:2017)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Port
Audio InterfaceOne channel built-in mic
Video Output
Video output choices of CVI/TVI/AHD/CVBS by one
BNC port (DIP Switch)
Power
Power SupplyDC 12V ±30%
Power ConsumptionMax 5.9W (12V DC, IR on)
Environment
Operating Temperature
–40°C to +60°C (–40°F to +140°F); < 95% (non-
condensation)
Storage Temperature
–40°C to +60°C (–40°F to +140°F); < 95% (non-
condensation)
Protection GradeIP67
Structure
CasingMetal dome+metal cover+plastic decorative ring
Camera Dimensionsφ121.9 mm x 99.1 mm (φ4.8" x 3.9")
Net Weight0.43 kg (0.95 lb)
Gross Weight0.6 kg (1.32 lb)

Pro Series | DH-HAC-HDW2501TMQ-A

www.dahuasecurity.com
Rev 001.001 © 2021 Dahua. All rights reserved. Design and specifications are subject to change without notice.
Pictures in the document are for reference only, and the actual product shall prevail.

Ordering Information
Type Part Number
Description
5MP Camera
DH-HAC-HDW2501TMQP-A
2.8 mm
5MP Starlight HDCVI Quick-to-install IR
Eyeball Camera
DH-HAC-HDW2501TMQN-A
2.8 mm
DH-HAC-HDW2501TMQP-A
3.6 mm
DH-HAC-HDW2501TMQN-A
3.6 mm
DH-HAC-HDW2501TMQP-A
6 mm
DH-HAC-HDW2501TMQN-A
6 mm
Accessories
PFA137
Junction Box
PFA130-E
IP66 Junction Box
PFB205W
Wall Mount Bracket
PFA152-E
Pole Mount Bracket
PFM8000-4K
Passive HDCVI Balun
PFM321D
12V 1A Power Adapter
PFM904
Integrated Mount Tester

Dimensions (mm[inch])

Accessories
Optional:
PFA130-E
IP66 Junction Box

PFM904
Integrated Mount Tester

PFM321D
12V 1A Power Adapter

PFA152-E
Pole Mount Bracket
PFA137
Junction Box

PFB205W
Wall Mount Bracket

PFM800-4K
Passive HDCVI Balun
Pro Series | DH-HAC-HDW2501TMQ-A
