Lite Series | DH-HAC-HDW1400T-Z-A     System Overview  Experience superior 4MP video and the simplicity of using existing cabling  infrastructure with HDCVI. The Lite series 4MP HDCVI camera features a  compact design and offers a high quality image at a friendly price. It offers  various motorized/fixed lens models with a multi-language OSD and HD/  SD switchable output. Its structural flexibility and high cost-performance  makes the camera an ideal choice for SMB solutions.   Functions  4 Signals over 1 Coaxial Cable  HDCVI technology supports 4 signals to be transmitted over 1 coaxial  cable simultaneously, i.e. video, audio*, data and power. Dual-way data  transmission allows the HDCVI camera to interact with the XVR, such as  sending control signal or triggering alarm. Moreover, HDCVI technology  supports PoC for construction flexibility.  * Audio input is available for some models of HDCVI cameras.  Long Distance Transmission  HDCVI technology guarantees real-time transmission at long distance  without any loss. It supports up to 700m for 4MP HD video via coaxial  cable, and up to 300m via UTP cable.*  *Actual results verified by real-scene testing in Dahua's test laboratory.  Simplicity <...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

Lite Series | DH-HAC-HDW1400T-Z-A

System Overview
Experience superior 4MP video and the simplicity of using existing cabling
infrastructure with HDCVI. The Lite series 4MP HDCVI camera features a
compact design and offers a high quality image at a friendly price. It offers
various motorized/fixed lens models with a multi-language OSD and HD/
SD switchable output. Its structural flexibility and high cost-performance
makes the camera an ideal choice for SMB solutions.
Functions
4 Signals over 1 Coaxial Cable
HDCVI technology supports 4 signals to be transmitted over 1 coaxial
cable simultaneously, i.e. video, audio*, data and power. Dual-way data
transmission allows the HDCVI camera to interact with the XVR, such as
sending control signal or triggering alarm. Moreover, HDCVI technology
supports PoC for construction flexibility.
* Audio input is available for some models of HDCVI cameras.
Long Distance Transmission
HDCVI technology guarantees real-time transmission at long distance
without any loss. It supports up to 700m for 4MP HD video via coaxial
cable, and up to 300m via UTP cable.*
*Actual results verified by real-scene testing in Dahua's test laboratory.
Simplicity
HDCVI technology inherits the born feature of simplicity from traditional
analog surveillance system, making itself a best choice for investment
protection. HDCVI system can seamlessly upgrade the traditional analog
system without replacing existing coaxial cabling. The plug and play
approach enables full HD video surveillance without the hassle of con-
figuring a network.
Smart IR
The camera is designed with array LED IR illumination for best lowlight
performance. Smart IR is a technology to ensure brightness uniformity
in B/W image under low illumination. Dahua’s unique Smart IR adjusts to
the intensity of camera's infrared LEDs to compensate for the distance of
an object, and prevents IR LEDs from overexposing images as the object
come closer to the camera.
Multi-formats
The camera supports multiple video formats including HDCVI, CVBS and
other two common HD analog formats in the market. The four formats can
be switched over through OSD menu or by PFM820(UTC controller). This
feature makes the camera to be compatible with not only XVRs but also
most end users’ existing HD/SD DVRs.
Multi-language OSD
OSD menu provides multiple image adjustments and function settings
to meet the requirements of different monitoring scenes. The OSD menu
includes configurations such as backlight mode, day/night, white balance,
privacy mask and motion detect. The camera supports 11 languages for
OSD menu, namely, Chinese, English, French, German, Spanish, Portuguese,
Italian, Japanese, Korean, Russian and Polish.
Protection
The camera's outstanding reliability is unsurpassed due to its rugged design.
The camera is protected against water and dust with IP67 ranking, making it
suitable for indoor or outdoor environments.
With working temperature range of -30 °C to +60 °C (-22 °F to +140 °F), the
camera is designed for extreme temperature environments.
Supporting ±30% input voltage tolerance, this camera suits even the
most unstable power supply conditions. Its 4KV lightning rating provides
protection against the camera and its structure from the effects of lightning.
www.dahuasecurity.com
* The parameters and datasheets below can
only be applied to 1400-S2 series.
· Max 30fps@4MP
· HD and SD output switchable
· Built-in mic
· 2.7-12mm motorized lens
· Max. IR length 60m, Smart IR
· IP67, DC12V
DH-HAC-HDW1400T-Z-A

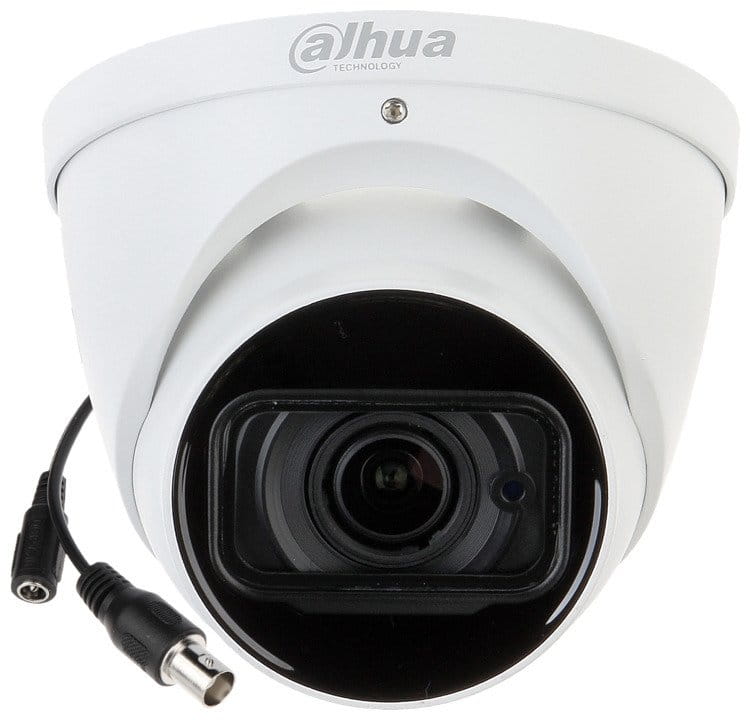

4MP HDCVI IR Eyeball Camera

Series
Lite
60
m IR
DC 12V

IP67
Audio

4Mp


www.dahuasecurity.com
Lite Series | DH-HAC-HDW1400T-Z-A

Technical Specification
Camera
Image Sensor1/2.7" CMOS
Effective Pixels
2560(H)x1440(V), 4MP
Scanning SystemProgressive
Electronic Shutter Speed
PAL: 1/25~1/100000s
NTSC: 1/30~1/100000s
Minimum Illumination0.03Lux/F1.8, 30IRE, 0Lux IR on
S/N RatioMore than 65dB
IR DistanceUp to 60m (197feet)
IR On/Off ControlAuto / Manual
IR LEDs2
Lens
Lens TypeMotorized lens / Fixed iris
Mount TypeBoard-in
Focal Length2.7-12mm
Max ApertureF1.8
Angle of View
H: 92°~29°
V: 49°~16°
Focus ControlMotorized
Close Focus Distance
800mm
31.50''

Certifications
Certifications
CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Interface
Audio InterfaceBuilt-in Mic
Eelectrical
Power Supply12V DC ±30%
Power ConsumptionMax 8W (12V DC, IR on)
Environmental
Operating Conditions
-30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH
* Start up should be done at above -30°C (-22°F)
Storage Conditions-30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH
Ingress Protection & Vandal
Resistance
IP67
Construction
CasingAluminium
DimensionsΦ122mmx104mm (Φ4.8"x4.1")
Net Weight0.57kg (1.26lb)
Gross Weight0.72kg (1.59lb)

DORI Distance
Note: The DORI distance is a “general proximity” of distance which makes it easy to
pinpoint the right camera for your needs. The DORI distance is calculated based on
sensor specification and lab test result according to EN 62676-4 which defines the
criteria for Detect, Observe, Recognize and Identify respectively.
DORI
Definition
Distance
WideTele
Detect25px/m (8px/ft)67m(220ft)198m(650ft)
Observe63px/m (19px/ft)27m(89ft)79m(259ft)
Recognize125px/m (38px/ft)13m(43ft)39m(128ft)
Identify250px/m (76px/ft)7m(22ft)19m(62ft)

Pan / Tilt / Rotation
Pan/Tilt/Rotation
Pan: 0° ~ 360°
Tilt: 0° ~ 78°
Rotation: 0° ~ 360°
Video
Resolution4MP (2560x1440)
Frame Rate25/30fps@4MP, 25/30fps@1080P
Video Output
1-channel BNC high definition video output / CVBS
video output (Can switch)
Day/NightAuto (ICR) / Manual

OSD MenuMulti-language
BLC ModeBLC / HLC / DWDR
WDRDWDR
Gain ControlAGC
Noise Reduction2D
White BalanceAuto / Manual
Smart IRAuto / Manual


Lite Series | DH-HAC-HDW1400T-Z-A
Rev 001.001© 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice.
www.dahuasecurity.com

Ordering Information
TypePart NumberDescription
4MP Camera
DH-HAC-HDW1400TP-Z-A4MP HDCVI IR Eyeball Camera, PAL
DH-HAC-HDW1400TN-Z-A4MP HDCVI IR Eyeball Camera, NTSC
Accessories
PFA130-EJunction box (For use alone)
PFB203W
Wall mount (For use alone or with
PFA152-E pole mount)
PFA152-E
Pole mount (For use with PFB203W
wall mount)
PFM820 UTC Controller
PFM800-E Passive HDCVI Balun
PFM800-4K Passive Video Balun
PFM800B-4K Passive Video Balun
PFM321 12V 1A Power Adapter
PFM320D-01512V 1.5A Power Adapter
PFM300 12V 2A Power Adapter

Dimensions (mm/inch)
Accessories
Optional:

t

Wa t

Po t

PFB203W + PF A152-E

PFB203W

PF A130-E

PFA130-E
Junction box
PFB203W
Junction box
PFA152-E
Pole mount
PFM300
Power Adapter

PFM321
12V 1A Power
Adapter

PFM800-E
Passive HDCVI Balun

PFM800-4K
Passive Video Balun
PFM800B-4K
Passive Video Balun

PFM320D-015
Power Adapter

PFM820
UTC Controller
