Lite Series | DH-HAC-HDW1231TMQ-A

www.dahuasecurity.com

System Overview
Lite Series is suitable for users who requires high quality monitoring
products at a reasonable price. It is cost effective and offers high perfor-
mance, which makes it an ideal choice for residential and small-medium
business applications. This series offers an option of a wide range of
technologies such as Full-color and Starlight, providing various solutions
for different scenarios.
Functions
Starlight
With the adoption of large sized high performance sensor and large
aperture lens, the camera is able to provide incomparable performance
even under extreme lowlight environment. The starlight feature allows
more details to be captured and accurate color to be recognized at night
or in scenes with limited illumination.
Broadcast-quality Audio
Audio information is used as supplementary evidence in video surveil-
lance applications. The HDCVI camera supports audio signal transmis-
sion over coaxial cable. In addition, it adopts unique audio processing
and transmission technology that best restores source audio and
eliminates noise, guaranteeing the quality and effectiveness of collected
audio information.
* Audio input is available for some models of HDCVI cameras.
Wide Dynamic Range
With advanced Wide Dynamic Range (WDR) technology, Dahua HDCVI
camera provides clear details in the environment of strong brightness
contrast. The bright and dark area can get clear video even in high
brightness environment or with backlight shadow.
Super Adapt
Embedded with intelligent algorithm, for changing external environ-
ment, camera can automatically adjust parameters to present the
optimal image, and it solves the trouble of configuration.
Advanced 3DNR
3DNR is noise reduction technology that detects and eliminates random
noises by comparing two sequential frames. Dahua’s advanced 3DNR
technology allows remarkable noise reduction with little impact to
sharpness, especially under limited lighting condition. Besides, the
advanced 3DNR effectively decreases the band width and saves the
storage space.
Smart Illumination
The camera is designed with IR illumination for best lowlight perfor-
mance. Smart IR is a technology to ensure brightness uniformity in B/W
image under low illumination. Dahua’s unique Smart IR adjusts to the
intensity of camera's infrared LEDs to compensate for the distance of
an object, and prevents IR LEDs from overexposing images as the object
come closer to the camera.
Easy Installation
HDCVI quick-to-install eyeball adopts quick-to-install pedestal, which can
achieve easier installation than conventional eyeball.
Quick-to-install camera reduces time and labor costs.
Protection (IP67, wide voltage)
IP67: The camera passes a series of strict test on dust and soak. It has
dust-proof function, and the enclosure can works normal after soaking
in 1 m deep water for 30 minutes.
Wide voltage: The camera allows ±30% (for some power supplies) input
voltage tolerance (wide voltage range), and it is widely applied to out-
door environment with instable voltage.
· Max 30 fps@1080p
· Starlight, 130 dB true WDR, 3D NR
· 3.6 mm fixed lens (2.8 mm, 6 mm optional)
· CVI/CVBS/AHD/TVI switchable
· Super Adapt
· Built-in mic
· Max. IR length 60 m, Smart IR
· IP67, DC 12 V
· Quick-to-install saves installation time

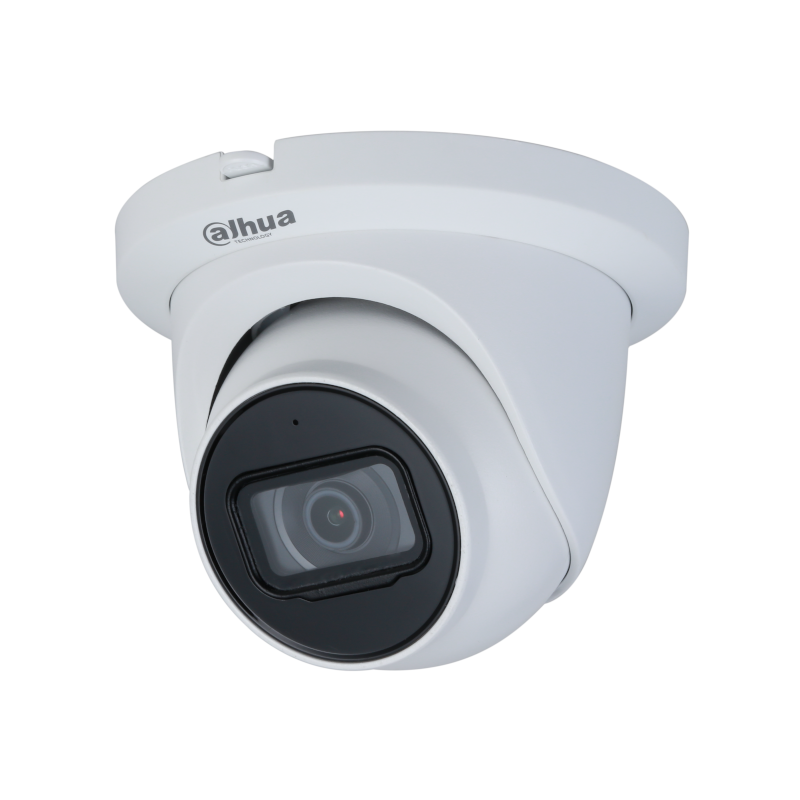

DH-HAC-HDW1231TMQ-A
2MP Starlight HDCVI IR Quick-to-install Eyeball Camera

Technical Specification
Camera
Image Sensor1/2.8" CMOS
Max. Resolution1920 (H) x 1080 (V)
Pixel2MP
Scanning SystemProgressive
Electronic Shutter Speed
PAL: 1/25 s–1/100,000 s
NTSC: 1/30 s–1/100,000 s
S/N Ratio> 65 dB
Min. Illumination0.002 Lux/F1.6, 30 IRE, 0 Lux IR on
Illumination Distance 60 m (196.9 ft)
Illuminator On/Off ControlAuto; manual
Illuminator Number2 (IR light)
Pan/Tilt/Rotation Range
Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Lens
Lens TypeFixed lens
Mount TypeM12
Focal Length2.8 mm; 3.6 mm; 6 mm
Max. ApertureF1.6
Field of View
2.8 mm: H:107°; V:56°;D:127°
3.6 mm: H:86°; V:46°;D:101°
6mm:H:54°; V:29°;D:63°"
Iris TypeFixed iris
Close Focus Distance
2.8 mm: 0.7 m (2.3 ft)
3.6 mm: 1.1 m (3.6 ft)
6 mm: 2.5 m (8.2 ft)
DORI
Distance
LensDetectObserveRecognizeIdentify
2.8 mm
43.9 m
(144 ft)
17.5 m
(57.4 ft)
8.8 m
(28.9 ft)
4.4 m
(14.4 ft)
3.6 mm
53.7 m
(176.2 ft)
21.5 m
(70.5 ft)
10.7 m
(35.1 ft)
5.4 m
(17.7 ft)
6 mm
82.8 m
(271.7 ft)
33.1 m
(108.6 ft)
16.6 m
(54.5 ft)
8.3 m
(27.2 ft)
Video
Frame Rate
CVI:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
AHD:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
TVI:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
CVBS:
PAL: 960 x 576H;
NTSC: 960 x 480H
Resolution1080p (1920 x 1080); 960H (960 x 576/960 x 480)

www.dahuasecurity.com

Day/NightAuto switch by ICR
BLCBLC/WDR/HLC
WDR130 dB
White BalanceAuto; Area WB
Gain ControlAuto; manual
Noise Reduction3D NR
Smart IRYes
MirrorOff/On
Privacy MaskingOff/On (8 area, rectangle)
Certifications
Certifications
CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Port
Video Output
Video output choices of CVI/TVI/AHD/CVBS by one
BNC port
Audio InputOne channel built-in mic
Power
Power Supply12 V ±30% DC
Power ConsumptionMax 5.1 W (12 V DC, IR on)
Environment
Operating Temperature
–40 °C to +60 °C (–40 °F to 140 °F); < 95% (non-
condensation)
Storage Temperature
–40 °C to +60 °C (–40 °F to 140 °F); < 95% (non-con-
densation)
Protection GradeIP67
Structure
CasingMetal dome+metal cover+plastic decorative ring
Camera DimensionsΦ121.9 mm x 99.1 mm (Φ4.80" x 3.90")
Net Weight0.42 kg (0.93 lb)
Gross Weight0.62 kg (1.37 lb)

Lite Series | DH-HAC-HDW1231TMQ-A

www.dahuasecurity.com
Rev 001.001 © 2021 Dahua. All rights reserved. Design and specifications are subject to change without notice.
Pictures in the document are for reference only, and the actual product shall prevail.

Lite Series | DH-HAC-HDW1231TMQ-A

Accessories
Optional:
PFB205W
Wall Mount Bracket
(For use alone or with
PFA152-E)

PFA152-E
Pole Mount Bracket
(For use with PFB205W)

PFA137
Junction box

PFM800-E
Passive HDCVI Balun
PFA130-E
IP66 Junction box
PFM321
12V 1A Power Adapter

Dimensions (mm[inch])

Ordering Information
TypeModel
Description
2M Camera
DH-HAC-
HDW1231TMQP-A
2MP Starlight HDCVI IR Quick-to-install
Eyeball Camera, PAL
DH-HAC-
HDW1231TMQN-A
2MP Starlight HDCVI IR Quick-to-install
Eyeball Camera, NTSC
Accessories
(Optional)
PFA137
Junction box
PFA130-E
IP66 Junction box
PFB205W
Wall Mount Bracket (For use alone or with
PFA152-E)
PFA152-E
Pole Mount Bracket (For use with PFB205W)
PFM800-E
Passive HDCVI Balun
PFM321
12 V 1A Power Adapter
PFM820
UTC Controller
PFM904
Integrated Mount Tester
PFM820
UTC Controller

PFM904
Integrated Mount Tester
