Description

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

Ultra Series | DH-HAC-HDBW3802E-Z

System Overview
DH-HAC-HDBW3802E-Z adopts high performance ISP and advanced 1/2"
image sensor technology, which can bring vaster coverage and superiorer
image details in 7/24 with the 4K resolution,100m ultra far infrared and
motorized zoom lens.That makes it easy to collect evidence and effective
retrospective analysis.As the world's 1st 4K-coaxial HD camera Dahua
HDCVI technology overcome the common bottleneck of coaxial signal
transmission bandwidth.Whether for new-build or upgrading, existing
analog infrastructure can be well reused. Just change the 4K frontward
camera and backend encoder you can enjoy the 4K visual feast in
application.

Functions
4K Technology
4K technology as a revolutionary breakthrough in image,which enhance
the expressive image of essence,allowing users to experience the best
picture with more details and wider coverage brought about by the
visual feast.For the purposes of 4K surveillance with four times the 1080P
resolution,presented to the user with more details.Under the same
scenario by raising the amount of pixels with the larger sensor it will
reduce the total quantity of cameras and finally lower the whole project
cost.
4 Signals over 1 Coaxial Cable
HDCVI technology supports 4 signals to be transmitted over 1 coaxial
cable simultaneously, i.e. video, audio*, data and power. Dual-way data
transmission allows the HDCVI camera to interact with the HCVR, such as
sending control signal or triggering alarm. Moreover, HDCVI technology
supports PoC for construction flexibility.
* Audio input is available for some models of HDCVI cameras.
Long Distance Transmission
HDCVI technology guarantees real-time transmission at long distance
without any loss. It supports up to 700m transmission for 4K and 4MP HD
video via coaxial cable, and up to 300m via UTP cable.*
*Actual results verified by real-scene testing in Dahua's test laboratory.
Simplicity
HDCVI technology inherits the born feature of simplicity from traditional
analog surveillance system, making itself a best choice for investment
protection. HDCVI system can seamlessly upgrade the traditional ana-log
system without replacing existing coaxial cabling. The plug and play approach
enables full HD video surveillance without the hassle of configuring a
network.
Multi-outputs
The camera supports HDCVI and CVBS signal outputs simultaneously with
two BNC connectors.Multi-outputs facilitates construction in such situations
as debugging through a tester. It also offers the possibility for cooperating
with multiple devices including analog matrix or monitor.
Smart IR
The camera is designed with array LED IR illumination for best lowlight
performance at maximum distance. Smart IR is a technology to ensure
brightness uniformity in B/W image under low illumination. Dahua’s unique
Smart IR adjusts to the intensity of camera's infrared LEDs to compensate for
the distance of an object, and prevents IR LEDs from overexposing images as
the object comes closer to the camera.
Wide Dynamic Range
Embedded with industry leading wide dynamic range (WDR) technology,
vivid pictures are achieved even in the most intense contrast lighting con-
ditions. Ture WDR (120dB) optimizes both the bright and dark areas of a
scene at the same time to provide amazing usable video.
Advanced 3DNR
3DNR is noise reduction technology that detects and eliminates random
noises by comparing two sequential frames. Dahua’s advanced 3DNR
technology allows remarkable noise reduction with little impact to sharp-
ness, especially under limited lighting condition. Besides, the advanced
3DNR effectively decreases the band width and saves the storage space.
Protection & Power Output
The camera's outstanding reliability is unsurpassed due to its rugged design.
making it suitable for most environment such as bank,manufacturing and
commercial facilities.
Supporting dual voltage input (DC 12V±25%/AC 24V±25%) and DC12V max
4W voltage output . This camera suits even the most unstable power supply
conditions. Its 4KV lightning rating provides protection against the camera
and its structure from the effects of lightning.
www.dahuasecurity.com
· 1/2” 8Megapixel progressive scan CMOS
· 3x optical motorized zoom lens
· Max. 15fps@3840x2160
· 120db true WDR,2D&3D NR
· Intelligent functions
· Max.50m IR distance,smart IR
· IP67&IK10 ingress protection
· Dual voltage input(DC 12v±25%/AC 24V±25%)
· DC12V voltage output
· Up to 500m transmission with RG59 coaxial cable

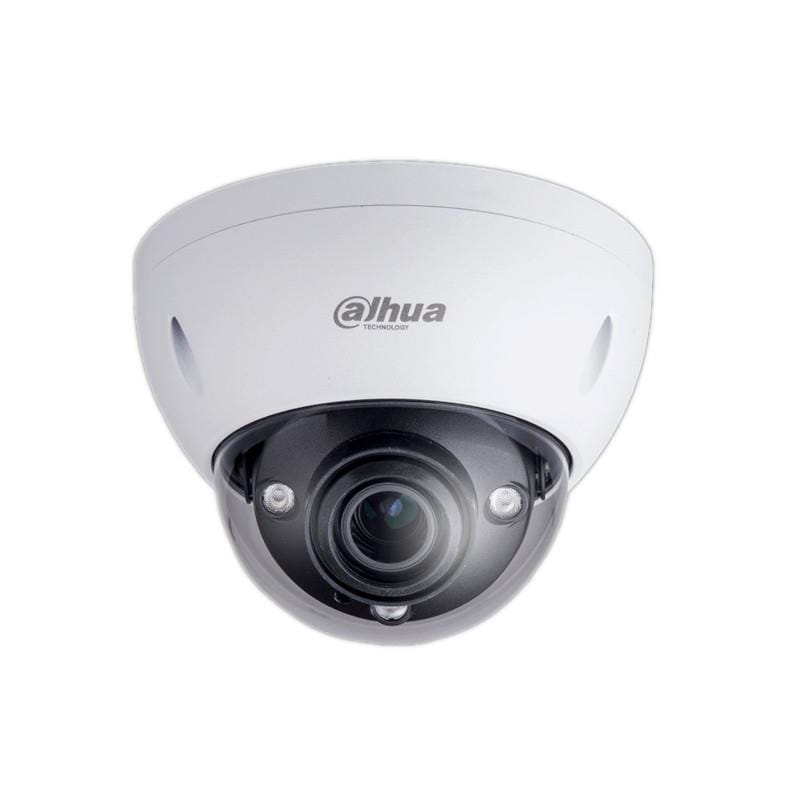

DH-HAC-HDBW3802E-Z
8MP HDCVI WDR IR-Dome Camera

AC 24V
DC 12V
Vandal-proof

IP6 7

www.dahuasecurity.com
Ultra Series | DH-HAC-HDBW3802E-Z

Technical Specification
Camera
Image Sensor1/2" CMOS
Effective Pixels
3840(H)x2160(V), 8MP
Scanning SystemProgressive
Electronic Shutter Speed1/1s~1/100,00s
Minimum Illumination0.01Lux/F1.5(Color), 0lux/F1.5(B/W)
S/N RatioMore than 65dB
IR DistanceUp to 50m (164feet)
IR On/Off ControlAuto / Manual
IR LEDs3
Lens
Lens TypeMotorized lens / Auto iris
Mount TypeBoard-in
Focal Length3.7-11mm
Max ApertureF1.5
Angle of ViewH: 46°~112°
Focus ControlAuto / Manual
Close Focus Distance
0.2m
7.87"
Pan / Tilt / Rotation
Pan/Tilt/Rotation
Pan: 0° ~ 355°
Tilt: 0° ~ 65°
Rotation: 0° ~ 355°
Video
Resolution8MP (3840x2160)
Frame Rate
PAL:3840x2160@12.5fps,1280x720@25fps,1280x
720@50fps;
NTSC:3840x2160@15fps,1280x720@30fps,1280x
720@60fps;
Video Output
1-channel HDCVI 4K video output & 1-channel CVBS
video output
Day/NightAuto (ICR) / Manual
OSD MenuMulti-language
BLC ModeBLC / HLC / WDR
WDR120dB
Gain ControlAGC
Noise Reduction2D/3D
White BalanceAuto / Manual
Smart IRAuto / Manual

Certifications
Certifications
CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Interface
Audio Interface1-channel audio in
Alarm I/O2/1
Eelectrical
Power Supply12V DC ±25%/24V AC ±25%
Power OutputDC 12V
Power ConsumptionMax 12.4W
Environmental
Operating Conditions
-30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH
* Start up should be done at above -30°C (-22°F)
Storage Conditions-30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH
Ingress Protection & Vandal
Resistance
IP67&IK10
Construction
CasingAluminium
DimensionsΦ159.1mmx117.9mm (Φ6.26"x4.64")
Net Weight0.90kg (1.98lb)
Gross Weight1.20kg (2.65lb)

Ultra Series | DH-HAC-HDBW3802E-Z
Rev 001.001© 2016 Dahua
®
. All rights reserved.
www.dahuasecurity.com

Ordering Information
TypePart NumberDescription
8MP Camera
DH-HAC-HDBW3802EP-Z-3711
8Megapixel 4K WDR IR-Bullet
Camera, PAL
DH-HAC-HDBW3802EN-Z-3711
8Megapixel 4K WDR IR-Bullet
Camera , NTSC
DH-HAC-HDBW3802EP-Z-3711
8Megapixel 4K WDR IR-Bullet
Camera with heater,PAL
DH-HAC-HDBW3802EN-Z-3711
8Megapixel 4K WDR IR-Bullet
Camera with heater, NTSC
Accessories
PFA138Junction box (For use alone)
PFA101
Mount adapter (For use with
PFB302S wall mount or with
PFB302S & PFA152 pole mount
or with PFB300C ceiling mount)
PFB302S
Wall mount (For use with
PFA101 mount adapter or with
PFA101 & PFA152 pole mount)
PFA152
Pole mount (For use with
PFA101 & PFB302S wall mount)
PFB300C
Ceiling mount (For use with
PFA101 mount adapter)
PFB201C PFA101 mount adapter)
PFM800-4M Passive HDCVI Balun

Dimensions (mm/inch)
Dimensions (mm/inch)
Optional:

W all Moun t

Pole Mou n t

PF A101 + PFB302S + PF A152
PF A101 + PFB302S

PF A138
PFB201C

PF A101 + PFB300C

In-ceiling Moun t

Ceiling Moun t

PFA138
Junction box
PFA101
Mount adapter

PFM800-4MP
Passive HDCVI Balun

PFB302S
Wall mount

PFB300C
Ceiling mount
PFB201C
Mount adapter
PFA152
Pole mount
