Ultra Series | DH-HAC-HDBW3231E-ZH     System Overview  Experience full HD 1080P video and complete features with the  simplicity of using existing coaxial infrastructure. The starlight HDCVI  camera presents high quality image with rich details even under extreme  lowlight environment and supports 120dB true WDR. It offers various  auto-iris lens models with multi-language OSD and multi-interfaces  including HD&SD video, audio and alarm, all come with elegant case  design. The superior image performance and project-oriented features  make the Ultra series HDCVI camera an ideal choice for mid to large-size  business and projects in all industries.   Functions  4 Signals over 1 Coaxial Cable  HDCVI technology supports 4 signals to be transmitted over 1 coaxial  cable simultaneously, i.e. video, audio*, data and power. Dual-way data  transmission allows the HDCVI camera to interact with the HCVR, such as  sending control signal or triggering alarm. Moreover, HDCVI technology  supports PoC for construction flexibility.  * Audio input is available for some models of HDCVI cameras.  Long Distance Transmission  HDCVI technology guar...

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

Ultra Series | DH-HAC-HDBW3231E-ZH

System Overview
Experience full HD 1080P video and complete features with the
simplicity of using existing coaxial infrastructure. The starlight HDCVI
camera presents high quality image with rich details even under extreme
lowlight environment and supports 120dB true WDR. It offers various
auto-iris lens models with multi-language OSD and multi-interfaces
including HD&SD video, audio and alarm, all come with elegant case
design. The superior image performance and project-oriented features
make the Ultra series HDCVI camera an ideal choice for mid to large-size
business and projects in all industries.
Functions
4 Signals over 1 Coaxial Cable
HDCVI technology supports 4 signals to be transmitted over 1 coaxial
cable simultaneously, i.e. video, audio*, data and power. Dual-way data
transmission allows the HDCVI camera to interact with the HCVR, such as
sending control signal or triggering alarm. Moreover, HDCVI technology
supports PoC for construction flexibility.
* Audio input is available for some models of HDCVI cameras.
Long Distance Transmission
HDCVI technology guarantees long-distance and real-time transmission
without any loss. It supports up to 800m for 1080P Full HD video via
coaxial cable, and up to 300m via UTP cable.*
*Actual results verified by real-scene testing in Dahua's test laboratory.
Simplicity
HDCVI technology inherits the born feature of simplicity from traditional
analog surveillance system, making itself a best choice for investment
protection. HDCVI system can seamlessly upgrade the traditional
analog system without replacing existing coaxial cabling. The plug and
play approach enables full HD video surveillance without the hassle of
configuring a network.
Starlight
With the adoption of high performance sensor, the camera is able
to provide incomparable performance even under extreme lowlight
environment. The starlight feature allows more details to be captured
and accurate color to be recognized at night or in scenes with limited
illumination.
Wide Dynamic Range
Embedded with industry leading wide dynamic range (WDR) technology,
vivid pictures are achieved even in the most intense contrast lighting
conditions. True WDR (120dB) optimizes both the bright and dark areas of a
scene at the same time to provide usable video.
Multi-interfaces
The camera is designed with multi-interfaces for transmitting/receiving
various signals. It supports HDCVI and CVBS video outputs simultaneously
with two BNC connectors, and tester out interface for debugging. It also
supports audio input interface as well as alarm input/output for connecting
external devices. Multi-interfaces covers different requirements of
monitoring scenes and facilitates deployment and construction.
Smart IR
The camera is designed with array LED IR illumination for best lowlight
performance at maximum distance. Smart IR is a technology to ensure
brightness uniformity in B/W image under low illumination. Dahua’s unique
Smart IR adjusts to the intensity of camera's infrared LEDs to compensate
for the distance of an object, and prevents IR LEDs from overexposing
images as the object comes closer to the camera.
Protection
The camera's outstanding reliability is unsurpassed due to its rugged
design. The camera is protected against water and dust with IP67, making it
suitable for indoor or outdoor environments.
The camera complies with IK10 impact resistant rating to provide maximum
durability against vandals, making it capable of withstanding the equivalent
of 55kg (120lbs) of force.
Supporting ±25% input voltage tolerance, this camera suits even the
most unstable power supply conditions. Its 4KV lightning rating provides
protection against the camera and its structure from the effects of
lightning.
Elegant Design
As projected-oriented product, the camera adopts elegant appearance
design to express feeling of high reliability for industrial grade application.
www.dahuasecurity.com
· Starlight, 120dB true WDR, 3DNR
· Max 30fps@1080P
· HD and SD dual-output
· 2.7-12mm motorized lens
· Max. IR length 50m, Smart IR
· IP67, IK10, AC24V/DC12V, Heater

DH-HAC-HDBW3231E-ZH

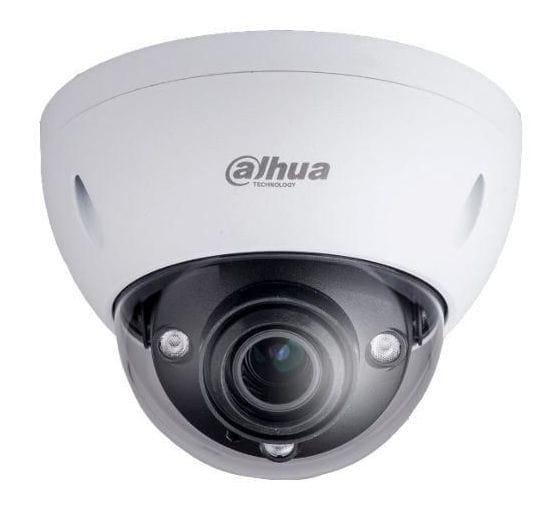

2MP Starlight HDCVI IR Dome Camera

50m IR

Series
Ultra
IP67
Vandal-proof

1080p

AC 24V
DC 12V

Starlight


www.dahuasecurity.com
Ultra Series | DH-HAC-HDBW3231E-ZH

Technical Specification
Camera
Image Sensor1/2.8" CMOS
Effective Pixels
1945(H)x1097(V), 2.1MP
Scanning SystemProgressive
Electronic Shutter Speed
PAL: 1.3s~1/30000s
NTSC: 1s~1/30000s
Minimum Illumination0.005Lux/F1.4, 0Lux IR on
S/N RatioMore than 65dB
IR DistanceUp to 50m (164feet)
IR On/Off ControlAuto / Manual
IR LEDs3
Lens
Lens TypeMotorized lens / Auto iris
Mount TypeBoard-in
Focal Length2.7-12mm
Max ApertureF1.4
Angle of ViewH: 95°~36°
Focus ControlAuto / Manual
Close Focus Distance
300mm
11.81''
Pan / Tilt / Rotation
Pan/Tilt/Rotation
Pan: 0° ~ 355°
Tilt: 0° ~ 65°
Rotation: 0° ~ 355°
Video
Resolution1080P (1920x1080)
Frame Rate25/30fps@1080P, 25/30/50/60fps@720P
Video Output
1-channel BNC HDCVI high definition video output
& 1-channel BNC CVBS video output
CVBS tester out
Day/NightAuto (ICR) / Manual
OSD MenuMulti-language
BLC ModeBLC / HLC / WDR
WDR120dB
Gain ControlAGC
Noise Reduction2D / 3D
White BalanceAuto / Manual
Smart IRAuto / Manual


Certifications
Certifications
CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Interface
Audio Interface1-channel audio in
Alarm Interface1-channel alarm in & 1-channel alarm out
Eelectrical
Power SupplyAC 24V±25% / DC 12V±25%
Power ConsumptionMax 21.5W (12V DC, IR & heater on)
Environmental
Operating Conditions
-40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH*
* Start up should be done at above -40°C (-40°F)
Storage Conditions-40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH
Ingress Protection &Vandal
Resistance
IP67 & IK10
Construction
CasingAluminium
DimensionsΦ159.1mmx117.9mm (Φ6.26"x4.64")
Net Weight0.90kg (1.98lb)
Gross Weight1.20kg (2.65lb)

Ultra Series | DH-HAC-HDBW3231E-ZH
Rev 001.001© 2016 Dahua. All rights reserved. Design and specifications are subject to change without notice.
www.dahuasecurity.com

Ordering Information
TypePart NumberDescription
2MP Camera
DH-HAC-HDBW3231E-ZH
2.7~12mm
2MP Starlight HDCVI IR Dome
Camera, PAL
DH-HAC-HDBW3231E-ZH
2.7~12mm
2MP Starlight HDCVI IR Dome
Camera, NTSC
Accessories
PFA138Junction box (For use alone)
PFA101
Mount adapter (For use with
PFB302S wall mount or with
PFB302S & PFA152 pole mount
or with PFB300C ceiling mount)
PFB302S
Wall mount (For use with
PFA101 mount adapter or with
PFA101 & PFA152 pole mount)
PFA152
Pole mount (For use with
PFA101 & PFB302S wall mount)
PFB300C
Ceiling mount (For use with
PFA101 mount adapter)
PFB201C In-ceiling mount (For use alone)

Dimensions (mm/inch)
Accessories
Optional:
PFA138
Junction box
PFA101
Mount adapter

W all Moun t

Po le Moun t

PF A101 + PFB302S + PF A152
PF A101 + PFB302S

PF A138
PFB201C

PF A101 + PFB300C

In-ceiling Moun t

Ceiling Moun t

PFB302S
Wall mount

PFA152
Pole mount
PFB300C
Ceiling mount
PFB201C
In-ceiling mount
