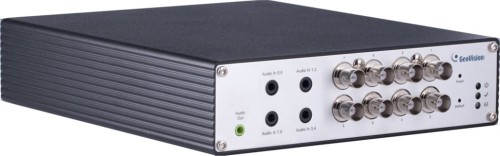

GV-VS2800

GV-VS2800 8CH H.264 TVI 1080p Video Server        * H.264  * 8 ‐channel TVI 1080p / 720p and analog 960H / D1  real ‐time video  * 12V DC  * Tampering Alarm  * USB HDD Storage  * UMTS / 3G / 3.5G / 4G  * Automatic switch between WiFi and 3G / 4G  * Supports over 50 PTZ models  * 29 l anguages on web interface  * HD ‐TVI 1.0 / 2.0 standard  * ONVIF (Profile S) conformant    GV ‐VS2800 is a powerful H.264 Video Server with compact size ...

Warning! Product withdrawn from production!

Replacement product: GV-VS21600

Replacement product code: 84-VS21600-001D

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

GV-VS2800 8CH H.264 TVI 1080p Video Server



* H.264
* 8 ‐channel TVI 1080p / 720p and analog 960H / D1
real ‐time video
* 12V DC
* Tampering Alarm
* USB HDD Storage
* UMTS / 3G / 3.5G / 4G
* Automatic switch between WiFi and 3G / 4G
* Supports over 50 PTZ models
* 29 l anguages on web interface
* HD ‐TVI 1.0 / 2.0 standard
* ONVIF (Profile S) conformant

GV ‐VS2800 is a powerful H.264 Video Server with compact size and supports multiple applications. It supports 8 ‐channel TVI 1080p
/ 720p and analog 960H / D1 real ‐time video, fully integrated with GV ‐ DVR / NVR / VMS to form the most powerful IP solution.
GV ‐VS2800 converts analog si gnals into high ‐resolution digitized images up to 2 megapixels. It also supports over 50 PTZ models to
fulfill various project demands. It can record video to a local USB storage, forming the smallest video recorder. It can also activate
Tampering Alarm alerts when cameras are tampered with, which can p revent criminal activities successfully.

Specifications
Video
Video Standard NTSC, PAL

Video Input 8 channels

Compression H.264

NTSC 30 fps per channel; 240 fps in total for 8 channels

Frame Rate

PAL 25 fps per channel; 200 fps in total for 8 channels

Main Stream 1920 x 1080 (Default) 1280 x 720, 640 x 360, 448 x 252 for TVI Signal

NTSC
HD
Sub Stream 640 x 360, 448 x 252 (Default) for TVI Signal

Main Stream 960 x 480, 720 x 480 (Default), 480 x 240, 360 x 240 for Analog Signal

NTSC
SD
Sub Stream 480 x 240, 360 x 240 (Default) for Analog Signal

Main Stream 1920 x 1080 (Default) , 1280 x 720, 640 x 360, 448 x 252 for TVI Signal

PAL
HD
Sub Stream 640 x 360, 448 x 252 (Default) for TVI Signal

Main Stream 960 x 576, 720 x 576 (Default), 480 x 288, 360 x 288 for Analog Signal

Resolution
PAL
SD
Sub Stream 480 x 288, 360 x 288 (Default) for Analog Signal

Video Streaming
Configurable frame rate and bandwidth,
Constant and variable bitrate

Video Adjustment Brightness, Contrast, Saturation, Hue, Sharpness

Dual Streams Yes

Recommended Type 5C ‐ FB or above

Coaxial Cable
Maximum Length 300 m (984 ft)

Audio

Audio Input 4 ports, 8 channels

Compression G.711

Audio Support Two ‐way



GV-VS2800 October 30, 2017
-1-

Management
Trigger
Schedule, Sensor Input, Motion Detection
Event Management
Action
Store Video (AVI format)
Send e ‐ mails with captured images
Upload captured images to FTP Server
Monitor through Center V2 and Vital Sign Monitor
Activate relay outputs to control external devices

Firmware Upgrade Remote upgrade by HTTP, Firmware upgrade utility

Storage USB HDD Storage

Client PC Requirements Microsoft Internet Explorer 8.x or later

Security IP address filtering

Language
Bulgarian / Czech / Danish / Dutch / English / French / German / Greek /
Hebrew / Hindi / Hungarian / Italian / Indonesian / Japanese / Norwegian /
Lithuanian / Persian / Polish / Portuguese / Romanian / Russian / Serbian /
Simplified Chinese / Slovakian / Slovenian / Spanish / Thai / Traditional Chinese
/ Turkish

Network

Interface
10/100/1000 Base ‐ T Ethernet,
802.11b/g/n Wireless LAN (optional),
Mobile broadband: UMTS, EDGE, etc. (optional)

Protocol
DHCP, DynDNS, FTP, HTTP, HTTPS, 3GPP/ISMA, NTP, ONVIF (Profile S), RTSP,
SMTP, SNMP, TCP, UDP, UPnP, QoS (DSCP)

External Interface

Video Input 8 BNC ports

Audio Input 4 ports (stereo phone jack, 3.5mm/0.14’’)

Audio Output 1 port (stereo phone jack, 3.5 mm/0.14’’)

Sensor Input 8 inputs

Alarm Output 8 outputs

PTZ RS‐485 +/ ‐

Ethernet RJ ‐ 45, 10/100/1000 Mbps

USB 2 ports (USB 2.0)

Power Input 12V, 3.0A

Environment

Operation Temp. ‐ 20 ~ 50 °C / ‐ 4 ~ 122 °F

Humidity 0 ~ 90% RH (non ‐condensing)

Weather Resistance Indoor use

Physical

Dimensions (L x W x H) 200 x 175 x 40 mm / 7.87 x 6.88 x 1.57 in

Weight 0.95 kg / 2.09 lb

Regulatory CE, FCC, RCM, RoHS compliant

Applications

Software Supported
GV ‐ VMS (V16.10.3.0), GV ‐DVR / NVR (V8.7.1.0), GV ‐Control Center (V3.4.0.0),
GV ‐Edge Recording Manager (V1.2.0.0), GV ‐Center V2 (V16.10.0.0),
GV ‐Recording Server (V1.3.0.0), GV ‐Redundant / Failover Server (V1.1.0.0)

Network Storage GV ‐System (GV ‐DVR/NVR) / GV ‐VMS, GV ‐Backup Center, GV ‐Recording Server

Mobile Phone Support GV ‐ Eye for iOS and Android

Live Viewing IE, Firefox, Chrome, Safari, Edge

CMS Server support GV ‐Control Center, GV ‐Center V2, GV ‐ Vital Sign Monitor

Note:
1. It is required to apply patch files to all the supported software mentioned above except GV ‐VMS and GV ‐Center V2.
2.The GV ­Video Server cannot work with the microphones that acquire power from the unit. Use microphones that have external
power supply.
3. GV ‐VS2800 supports 1 external hard disk (2.5’’or 3.5") with up to 6 TB capacities.
4. It is not recommended to use the flash USB drive with GV ‐VS2800 because of its slow read and write speed.
5.Product design and specifications are subject to change without notice.
GV-VS2800 October 30, 2017
-2-


Packing List
1. GV ‐VS2800
2. AC Power Cord x 1
3. Power Adaptor x 1
4. Download Guide
5. Warranty Card

Options
Optional devices can expand your GV ‐Video Server's capabilities and versatility. Contact your dealer for more information.
GV ‐Relay V2

Working with the GV ‐ Relay V2, the GV ‐Video Server is capable of driving the loads of relay

outputs over 5 volts.

GV ‐WiFi Adaptor V2

The WiFi Adaptor V2 is designed to connect the GV IP devices, such as GV ‐Video Server, to

the wireless network.

3.5 mm St ereo to RCA Cable

3.5 mm St ereo to RCA Cable is served as an audio adapter for microphones with RCA

connectors.

Wall Hook

Wall Hook is used to mount GV ‐VS2800 to the wall.



DIN ‐rail Hook

DIN ‐rail Hook is used to mount GV ‐VS2800 to a 35‐ mm (1.38 ‐in) DIN rail.



Rack Mount

Rack Mount is used to mount up to 2 video servers to a 19‐ in (482.6‐mm) rack.




Supported Wireless LAN USB Adaptor
Vendors
Model
D ‐ Link DWA ‐140 (H/W version B1), DWL ‐G122 (version C1)

EDIMAX EW ‐7318Ug, EW ‐7718Un, EW ‐7711UAn

Linksys WUSB54GC, WUSB600 (version 1)

Pegatron WL ‐166N11

Note: Linksys WUSB54GC ver. 3 is not supported.


GV-VS2800 October 30, 2017
-3-

GV-VS2800 October 30, 2017
-4-
Supported Mobile Broadband Device
Vendors
Model
Bandluxe C320, C501

HUAWEI
E156, E156B, E169, E220, E1692, E1750, E1752, E1756, E1756C, EC169C, EC189 USB Modem
(HSDPA/UMTS/EDGE/GPRS/GSM)

Novatel MC950D, MC996D, MC998D (HSDPA/UMTS/EDGE/GPRS/GSM)

Onda MSA523HS

Sierra 250U

Verizon USB727, USB728, USB760 Modem (EVDO)

Vodafone K3565 (Rev 2)

ZTE MF100
