GV-VD8700

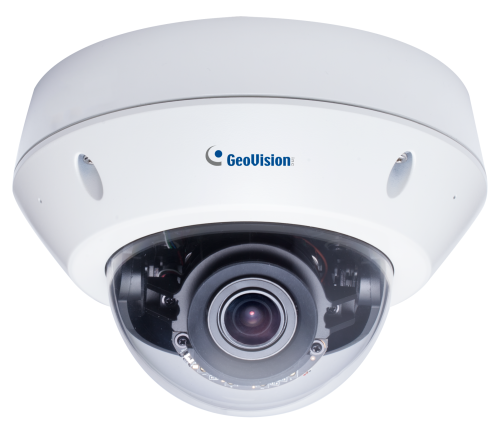

GV-VD8700 8MP H.265 Low Lux WDR IR Vandal Proof IP Dome      • 1/2.5” progressive scan low lux CMOS  • Min. illumination at 0.04 lux  • Triple streams from H.265 and H.264  • Up to 30 fps at 3840 x 2160  • Vandal resistance (IK10)  • Ingress protection (IP66)  • Megapixel varifocal lens  • P ‐ iris lens for auto iris control  • Day and Night function (with removable IR ‐cut filte...

Warranty: 24 mon.

Datasheet

Text contents of PDF datasheet:

GV-VD8700 8MP H.265 Low Lux WDR IR Vandal Proof IP Dome


• 1/2.5” progressive scan low lux CMOS
• Min. illumination at 0.04 lux
• Triple streams from H.265 and H.264
• Up to 30 fps at 3840 x 2160
• Vandal resistance (IK10)
• Ingress protection (IP66)
• Megapixel varifocal lens
• P ‐ iris lens for auto iris control
• Day and Night function (with removable IR ‐cut filter)
• Intelligent IR
• Wide Dynamic Range (WDR)
• IR distance of up to 40 m (131.23 ft)
• 3 ‐axis mechanism (pan / tilt / rotate)
• One sensor input and digital output
• Built ‐ in micro SD card slot (SD/SDHC/SDXC/UHS ‐ I, Class 10) for
local storage
• DC 12V / PoE (IEEE 802.3af)
• One ‐ way audio
• Defog
• Motion detection
• Tampering alarm
• Face recognition
• Text overlay
• Privacy mask
• IP address filtering
• Recording assigned by GV ‐Edge Recording Manager (Windows
& Mac )
• Supports iPhone, iPad, and Android
• 4 languages on Web interface
• ONVIF (Profile S) conformant
* No memory card slot & local storage function for Argentina

Introduction
GV ‐VD8700 Vandal Proof IP Dome camera features cutting ‐ edge face recognition technology that allows users to identify important
personnel from its database, on the fly. Up to 10,000 face profiles can be defined in the camera’s database, and also categorized to
meet various corporate needs, such as facilitating customer service or security management and more. The camera’s face recognition
mechanism is effective for a distance of up to 4 m (13.12 ft) while able to identify up to 10 persons simultaneously. With a recognition
time of within 2 seconds, it can quickly identify VIP guests and/or potential intruders. When integrated with GV ‐VMS, GV ‐VD8700’s
face recognition can be used to trigger alerts according to the predefined rules, thereby providing an improved, reliable security
management.

As an outdoor camera, GV ‐VD8700 is designed with IK10 vandal resistance and IP66 ingress protection. The camera can support
H.265 video codec to achieve better compression ratio while maintaining high‐ quality pictures at reduced network bandwidths. For
night operations, the camera is equipped with an IR effective distance of up to 40 m (131.23 ft). Its WDR and Backlight Compensation
allow the camera to detect faces in environments with drastic light contrast.

GV-VD8700 April 11, 2019
- 1 -

Real ‐ time Face Recognition on Live View


Retrievable Face Events





GV-VD8700 April 11, 2019
- 2 -

Active Tampering Alarm
Tampered Focus Change Camera Shift



Dimensions



Specifications
Camera

Image Sensor 1/2.5" progressive scan low lux CMOS

Picture Elements 3840 (H) x 2160 (V)

Color 0.05 Lux

B/W 0.04 Lux

Minimum
Illumination
IR ON 0 Lux

Shutter Speed Automatic, Manual (1/30 ~ 1/8000 sec.)

White Balance Automatic, Manual (2800K ~ 8500K)

Gain Control Automatic

S/N Ratio 56 dB

WDR Yes

Dynamic Range 96 dB

Lens

Megapixel Yes

Day/Night Yes (with removable IR ‐ cut filter)

Focal Length 3.3 ~ 12 mm

Lens Type Varifocal

Maximum Aperture F/1.4

Mount Ø14 mm

Horizontal FOV 106° ~ 42°

Image Format 1/2.5”

Focus Manual (with lock)

Zoom Manual (with lock)

Operation
Iris P ‐ iris

IR LED Quantity 20 IR LEDs

Max. IR Distance 40 m (131.23 ft)


GV-VD8700 April 11, 2019
- 3 -


Operation
Video Compression H.265, H.264

Video Streaming
Stream 1 from H.265 or H.264
Stream 2 from H.264
Stream 3 from H.264

Frame Rate
30 fps at 3840 x 2160 (50 / 60 Hz)
* The frame rate and the performance may vary depending on the number of connections
and data bitrates (different scenes).

Image Setting
Brightness, Contrast, Saturation, Sharpness, White Balance, Flicker‐ less, Image Orientation,
Shutter Speed, D/N Sensitivity, Backlight Compensation, WDR, Defog

Video Analytics Motion Detection, Tampering Alarm, Face Detection, Face Recognition

Audio Compression G.711, AAC (Optional)

Audio Support One ‐ way audio

Sensor Input 1 input (Dry contact)

Alarm Output 1 digital output (200 mA 5V DC)

Intelligent Video

Video Analytics Motion Detection, Tampering Alarm, Face Detection, Face Recognition

Video Resolution

4:3 2560 x 1920, 2048 x 1536, 1600 x 1200, 1280 x 960

Main Stream
16:9 3840 x 2160 (Default), 2560 x 1440, 1920 x 1080, 1280 x 720

4:3 1024 x 768, 640 x 480, 320 x 240

Sub Stream
16:9 1280 x 720, 640 x 360 (Default)

4:3 640 x 480, 320 x 240

Third Stream
16:9 640 x 360 (Default)

Network

Interface 10/100 Ethernet

Ethernet Protocol DHCP, DynDNS, FTP, HTTP, HTTPS, NTP, ONVIF (Profile S), RTSP, SMTP, TCP, UDP

Mechanical

Temperature Detector Yes

Pan 0° ~ 350°

Tilt 0° ~ 75°

Camera Angle
Adjustment
Rotate 0° ~ 340°

Power 2 ‐ pin terminal block (DC 12V, 3A), PoE

Ethernet Ethernet (10/100 Base ‐ T), RJ ‐ 45

Audio
1 In (built ‐ in or 3.5 mm phone jack for external microphone with power supply)
1 Out (3.5 mm phone jack for speaker) (Currently not functional)

Digital I/O I/O wires

Connectors
Local Storage
Micro SD card slot (SD/SDHC/SDXC/UHS ‐ I, Class 10)
*UHS ‐ II card type is not supported.

LED Indicator 2 LEDs: Power, Status

General

Start‐ up ‐ 20 °C ~ 50 °C ( ‐ 4 °F ~ 122 °F) Environment
Temperature
Operation ‐ 30 °C ~ 50 °C ( ‐ 22 °F ~ 122 °F)

Humidity 10% ~ 90% (no condensation)

Power Source 12V DC / PoE (IEEE 802.3af)

Max. Power Consumption 11.04 W

Dimension Ø 160 x 108.4 mm (6.2 x 4.27")

Weight 1.2 kg (2.64 lb)

Ingress Protection IP66

Vandal Resistance IK10

Regulatory CE, FCC, RCM, LVD, RoHS compliant

Power over Ethernet

PoE Standard PoE (IEEE 802.3af Power over Ethernet / PD)

PoE Power Supply Type End‐Span and Mid ‐Span

PoE Power Output Per Port 48V DC, 350 mA. Max. 15.4 watts


GV-VD8700 April 11, 2019
- 4 -



Web Interface
Installation Management Web‐ based configuration

Maintenance Firmware upgrade through Web Browser or Utility

Access from Web Browser
Camera Live View, Video Recording, Change Video Quality, Bandwidth Control, Image
Snapshot, Audio, Picture in Picture, Privacy Mask, Text Overlay

Language English / Japanese / Simplified Chinese / Traditional Chinese

Applications

Software Supported
GV ‐DVR / NVR (V8.7.4.0), GV ‐ VMS (V17.1), GV ‐ Control Center (V3.5.0.0), GV ‐Edge
Recording Manager (V1.3.0.0), GV ‐Recording Server / Video Gateway (V1.3.0.0)
*GV ‐VMS V17.1 supports Face Detection, Face Recognition and Live View. Other
GV ‐ Software only supports Live View.

Smart Device Access GV ‐Eye for iOS and Android

Live Viewing Web browser, Mobile app

Note: Specifications are subject to change without prior notice.

Packing List
1. H.265 Vandal Proof Dome
2. Screw x 4
3. Screw Anchor x 4
4. Audio Wires x 2
5. I/O Cable
6. Installation Sticker
7. Conduit Converter
8. PG21 Conduit Connector
9. RJ ‐ 45 Connector
10. Waterproof Rubber Sets
(for RJ ‐ 45 Cat.5 and DC 12V / for RJ ‐ 45 Cat.6)

11. Torx Wrench
12. Big Concave Hexagon Wrench
13. Small Concave Hexagon Wrench
14. Silica Gel Bag
15. Sticker (for Silica Gel Bag)
16. Ruler
17. 8 GB Micro SD Card (MLC, SDHC, Class 10)
(The Micro SD Card is preinstalled and formatted in the camera)
18. Download Guide
19. Warranty Card
Note: Power adapters can be purchased upon request.

Accessories
Model No. Name Details

GV ‐Mount100 Straight Tube and
Junction Box Kit


Dimensions: 200 x 170 x 257.5 mm (7.9 x 6.7 x
10.1”)
Weight: 3.17 kg (6.99 lb)

GV ‐Mount101 Straight Tube Kit


Dimensions: 219 x 125 x 332 mm (8.6 x 4.9 x
13.1”)
Weight: 1.8 kg (3.97 lb)

GV ‐Mount200 Wall Pendant Tube


Dimensions: 225 x 140 x 250 mm (8.9 x 5.5 x 9.8”)
Weight: 900 g (1.98 lb)


GV-VD8700 April 11, 2019
- 5 -


Model No.
Name
Details

GV ‐Mount203 Wall Pendant Tube and
Junction Box Kit


Dimensions: 315 x 195.5 x 225 mm (12.4 x 7.7 x
8.9”)
Weight: 2.95 kg (6.5 lb)

GV ‐Mount206 Wall Mount Bracket Kit


Dimensions: 126.5 x 211.3 x 176.85 mm (5 x 8.3 x
6.96’’)
Weight: 0.93 kg (2.06 lb)

GV ‐Mount300 ‐ 1 Convex Corner Adapter
Kit


Dimensions: 238.6 x 409.5 mm (9.4 x 16.1”)
Weight: 4.27 kg (9.41 lb)

GV ‐Mount310 ‐ 1 Concave Corner
Adapter Kit


Dimensions: 123.3 x 393.1 mm (4.9 x 15.5")
Weight: 2.96 kg (6.53 lb)

GV ‐Mount400 ‐ 1 Pole Mount Bracket
Kit (Ø 4 ~ 6")


Bracket: 241 x 161 mm (9.5 x 6.3”)
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 101 ~ 152 mm (4 ~ 6")

GV ‐Mount410 ‐ 1 Pole Mount Bracket Kit
(Ø 6 ~ 7.5")


Bracket: 241 x 161 mm (9.5 x 6.3”)
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 152 ~ 191 mm (6 ~ 7.5")

GV ‐Mount702 Extension Tube


Four options are available.
Dimensions:
Ø 5.4 x 10 or 20 or 30 or 50 cm
(Ø 2.1 x 3.9 or 7.9 or 11.8 or 19.7”)
Weight:
180 g or 390 g or 550 g or 800 g
(0.4 lb or 0.86 lb or 1.21lb or 1.76 lb)

GV ‐Mount903 ‐ 1 Dome Housing


Dimensions: Ø 185.51 x 165.35 mm (Ø 7.3” x
6.51”)
Weight: 900 g (1.98 lb)

GV-VD8700 April 11, 2019
- 6 -


Model No.
Name
Details

GV ‐Mount916 In ‐Ceiling Mount


Dimensions: Ø 205 x 63.8 mm (Ø 8 x 2.5")
Weight: 645 g (1.42 lb)


GV ‐PA191 PoE Adapter


The GV ‐PA191 is a Power over Ethernet (PoE)
adapter designed to provide power to the IP
device through a single Ethernet cable.

GV ‐PoE Switch
The GV ‐ PoE Switch is designed to provide power along with network connection for

IP devices. The GV ‐ PoE Switch is available in various models with different numbers

and types of ports.

GV ‐Relay V2

The GV ‐Relay V2 is designed to expand the
voltage load of GV IP devices. It provides 4 relay
outputs, and each can be set as normally open
(NO) or normally closed (NC) independently as
per your requirement.
Metal PG21 Conduit
Connector


The metal PG21 conduit connector allows you to
run the wires through a 3/4” conduit pipe.

Power Adapter

Contact our sales representatives for the countries and areas supported.



GV-VD8700 April 11, 2019
- 7 -
