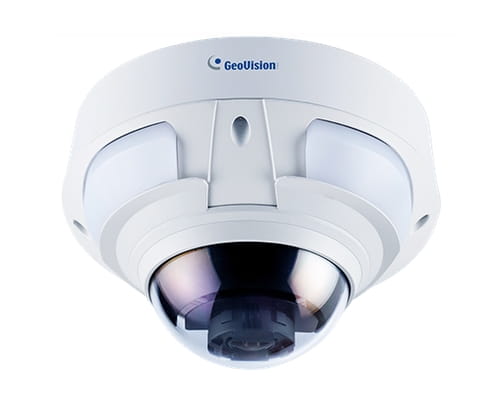

GV-VD4711 4MP H.265 4.3x Zoom Super Low Lux WDR Pro IR Vandal Proof IP
Dome




* 1/3” progressive scan super low lux CMOS
* Min. illumination at 0.02 lux
* Dual streams from H.265, H.264 and MJPEG
* Up to 20 fps at 2592 x 1520, 25 fps at 2560 x 1440, 30 fps at 2048 x
1520
* Vandal resistance (IK10+)
* Ingress protection (IP67)
* Motorized varifocal lens for remote focus/zoom adjustment
* P ‐ Iris for auto Iris adjustment
* 3 ‐ axis mechanism (pan / tilt / roll)
* Removable IR ‐cut filter for Day/Night function
* High power IR LEDs
* Intelligent IR
* IR distance up to 30 m (98.4 ft)
* Ex ternal microphone
* Two ‐way audio
* One sensor input and alarm output
* TV ‐ out support
* Built ‐ in micro SD card slot (SD/SDHC/SDXC/UHS ‐ I) for local storage
* Recording assigned by GV ‐Edge Recording Manager
(Windows & Mac ver sion)
* DC12V / AC24V / PoE+ (IEEE 802.3at)
* Wide Dynamic Range Pro (WDR Pro)
* 3D noise reduction
* Smart streaming
* Defog
* Motion detection
* Tampering alarm
* Privacy mask
* Text overlay
* IP address filtering
* Supports iPhone, iPad, Android & 3GPP
* 31 l anguages on Web interface
* ONVIF (Profile S) conformant
* No Memory card slot & local storage function for Argentina.
* Smart streaming requires either GV ‐ DVR / NVR V8.7.0 or GV ‐VMS
V16.10.3.0
Active Tampering Alarm
Tampered Focus Change Camera Shift



Introduction
GV ‐VD4711 is an outdoor camera designed with IK10+ vandal resistance and IP67 ingress protection. With its motorized varifocal
lens, the user can zoom and focus the camera from the Web interface. The night vision is enhanced with its high ‐ power LEDs with
up to 30 m (98.4 ft) effective distance. Th e camera supports H.265 video codec to achieve better compression ratio while
maintaining high quality pictures at reduced network bandwidths. GV ‐VD4711 is capable of not only providing a color live view in
near darkness but also under contrasting light intensities using its super low lux CMOS image sensor and WDR Pro.

GV-VD4711 May 7, 2018
- 2 -
Overview



Dimensions







GV-VD4711 May 7, 2018
- 3 -
Specifications
Camera
Image Sensor 1/3” progressive scan super low lux CMOS

Picture Elements 2592 (H) x 1520 (V)

Color 0.03 Lux

B/W 0.02 Lux

Minimum
Illumination
IR ON 0 Lux

Shutter Speed Automatic, Manual (1/5 ~ 1/8000 sec)

White Balance Automatic, Manual (2800K ~ 8500K)

Gain Control Automatic

S/N Ratio 50 dB

WDR WDR Pro

Dynamic Range 120 dB

Lens

Megapixel 4 MP

Day / Night Yes (with removable IR ‐cut filter)

Lens Type Motorized Varifocal lens

Focal Length 2.8 ~ 12 mm

Maximum Aperture F/1.7

Mount Ø 14 mm

Image Format 1/2.7’’

Horizontal FOV 95° ~ 36°

Focus Auto focus

Zoom 4.3x optical zoom

Operation
Iris P ‐ Iris

High Power IR LED Quantity 6 IR LEDs

Max. IR Distance 30 m (98.4 ft)

Operation

Video Compression H.265, H.264, MJPEG

Stream 1 H.265 or H.264

Video Stream
Stream 2 H.265, H.264, or MJPEG

Frame Rate
50Hz: 20 fps at 2592 x1520, 25 fps at 2560 x 1440, 25 fps at 2048 x 1520
60Hz: 20 fps at 2592 x1520, 24 fps at 2560 x 1440, 30 fps at 2048 x 1520
* The frame rate and performance may vary depending on the number of c onnections
and data bitrates (different scenes).

Image Setting
Brightness, Contrast, Sharpness, Gamma, White Balance, Flicker ‐less, Image Orientation,
Backlight Compensation, D/N Sensitivity, Shutter Speed, WDR, Defog,
Zoom, Focus Change, Denoise, Metering

Audio Compression G.711, AAC (Optional)

Audio Support Two ‐way audio

Sensor Input 1 Input (dry contact)

Alarm Output 1 Output (200 mA 5V DC)

Video Resolution

4:3 2048 x 1520, 1600 x 1200, 1280 x 960, 640 x 480

16:9 2592 x 1520, 2560 x 1440 (Default), 2304 x 1296, 1920 x 1080, 1280 x 720, 640 x 360
Main Stream
5:4 1280 x 1024, 640 x 512

4:3 1024 x 768, 640 x 480, 320 x 240

16:9 1280 x 720, 640 x 360 (Default), 448 x 256

Sub Stream
5:4 1280 x 1024, 640 x 512, 320 x 256

Network

Interface 10/100 Ethernet

Ethernet Protocol
DHCP, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IPv4, NTP, ONVIF (Profile S), QoS (DSCP),
RTSP, RTP, RTCP, SNMP, SMTP, SSL, TCP/IP, UDP, UPnP, 3GPP/ISMA











GV-VD4711 May 7, 2018
- 4 -
Mechanical
Temperature Detector Yes

Pan ‐ 90° ~ 90°

Tilt 0° ~ 85°

Camera Angle
Adjustment
Rotate 0° ~ 350°

Power 2 ‐pin terminal block (DC 12V, 3.5A), PoE

Ethernet Ethernet (10/100 Base ‐ T), RJ ‐ 45 cable

Audio
1 In (3.5mm phone jack for microphone)
1 Out (3.5mm phone jack for speaker)

Digital I/O 3 ‐pin terminal block, pitch 2.5 mm (0.1”)

Local Storage
Micro SD card slot (SD/SDHC/SDXC/UHS ‐ I, Class 10)
*UHS ‐ II card type is not supported.

Connectors
TV ‐ Out BNC connector (D1 resolution)

LED Indicator 2 LEDs: Power, Status

General

Start ‐ up
Environment
Temperature
Operation
‐20°C ~ 50°C ( ‐ 4°F ~ 122°F)
Humidity 10% to 90% (no condensation)

Power Source 12V DC / 24V AC / PoE+ (IEEE 802.3at)

Max. Power Consumption 25.5 W

Dimensions Camera Body Ø 176.5 x 118 mm (Ø 6.9’’ x 4.6’’)

Weight 1.83 kg (4.03 lb)

Ingress Protection IP67

Vandal Resistance IK10+

Regulatory CE, FCC, RCM, RoHS compliant

Power over Ethernet

PoE Standard PoE+ (IEEE 802.3at Power over Ethernet / PD)

PoE Power Supply Type End ‐Span and Mid ‐Span

PoE Power Output Per Port 48V DC, 600 mA, Max. 30 watts

Web Interface

Installation Management Web ‐based configuration

Maintenance Firmware upgrade through Web Browser or Utility

Access from Web Browser
Camera live view, video recording, change video quality, bandwidth control, image
snapshot, audio, Wide Angle Lens Dewarping, Picture in Picture, Picture and Picture,
Privacy Mask, Visual automation, Text overlay

Language
Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek
/ Hebrew / Hungarian / Indonesian / Italian /Japanese / Lithuanian / Norwegian / Persian
/ Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian /
Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish

Applications

Software Supported
GV ‐ DVR / NVR (V8.7.1.0), GV ‐ VMS (V15.11.1.0), GV ‐Edge Recording Manager (V1.2.0.0),
GV ‐Center V2 (V15.10.0.0), GV ‐Recording Server (V1.3.0.0), GV ‐Redundant / Failover
Server (V1.1.0.0)

Smart Device Access GV ‐ Eye for iOS and Android

Live Viewing Browser (IE, Chrome, Firefox, Safari), Mobile app

CMS Server support GV ‐Control Center, GV ‐Center V2, GV ‐ Vital Sign Monitor

Note:
1. It is required to apply patch files to all the supported software.
2. Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
3. Mind the following when using a memory card for recording:
* Recorded data on the memory card can be damaged or lost if the data are accessed while the camera is unde r physical
shock, power interruption, memory card detachment or when the memory card reaches the end of its lifespan. No
guarantee is provided for such causes.
* The stored data can be lost if the memory card is not accessed for a long period of time. Back up your data p eriodically if
you seldom access the memory card.

GV-VD4711 May 7, 2018
- 5 -
* Memory cards are expendable and their durability varies according to the conditions of the installed site and how they
are used. Back up your data regularly and replace the memory card annually.
* To avoid power outage, it is highly suggested to apply a battery backup (UPS).
* For better pe rformance, it is highly suggested to use Micro SD card of MLC NAND flash, Class 10.
* Replace the memory card when its read/write speed is lower than 6 MB/s or when the memory card is frequently
undetected by the camera.
4. Specifications are subject to change without notice.

Packing List
1. Vandal Proof IP Dome
2. Torx Wrench
3. 3 ‐ Pin Terminal Block
4. Safety Wire
5. Audio Wire x 2
6. TV Out Wire
7. RJ ‐ 45 Connector x 2
8. Back Plate 1 set
9. Installation Sticker
10. Screw Anchor x 4
11. Long Screw x 4
12. Flat Scre w
13. Short Screw
14. Silica Gel Bag
15. Sticker (for Silica Gel Bag)
16. Ruler
17. Conduit Converter
18. PG21 Conduit Connector
19. Download Guide
20. Warranty Card

Accessories
Model No. Name Details
GV ‐Mount100 Straight Tube and
Junction Box Kit


Dimensions: 200 x 170 x 257.5 mm (7.9 x 6.7 x
10.1”)
Weight: 3.17 kg (6.99 lb)
GV ‐Mount101 Straight Tube Kit


Dimensions: 219 x 125 x 332 mm (8.6 x 4.9 x
13.1”)
Weight: 1.8 kg (3.97 lb)
GV ‐Mount200 Wall Pendant Tube


Dimensions: 225 x 140 x 250 mm (8.9 x 5.5 x
9.8”)
Weight: 900 g (1.98 lb)
GV ‐Mount203 Wall Pendant Tube
and Junction Box Kit


Dimensions: 315 x 195.5 x 225 mm (12.4 x 7.7 x
8.9”)
Weight: 2.95 kg (6.5 lb)
GV ‐Mount206 Wall Mount Bracket
Kit


Dimensions: 126.5 x 211.3 x 176.85 mm (5 x
8.3 x 6.96’’)
Weight: 0.93 kg (2.06 lb)



GV-VD4711 May 7, 2018
- 6 -
Model No. Name Details

GV ‐Mount300 Convex Corner Adapter
Kit


Dimensions: 238.6 x 409.5 mm (9.4’’ x 16.1”)
Weight: 4.27 kg (9.41 lb)

GV ‐Mount310 Concave Corner
Adapter Kit


Dimensions: 123.3 x 393.1 mm (4.9’’ x 15.5’’)
Weight: 2.96 kg (6.53 lb)

GV ‐Mount400 Pole Mount Bracket
Kit (Ø 4’’ ~ 6’’)


Dimensions:
Bracket: 241 x 161 mm (9.5’’ x 6.3”)
Weight: 1.70 kg ( 3.75 lb)
Steel Strap Diameter: Ø 4’’ ~ 6’’

GV ‐Mount410 Pole Mount Bracket Kit
(Ø 6’’ ~ 7.5’’)


Dimensions:
Bracket: 241 x 161 mm (9.5’’ x 6.3”)
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 6’’ ~ 7.5’’

GV ‐Mount702 Extension Tube


Four options are available.
Dimensions:
Ø 5.4 x 10 or 20 or 30 or 50 cm
(Ø 2.1’’ x 3.9’’ or 7.9’’ or 11.8’’ or 19.7”)
Weight:
180 g or 390 g or 550 g or 800 g
(0.4 lb or 0.86 lb or 1.21lb or 1.76 lb)

GV ‐Mount903 GV ‐ VD Series Dome
Housing


Dimensions: Ø 186 x 97.5 mm (Ø 7.3’’ x 3.8”)
Weight: 600 g (1.32 lb)

GV ‐Mount909 Wall Mount Bracket



Dimensions: 170 x 150 x 110 mm (6.7’’ x 5.9” x

4.3’’)

Weight: 610 g (1.34 lb)

GV ‐Mount914 In ‐Ceiling Mount
Dimensions: Ø 222 x 86 mm (Ø 8.74’’ x 3.39’’)

Weight: 705 g (1.55 lb)






GV-VD4711 May 7, 2018
- 7 -
Model No. Name
Details

Metal PG21 Conduit Connector



The metal PG21 conduit connector allows you to

run the wires through a 3 / 4” conduit pipe.

GV ‐Relay V2 GV ‐Relay V2



The GV ‐Relay V2 is designed to expand the

voltage load of GV IP devices. It provides 4 relay

outputs, and each can be set as normally open

(NO) or normally closed (NC) independently as

per your requirement.


Weatherproof Shield



The weatherproof shield protects the camera

from rain and snow.

GV ‐PoE Switch
The GV ‐PoE Switch is designed to provide power along with network connection for

IP devices. The GV ‐PoE Switch is available in various models with different numbers

and types of ports.

Power Adapter Contact our sales representatives for the countries and areas supported.
