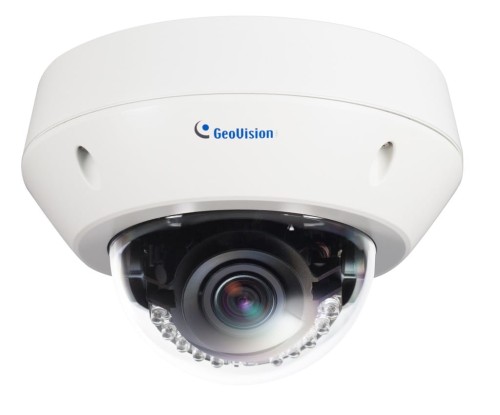

GV-VD4702 4MP H.265 Super Low Lux WDR Pro IR Vandal Proof IP Dome
* 1/3” progressive scan super low lux CMOS
* Min. illumination at 0.02 lux
* Triple streams from H.265, H.264 and MJPEG
* Up to 20 fps at 2592 x 1520, 25 fps at 2560 x 1440, 30 fps at
2048 x 1520
* Vandal resistance (IK10)
* Ingress protection (IP67)
* Megapixel varifocal lens
* P ‐ iris lens for auto iris control
* Intelligent IR
* IR distance up to 30 m (98.42 ft)
* Day and Night function (with removable IR ‐cut filter)
* 3 ‐axis mechanism (pan / tilt / rotate)
* DC 12V / PoE (IEEE 802.3af)
* Two ‐ way audio
* Wide Dynamic Range Pro (WDR Pro)
* 3D noise reduction
* Smart streaming
* Defog
* Motion detection
* Tampering alarm
* Text overlay
* Privacy mask
* IP address filtering
* Recording assigned by GV ‐Edge Recording Manager (Windows
& Mac )
* Supports iPhone, iPad, Android & 3GPP
* 31 languages on Web interface
* ONVIF (Profile S) conformant
* Smart streaming requires either GV ‐ DVR / NVR V8.7.0.0 or
GV ‐VMS V16.10.3
Introduction
The Vandal Proof IP Dome is an outdoor camera designed with IK10 vandal resistance for metal casing and IP67 ingress protection.
The camera can support H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced
network bandwidths. For night operations, the camera allows up to 30 m (9 8.4 ft) IR effective distance. GV ‐VD4702 is capable of
providing a color live view in near darkness, and also under contrasting light intensities with its super low lux CMOS image sensor and
WDR Pro.
Active Tampering Alarm
Tampered Focus Change Camera Shift
GV-VD4702 August 11, 2018
- 2 -
Dimensions
Specifications
Camera
Image Sensor 1/3" progressive scan super low lux CMOS
Picture Elements 2592 (H) x 1520 (V)
Color 0.03 Lux
B/W 0.02 Lux
Minimum
Illumination
IR ON 0 Lux
Shutter Speed Automatic, Manual (1/5 ~ 1/16000 sec.)
White Balance Automatic, Manual (2800K ~ 8500K)
Gain Control Automatic
S/N Ratio 50 dB
WDR WDR Pro
Dynamic Range Up to 120 dB
Lens
Megapixel Yes
Day/Night Yes (with removable IR ‐cut filter)
Focal Length 2.8 ~ 12 mm
Lens Type Varifocal
Maximum Aperture F/1.7
Mount Ø14 mm
Horizontal FOV 102° ~ 36°
Image Format 1/2.7”
Focus Manual (with lock)
Zoom Manual (with lock)
Operation
Iris P ‐ iris
IR LED Quantity 4 IR LEDs
Max. IR Distance 30 m (98.42 ft)
Operation
Video Compression H.265, H.264, MJPEG
Video Streaming
Stream 1 from H.265 or H.264
Stream 2 from H.265, H.264 or MJPEG
Stream 3 from H.265, H.264 or MJPEG
Frame Rate
50 Hz: 20 fps at 2592 x 1520, 25 fps at 2560 x 1440, 25 fps at 2048 x 1520
60 Hz: 20 fps at 2592 x 1520, 24 fps at 2560 x 1440, 30 fps at 2048 x 1520
* The frame rate and the performance may vary de pending on the number of connections
and data bitrates (different scenes).
Image Setting
Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker ‐less, Image
Orientation, Shutter Speed, D/N Sensitivity, Backlight Compensation, WDR, Defog, Low Lux
Enhancement, Denoise, Metering
Audio Compression G.711, AAC (Optional)
Audio Support Two ‐way Audio
Sensor Input 1 input (dry contact)
Alarm Output 1 digital output (200 mA 5V DC)
GV-VD4702 August 11, 2018
- 3 -
Video Resolution
4:3 2048 x 1520, 1600 x 1200, 1280 x 960, 640 x 480
16:9 2592 x 1520, 2560 x 1440 (Default), 2304 x 1296, 1920 x 1080, 1280 x 720, 640 x 360
Main Stream
5:4 1280 x 1024, 640 x 512
4:3 1024 x 768, 640 x 480, 320 x 240
16:9 1280 x 720, 640 x 360 (Default), 448 x 256
Sub Stream
5:4 1280 x 1024, 640 x 512, 320 x 256
4:3 640 x 480, 320 x 240
16:9 640 x 360, 448 x 256
Third Stream
(Closed by Default)
5:4 640 x 512, 320 x 256
Network
Interface 10/100 Ethernet
Ethernet Protocol
DHCP, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IPv4, IPv6, Multicast, NTP, ONVIF (Profile S),
QoS (DSCP), RTP, RTCP, RTSP, SNMP, SMTP, SSL, TCP/IP, UDP, UPnP, 3GPP/ISMA
Mechanical
Temperature Detector Yes
Pan 0° ~ 350°
Tilt 0° ~ 75°
Camera Angle
Adjustment
Rotate 0° ~ 340°
Power 2 ‐pin terminal block, PoE
Ethernet Ethernet (10/100 Base ‐ T), RJ ‐ 45 cable
Audio
1 In (microphone jack, 3.5 mm / 0.14”)
1 Out (stereo phone jack, 3.5 mm / 0.14”)
Digital I/O I/O wires
Local Storage
Micro SD card slot (SD/SDHC/SDXC/UHS ‐ I, Class 10)
*UHS‐ II card type is not supported.
Connectors
TV ‐ Out BNC connector
LED Indicator 2 LEDs: Power, Status
General
Start ‐ up ‐ 20 °C ~ 50 °C ( ‐ 4 °F ~ 122 °F) Environment
Temperature
Operation ‐ 30 °C ~ 50 °C ( ‐ 22 °F ~ 122 °F)
Humidity 10% to 90% (no condensation)
Power Source 12V DC / PoE (IEEE 802.3af)
Max. Power Consumption 6.4 W
Dimension ø160 x 108.4 mm (6.2 x 4.27")
Weight 1.15 kg (2.54 lb)
Ingress Protection IP67
Vandal Resistance IK10
Regulatory CE, FCC, RCM, LVD, RoHS compliant
Power over Ethernet
PoE Standard PoE (IEEE 802.3af Power over Ethernet / PD)
PoE Power Supply Type End ‐Span and Mid ‐Span
PoE Power Output Per Port 48V DC, 350 mA. Max. 15.4 watts
Web Interface
Installation Management Web ‐based configuration
Maintenance Firmware upgrade through Web Browser or Utility
Access from Web Browser
Camera Live View, Video Recording, Change Video Quality, Bandwidth Control, Image
Snapshot, Audio, Picture in Picture, Picture and Picture, Privacy Mask, Text Overlay, Digital
PTZ
Language
Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek /
Hebrew / Hungarian / Indonesian / Italian / Japanese / Lithuanian / Norwegian / Persian /
Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian /
Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish
GV-VD4702 August 11, 2018
- 4 -
Applications
Software Supported
GV ‐ DVR / NVR (V8.7.3.0), GV ‐ VMS (V16.10.3.0), GV ‐Control Center (V3.4.0.0), GV ‐Edge
Recording Manager (V1.2.0.0), GV ‐Center V2 (V16.10), GV ‐Recording Server / Video
Gateway (V1.3.0.0), GV ‐Redundant / Failover Server (V1.1.0.0)
Smart Device Access GV ‐ Eye for iOS and Android
Remote Live Viewing Browser (IE, Chrome, Firefox, Safari), Mobile app
CMS Server support GV ‐Control Center, GV ‐Center V2, GV ‐ Vital Sign Monitor
Note:
1. It is required to apply patch files to all the supported software mentioned above.
2. The signal range and data throughput may vary depending on the network conditions and environmental factors.
3. Specifications are subject to change without prior notice.
Packing List
1. H.265 Vandal Proof Dome
2. Screw x 4
3. Screw Anchor x 4
4. TV ‐ Out Wire
5. Audio Wire x 2
6. I/O Cable
7. Installation Sticker
8. Conduit Converter
9. PG21 Conduit Connector
10. RJ ‐ 45 Connector
11. Waterproof Rubber Sets
(for RJ ‐ 45 Cat.5 and DC 12V / fo r RJ ‐ 45 Cat.6)
12. Torx Wrench
13. Big Concave Hexagon Wrench
14. Small Concave Hexagon Wrench
15. Silica Gel Bag
16. Sticker (for Silica Gel Bag)
17. Ruler
18. Download Guide
19. Warranty Card
Note: Power adapters can be purchased upon request.
Accessories
Model No. Name Details
GV ‐Mount100 Straight Tube and
Junction Box Kit
Dimensions: 200 x 170 x 257.5 mm
(7.9 x 6.7 x 10.1”)
Weight: 3.17 kg (6.99 lb)
GV ‐Mount101 Straight Tube Kit
Dimensions: 219 x 125 x 332 mm
(8.6 x 4.9 x 13.1”)
Weight: 1.8 kg (3.97 lb)
GV ‐Mount200 Wall Pendant Tube
Dimensions: 225 x 140 x 250 mm
(8.9 x 5.5 x 9.8”)
Weight: 900 g (1.98 lb)
GV-VD4702 August 11, 2018
- 5 -
Model No. Name Details
GV ‐Mount203 Wall Pendant Tube and
Junction Box Kit
Dimensions: 315 x 195.5 x 225 mm
(12.4 x 7.7 x 8.9”)
Weight: 2.95 kg (6.5 lb)
GV ‐Mount206 Wall Mount Bracket Kit
Dimensions: 126.5 x 211.3 x 176.85 mm
(5 x 8.3 x 6.96’’)
Weight: 0.93 kg (2.06 lb)
GV ‐Mount300 ‐ 1 Convex Corner Adapter Kit
Dimensions: 238.6 x 395.2 x 210 mm
(9.4’’ x 15.5” x 8.2”)
Weight: 4.27 kg (9.41 lb)
GV ‐Mount310 ‐ 1 Concave Corner Adapter Kit
Dimensions: 111.2 x 369.9 x 210 mm
(4.37’’ x 14.5” x 8.2”)
Weight: 2.96 kg (6.53 lb)
GV ‐Mount400 ‐ 1 Pole Mount Bracket Kit (Ø 4
~ 6")
Dimensions:
Bracket: 68.4 x 240 x 163 mm
(2.69” x 9.44’’ x 6.41”)
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 4" ~ 6"
GV ‐Mount410 ‐ 1 Pole Mount Bracket Kit
(Ø 6 ~ 7.5")
Dimensions:
Bracket: 68.4 x 240 x 163 mm
(2.69” x 9.44’’ x 6.41”)
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 6" ~ 7.5"
GV ‐Mount702 Extension Tube
Four options are available.
Dimensions:
Ø 5.4 x 10 or 20 or 30 or 50 cm
(Ø 2.1 x 3.9 or 7.9 or 11.8 or 19.7”)
Weight:
180 g or 390 g or 550 g or 800 g
(0.4 lb or 0.86 lb or 1.21lb or 1.76 lb)
GV ‐Mount903 GV ‐ VD Series Dome Housing
Dimensions: Ø 186 x 97.5 mm (Ø 7.3 x
3.8”)
Weight: 600 g (1.32 lb)
GV-VD4702 August 11, 2018
- 6 -
Model No. Name Details
GV ‐Mount916 In ‐Ceiling Mount
Dimensions: Ø 205 x 63.8 mm (Ø 8 x 2.5")
Weight: 645 g
GV ‐PA191 PoE Adapter
Dimensions (H x W x D): 43 x 69 x 40 mm (1.69 x
2.72 x 1.57”)
Weight: 130 g (0.29 lb)
Metal PG21 Conduit Connector
The metal PG21 conduit connector allows you to
run the wires through a 3/4” conduit pipe.
GV ‐Relay V2
The GV ‐Relay V2 is designed to expand the
voltage load of GV IP devices. It provides 4 relay
outputs, and each can be set as normally open
(NO) or normally closed (NC) independently as
per your requirement.
GV ‐ POE Switch
The GV ‐ POE Switch is designed to provide power along with network connection for
IP devices. The GV ‐ POE Switch is available in various models with different numbers
and types of ports.
Power Adapter Contact our sales representative for the countries and areas supported.
