GV-TVD8810

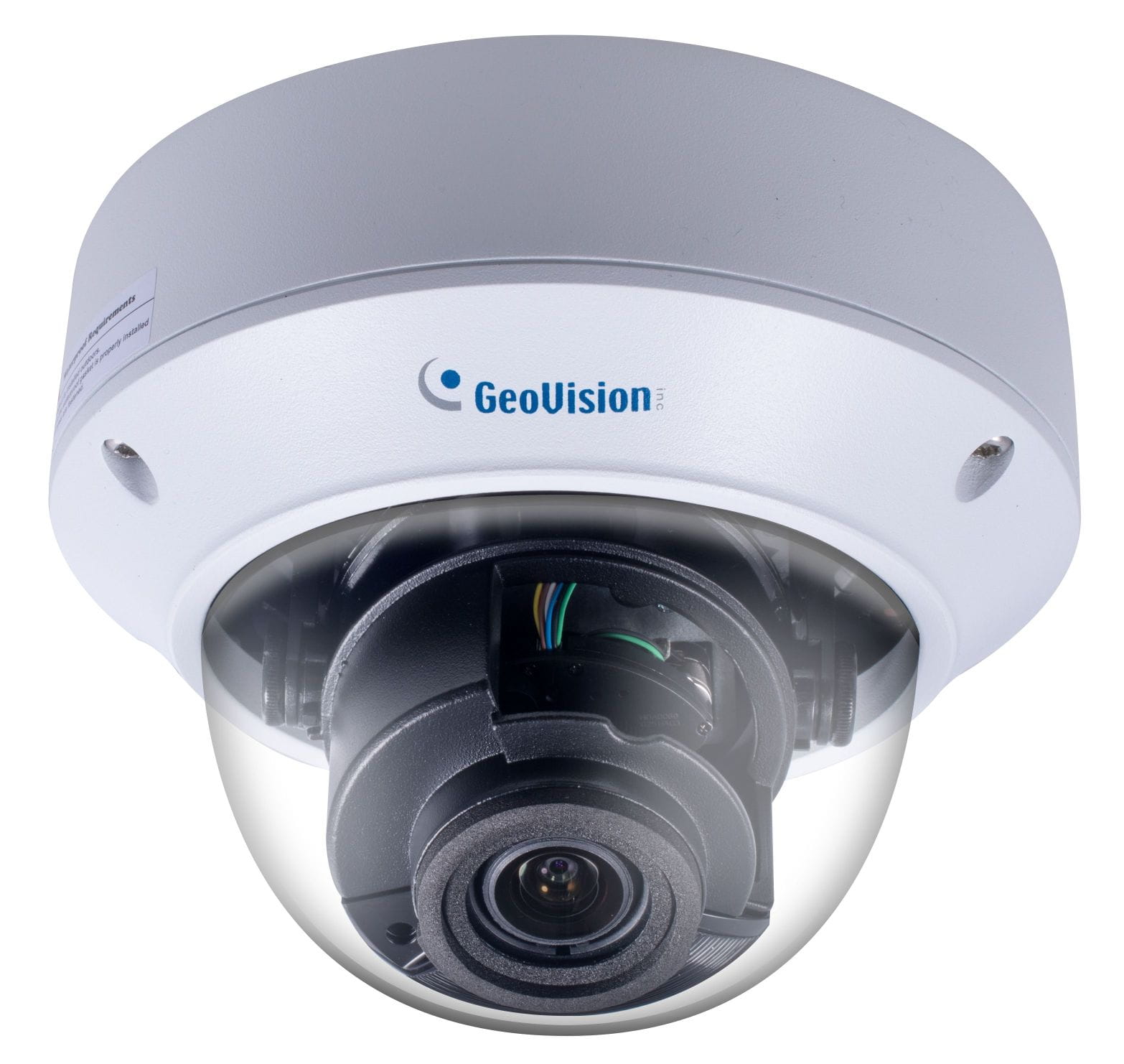

GV-TVD8810 AI 8MP H.265 4.3x Zoom Super Low Lux WDR Pro IR Vandal Proof IP Dome                  * AI Deep learning: AI Perimeter Protection & Classification  (Human, Vehicle)  * 1/2.8" progressive scan low lux CMOS sensor  * Triple streams from H.265, H.264 or MJPEG  * Wide Dynamic Range Pro (WDR Pro)  * Min. illumination at 0.003 lux  * Up to 20 fps at 3840 x 2160  * Intelligent IR  * Day and night function (with removable IR ‐cut filter)  * Motorized varifocal lens for remote focus / zoom adjustment...

Warranty: 24 mon.

Datasheet

Text contents of PDF datasheet:

GV-TVD8810 AI 8MP H.265 4.3x Zoom Super Low Lux WDR Pro IR Vandal Proof IP Dome








* AI Deep learning: AI Perimeter Protection & Classification
(Human, Vehicle)
* 1/2.8" progressive scan low lux CMOS sensor
* Triple streams from H.265, H.264 or MJPEG
* Wide Dynamic Range Pro (WDR Pro)
* Min. illumination at 0.003 lux
* Up to 20 fps at 3840 x 2160
* Intelligent IR
* Day and night function (with removable IR ‐cut filter)
* Motorized varifocal lens for remote focus / zoom adjustment
* IR distance up to 40 m (130 ft)
* Vandal Resistance (IK10 for metal casing)
* Ingress protection (IP67)
* Built ‐ in micro SD card slot (SD / SDHC / SDXC / UHS ‐ I, Class 10)
for local storage
* Two ‐way audio
* DC 12V / PoE (IEEE 802.3af)
* ONVIF (Profile G, S, T) conformant


Introduction
The Dome IP Camera is an outdoor, network camera equipped with an automatic IR ‐cut filter and IR LEDs for day and night
surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at
reduced network bandwidths. GV ‐TVD8810 adheres to IK10 and IP67 st andards, and can be powered through PoE.

Empowered by deep learning algorithms, AI technology distinguishes human and vehicles from other moving objects. Integrated with
GeoVision Video Management Software (VMS), it supports AI perimeter protection, real time alert, events playback and more.


Deep Learning Function


AI Perimeter Protection AI Event Search
(Intrusion, Crossing Line (VMS V18.3 or later)
Entering Area, Leaving Area)







Note: The integration of AI events of the camera to GV ‐VMS is coming soon.





GV-TVD8810 August 18, 2021
- 1 -

Dimensions



Specifications
Camera
Image Sensor 1/2.8" progressive scan low lux CMOS

Picture Elements 3840 (H) x 2160 (V)

Color 0.003 Lux (F1.6, AGC ON)

Minimum
Illumination
IR On 0 Lux

Shutter Speed Auto / Manual (1 ~ 1/100000 sec)

White Balance Auto / Manual

Gain Control Auto / Manual

S/N Ratio 56 dB

WDR Pro Yes

Dynamic Range Up to 120 dB

Lens

Megapixel 8 MP

Day / Night Yes (with removable IR ‐cut filter)

Lens Type Motorized varifocal lens

Focal Length 2.8 ~ 12 mm

Maximum Aperture F/1.6

Mount Ø14 mm

Horizontal FOV 34 ~ 106°

Focus Auto / Manual

Zoom 4.3x Optical Zoom

Operation
Iris Fixed

IR LED Quantity 2 IR LEDs

Max. IR Distance 40 m (130 ft)

Operation

Video Compression H.265, H.264, MJPEG

Video Streaming Triple streams

Main Stream 3840 x 2160 (Default), 3072 x 1728, 2560 x 1440, 1920 x 1080

Sub Stream 1920 x 1080, 1280 x 720, 720 x 576, 704 x 288, 640 x 360 (Default), 352 x 288

Video
Resolution
Third Stream
(Closed by Default)
720 x 576, 704 x 288, 640 x 360, 352 x 288

Frame Rate
20 fps at 3840 x2160, 25 fps at 3072 x 1728 / 2560 x 1440, 30 fps at 1920 x 1080 (60
/ 50 Hz)
*The frame rate and performance may vary depending on the number of
connections and data bitrates (different scenes).

Video Analytics
Motion Detection, Tampering Alarm, Audio Detection
*Tampering alarm and Audio detection are only accessible through the camera’s
Web interface, which can be used to trigger alerts such as e ‐mail and FTP

Image Setting
Brightness, Contrast, Saturation, Sharpness, Flicker ‐less, Image Orientation (Flip,
Mirror, 0°, 90°, 180°, 270° ‐including Corridor format)

GV-TVD8810 August 18, 2021
- 2 -

Audio Compression G.711

Audio Support Two ‐way Audi o (external speaker required)

Input 1 Input, dry contact, NO / NC

Digital I/O
Output 1 Relay Output (1A 30V DC / 0.3A 125V AC)

Deep Learning Function

AI Perimeter Protection Intrusion, Crossing Line, Entering Area, Leaving Area (Human & Vehicle classification)

Network

Interface 10/100 Ethernet

Protocol
ARP, DHCP, DDNS, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, NTP, PPPoE,
RTCP, RTP, RTSP, SMTP, TCP, UDP, UPnP, ONVIF (Profile G, S, T)

Mechanical

Pan 0 ~ 360°

Tilt 0 ~ 68°

Camera Angle
Adjustment
Rotate 0 ~ 360°

Power DC Jack, PoE

Ethernet RJ ‐ 45

Audio
1 In (built ‐ in or external microphone with power supply)
1 Out (Audio Out Wire)

Digital I/O 4 ‐pin terminal block pitch 3.5 mm (0.14”)

Connectors
Local Storage
Micro SD card slot (SD / SDHC / SDXC / UHS ‐ I, Class 10)
* UHS ‐ II card type is not supported.

General

Operating Temperature ‐ 30 ~ 60°C ( ‐ 22 ~ 140°F)

Humidity 0 ~ 95% (no condensation)

Power Source 12 V DC / PoE (IEEE802.3af)

Max. Power Consumption 5.5 W

Dimensions Ø148 x 111 mm (Ø5.8 x 4.4”)

Weight 0.45 kg (0.99 lb)

Ingress Protection IP67

Vandal Resistance IK10 for metal casing

Regulatory FCC, CE, RoHS compliant

Web Interface

Installation Management Web ‐based configuration

Maintenance Firmware upgrade through Web Browser or GV ‐ IP Device Utility

Access from Web Browser
Live View, Video Recording, Change Video Quality, Bandwidth Control, Image
Snapshot, Text Overlay, Image Masking

Language
Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese,
Russian, Spanish, Traditional Chinese

Software Application

Software Supported
GV ‐VMS (V17.4.1 / V18.2.1), GV ‐ DVR / NVR (V8.9.1), GV ‐Control Center (V3.8.0),
GV ‐Recording Server / Video Gateway (V2.0.0), GV ‐Edge Recording Manager Win
version (V2.0.0), GV ‐Redundant / Failover Server (V1.2.0)

Smart Device Access GV ‐Eye for iOS and Android

Live Viewing Browser (IE, Edge, Chrome), Mobile App

Note:
1. It is required to apply patch files to all or some of the supported software.
2. Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
3. Specifications are subject to change without notice.

Packing List
1. GV ‐TVD8810 IR Vandal Proof Dome
2. Waterproof Rubber Set
3. Screw Kit
4. Drill Template Paster
5. Torx Wrench
6. Download Guide
7. Warranty Card


GV-TVD8810 August 18, 2021
- 3 -

A

ccessories
Model No. Name
Details
GV ‐Mount107
(must be used with
GV ‐Mount212 ‐ 2)
Pendant Bracket



Dimensions: Ø 120 x 334 mm (Ø 4.72”

x 13.15”)

Weight: 0.74 kg (1.63 lb)
GV ‐Mount211 ‐ 2 Wall Mount and
Junction Box



Dimensions: Ø 253 x125 x 125 mm (Ø

10 x 4.9 x 4.9”)

Weight: 0.92 kg (2.02 lb)
GV ‐Mount212 ‐ 2 Wall Box Mount



Dimensions: Ø145 x 40 mm (Ø 5.7 x

1.6”)

Weight: 0.24 kg (0.5lb)
GV ‐Mount300 ‐ 2 Convex Corner
Mount



Dimensions: 137 x 233 x 160 mm (5.4”

x 9.17” x 6.3”)

Weight: 1.65 kg (3.64 lb)
GV ‐Mount310 ‐ 2 Concave Corner
Mount



Dimensions: 111.2 x 369.9 x 210 mm

(2.6” x 11.4” x 6.6”)

Weight: 1.65 kg (3.64 lb)
GV ‐Mount420
(must be used with
GV ‐Mount211 ‐ 2)
Pole Mount Bracket



Dimensions: Ø 20 x 120 x 53.4 mm (Ø

4.7 x 4.7 x 2.1”)

Steel Strap Diameter: Ø 67 ~ 127 mm

(Ø 2.6” ~ 5”)

Weight: 0.45 kg (0.99 lb)
GV ‐Mount606 In ‐Ceiling Mount



Dimensions: Ø 235 x 63 mm (Ø 9.3” x

2.5”)

In ‐ceiling hole: Ø 195 mm (Ø 7.67”)

Weight: 0.49 kg (1.1 lb)
GV ‐Mount704
(must be used with
GV ‐Mount107)
Extension Tube



Dimensions: Ø 3.5 x 10 or 20 or 30 or

50 cm (Ø 1.38 x 3.9 or 7.9 or 11.8 or

19.7”)

Weight: 225g or 360g or 500g or 780g

(0.5 lb or 0.79 lb or 1.1 lb or 1.72 lb)
GV ‐PA191

Power over Ethernet
(PoE) Adapter



GV ‐PA191 is a Power over Ethernet

(PoE) adapter designed to provide

power to the IP device through a single

Ethernet cable.
GV ‐ POE Switch
GV ‐POE Switch is designed to provide power along with network connection for IP

devices. The GV ‐POE Switch is available in various models with different numbers

and types of ports.

Power Adapter Contact our sales representatives for the countries and areas supported.


GV-TVD8810 August 18, 2021
- 4 -
