GV-TVD4811 August 5, 2024
- 1 -

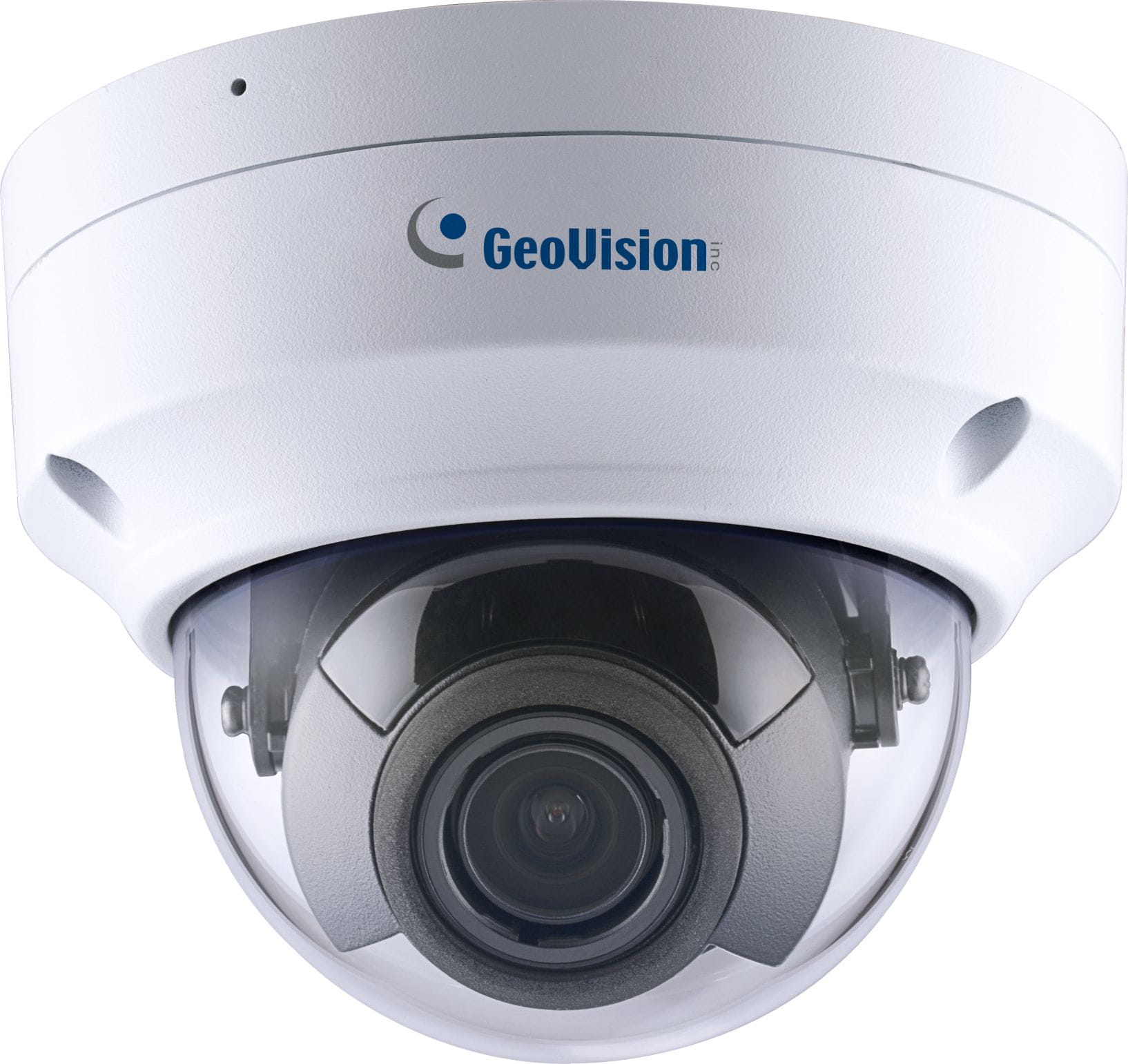

GV-TVD4811 AI 4MP H.265 5x Zoom Super Low Lux WDR Pro IR Vandal Proof IP
Dome




• AI deep learning: AI Perimeter Protection & Classification
(Human, Vehicle)
• 1/2.7” progressive scan CMOS
• Min. illumination at 0.002 lux
• Triple streams from H.265, H.264 and MJPEG
• Up to 30 fps at 2688 x 1520
• Motorized lens for remote focus / zoom adjustment
• Intelligent IR
• IR distance up to 30 m (100 ft)
• Day and Night function (with removable IR-cut filter)
• Vandal resistance (IK10 for metal casing)
• Ingress protection (IP66)
• 3-axis mechanism (pan / tilt / rotate)
• DC 12V / PoE (IEEE 802.3af)
• Built-in micro SD card slot (SD / SDHC / SDXC / UHS-I, Class 10)
for local storage
• Two-way audio capable
• Built-in microphone
• Pigtail-free
• Wide Dynamic Range Pro (WDR Pro)
• Defog
• 3D noise reduction
• Motion detection
• Text overlay
• Privacy mask
• Tampering Alarm
• 12 languages supported
• ONVIF (Profile G, S, T, M) conformant

Introduction
GV-TVD4811 is an outdoor camera designed with IK10 vandal resistance and IP66 ingress protection. GV-TVD4811 supports H.265
video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. The camera
is equipped with an automatic IR-cut filter and IR LEDs for day and night surveillance. Adjustable in 3 axis (pan, tilt and rotate), it
offers an entry-level surveillance solution with all the essential features and excellent image quality.

Empowered by deep learning algorithms, AI technology distinguishes human and vehicles from other moving objects. Integrated with
GeoVision Video Management Software (VMS), it supports AI perimeter protection, real time alert, events playback and more.



GV-TVD4811 August 5, 2024
- 2 -

Deep Learning Function

Face Detection
AI Perimeter Protection
(Intrusion, Crossing Line
Entering Area, Leaving Area)

People Counting

Dimensions



Specifications
Camera
Image Sensor 1/2.7” progressive scan CMOS
Picture Elements 2688 (H) x 1520 (V)
Minimum
Illumination
Color 0.00 2Lux (F1.2, AGC ON)
IR On 0 Lux
Shutter Speed Automatic, Manual (1 ~ 1/100000 sec)
White Balance Automatic, Manual
Gain Control Automatic, Manual
S/N Ratio 56 dB
WDR Pro Yes
Dynamic Range 120 dB
Lens
Megapixel 4 MP
Day/Night Yes (with removable IR-cut filter)
Focal Length 2.7 ~ 13.5 mm
Lens Type Motorized varifocal lens
Maximum Aperture F/1.2
Mount Ø14 mm
Horizontal FOV 103.58° ~ 31.05°
Operation
Focus Automatic / Manual
Zoom 5x Optical Zoom
Iris Fixed
IR LED Quantity 2 IR LEDs
Max. IR Distance 30 m (100 ft)



GV-TVD4811 August 5, 2024
- 3 -
DORI Detect Observe Recognize Identify
Lens
2.7 mm 60.8 m (199.5 ft) 24.3 m (79.7 ft) 12.2 m (40 ft) 6.1 m (20 ft)
13.5 mm 303.8 m (996.7 ft) 121.5 m (398.6 ft) 60.8 m (199.5 ft) 30.4 m (99.7 ft)
Operation
Video Compression H.265, H.264, MJPEG
Video Streaming Triple streams
Video Resolution
Main Stream 2688 x 1520 (Default), 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720
Sub Stream 1280 x 720, 720 x 576, 640 x 480, 640 x 360 (Default)
Third Stream
(Closed by
Default)
720 x 576, 704 x 288, 640 x 360, 352 x 288
Frame Rate
30 fps at 2688 x 1520, 30 fps at 2560 x 1440, 30 fps at 2304 x1296, 30 fps at 1920x 1080 (60
/ 50 Hz)
* The frame rate and performance may vary depending on the number of connections and
data bitrates (different scenes).
Maximum throughput 40 Mbps
Maximum stream
*When the total bitrate is within
the maximum throughput
20
Video Analytics
Motion Detection, Tampering Alarm, Audio Detection
*Tampering alarm and audio detection are only accessible through the camera’s Web
interface, which can be used to trigger alerts such as e-mail and FTP
Image Setting
Brightness, Contrast, Saturation, Sharpness, Flicker-less, 3D Noise Reduction, Image
Orientation (Flip, Mirror, 0°, 90°, 180°, 270°‐including Corridor format).
Audio Compression G.711
Audio Support Two‐way Audio (external speaker required)
Digital I/O
Input 1 Input, dry contact, NO / NC
Output 1 Relay Output (1A 30V DC / 0.3A 125V AC)
Network
Interface 10 /100 Ethernet
Protocol
802.1x, ARP, DHCP, DDNS, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE,
QoS, RTCP, RTP, RTSP, SMTP, SNMP, TCP, UDP, UPnP, ONVIF (Profile G, S, T, M)
Deep Learning Function
AI Analytics
- Intrusion, Cross Line, Enter Area, Leave Area: Human & Vehicle classification
- People Flow Counting, Crowd Density Monitoring, Face Detection
Mechanical
Camera Angle
Adjustment
Pan 0° ~ 356°
Tilt 0° ~ 70°
Rotate 0° ~ 356°
Connectors
Power 2-pin terminal block (DC 12 V, 1.25 A), PoE
Ethernet RJ-45
Audio
1 built-in microphone
1 In and 1 Out (4-pin terminal block pitch 2.5 mm (0.1”)
Digital I/O 4-pin terminal block pitch 2.5 mm (0.1”)
Local Storage
Micro SD card slot (SD / SDHC / SDXC / UHS-I, Class 10)
* UHS-II card type is not supported.
Face Detection
Environment 100 lux
Detectable face
angle
≤ 10° ≤ 10°
≤ 30° ≤ 30°
Max. number of faces Up to 40
Min. face image pixel requirement 80 pixels
General
Operating Temperature -30°~ 55°C (-22° ~ 131°F)
Humidity 0 ~ 95% (no condensation)
Power Source 12 V DC / PoE (IEEE802.3af)
Max. Power Consumption 6.5 W
Dimensions Ø 128 x 100 mm (Ø 5.04” x 3.94”)
Weight 0.59 kg (1.31 lb)


GV-TVD4811 August 5, 2024
- 4 -
Ingress Protection IP66
Vandal Resistance IK10 for metal casing
Certification CE, FCC, LVD, RoHS, UL compliant
Web Interface
Installation Management Web-based configuration
Maintenance Firmware upgrade through Web Browser or Utility
Access from Web Browser
Live View, Video Recording, Change Video Quality, Bandwidth Control, Image
Snapshot, Text Overlay, Image Masking
Language
Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese, Russian,
Spanish, Traditional Chinese
Software Applications
Software Supported
GV‐VMS (V17.4.6 / V18.3.2 or later), GV‐Control Center (V4.1.1 or later), GV‐Edge Recording
Manager Windows Version (V2.2.7 or later), GV‐Recording Server / Video Gateway (V2.1.0
or later),
Smart Device Access GV-Eye for iOS and Android (V3.1.0 or later)
Live Viewing Bowser (IE, Edge, Chrome, Firefox), Mobile App
Note:
1. Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
2. Specifications are subject to change without notice.

Packing List
1. GV‐TVD4811 Dome
2. 2-Pin Power Terminal Block
3. Screw Kit
4. Drill Template Paster
5. Torx Wrench
6. Download Guide
7. Cable Protection Connector
8. Spare Waterproof Rubber Set

Accessories
Model No. Name Details
GV-Mount107
(must be used with
GV-Mount 212-P)
Pendant Bracket


Dimensions: Ø 120 x 334 mm
(Ø 4.72” x 13.15”)
Weight: 0.74 kg (1.63 lb)
GV-Mount211P Wall Mount and
Junction Box


Dimensions: Ø 233 x126 x 126 mm
(Ø 9.2 x 5 x 5”)
Weight: 1 kg (2.2 lb)
GV-Mount212P Wall Box Mount


Dimensions: Ø 126 x 36 mm
(Ø 5.0 x 1.4”)
Weight: 0.22 kg (0.48 lb)
GV-Mount300-2 Convex Corner
Mount


Dimensions: 137 x 233 x 160 mm
(5.4” x 9.17” x 6.3”)
Weight: 1.65 kg (3.64 lb)
GV-Mount310-2 Concave Corner
Mount


Dimensions: 111.2 x 369.9 x 210 mm
(2.6” x 11.4” x 6.6”)
Weight: 1.65 kg (3.64 lb)
GV-Mount420 (must
be used with
GV-Mount211P)
Pole Mount Bracket



Dimensions: Ø 120 x 120 x 53.4 mm (Ø
4.7 x 4.7 x 2.1”)
Steel Strap Diameter: Ø 67 ~ 127 mm
(Ø 2.6” ~ 5”)
Weight: 0.45 kg (0.99 lb)


GV-TVD4811 August 5, 2024
- 5 -
GV-Mount704
(must be used with
GV-Mount107)
Extension Tube


Dimensions: Ø 3.5 x 10 or 20 or 30 or
50 cm (Ø 1.38 x 3.9 or 7.9 or 11.8 or
19.7”)
Weight: 225g or 360g or 500g or 780g
(0.5 lb or 0.79 lb or 1.1 lb or 1.72 lb)
GV-PA191

PoE Adapter


GV-PA191 is a Power over Ethernet
(PoE) adapter designed to provide
power to the IP device through a single
Ethernet cable.
GV-PA301 Gigabit PoE Adapter


GV-PA301 is a Gigabit Power over
Ethernet (PoE) adapter.
GV-POE Switch GV-POE Switch is designed to provide power along with network connection for IP
devices. The GV-POE Switch is available in various models with different numbers
and types of ports.
Power Adapter Contact our sales representatives for the countries and areas supported.
