GV-TVD4710

GV-TVD4710 December 31, 2019  - 1 -  GV-TVD4710 4MP H.265 4.3x Zoom Low Lux WDR Pro IR Vandal Proof IP Dome      * 1/3” progressive scan low lux CMOS  * Min. illumination at 0.005 lux  * Triple streams from H.265, H.264 and MJPEG  * Up to 20 fps at 2592 x 1520, 25 fps at 2560 x 1440 and 30 fps  at 2048 x 1520  * Motorized varifocal lens for remote focus / zoom adjus tment  * Intelligent IR  * IR distance up to 30 m (...

Warning! Product withdrawn from production!

Replacement product: GV-TVD4810

Replacement product code: 84-TVD480W-0010

Warranty: 24 mon.

Datasheet

Text contents of PDF datasheet:

GV-TVD4710 December 31, 2019
- 1 -
GV-TVD4710 4MP H.265 4.3x Zoom Low Lux WDR Pro IR Vandal Proof IP Dome


* 1/3” progressive scan low lux CMOS
* Min. illumination at 0.005 lux
* Triple streams from H.265, H.264 and MJPEG
* Up to 20 fps at 2592 x 1520, 25 fps at 2560 x 1440 and 30 fps
at 2048 x 1520
* Motorized varifocal lens for remote focus / zoom adjus tment
* Intelligent IR
* IR distance up to 30 m (98.4 ft)
* Day and Night function (with removable IR ‐cut filter)
* Vandal resistance (IK10 for metal casing)
* Ingress protection (IP67)
* 3 ‐axis mechanism (pan / tilt / rotate)
* DC 12V / PoE (IEEE 802.3af)
* Built‐ in micro SD card slot (SD / SDHC / SDXC / UHS ‐ I, Class 10)
for local storage
* Two ‐way audio
* Wide Dynamic Range Pro (WDR Pro)
* Defog
* 3D noise reduction
* Motion detection
* Text overlay
* Privacy mask
* Tampering Alarm
* ONVIF (Profile G, S, T) conformant


Introduction

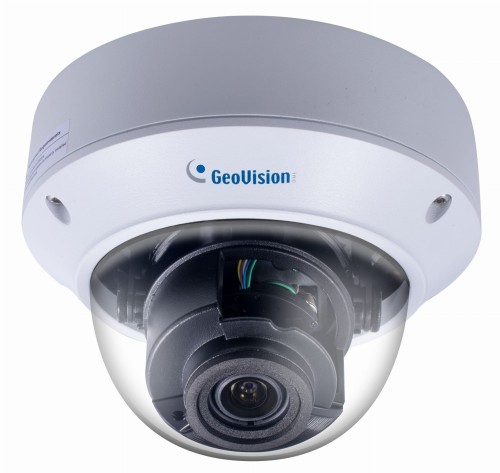

The Vandal Proof IP Dome is an outdoor camera designed with IK10 vandal resistance and IP67 ingress protection. GV ‐TVD4710
supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network
bandwidths. The camera is equipped with an automatic IR ‐cut filter and IR LEDs fo r day and night surveillance. Adjustable in 3 axes
(pan, tilt and rotate), it offers an entry ‐level surveillance solution with all the essential features and excellent image quality.

Active Tampering Alarm
Tampered Focus Change Camera Shift





GV-TVD4710 December 31, 2019
- 2 -
Dimensions



Specifications
Camera

Image Sensor 1/3” progressive scan low lux CMOS

Picture Elements 2592(H) x 1520 (V)

Color 0.005 Lux (F1.4, AGC ON)

Minimum
Illumination
IR On 0 Lux

Shutter Speed Automatic, Manual (1/6 ~ 1/100000 sec)

White Balance Automatic, Manual

Gain Control Automatic, Manual

S/N Ratio 56 dB

WDR Pro Yes

Dynamic Range Up to 120 dB

Lens

Megapixel 4 MP

Day/Night Yes (with removable IR ‐cut filter)

Focal Length 2.8 ~ 12 mm

Lens Type Motorized varifocal lens

Maximum Aperture F/1.4

Mount Ø14 mm

Horizontal FOV 91 ~ 27°

Focus Automatic / Manual

Zoom 4.3x Optical Zoom

Operation
Iris Fixed

IR LED Quantity 2 IR LEDs

Max. IR Distance 30 m (98.4 ft)

Operation

Video Compression H.265, H.264, MJPEG

Video Streaming Triple streams

Frame Rate
20 fps at 2592 x 1520, 25 fps at 2560 x 1440, 30 fps at 2048 x 1520 (60 / 50 Hz)
* The frame rate and the performance may vary depending on the number of connections
and data bitrates (different scenes).

Video Analytics
Motion Detection, Tampering Alarm, Audio Detection, Cross Line, Intrusion, Object Moving,
Object Left, Defocus, Scene Change, Face Detection, People Counting
*Tampering alarm, audio detection, cross line, intrusion, object moving, object left,
defocus, scene change, face detection and people counting are only accessible through the
camera’s Web interface, which can be us ed to trigger alerts such as e ‐mail and FTP

Image Setting Brightness, Contrast, Saturation, Sharpness, Flicker ‐less, Image Orientation


GV-TVD4710 December 31, 2019
- 3 -
Audio Compression G.711, AAC (optional)

Audio Support Two ‐way Audio (external microphone and speaker required)

Input 1 Input, dry contact, NO / NC

Digital I/O
Output 1 Relay Output (1A 30V DC / 0.3A 125V AC)

Note:
1. It is required to apply patch files to some or all of the supported software.
2. Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
3. Specifications are subject to change without notice.




Video Resolution
Main Stream 2592 x 1520, 2560 x 1440 (Default), 2048 x 1520, 1920 x 1080

Sub Stream 1920 x 1080, 1280 x 720, 720 x 576, 704 x 288, 640 x 360 (Default), 352 x 288

Video Resolution
Third Stream
(Closed by
Default)
720 x 576, 704 x 288, 640 x 360, 352 x 288

Network

Interface 10/100 Ethernet

Ethernet Protocol
802.1x, ARP, DHCP, DDNS, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, NTP, PPPoE,
QoS, RTCP, RTP, RTSP, SMTP, SNMP, TCP, UDP, UPnP, ONVIF (Profile G, S, T)

Mechanical

Pan 0 ~ 360°

Tilt 0 ~ 80°

Camera Angle
Adjustment
Rotate 0 ~ 360°

Power DC Jack, PoE

Ethernet RJ ‐ 45

Audio
1 in (Audio In Wire); 1 out (Audio Out Wire)
*The Audio In port only supports microphones with power supply.

Digital I/O 4 ‐pin terminal block pitch 3.5 mm (0.14”)

Local Storage
Micro SD card slot (SD / SDHC / SDXC / UHS ‐ I, Class 10)
* UHS ‐ II card type is not supported.

Connectors
TV ‐ Out BNC connector

General

Environment Temperature ‐ 40 ~ 60°C ( ‐ 22 ~ 140°F)

Humidity 0 ~ 95% (no condensation)

Power Source 12 V DC / PoE (IEEE 802.3af)

Max. Power Consumption 7.2 W

Dimension Ø148 x 111.3 mm (Ø5.8 x 4.4”)

Weight 0.75 kg (1.7 lb)

Ingress Protection IP67

Vandal Resistance IK10 for metal casing

Regulatory CE, FCC, RoHS compliant

Web Interface

Installation Management Web ‐based configuration

Maintenance Firmware upgrade through Web Browser or Utility

Access from Web Browser
Live View, Video Recording, Change Video Quality, Bandwidth Control, Image
Snapshot, Text Overlay, Image Masking

Language
Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese, Russian,
Spanish, Traditional Chinese

Applications

Network Storage
GV ­ DVR / NVR (V8.8.0), GV ­VMS (V17.1.0.100), GV ­Control Center (V3.5.1),
GV ‐Edge Recording Manager Windows (V1.4.0), GV ‐Recording Server / Video Gateway
(V1.4.2), GV ­Redundant / Failover Server (V1.1.0.0)

Smart Device Access GV ‐ Eye for iOS and Android

Live Viewing Browser (IE, Edge Chrome), Mobile App


GV-TVD4710 December 31, 2019
- 4 -
Packing List
1. IR Vandal Proof Dome
2. Waterproof Rubber Set
3. Screw Kit
4. Drill Template Paster
5. Torx Wrench
6. Download Guide
7. Warranty Card


Accessories
Model No. Name
Details
GV ‐Mount107
(must be used with
GV ‐Mount212 ‐ 2)
Pendant Bracket



Dimensions: Ø 120 x 334 mm ( Ø 4.72”

x 13.15”)

Weight: 0.74 kg (1.63 lb)
GV ‐Mount211 ‐ 2 Wall Mount Bracket



Dimensions: Ø 253 x125 x 125 mm (Ø

10 x 4.9 x 4.9”)

Weight: 0.92 kg (2.02 lb)
GV ‐Mount212 ‐ 2 Wall Box Mount



Dimensions: Ø145 x 40 mm (Ø 5.7 x

1.6”)

Weight: 0.24 kg (0.5 lb)
GV ‐Mount300 ‐ 2 Convex Corner
Mount



Dimensions: 137 x 233 x 160 mm (5.4”

x 9.17” x 6.3”)

Weight: 1.65 kg (3.64 lb)
GV ‐Mount310 ‐ 2 Concave Corner
Mount



Dimensions: 111.2 x 369.9 x 210 mm

(2.6” x 11.4” x 6.6”)

Weight: 1.65 kg (3.64 lb)
GV ‐Mount420
(must be used with
GV ‐Mount211 ‐ 2)
Pole Mount Bracket



Dimensions: Ø120 x 120 x 53.4 mm (Ø

4.7 x 4.7 x 2.1”)

Steel Strap Diameter: Ø 67 ~ 127 mm

(Ø 2.6” ~ 5”)

Weight: 0.45 kg (0.99 lb)
GV ‐Mount606 In ‐Ceiling Mount



Dimensions: Ø 235 x 63 mm (Ø 9.3” x

2.5”)

In ‐ceiling hole: Ø 195 mm (Ø 7.67”)

Weight: 0.49 kg (1.1 lb)
GV ‐Mount704
(must be used with
GV ‐Mount107)
Extension Tube



Dimensions: Ø 3.5 x 10 or 20 or 30 or

50 cm (Ø 1.38 x 3.9 or 7.9 or 11.8 or

19.7”)

Weight: 225g or 360g or 500g or 780g

(0.5 lb or 0.79 lb or 1.1 lb or 1.72 lb)
GV ‐PA191

Power over Ethernet
(PoE) Adapter



GV ‐PA191 is a Power over Ethernet

(PoE) adapter designed to provide

power to the IP device through a single

Ethernet cable.

GV ‐ POE Switch
GV ‐POE Switch is designed to provide power along with network connection for IP

devices. The GV ‐POE Switch is available in various models with different numbers

and types of ports.

Power Adapter Contact our sales representatives for the countries and areas supported.
