GV-TVD4700

GV-TVD4700 June 23, 2020  - 1 -  GV-TVD4700 4MP H.265 Low Lux WDR IR Vandal Proof IP Dome        * 1/3” progressive scan low lux CMOS  * Min. illumination at 0.01 lux  * Triple streams from H.265, H.264 and MJPEG  * Up to 20 fps at 2592 x 1520  * Intelligent IR  * IR distance up to 30 m (100 ft)  * Day and Night function (with removable IR ‐cut filter )  * Vandal resistance (IK10 for metal casing)  * Ingress protection (IP67)  * 3 ‐axis mechanism (pan / tilt / rotate)  * DC 12V ...

Warranty: 24 mon.

Datasheet

Text contents of PDF datasheet:

GV-TVD4700 June 23, 2020
- 1 -

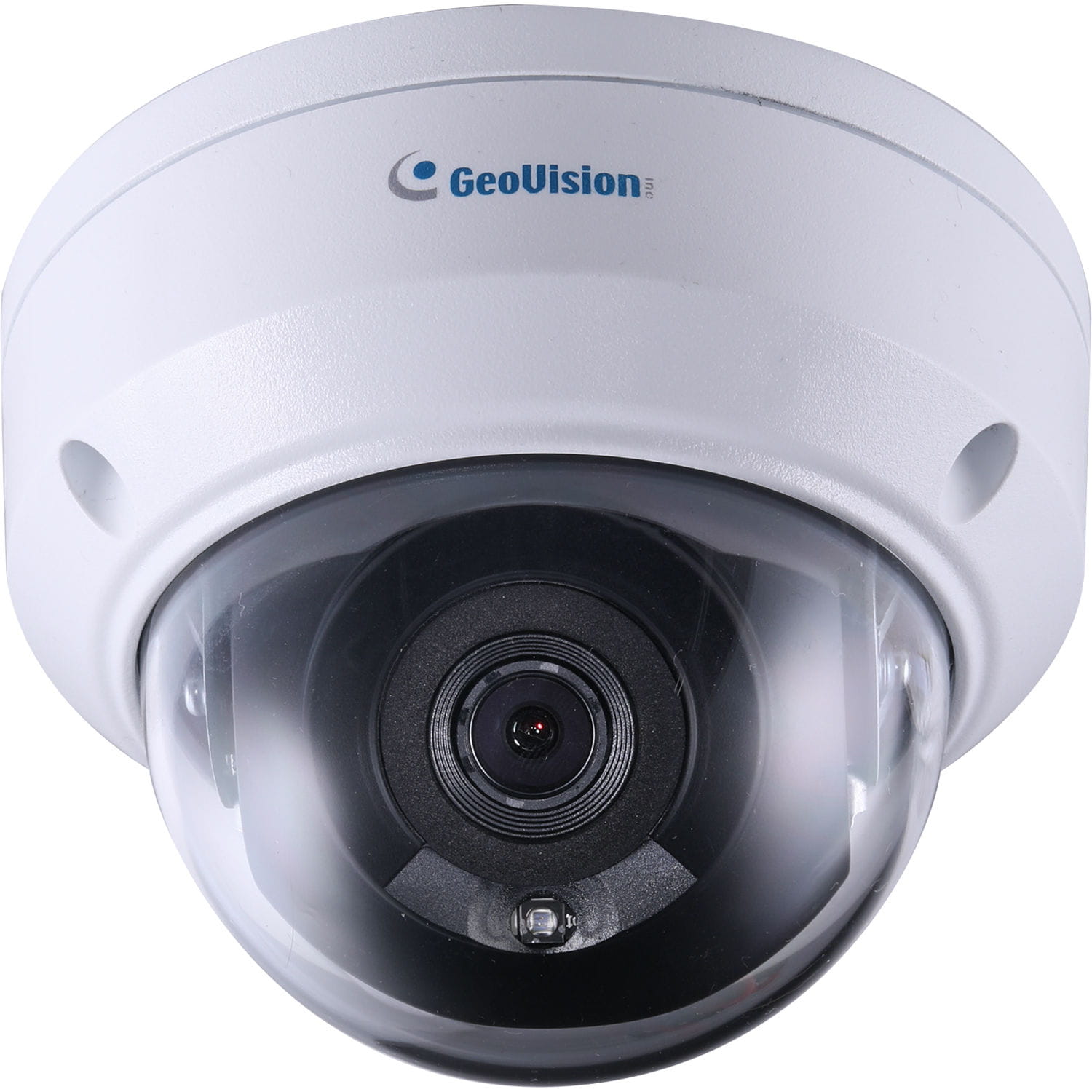

GV-TVD4700 4MP H.265 Low Lux WDR IR Vandal Proof IP Dome



* 1/3” progressive scan low lux CMOS
* Min. illumination at 0.01 lux
* Triple streams from H.265, H.264 and MJPEG
* Up to 20 fps at 2592 x 1520
* Intelligent IR
* IR distance up to 30 m (100 ft)
* Day and Night function (with removable IR ‐cut filter )
* Vandal resistance (IK10 for metal casing)
* Ingress protection (IP67)
* 3 ‐axis mechanism (pan / tilt / rotate)
* DC 12V / PoE (IEEE 802.3af)
* Built ‐ in micro SD card slot (SD / SDHC / SDXC / UHS ‐ I, Class 10)
for local storage
* Wide Dynamic Range
* Defog
* 3D noise reduction
* Motion detection
* Text overlay
* Privacy mask
* Tampering Alarm
* ONVIF (Profile G, S, T) conformant


Introduction
The Vandal Proof IP Dome is an outdoor camera designed with IK10 vandal resistance and IP67 ingress protection. GV ‐TVD4700
supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network
bandwidths. The camera is equipped with an automatic IR ‐cut filter and IR LEDs fo r day and night surveillance. Adjustable in 3 axes
(pan, tilt and rotate), it offers an entry ‐level surveillance solution with all the essential features and excellent image quality.

Active Tampering Alarm
Tampered Focus Change Camera Shift





GV-TVD4700 June 23, 2020
- 2 -
Dimensions




Specifications
Camera

Image Sensor 1/3” progressive scan low lux CMOS

Picture Elements 2592(H) x 1520 (V)

Color 0.01 Lux (F1.6, AGC ON)

Minimum
Illumination
IR On 0 Lux

Shutter Speed Automatic, Manual (1/25 ~ 1/100000 sec)

White Balance Automatic, Manual

Gain Control Automatic, Manual

S/N Ratio 52 dB

WDR Yes

Dynamic Range Up to 72 dB

Lens

Megapixel 4 MP

Day/Night Yes (with removable IR ‐cut filter)

Focal Length 2.8 ~ 12 mm

Lens Type Varifocal lens

Maximum Aperture F/1.6

Mount Ø14 mm

Horizontal FOV 97° ~ 29°

Focus Manual (w/ lock)

Zoom Manual (w/ lock)

Operation
Iris Fixed

IR LED Quantity 2 IR LEDs

Max. IR Distance 30 m (100 ft)

Operation

Video Compression H.265, H.264, MJPEG

Video Streaming Triple streams

Frame Rate
20 fps at 2592 x 1520 (60 / 50 Hz)
* The frame rate and the performance may vary depending on the number of connections
and data bitrates (different scenes).

Video Analytics Motion Detection, Tampering Alarm, Intrusion, Human Body Detection

Image Setting
Brightness, Contrast, Saturation, Sharpness, Flicker ‐less, 3D Noise Reduction, Image
Orientation, Exposure Mode, Shutter Speed, Gain Control, Slow Shutter, Backlight
Compensation (BLC), Metering Control, D/N Sensitivity, WDR, Smart Illumination, White
Balance, Defog


GV-TVD4700 June 23, 2020
- 3 -
Note:
1. Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
2. Specifications are subject to change without notice.


Packing List
1. IR Vandal Proof Dome
2. Waterproof Rubber Set
3. Screw Kit
4. Drill Template Paster
5. Torx Wrench
6. Download Guide
7. Warranty Card
Note: Power adapters can be purchased upon request.




Video Resolution
Main Stream 2592 x 1520 (Default), 2048 x 1520, 1920 x 1080

Sub Stream 1920 x 1080, 1280 x 720, 720 x 576, 704 x 288, 640 x 360 (Default), 352 x 288

Video Resolution
Third Stream
(Closed by
Default)
720 x 576, 704 x 288, 640 x 360, 352 x 288

Network

Interface 10/100 Ethernet

Ethernet Protocol
ARP, DHCP, DDNS, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, NTP, PPPoE, QoS,
RTCP, RTP, RTSP, SMTP, SNMP, TCP, UDP, UPnP, ONVIF (Profile G, S, T)

Mechanical

Pan 0 ~ 360°

Tilt 0 ~ 80°

Camera Angle
Adjustment
Rotate 0 ~ 360°

Power DC Jack (DC 12V, 1A), PoE (IEEE802.3af)

Ethernet RJ ‐ 45

Connectors
Local Storage
Micro SD card slot (SD / SDHC / SDXC / UHS ‐ I, Class 10)
* UHS ‐ II card type is not supported.

General

Environment Temperature ‐ 40 ~ 60°C ( ‐ 40 ~ 140°F)

Humidity 0 ~ 95% (no condensation)

Power Source 12 V DC / PoE (IEEE 802.3af)

Max. Power Consumption 7 W

Dimension Ø148 x 111.3 mm (Ø5.8 x 4.4”)

Weight 0.92 kg (2 lb)

Ingress Protection IP67

Vandal Resistance IK10 for metal casing

Regulatory CE, FCC, RoHS compliant

Web Interface

Installation Management Web ‐based configuration

Maintenance Firmware upgrade through Web Browser or Utility

Access from Web Browser
Live View, Video Recording, Change Video Quality, Bandwidth Control, Image
Snapshot, Text Overlay, Image Masking

Language Czech, English, French, German, Italian, Russian, Traditional Chinese

Applications

Network Storage
GV ‐ VMS (V17.3.0 / V18.1.1), GV ‐ DVR / NVR (V8.8), GV ‐Control Center (V3.7.0),
GV ‐Recording Server / Video Gateway (V1.4.2), GV ‐Edge Recording Manager Win version
(V1.4.0), GV ‐Redundant / Failover Server (V1.1.0.0)
*It is required to apply patch files to all the supported software.

Smart Device Access GV ‐ Eye for iOS and Android

Live Viewing Browser (IE, Edge, Chrome, Safari, Firefox), Mobile App


GV-TVD4700 June 23, 2020
- 4 -
Accessories
Model No. Name
Details
GV ‐Mount107
(must be used with
GV ‐Mount212 ‐ 2)
Pendant Bracket



Dimensions: Ø 120 x 334 mm ( Ø 4.72”

x 13.15”)

Weight: 0.74 kg (1.63 lb)
GV ‐Mount211 ‐ 2 Wall Mount and
Junction Box



Dimensions: Ø 253 x125 x 125 mm (Ø

10 x 4.9 x 4.9”)

Weight: 0.92 kg (2.02 lb)
GV ‐Mount212 ‐ 2 Wall Box Mount



Dimensions: Ø145 x 40 mm (Ø 5.7 x

1.6”)

Weight: 0.24 kg (0.5 lb)
GV ‐Mount300 ‐ 2 Convex Corner
Mount



Dimensions: 137 x 233 x 160 mm (5.4”

x 9.17” x 6.3”)

Weight: 1.65 kg (3.64 lb)
GV ‐Mount310 ‐ 2 Concave Corner
Mount



Dimensions: 111.2 x 369.9 x 210 mm

(2.6” x 11.4” x 6.6”)

Weight: 1.65 kg (3.64 lb)
GV ‐Mount420
(must be used with
GV ‐Mount211 ‐ 2)
Pole Mount Bracket



Dimensions: Ø120 x 120 x 53.4 mm (Ø

4.7 x 4.7 x 2.1”)

Steel Strap Diameter: Ø 67 ~ 127 mm

(Ø 2.6” ~ 5”)

Weight: 0.45 kg (0.99 lb)
GV ‐Mount606 In ‐Ceiling Mount



Dimensions: Ø 235 x 63 mm (Ø 9.3” x

2.5”)

In ‐ceiling hole: Ø 195 mm (Ø 7.67”)

Weight: 0.49 kg (1.1 lb)
GV ‐Mount704
(must be used with
GV ‐Mount107)
Extension Tube



Dimensions: Ø 3.5 x 10 or 20 or 30 or

50 cm (Ø 1.38 x 3.9 or 7.9 or 11.8 or

19.7”)

Weight: 225g or 360g or 500g or 780g

(0.5 lb or 0.79 lb or 1.1 lb or 1.72 lb)
GV ‐PA191

Power over Ethernet
(PoE) Adapter



GV ‐PA191 is a Power over Ethernet

(PoE) adapter designed to provide

power to the IP device through a single

Ethernet cable.

GV ‐ POE Switch
GV ‐POE Switch is designed to provide power along with network connection for IP

devices. The GV ‐POE Switch is available in various models with different numbers

and types of ports.

Power Adapter Contact our sales representatives for the countries and areas supported.
