GV-TMEB5800

Availability: 51-100

Price: €1,349.47 1349.47

excl. 23.00% TAX, excl. shipping costs

quantity szt.

product unavailable

add to wish list

Vendor:

Product code: 84-TMEB58W-0010

ask about product or pricing

Description

Warranty: 24 mon.

Datasheet

Text contents of PDF datasheet:

GV-EBD4813
- 1 -

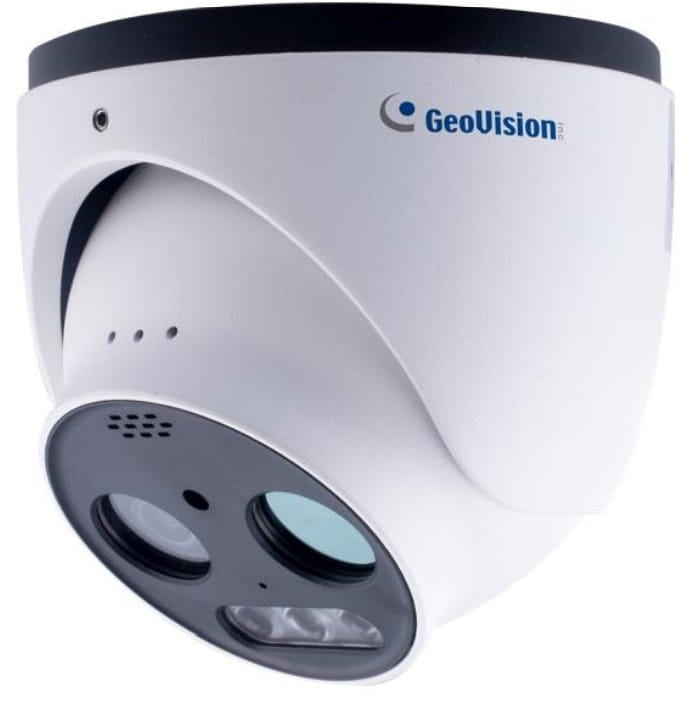

GV-TMEB5800 AI 5MP H.265 Super Low Lux WDR Pro Thermal & Optical
Eyeball Dome IP Camera

[Thermal]
• Vanadium oxide uncooled focal plane detector, 12 um pixel size
• Thermal sensitivity: ≤50 mK (@25°C, F#=1.0)
• Spectral range: 8 ~ 14 um
• Up to 30 fps at 256 x 192
• Up to 80 m (260 ft) detection range for human targets and 230 m(750
ft) for vehicles
• Up to 25 m (80 ft) recognition range for human targets and 55 m (180
ft) for vehicles
• Smart settings (fire detection, temperature exception alarm, line
crossing, region intrusion)
[Optical]
• 1/2.7" progressive scan CMOS sensor
• Min. illumination at 0.02 lux
• Up to 30 fps at 2592 x 1994
• Intelligent IR
• IR distance up to 30 m (100 ft)
• Day and night function (with removable IR-cut filter)
• Wide Dynamic Range Pro (WDR Pro)
• Defog
• 3D noise reduction

• Triple streams from H.265, H.264 or MJPEG
• Built-in microphone and speaker
• Built-in micro SD card slot (SD / SDHC / SDXC / UHS-I) for local storage
• 3-axis mechanism (pan / tilt / rotate)
• Ingress protection (IP66)
• DC 12V / PoE (IEEE 802.3af)
• Smart settings (intrusion, cross line, target counting (human/vehicle
classification), scene change detection, video exception detection, face
detection, face capture)
• Motion detection
• Text overlay
• Privacy mask
• 13 languages supported
• ONVIF (Profile S) conformant

Deep Learning Function
Face Detection

AI Perimeter Protection
(Intrusion, Cross Line
Enter Area, Leave Area)
People Counting

GV-EBD4813
- 2 -

Fire Detection

Temperature Exception Alarm

[待新增圖示] [待新增圖示]

Dimensions

Specifications

Camera - Thermal
Image Sensor Vanadium oxide uncooled focal plane detector
Picture Elements 256 (H) x 192 (V)
Pixel Size 12 um
Thermal Sensitivity ≤50 mK (@25°C, F#=1.0)
Spectral Range 8 ~ 14 um
Gain Control Auto, Manual
Focal Length 3.2 mm
Maximum Aperture F/1.1
Horizontal FOV 56°
Min. Focusing Distance 0.5 m (1.5 ft)
Color Palettes Black hot, White hot, Iron Oxide Red, Rain Bow, Lava
Camera - Optical
Image Sensor 1/2.7” progressive scan CMOS
Picture Elements 2592 (H) x 1944 (V)
Minimum
Illumination
Color 0.02 Lux (F1.6, AGC ON)
IR On 0 Lux
Shutter Speed Auto / Manual (1/3 ~ 1/100000 sec)
White Balance Auto / Manual
Gain control Auto / Manual
S/N Ratio 50 dB

GV-EBD4813
- 3 -
WDR WDR Pro
Dynamic Range Up to 120 dB
Megapixel 5MP
Day / Night Yes (with removable IR-cut filter)
Lens Type Fixed
Focal Length 4 mm
Maximum Aperture F/1.6
Mount M12
Horizontal FOV 81°
Operation
Focus
Fixed Zoom
Iris
IR LED Quantity 2 IR LEDs
Max. IR Distance 30 m (100 ft)
Operation
Video Compression H.265, H.264, MJPEG
Video Stream Triple streams
Frame Rate
Thermal 30 fps at 1280 x 720 (60 / 50 Hz)
Optical
30 fps at 2592 x 1944, 30 fps at 2592 x 1520, 30 fps at 2560 x 1440, 30 fps at 2304 x
1296, 30 fps at 1920 x 1080, 30 fps at 1280 x 720, 30 fps at 704 x 480, 30 fps at 352 x
240, 30 fps at 480 x 240 (60 / 50 Hz)
* The frame rate and performance may vary depending on the number of connections
and data bitrates (different scenes).
Video Analytics Motion Detection
Smart Alarm Motion Detection, SD Card Error, SD Card Full, IP Address Conflict, Cable Disconnection
Image Setting
Brightness, Contrast, Saturation, Sharpness, Flicker-less, 3D Noise Reduction, Image
Orientation (Flip, Mirror, 0°, 90°, 180°, 270°).
Noise Reduction Yes
Audio Compression G.711
Audio Support Two‐way Audio (Built-in microphone and speaker)
Digital I/O
Input 1 Input, dry contact, NO / NC
Output 1 Relay Output(1A 30V DC / 0.3A 125V AC)
Video Resolution
Thermal 256 x 192
Main Stream 2592 x 1944, 2592 x 1520, 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720
Sub Stream 1280 720, 704 x 480, 352 x 240
Third Stream
(Closed by Default)
704 x 480, 352 x 240, 480 x 240
Network

GV-EBD4813
- 4 -
Interface 10/100 Ethernet
Protocol
UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, PPPoE, DDNS, SMTP, FTP,SNMP,HTTP,
802.1x, UPnP, HTTPs, QoS, ONVIF
Observation Range
Detection
Human(1.8 x 0.5 m) 80 m (260 ft)
Car(1.4 x 4.0 m) 230 m (750 ft)
Recognition
Human(1.8 x 0.5 m) 25 m (80 ft)
Car(1.4 x 4.0 m) 55 m (180 ft)
Identification
Human(1.8 x 0.5 m) 10 m (30 ft)
Car(1.4 x 4.0 m) 30 m (95 ft)
Deep Learning Function
AI Perimeter
Protection
Thermal Fire Detection, Temperature Exception Alarm, Line Crossing, Region Intrusion
Optical
Region Intrusion, Line Crossing, Region Entrance, Region Exiting, Target Counting,
(Human & Vehicle classification), Face Detection, Face Capture
Video Exception Detection (Scene Change, Video Blue, Video Cast Detection)
Mechanical
Camera Angle
Adjustment
Pan 0° ~ 360°
Tilt 0° ~ 75°
Rotate 0° ~ 360°
Connectors
Power DC 12V, PoE (IEEE 802.3af)
Ethernet RJ‐45 cable
Audio
1 In (Audio In Wire)
1 In (built‐in microphone)
1 Out (built‐in speaker)
Digital I/O 4-pin terminal block pitch 3.81 mm (0.15”)
Local Storage
Micro SD card slot (SD / SDHC / SDXC / UHS-I, Class 10)
* UHS-II card type is not supported.
General
Environment Temperature -30°C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 0 ~ 95% (no condensation)
Power Source 12V DC / PoE (IEEE 802.3af)
Max. Power Consumption 9 W
Dimensions Ø111.5 x 99.6 mm (Ø4.39” x 3.92”)
Weight (with rack) 0.68 kg (1.5 lb)
Ingress Protection IP66
Regulatory CE, FCC, LVD, RoHS compliant
Web Interface
Installation Management Web-based configuration
Maintenance Firmware upgrade through Web Browser or Utility

GV-EBD4813
- 5 -
Access from Web Browser
Live View, Playback, Video Recording, Image Quality, Bandwidth Control, Image
Snapshot, Two‐way Audio, Digital Zoom, Text Overlay, Image Masking, Intelligent
Mark, Cross Line, Intrusion
Language
Czech, English, German, Hungarian, Italian, Persian, Polish, Romanian, Russian,
Spanish, Traditional Chinese, Turkish, Portuguese
