GV-TDR2705 April 16, 2024
- 1 -

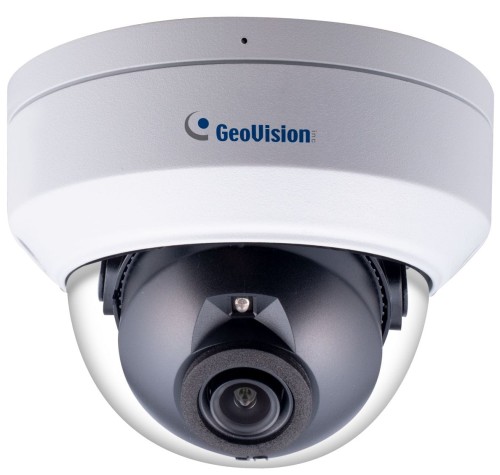

GV-TDR2705 2MP H.265 Low Lux WDR Pro IR Mini Fixed Rugged IP Dome



• 1/2.7" progressive scan CMOS sensor
• Min. illumination at 0.01 lux
• Dual streams from H.265, H.264 or MJPEG
• Up to 30 fps at 1920 x 1080
• Intelligent IR
• IR distance up to 30 m (100 ft)
• Built-in microphone
• Built‐in micro SD card slot (SD / SDHC / SDXC / UHS‐I, Class 10)
for local storage
• 3‐axis mechanism (pan / tilt / rotate)
• Day and night function (with removable IR-cut filter)
• Ingress protection (IP67)
• Vandal Resistance (IK10 for metal casing)
• DC 12V / PoE (IEEE 802.3af)
• Wide Dynamic Range (WDR Pro)
• Defog
• 3D noise reduction
• Motion detection
• Tampering alarm
• Text overlay
• Privacy mask
• 12 languages supported
• ONVIF (Profile G, S, T) conformant


Introduction
The Mini Fixed Rugged IP Dome is an outdoor, fixed, network camera equipped with an automatic IR-cut filter and an IR LED for day
and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality
pictures at reduced network bandwidths. It adheres to IP67 and IK10 standards, and can be powered through PoE.

Dimensions







GV-TDR2705 April 16, 2024
- 2 -
Specifications
Camera GV-TDR2705-2F
Image Sensor 1/2.7" progressive scan CMOS
Picture Elements 1920 (H) x 1080 (V)
Minimum
Illumination
Color 0.01 Lux (F2.0, AGC ON)
IR ON 0 Lux
Shutter Speed Auto / Manual (1 ~ 1/100,000 sec)
White Balance Auto / Manual
Gain Control Auto / Manual
S/N Ratio Up to 52 dB
WDR Pro Yes
Dynamic Range 120 dB
Lens
Megapixel 2 MP
Day / Night Yes (with removable IR-cut filter)
Lens Type Fixed
Focal Length 2.8 mm
Maximum Aperture F/2.0
Mount Ø 12 mm
Horizontal FOV 112.9°
Operation
Focus
Fixed Zoom
Iris
IR LED Quantity 1 IR LED
Max. IR Distance 30 m (100 ft)
DORI Detect Observe Recognize Identify
Lens 2.8 mm 42 m (137.7 ft) 16.8 m (51.1 ft) 8.4 m (27.5 ft) 4.2 m (13.7 ft)
Operation
Video Compression H.265, H.264, MJPEG
Video Streaming Dual streams from H.265, H.264 or MJPEG
Video Resolution
Main Stream 1920 x 1080 (Default), 1280 x720
Sub Stream 1280 x 720, 720 x 576, 640 x 480, 640 x 360 (Default)
Frame Rate
30 fps at 1920 x 1080 (60 / 50 Hz)
*The frame rate and performance may vary depending on the number of connections
and data bitrates (different scenes).
Video Analytics
Motion Detection, Tampering Alarm, Audio Detection, Cross Line, Intrusion
*Tampering Alarm, Audio Detection, Cross Line, Intrusion are only accessible through
the camera’s Web interface, which can be used to trigger alerts such as e‐mail and FTP.
Image Setting
Brightness, Saturation, Contrast, Sharpness, Flicker-less, Image Orientation (Flip, Mirror,
0°, 90°, 180°, 270°-including Corridor format)
Audio Compression G.711
Audio Support One‐way audio
Network
Interface 10/100 Ethernet
Protocol
ARP, DHCP, DDNS, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, NTP, QoS, RTCP,
RTP, RTSP, SMTP, SNMP, TCP, UDP, UPnP, ONVIF (Profile G, S, T)
Mechanical
Camera Angle
Adjustment
Pan 3° ~ 360°
Tilt 0° ~ 68°
Rotate 3° ~ 360
Connectors
Power DC Jack (DC 12 V, 1.25 A), PoE
Ethernet RJ-45 connector
Audio
Built-in microphone Yes
External microphone required No
Built-in speaker No
External speaker required No




GV-TDR2705 April 16, 2024
- 3 -
Connectors Local Storage
Micro SD card slot (SD / SDHC / SDXC / UHS‐I, Class 10)
*UHS‐II card type is not supported.
General
Operating Temperature -30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 0% ~ 95% (no condensation)
Power Source 1.25A 12V DC / PoE (IEEE802.3af)
Max. Power Consumption 5.0 W
Dimensions Ø 109 x 83 mm (Ø 4.3” x 3.3”)
Weight 0.36 kg (0.79 lb)
Ingress Protection IP67
Vandal Resistance IK10
Certification FCC, CE, RoHS, UL compliant
Web Interface
Installation Management Web-based configuration
Maintenance Firmware upgrade through Web Browser or GV‐IP Device Utility
Access from Web Browser
Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot,
Defog, Text Overlay, Image Masking
Language
Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese,
Russian, Spanish, Traditional Chinese
Applications
Software Supported
GV‐VMS (V17.4.7 / V18.3.2 or later), GV‐Control Center (V4.2.1, coming soon),
GV‐Recording Server / Video Gateway (V2.1.1 or later), GV‐Edge Recording Manager
Windows Version (V2.2.7 or later)
Smart Device Access GV-Eye for iOS / Android (V3.1.1) or later
Live Viewing Browser (IE, Edge, Chrome, Firefox), Mobile App

Note:
1. Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
2. Specifications are subject to change without notice.

Packing List
1. GV-TDR2705 Dome
2. Waterproof Rubber Set
3. Screw Kit
4. Torx Wrench
5. Drill Template Paster
6. Download Guide

Accessories
Model No. Name Details
GV-Mount107
(must be used with
GV-Mount213)
Pendant Bracket


Dimensions: Ø 120 x 334 mm
(Ø 4.72” x 13.15”)
Weight: 0.74 kg (1.63 lb)
GV-Mount211P Wall Mount and Junction
Box


Dimensions: Ø 233 x 125 x 125 mm
(Ø 9.2” x 4.9” x 4.9”)
Weight: 1 kg (2.2 lb)
GV-Mount213 Wall / Ceiling Box Mount


Dimensions: Ø 109 x 39 mm (Ø 4.3” x 1.5”)
Weight: 0.2 kg (0.44 lb)



GV-TDR2705 April 16, 2024
- 4 -
GV-Mount300-2 Convex Corner Mount


Dimensions: 137 x 233 x 160 mm
(5.4” x 9.17” x 6.3”)
Weight: 1.65 kg (3.64 lb)
GV-Mount310-2 Concave Corner Mount


Dimensions: 111.2 x 369.9 x 210 mm
(2.6” x 11.4” x 6.6”)
Weight: 1.65 kg (3.64 lb)
GV-Mount420
(must be used with
GV-Mount211P)
Pole Mount Bracket



Dimensions: Ø 120 x 120 x 53.4 mm
(Ø 4.7” x 4.7” x 2.1”)
Weight: 0.45 kg (0.99 lb)
Steel Strap Diameter: Ø 67 ~ 127 mm (Ø 2.6”
~ 5”)
GV-Mount704
(must be used with
GV-Mount107)
Extension Tube


Dimensions: Ø 3.5 x 10 or 20 or 30 or 50 cm
(Ø 1.38 x 3.9 or 7.9 or 11.8 or 19.7”)
Weight: 225g or 360g or 500g or 780g (0.5 lb
or 0.79 lb or 1.1 lb or 1.72 lb)
GV-Mount924
(for standard US single
and double gang boxes
only)
Power Box Mount Bracket


Dimensions: Ø 128 x 18.5 mm
(Ø 5” x 0.7”)
Weight: 0.15 kg (0.33 lb)
GV-PA301 Gigabit PoE Adapter


GV-PA301 is a Gigabit Power over Ethernet
(PoE) adapter.
GV-PA191 PoE Adapter


The GV-PA191 is a Power over Ethernet (PoE)
adapter designed to provide power to the IP
device through a single Ethernet cable.
GV-POE Switch The GV-POE Switch is designed to provide power along with network
connection for IP devices. The GV-POE Switch is available in various models
with different numbers and types of ports.
Power Adapter Contact our sales representatives for the countries and areas supported.
