GV-TDR2700
Description
GV-TDR2700 April 29, 2019 - 1 - GV-TDR2700 2MP H.265 Low Lux WDR Pro IR Mini Fixed Rugged IP Dome * 1/2.7" progressive scan low lux CMOS sensor * Triple streams from H.265, H.264 or MJPEG * Up to 30 fps at 1920 x 1080 * Intelligent IR * IR distance up to 30 m (98.4 ft) * Day and night function (with removable IR ‐cut filter) * Ingress protection (IP67) * Vandal Resistance (IK10) * Built ‐ in micro SD card slot (SD / SDHC / SDXC / UHS ‐ I, Class 10) for local storage * Two ‐way audio
Warranty: 24 mon.
Datasheet
Text contents of PDF datasheet:
GV-TDR2700 April 29, 2019
- 1 -

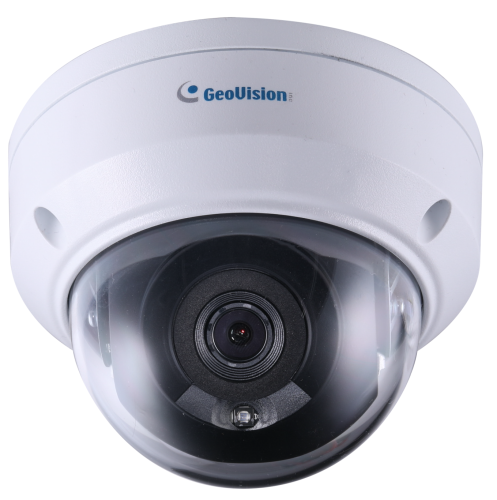

GV-TDR2700 2MP H.265 Low Lux WDR Pro IR Mini Fixed Rugged IP Dome
* 1/2.7" progressive scan low lux CMOS sensor
* Triple streams from H.265, H.264 or MJPEG
* Up to 30 fps at 1920 x 1080
* Intelligent IR
* IR distance up to 30 m (98.4 ft)
* Day and night function (with removable IR ‐cut filter)
* Ingress protection (IP67)
* Vandal Resistance (IK10)
* Built ‐ in micro SD card slot (SD / SDHC / SDXC / UHS ‐ I, Class
10) for local storage
* Two ‐way audio
* 1 sensor input and 1 alarm output
* DC 12V / PoE (IEEE 802.3af)
* Wide Dynamic Range Pro (WDR Pro)
* Defog
* 3D noise reduction
* Motion detection
* Text overlay
* Privacy mask
* ONVIF (Profile S) conformant
Introduction
The Mini Fixed Rugged IP Dome is an outdoor, fixed, network camera equipped with an automatic IR ‐cut filter and an IR LED for day
and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality
pictures at reduced network bandwidths. The camera adheres to IP67 and IK10 standards, and can be powered through PoE.
Dimensions
GV-TDR2700 April 29, 2019
- 2 -
Specifications
Camera
Image Sensor 1/2.7" progressive scan low lux CMOS
Picture Elements 1920 (H) x 1080 (V)
Color 0.03 Lux
Minimum
Illumination
IR ON 0 Lux
Shutter Speed Auto / Manual (1 ~ 1/100000 sec)
White Balance Auto / Manual
Gain Control Auto / Manual
S/N Ratio 52 dB
WDR Pro Yes
Dynamic Range 120 dB
Lens
Megapixel Yes
Day / Night Yes (with removable IR ‐cut filter)
Lens Type Fixed
Focal Length 2.8 mm
Maximum Aperture F/1.6
Mount M12
Horizontal FOV 111°
Focus Fixed
Zoom Fixed
Operation
Iris Fixed
IR LED Quantity 1 IR LED
Max. IR Distance 30 m (98.4 ft)
Operation
Video Compression H.265, H.264, MJPEG
Video Streaming Triple streams from H.265, H.264 or MJPEG
Main Stream 1920 x 1080 (Default), 1280 x 720
Sub Stream 1920 x 1080, 1280 x 720, 720 x 576(Default), 704 x 288, 640 x 360, 352 x 288
Video Resolution
Third Stream
(Closed by Default)
720 x 576, 704 x 288, 640 x 360, 352 x 288
Frame Rate
30 fps at 1920 x 1080 (60 / 50 Hz)
* The frame rate andperformance may vary depending on the number of connections
and data bitrates (different scenes).
Image Setting Brightness, Contrast, Saturation, Sharpness, Flicker ‐less, Image Orientation
Audio Compression G.711, AAC (optional)
Audio Support Two ‐way audio
Sensor Input 1 input
Alarm Output 1 digital output
Network
Interface 10/100 Ethernet
Protocol
DHCP, DNS, DynDNS, FTP, HTTP, HTTPS, IPv4, ICMP, NTP, PPPoE, RTP, RTCP, RTSP,
SNMP, SMTP, SSL, TCP/IP, UDP, ONVIF (Profile S)
Mechanical
Temperature Detector No
Pan 0° ~ 360°
Tilt 0° ~ 75°
Camera Angle
Adjustment
Rotate 0° ~ 360°
Power DC Jack (DC 12 V, 1.25 A), PoE
Ethernet RJ ‐ 45 connector
Audio
2 in (Audio In Wire); 1 out (Audio Out Wire)
*The Audio In port only support microphones with power supply.
Digital I/O I/O wires
Connectors
Local Storage
Micro SD card slot (SD / SDHC / SDXC / UHS ‐ I, Class 10)
*UHS‐ II card type is not supported.
GV-TDR2700 April 29, 2019
- 3 -
General
Operating Temperature ‐35°C ~ 60°C ( ‐31°F ~ 140°F)
Humidity 0% ~ 95% (no condensation)
Power Source 12 V DC / PoE (IEEE802.3af)
Max. Power Consumption 4 W
Dimensions Ø 108.5 x 81 mm (Ø4.28” x 3.2”)
Weight 0.45 kg (0.99 lb)
Ingress Protection IP67
Vandal Resistant IK10
Regulatory FCC, CE, RoHS compliant
Web Interface
Installation Management Web ‐based configuration
Maintenance Firmware upgrade through Web Browser or Utility
Access from Web Browser
Live View, Video Recording, Change Video Quality, Bandwidth Control, Image
Snapshot, Defog, Text Overlay, Image Masking
Language
Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese,
Russian, Spanish
Applications
Software Supported
GV ‐ DVR / NVR (V8.7.6), GV ‐VMS (V17.1.0.100), GV ‐Control Center (V3.5.1), GV ‐Edge
Recording Manager Win Version (V1.3.0.0), GV ‐Recording Server / Video Gateway
(V1.4.1), GV ‐Redundant / Failover Server (V1.1.0.0), GV ‐Mobile Server (V1.5.0.0)
Smart Device Access GV ‐ Eye for iOS and Android
Live Viewing Browser (IE, Firefox, Safari), Mobile App
Note:
1. It is required to apply patch files to all the supported software.
2. Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
3. Specifications are subject to change without notice.
Packing List
1. GV ‐TDR2700 IR Mini Fixed Rugged IP Dome
2. Waterproof Rubber Set
3. Screw Kit
4. Drill Template Paster
5. Download Guide
6. Warranty Card
Accessories
Model No. Name
Details
GV ‐Mount211P Wall Mount Bracket
Dimensions: 233 x 126 x 126
mm (9.2” x 5” x 5”)
Weight: 1 kg (2.2 lb)
GV ‐Mount213 Wall / Ceiling Box Mount
Dimensions: Ø 109 x 39 mm
(4.3” x 1.5”)
Weight: 0.2 kg (0.44 lb)
GV ‐Mount420
(must be used with
GV ‐Mount211P)
Pole Mount Bracket
Dimensions: Ø 120 x 120 x
53.4 mm (4.7” x 4.7” x 2.1”)
Weight: 0.45 kg (0.99 lb)
GV ‐PA191 Power over Ethernet
(PoE) Adapter
The GV ‐PA191 is a Power
over Ethernet (PoE) adapter
designed to provide power to
the IP device through a single
Ethernet cable.
GV-TDR2700 April 29, 2019
- 4 -
GV ‐ POE Switch The GV ‐ POE Switch is designed to provide power along with network
connection for IP devices. The GV ‐ POE Switch is available in various models
with different numbers and types of ports.
Power Adapter Contact our sales representatives for the countries and areas supported.
